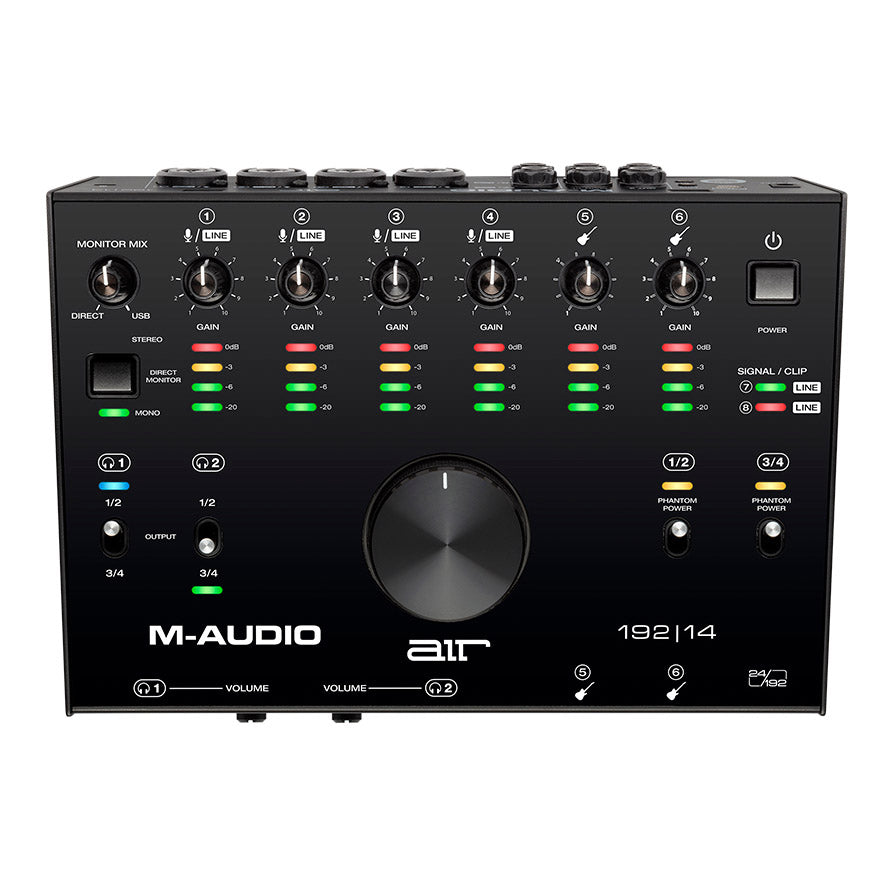

M-Audio AIR192|14 8-In/4-Out 24/192 USB Audio Interface
M-Audio AIR192|14 8-In/4-Out 24/192 USB Audio Interface
SoundPro Item: 84076 | Part Number: AIR192X14
Usually ships in 5-7 business days
- 24-bit/192kHz resolution for professional recording and monitoring
- Hi-Speed USB circuitry for fastest connection, with class-leading round-trip latency
- Transparent Crystal™ preamps and ultra-pristine A/D converters for unsurpassed audio recording quality
- VU LED meters for dialing in the perfect level
- (4) XLR+ 1/4" TRS combo inputs, (2) 1/4” instrument inputs and (2) 1/4" line inputs
- MIDI input/output for connecting virtually any external MIDI gear
- Stereo 1/4" with direct mono/stereo switch; (2) 1/4" assignable auxiliary outs
- (2) 1/4" headphone outputs with independent source and level controls
- USB/direct knob for balancing between the input signal and the computer signal
- Rugged metal chassis, large central contro for easy volume adjustment
The M-Audio AIR 192|14 is an 8-in 4-out feature-packed USB audio/MIDI interface that provides all of the connections and software you need to easily create professional 24-bit/192kHz studio-quality recordings. The AIR 192|14 features (4) XLR+1/4" TRS combo inputs, (2) 1/4" line inputs and (2) 1/4" instrument inputs that have a specially designed gain and impedance stage to provide the most accurate representation of your guitar or bass when plugged directly into the interface. There is also MIDI input and output connections so you can connect any external midi gear that you may have such as external sequencers, drum machines and controllers.
The AIR 192|14 comes complete with a software package that has everything to get you started making professional recordings right out of the box. With 2 powerful DAWs to suit your production needs, AIR 192|14 includes Pro Tools | First M-Audio Edition, and Ableton Live Lite. This amazing audio and MIDI recording software will inspire you to create, record and share your ideas across the world at any time.
- Frequency response20Hz - 20kHz
- Power adapter12VAC, 2A, center-positive
- Dimensions (WxDxH)10.2" x 7.3" x 3.6"
- Weight3.9 pounds (1.8 kg)
- Mic inputs 1-4 (balanced XLR)
- Dynamic range: 113dB (A-weighted)
- THD+N: 0.003%
- Preamp EIN: -137 dBu (40 Ω source, A-weighted) -129 dBu (150 Ω source, unweighted)
- Max input level: +14 dBu
- Gain range: 62dB
- Line inputs 1-4 (balanced 1/4" TRS)
- Dynamic range: 113dB (A-weighted)
- THD+N: 0.001% (1 kHz, +4 dBu, -1 dBFS)
- Max input level: +30 dBu
- Gain range: 61dB
- Inst inputs 5-6 (unbalanced 1/4" TS)
- Dynamic range: 110dB (A-weighted)
- THD+N: 0.001% (1 kHz, +4 dBu, -1 dBFS)
- Max input level: +16 dBu
- Input impedance: ~1 MΩ
- Gain range: 59dB
- Fixed line inputs 7-8 (balanced 1/4" TRS)
- Dynamic range: 113dB (A-weighted)
- THD+N: 0.001% (1 kHz, +4 dBu, -1 dBFS)
- Max input level: +17 dBu
- Line outputs 1-2 (balanced 1/4" TRS)
- Dynamic range: 112 dB (A-weighted)
- THD+N: 0.002% (1 kHz, -1 dBFS)
- Max output level: +17 dBu
- Fixed line outputs 3-4 (balanced 1/4" TRS)
- Dynamic range: 113 dB (A-weighted)
- THD+N: 0.002% (1 kHz, -1 dBFS)
- Max output level: +17 dBu
- Headphone outputs (stereo 1/4")
- Dynamic range: 111 dB (A-weighted, 32 Ω load)
- THD+N: 0.002% (1 kHz, -1 dBFS, 10 mW/channel into 32 Ω load)
- Max power delivered: 160mW (<1% THD, 32 Ω load)
- Max output level: +15 dBu (unloaded)
- Impedance range: 32 Ω – 600 Ω
