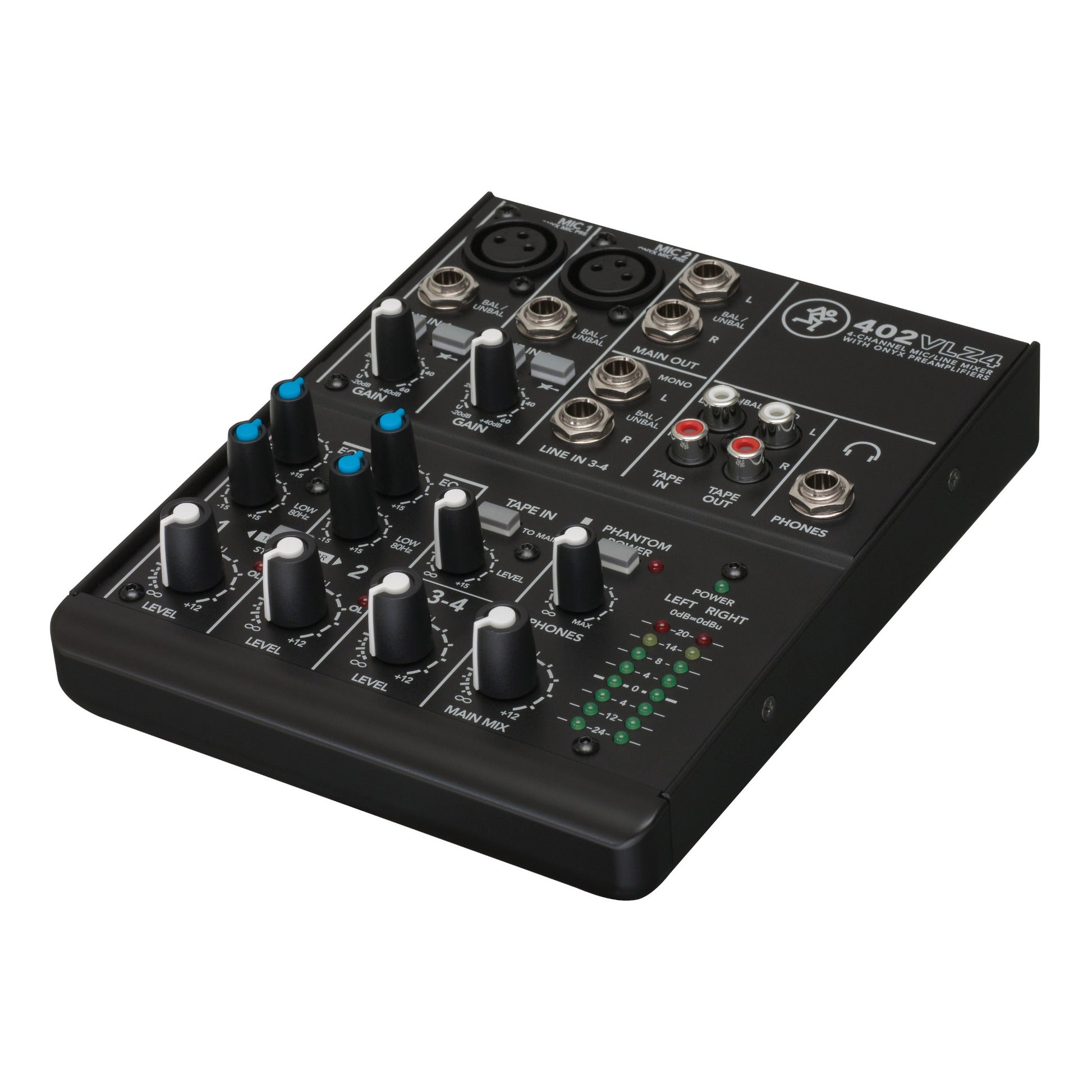

Mackie 402VLZ4 4-Channel Ultra-Compact Analog Mixer
Mackie 402VLZ4 4-Channel Ultra-Compact Analog Mixer
Soundpro Item: 12900 | Part Number: 402VLZ4
Usually ships in 5-7 business days
Couldn't load pickup availability
Mackie's VLZ4 series ups the level of sonic quality at every level, featuring Mackie's flagship Onyx mic preamps and premium components from front to back. The result is the most rock solid, the most easy to use and the best sounding compact mixer ever created.
VLZ4 delivers high-headroom/low-noise design, and built-like a tank construction. From every input to every output, VLZ4 is optimized to deliver professional-quality results each and every time.
Specifications
- Main mix noise
- All at 20Hz - 20kHz bandwidth, 1/4" main out, channels 1-2 gain @ unity, channel EQs flat, stereo-pan button in
- Main mix knob down, channel level knobs down: -103dBu
- Main mix knob @ unity, channel level knobs down: -98dBu
- Main mix knob @ unity, channel level knobs @ unity: -92dBu
- Signal to noise ratio: 102dB (ref +4dBu)
- THD 1kHz @ 35dB gain<0.005% (20Hz-80kHz bandwidth), <0.003% (20Hz-20kHz bandwidth)
- Attenuation / crosstalk
- All at 1kHz relative to 0dBu, 20Hz-20kHz bandwidth, line in, 1/4" main out, gain @ unity
- Main mix knob down: -70dBu
- Channel level knob down: -94dBu
- Frequency response (mic input to main output gain @ unity)
- +0, -1dB, 20Hz to 50kHz
- +0, -3dB, <10Hz to >100kHz
- EIN (mic in to main out, max gain)150Ω termination (-128.5dBu, 20Hz-20kHz)
- Common mode rejection ratio1kHz, better than -70dB
- Max levels
- Mic in: +21dBu
- Tape in: +24dBu
- All other outputs: +22dBu
- Impedances
- Mic in: 2.55kΩ
- Instrument input: 1MΩ
- All other inputs: 10kΩ or greater
- Tape out: 1kΩ
- Phones out: 60Ω
- All other outputs: 120Ω
- EQ
- High shelving: +/-15dB @12kHz
- Low shelving: +/-15dB @80kHz
- Power consumption8W
- AC power requirements100-120 VAC, 50-60Hz (US)
- External power supply AC connector2-pin IEC 250VAC
- External power supply (US)US adapter 18.5VAC x 2, 350 mA, US P/N 0028090-00
- Dimensions (HxDxW)7.3" x 1.6" x 5.8"
- Weight2.5 pounds (1.1 kg)
