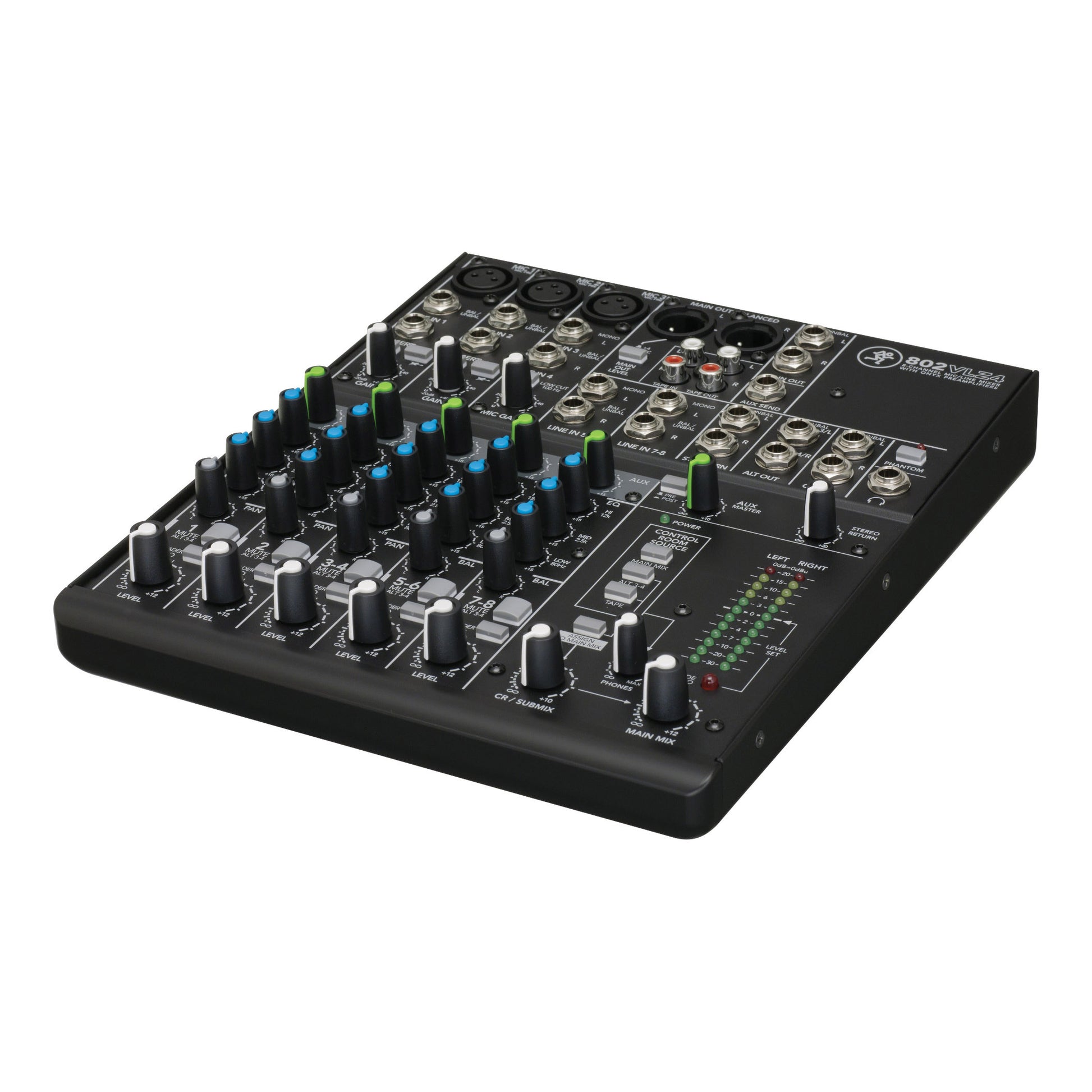

Mackie 802VLZ4 8-Channel Ultra-Compact Analog Mixer

Mackie 802VLZ4 8-Channel Ultra-Compact Analog Mixer

SoundPro Item: 13080 | Part Number: 802VLZ4

$219.99
$219.99 $219.99
Your Price Sold out
MSRP: $219.99 | MAP: $219.99

Usually ships in 5-7 business days

  • 8-channel mixer with Mackie's signature high-headroom, low-noise design
  • 3 boutique-quality Onyx mic preamps
  • Improved RF rejection perfect for broadcast applications
  • Phantom power for condenser mics
  • 8 high-headroom line inputs
  • Selectable instrument inputs on first two channels - no DI box needed
  • 3-band EQ (80Hz, 2.5 kHz, 12kHz)
  • 18 dB/oct 100Hz low-cut filter on mic input channels
  • Aux send, level, pan and PFL solo on each channel
  • ALT 3/4 stereo bus for added routing flexibility
  • Control room / phones source matrix
  • High-resolution 12-segment stereo meters
  • Sealed rotary controls resist dust and grime
  • "Built-Like-A-Tank" rugged steel chassis with powder-coat finish
  • High-visibility, high contrast controls deliver convenient "at-a-glance" visual feedback
Log in or register for YOUR best price

The VLZ4 ups the level of sonic quality at every level, featuring Mackie's flagship Onyx mic preamps and premium components from front to back. The result is the most rock solid, the most easy to use and the best sounding compact mixer ever created. Featuring Mackie's flagship Onyx mic preamps, the comprehensive VLZ4 line delivers the proven feature set, high-headroom/low-noise design and "Built-Like-A-Tank" construction that Mackie is known for.

The 8-channel 802VLZ4 brings the proven performance of Onyx preamps in a desk-friendly, ultra-compact design, perfect for professional applications with a lower input need.

From every input to every output, the 802VLZ4 is designed to provide the highest headroom and lowest noise possible for maximum signal integrity. Plus, it has a rugged solid-steel chassis and high-contrast controls for ultimate tactile control.

With features like instrument level inputs, phantom power and level metering, the 802VLZ4 offers a true step-up performance and durability ideal for professional use.

View full details
  • Main Mix Noise
    • 20Hz - 20kHz bandwidth, channels 1-3 gain @ unity, channel EQs flat, all channels assigned to main mix, channel 1 panned left, 2 panned right, 3-8 centered
    • Main Mix Knob Down, Channel Level Knobs Down
      • XLR: -95dBu
      • TRS: -96dBu
    • Main Mix Knob @ Unity, Channel Level Knobs Down
      • XLR: -90dBu
      • TRS: -96dBu
    • Main Mix Knob @ Unity, Channel Level Knobs @ Unity
      • XLR: -84dBu
      • TRS: -90dBu
  • THD (mic pre @ insert)<0.001%
  • Attenuation / Crosstalk
    • 1kHz relative to 0dBu, 20Hz - 20kHz bandwidth, line in, 1/4" main out, gain @ unity
    • Main Mix Knob Down: -75 dBu
    • Channel Alt / Mute Switch Engaged: -100 dBu
    • Channel Level Knob Down: -100 dBu
  • Frequency Response
    • Mic input to main output (gain @ unity)
    • +0, -1 dB, 20Hz to 20kHz
    • +0, -3 dB, <10Hz to >100kHz
  • EIN (mic input to insert send out, max gain)150Ω termination: -128.5dBu 20Hz - 20kHz
  • CMRR (1kHz)better than -70 dB
  • Max. Levels
    • Mic In: +21 dBu
    • Tape In: +22 dBu
    • All Other Inputs: +22 dBu
    • Main Mix XLR Out: +28 dBu
    • All Other Outputs: +22 dBu
  • Impedances
    • Mic In: 2.55 kΩ
    • Channel Insert Return: 5 kΩ
    • All Other Inputs: 17 kΩ or greater
    • Tape Out: 1 kΩ
    • Phones Out: 60 Ω
    • All Other Outputs: 120 Ω
  • EQ
    • High Shelving: ±15 dB @ 12kHz
    • Mid Peaking: ±15 dB @ 2.5kHz
    • Low Shelving: ±15 dB @ 80Hz
  • AC Power Requirements
    • Power Consumption: 13 watts
    • US, JP: 100-120VAC, 50-60Hz
    • External Power Supply AC Connector: 2-pin IEC 250VAC
  • Operating Temperature32°F to 104°F (0°C to 40°C)
  • Dimensions (HxDxW)10.7" x 1.8" x 8.9"
  • Weight (with power supply)5.5 pounds
