LD Systems MAILA Compact Line Array System | 7.5 kW

LD Systems MAILA Compact Line Array System | 7.5 kW

SoundPro Item: 204616 | Part Number: LDS-MAILAS

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • 7.6 KW RMS Output For High-Impact Event Coverage
  • Scalable Stereo MAILA System For Flexible Deployment
  • App Control Supports Fast System Adjustment
  • 2x15" Bandpass Subs Deliver Strong Low-End Output
  • 100° Horizontal Coverage Helps Even Audience Coverage
  • Included Speaker Poles Simplify Ground Stack Setup
Log in or register for YOUR best price

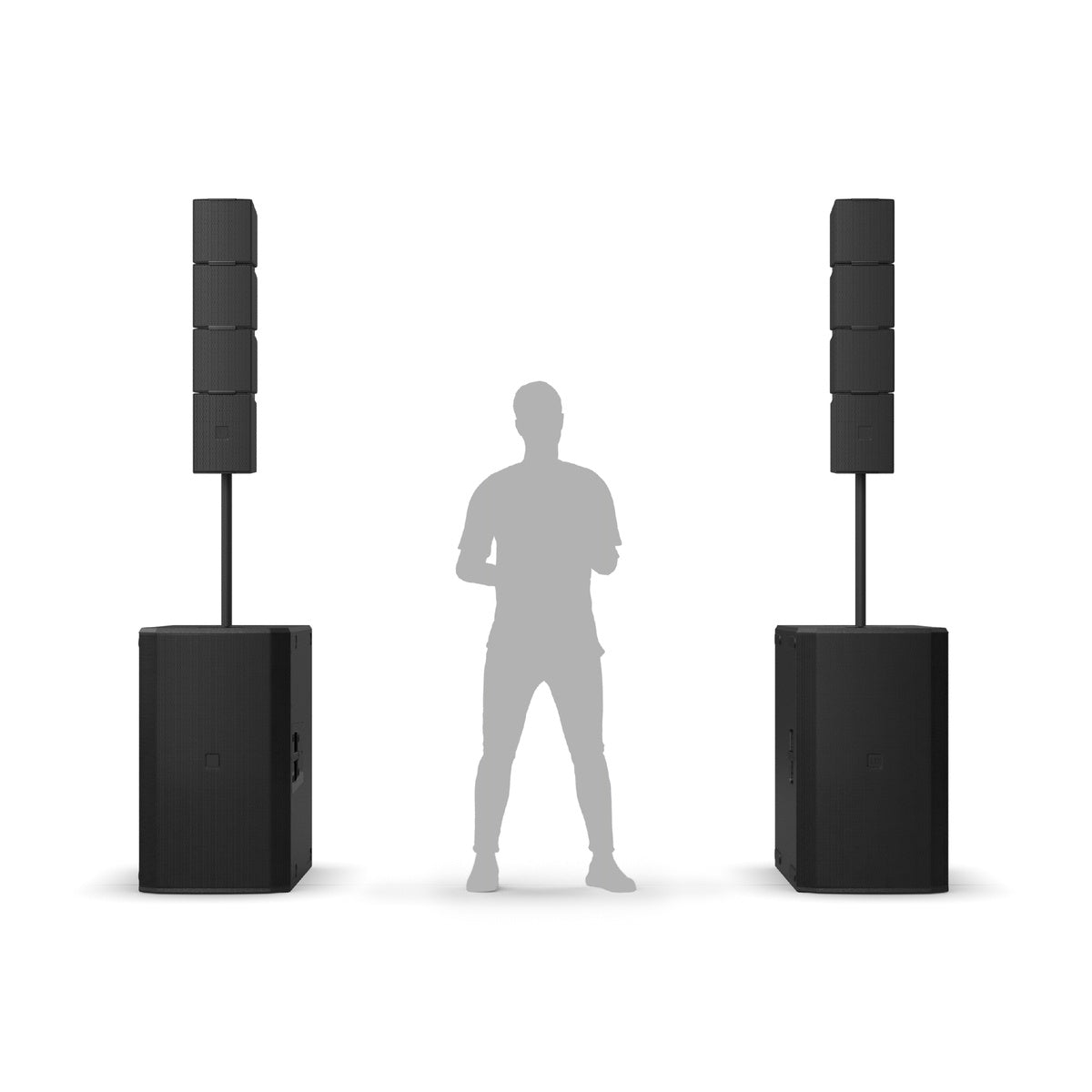

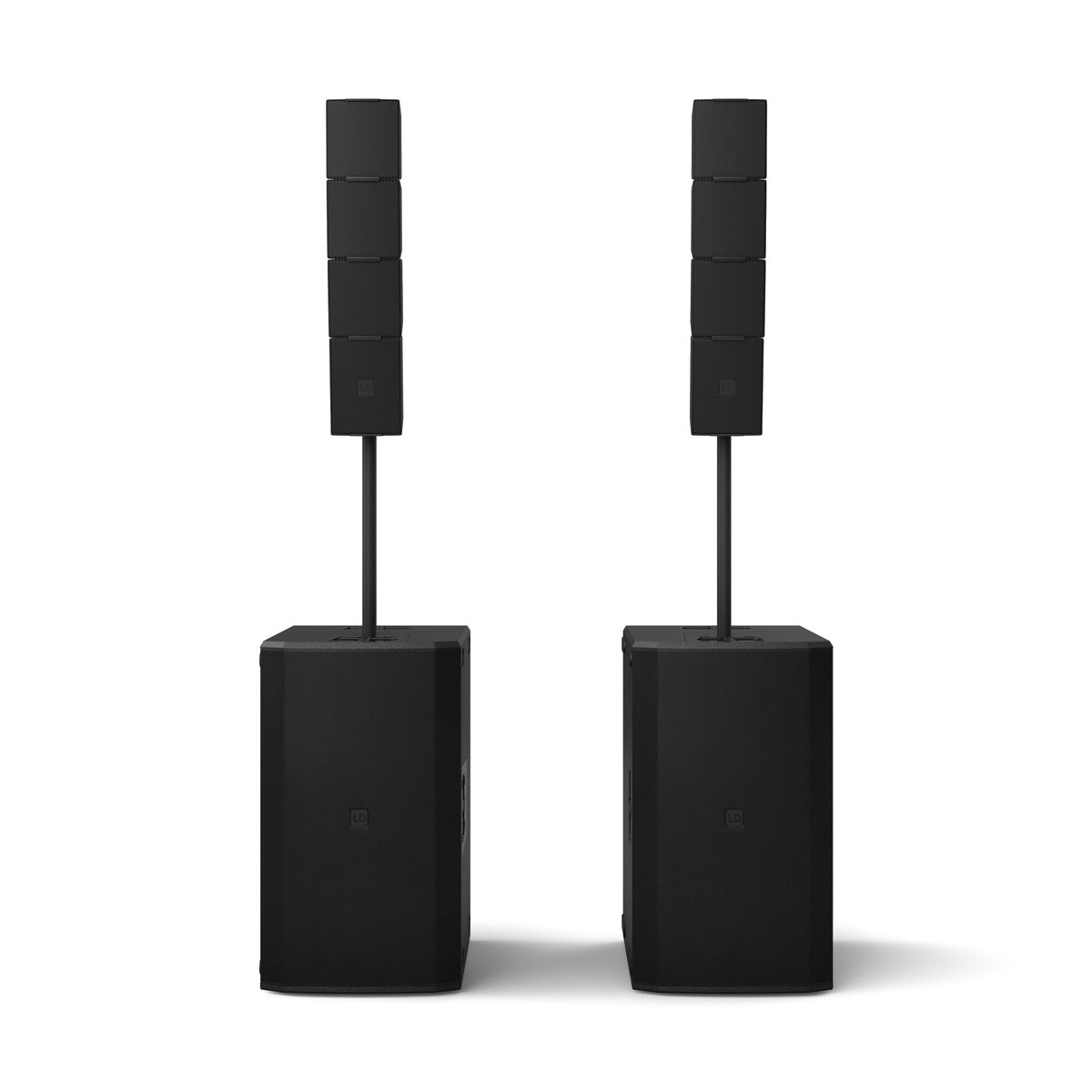

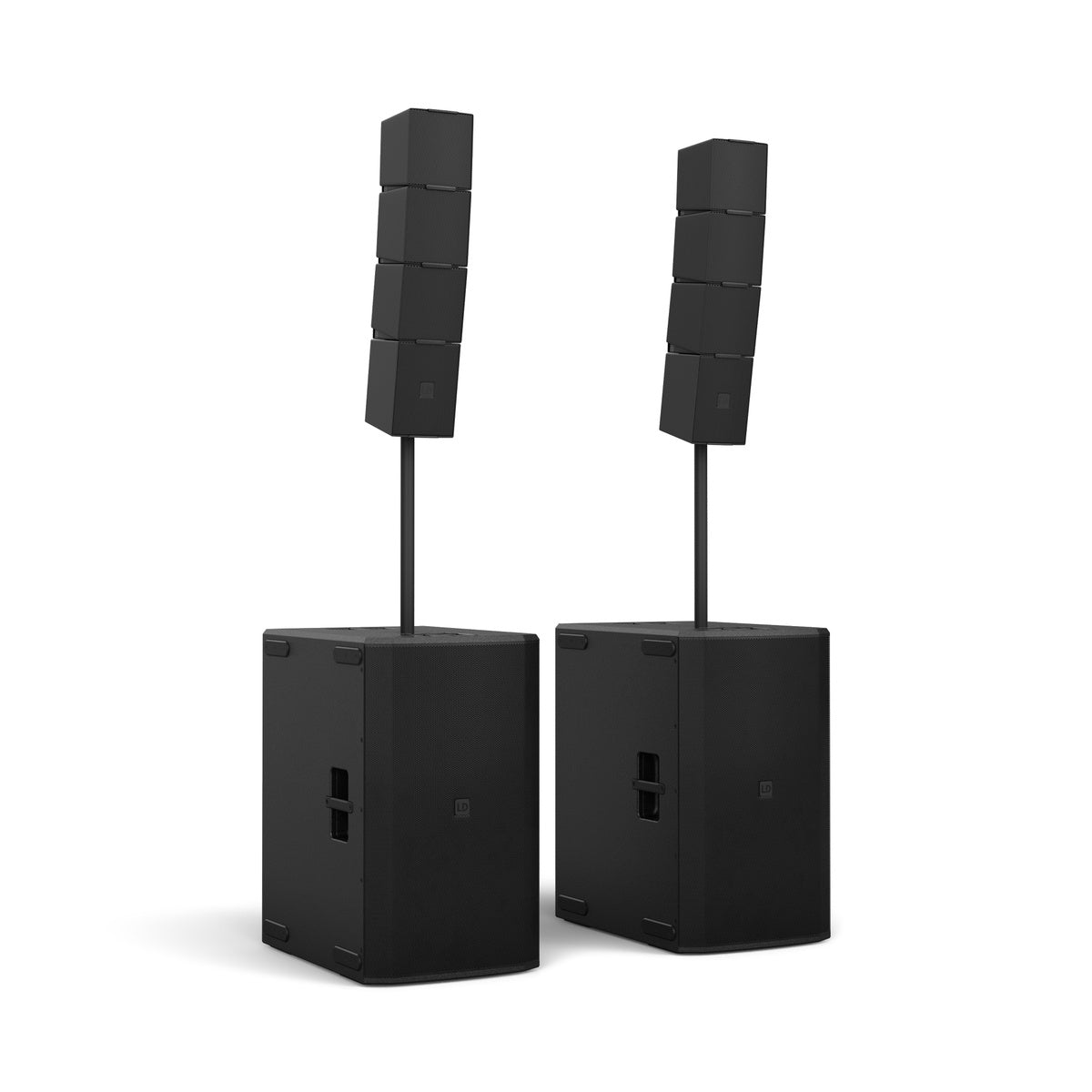

The LD Systems LDS-MAILAS is a scalable powered column array stereo system built for portable PA applications that need strong output, controlled coverage, and flexible setup options. This MAILA configuration combines two MAILA SUB bandpass subwoofers, six MAILA SAT passive array satellites, and two MAILA SPA amplifier modules to create a compact left-right system suited to speech, music playback, DJ work, and small live performances. With a total RMS output of 7600 W and a frequency response of 34 Hz to 20 kHz, it is designed to cover a wide range of event audio requirements from full-range program material to more demanding low-frequency content.

The system architecture supports practical deployment for production teams and event providers. Each subwoofer uses a 2 x 15" bandpass design, while the satellite elements use a 2-way format with 100° horizontal dispersion and adjustable vertical coverage across the system. Wireless app-based control is supported, and the included speaker poles help streamline ground stack setups. Construction details such as birch multiplex cabinets, aluminum satellite housings, and protective finishes reflect a design intended for repeated transport and live event use.

View full details

Specifications

General
Scope of delivery
2 x MAILA SPA, 2 x MAILA SUB, 6 x MAILA SAT, 2 x Distanz Stange, 2 x MAILA FC1, 2 x MAILA SUB CB, 2 x MAILA SUB PC, 4 x Mains Cable
Material
Birch multiplex
RMS output power
7600 W
Frequency response (-6 dB, rel. Avg)
34 - 20,000 Hz
Beam angle
Hor.: 100° / Vert.: 8 - 24°
Colour
Black
Maximum height
2,502 mm
Weight
222 kg
MAILA SUB
RMS output power
2500 W
Amp class
Class D
Max. SPL peak (pink noise, halfspace/1 m, CF 4)
137 dB
Max. SPL average (sine burst, BW, halfspace/1 m, THD≤10 %)
132 dB
Low frequency limit (-6 dB, rel. Avg.)
33 Hz
Number of inputs
1
Input connector types
XLR 3-pole female
Number of outputs
1
Output connector types
XLR 3-pole male
Protection features
Limiter, Overheating, Overload
Colour
Black
Bluetooth® version
Bluetooth® 5.0
Features
App control
Input impedance (balanced)
20,000 Ω
Mixer
No
Audio processing
Fully parametric 10-band EQ, Delay Line, Presets
AD/DA converter bit depth
24 Bit
AD/DA converter sampling rate
48 kHz
Size
15 "
Quantity
2
Magnet
Neodymium
Voice coil
4 "
Operation voltage
100 V AC - 240 V AC / 50 - 60 Hz
Power supply type
Switched-mode power supply (SMPS)
Rated power
1,300 W
Mains connector
Mains socket indoor power in male & powerCON®
Design
Bandpass
Number of handles
6
Cabinet material
Birch multiplex
Material thickness
18 mm
Coating
Polyurea
Front grille material
Aluminium
Cooling system
Convection cooling
Ambient temperature
0 - 40°C
Maximum air humidity (non-condensing)
80 %
Width
540 mm
Height
934 mm
Depth
803 mm
Weight
89.8 kg
Included accessories
Mains cable
MAILA SPA
RMS output power
1250 W
Amp class
Class D
Protection features
Limiter, Overheating, Overload
Bluetooth® version
Bluetooth® 4.2
Features
App control
Bluetooth® range
≤70 m (Class 1-2)
Number of line inputs
1
Line-In connector type
XLR 3-pole female
Input impedance (balanced)
20 kΩ
Number of line outputs
1
Line outputs connector type
XLR 3-pole male
AD/DA converter bit depth
24 Bit
AD/DA converter sampling rate
48 kHz
Operation voltage
100 V AC - 240 V AC / 50 - 60 Hz
Power supply type
Switched-mode power supply (SMPS)
Rated power
400 W
Mains connector
Mains socket indoor power in male & powerCON®
Cabinet material
Aluminum continuous casting
Coating
Powder coated
Colour
Black
Ambient temperature
0 - 40°C
Maximum air humidity (non-condensing)
80 %
Width
205 mm
Height
282 mm
Depth
226 mm
Weight
7.45 kg

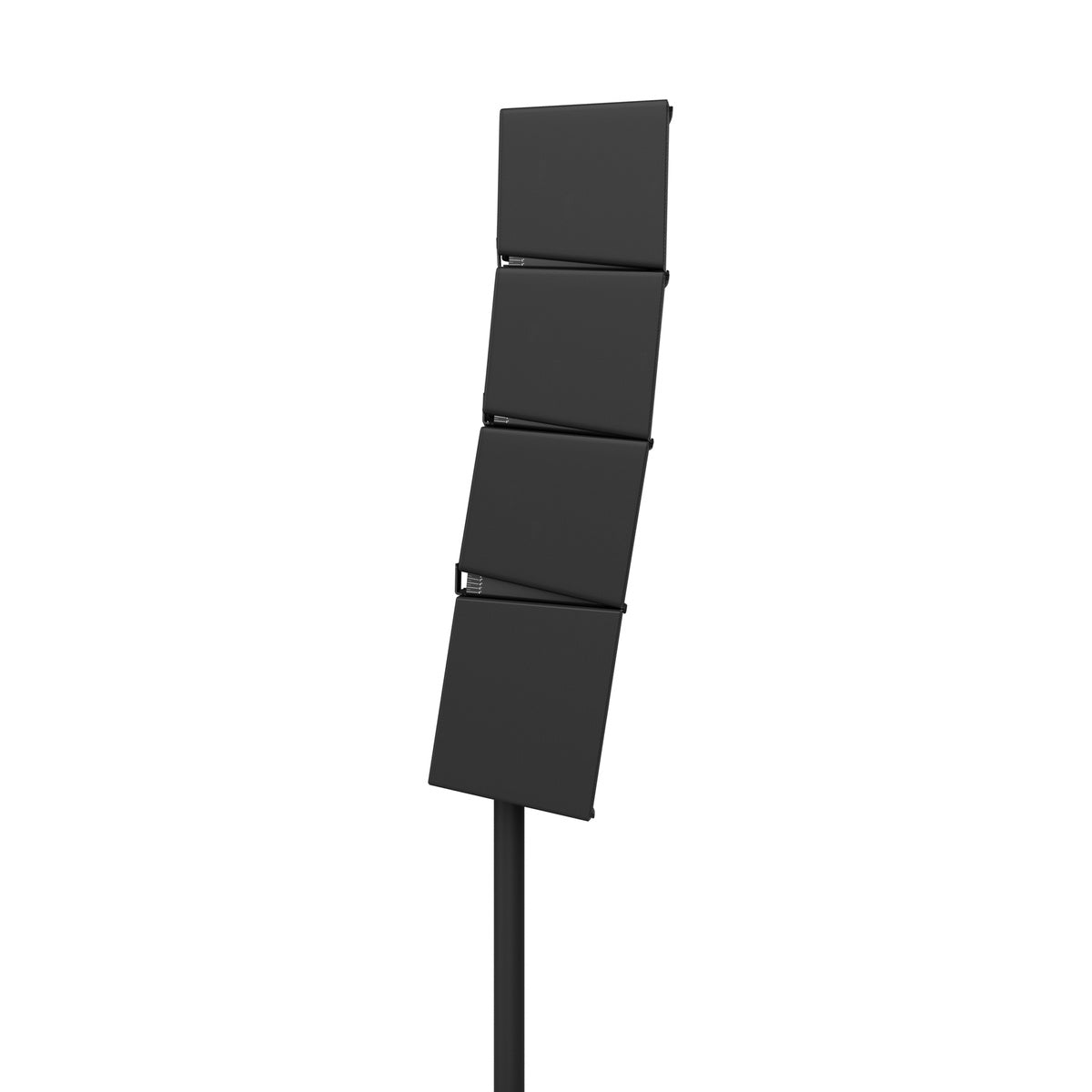

MAILA SAT
Power handling (AES)
LF: 170 W / HF: 50 W
Max. SPL peak (sine burst, fullspace/1 m, THD≤10 %)
128.2 dB
Max. SPL peak (pink noise, fullspace/1 m, CF 4)
129.1 dB
Max. SPL average (sine burst, BW, fullspace/1 m, THD≤10 %)
115 dB
Frequency response
100 - 20,000 Hz
Speaker system
2-way system
Beam angle
Hor.: 100° / Vert.:8°
Input connector types
SmartLink+®
Colour
Black
Size
6.5 "
Magnet
Neodymium
Voice coil
1.8 "
Driver size
1 "
Quantity
5
Design
Bass reflex
Number of handles
1
Cabinet material
Die-cast aluminium
Width
205 mm
Height
234 mm
Depth
226 mm
Weight
7.65 kg
MAILA DB Speaker Pole
Material
Steel
Coating
Powder coated
Colour
Black
Upside
MAILA® pole mount
Downside
M20
Height
700 mm
Weight
2 kg
