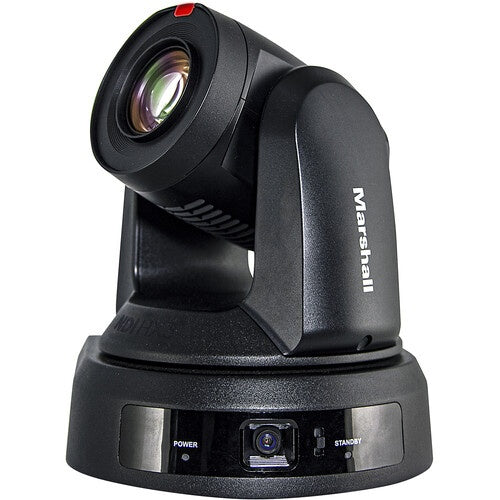

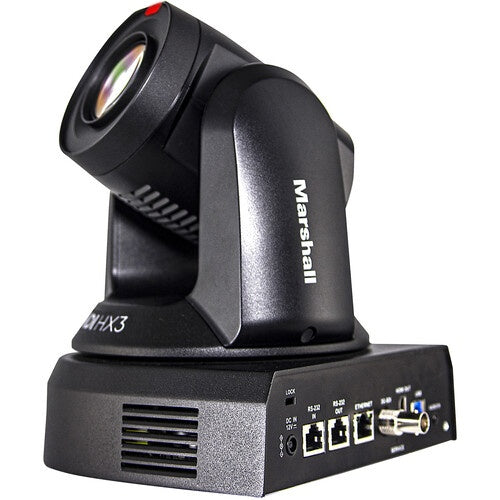

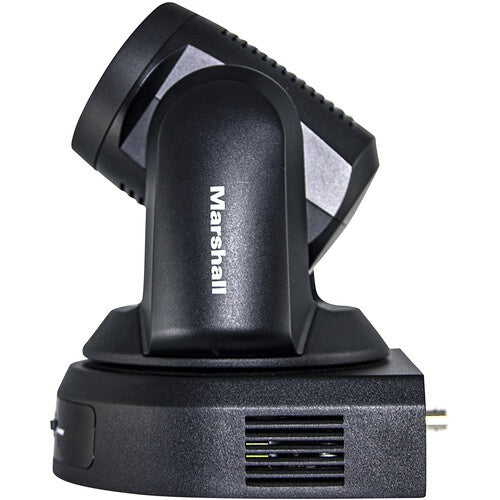

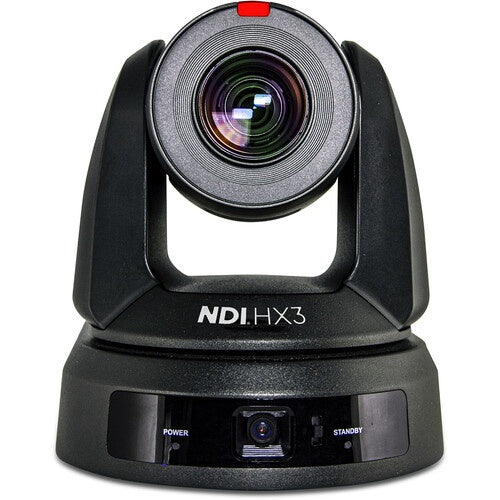

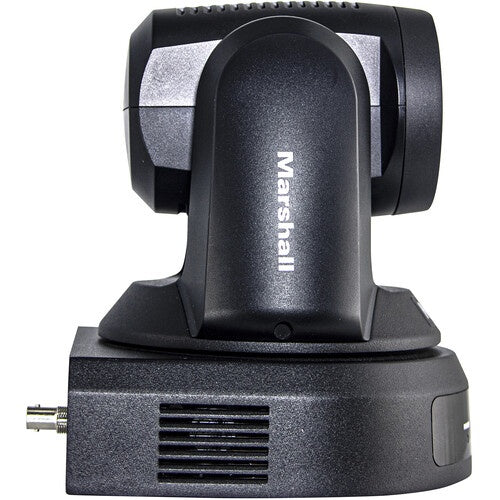

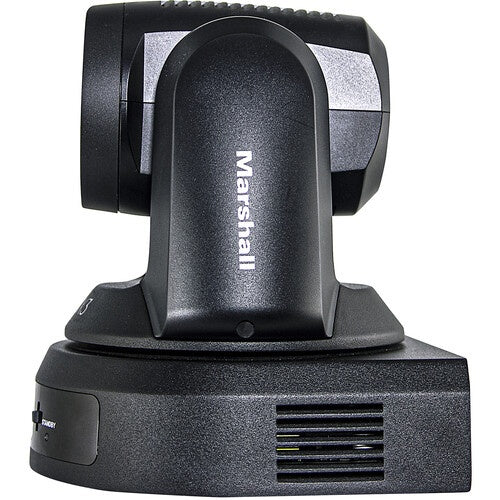

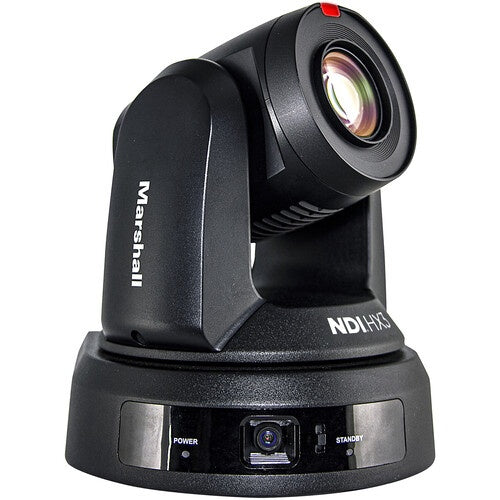

Marshall Electronics CV625 25X AI Tracking PTZ Camera With Dual-Camera System | Standard | Black

Marshall Electronics CV625 25X AI Tracking PTZ Camera With Dual-Camera System | Standard | Black

SoundPro Item: 208899 | Part Number: CV625-TB

Regular price $2,749.95
Regular price $3,437.95 Sale price $2,749.95
Your Price Sold out
MSRP: $3,437.95 | MAP: $2,749.95

Usually ships in 5-7 business days

  • AI Auto-Tracking And Auto-Framing Removes The Need For A Dedicated Camera Operator
  • Dual-Camera Design Provides Simultaneous Panoramic And Subject-Focused Coverage
  • 25x Optical Zoom PTZ Camera Paired With A Fixed Wide-Angle Panoramic Lens
  • Multiple Outputs Including HDMI, 3G-SDI, USB 3.0, And Ethernet For Flexible Integration
  • Available In Standard And NDI Network Protocol Versions To Match Existing Infrastructure
  • 3.5mm Line-Level Audio Input Embeds On All Outputs Without A Separate Embedder
  • PoE+ Power Support Simplifies Installation In Fixed AV Environments

The Marshall Electronics CV625 series targets AV integrators, broadcast engineers, and production teams who need reliable, operator-free camera coverage in houses of worship, corporate boardrooms, lecture halls, and live event venues. Each unit pairs a primary PTZ camera with a fixed panoramic camera, giving operators simultaneous wide-context and subject-focused coverage from a single device. AI-driven tracking and auto-framing keep presenters centered without requiring manual joystick control, making the CV625 a practical choice for hybrid meetings, remote learning, and unmanned broadcast setups where camera operator costs are a constraint.

The CV625 family supports a wide range of integration scenarios through its multi-output architecture. HDMI, 3G-SDI, Ethernet, and USB 3.0 outputs allow the camera to feed production switchers, streaming encoders, and recording systems simultaneously. Embedded 3.5mm line-level audio on all outputs removes the need for a separate audio embedder in simple installs. PoE+ power delivery simplifies cable routing in installed environments where running a dedicated power circuit is impractical. The camera family is available in Standard and NDI-enabled network protocol versions, and in black and white finishes, giving integrators the flexibility to match existing infrastructure and room aesthetics without compromising on capability.

Compared to single-lens PTZ cameras in the same price class, the dual-camera design provides context that a solo PTZ cannot replicate when zoomed in on a subject. The panoramic lens adds people-counting data and a broad reference view, which is useful for event analytics and multi-site productions where room awareness matters as much as subject framing. With tracking distances reaching up to 18 meters and 256 preset positions, the CV625 series scales from small meeting rooms to large auditoriums without requiring a camera upgrade.

View full details

Specifications

PTZ Camera Sensor
Sensor
1/1.8" 8MP (IMX678)
Video Format
2160p: 59.94 / 50 / 29.97 / 25; 1080p: 59.94 / 50 / 29.97 / 25; 720p: 59.94 / 50 / 29.97 / 25; 1080i: 59.94 / 50 (HDMI Only)
Optical Zoom
25X
Horizontal Viewing Angle
60° (±5%)
Focal Length
7.1mm~171.95mm ±5%
Minimum Object Distance
Tele: 1.5m, Wide: 1.5m
Minimum Illumination
0.1 lux (F1.6, 50IRE, 30fps)
Panoramic Lens
Sensor
1/2.8" 8M (IMX415)
Video Format
2160p 60fps
Horizontal Viewing Angle
83.1°
People Counting
Yes
Tracking Distance
2~18m
PTZ Pan And Tilt
Panning Angle
+170° ~ -170°
Panning Speed
0.1°~100°/sec
Tilting Angle
+90° ~ -30°
Tilting Speed
0.1°~60°/sec
Tally Light
Yes
Performance
SNR
≥ 50dB
Minimum Illumination (Tracking)
10 Lux
Video Latency HDMI/SDI
≦ 67ms
Video Latency Stream
≦ 150ms
Video Latency UVC 4K@30
≦ 160ms
Video Latency UVC 1080p@60
≦ 160ms
Connectivity

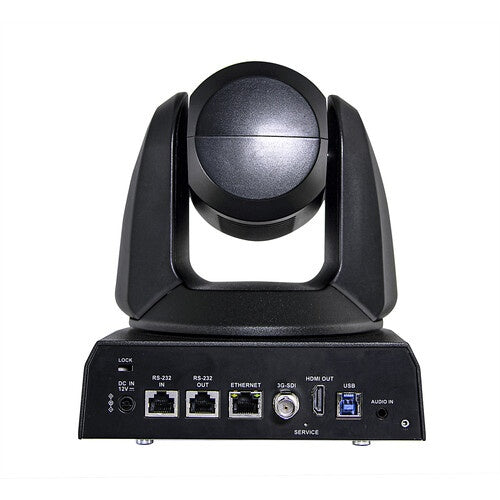

Video Output Interface
HDMI / 3G-SDI / Ethernet / USB 3.0
HDMI Out
HDMI x1
SDI Out
3G-SDI x1
USB Port
USB 3.0 x1 Type-B
Network
RJ45 x1 10M/100M/1G
Audio Input
3.5mm x1 Line In
Audio Compression
AAC
Streaming And Compression
Stream Protocol
RTSP / RTMP / RTMPS / SRT / Dante AV-H (Dante Ready)
IP Stream PTZ Camera
Stream 1: H.264/HEVC 2160p 60fps; Stream 2: H.264/1080p 30fps
IP Stream Panoramic Camera
H.264 2160p 60fps
IP Compression
H.264, HEVC
USB Compression
H.264 2160p 30fps; MJPEG 1080p 60fps; YUV2 480p 60fps; HEVC 1080p 60fps; NV12 480p 60fps
UVC Video Compression
H.264 / MJPEG / YUV2 / NV12 / HEVC
Camera Control
Control Interface
RS-232 / Ethernet / Remote / USB
Control Protocol
VISCA / VISCA over IP / ONVIF
Communication Baud Rate
9600 (default) & 38400
HTTP API Command
Yes
Preset Positions
256
Focus System
Auto / Manual
Gain Control
Auto / Manual
White Balance
Auto / Manual
Exposure Control
Auto / Manual
WDR
Yes
3D NR
Yes
Image Flip
Yes
Gesture Control
Yes
Auto Tracking
Yes
Auto Framing
Yes
Controls And Interface
Remote Control
Yes, 40KHz Infrared
IR Remote Distance
15m
IR Remote Angle
±15°
OSD Menu
English
Webpage
English
Power
Power Supply
DC 12V @ 3A
DC Power Consumption
≦ 23.5W
PoE Power Consumption
≦ 24.5W (IEEE 802.3at)
Environmental
Operating Temperature
0~40°C
Operating Humidity
10%~90%
Storage Temperature
−20°C ~ +60°C
Shipping
Package Weight
10 lbs
Package Dimensions
10.5" x 10.5" x 12.5"
