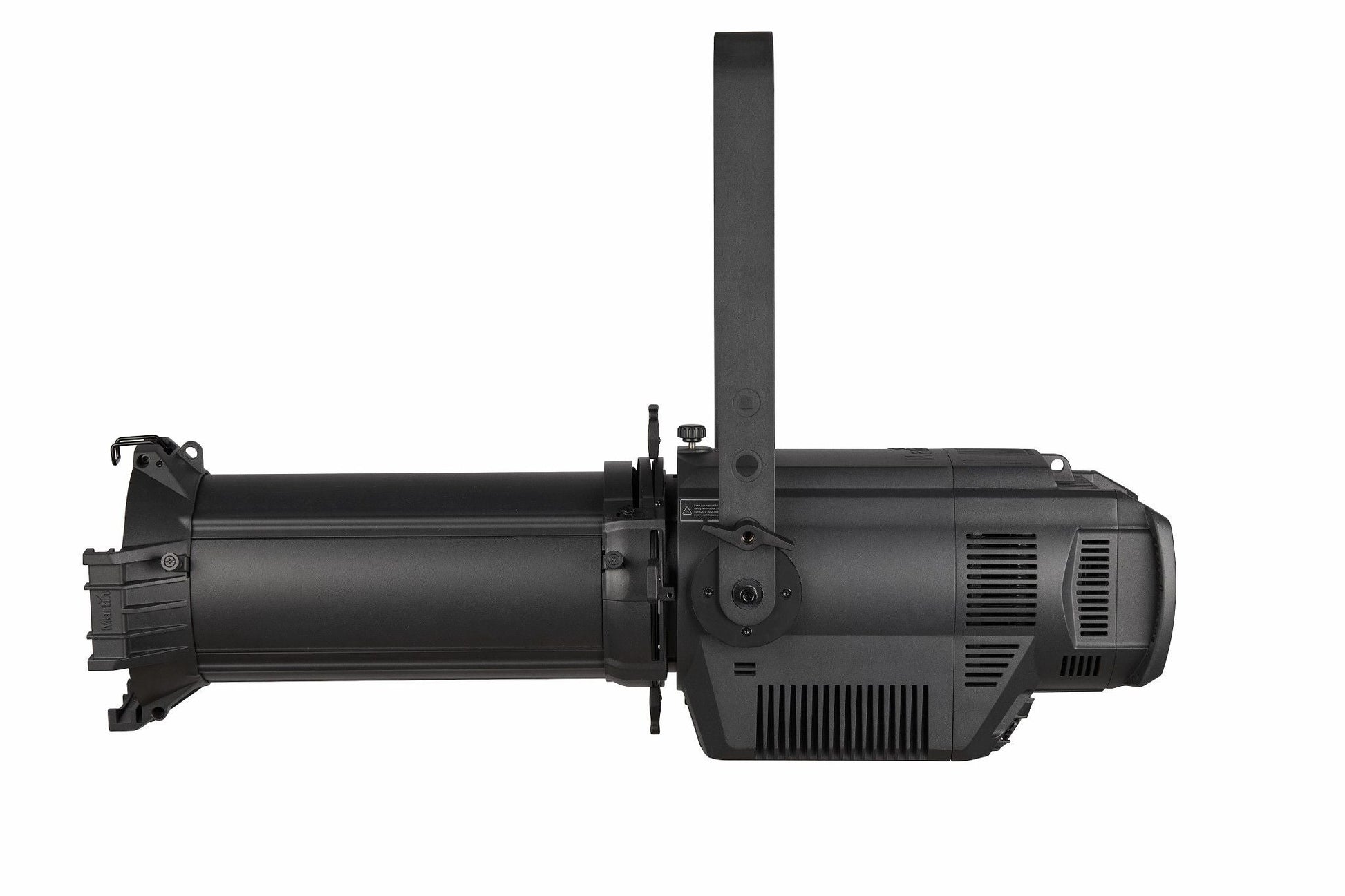

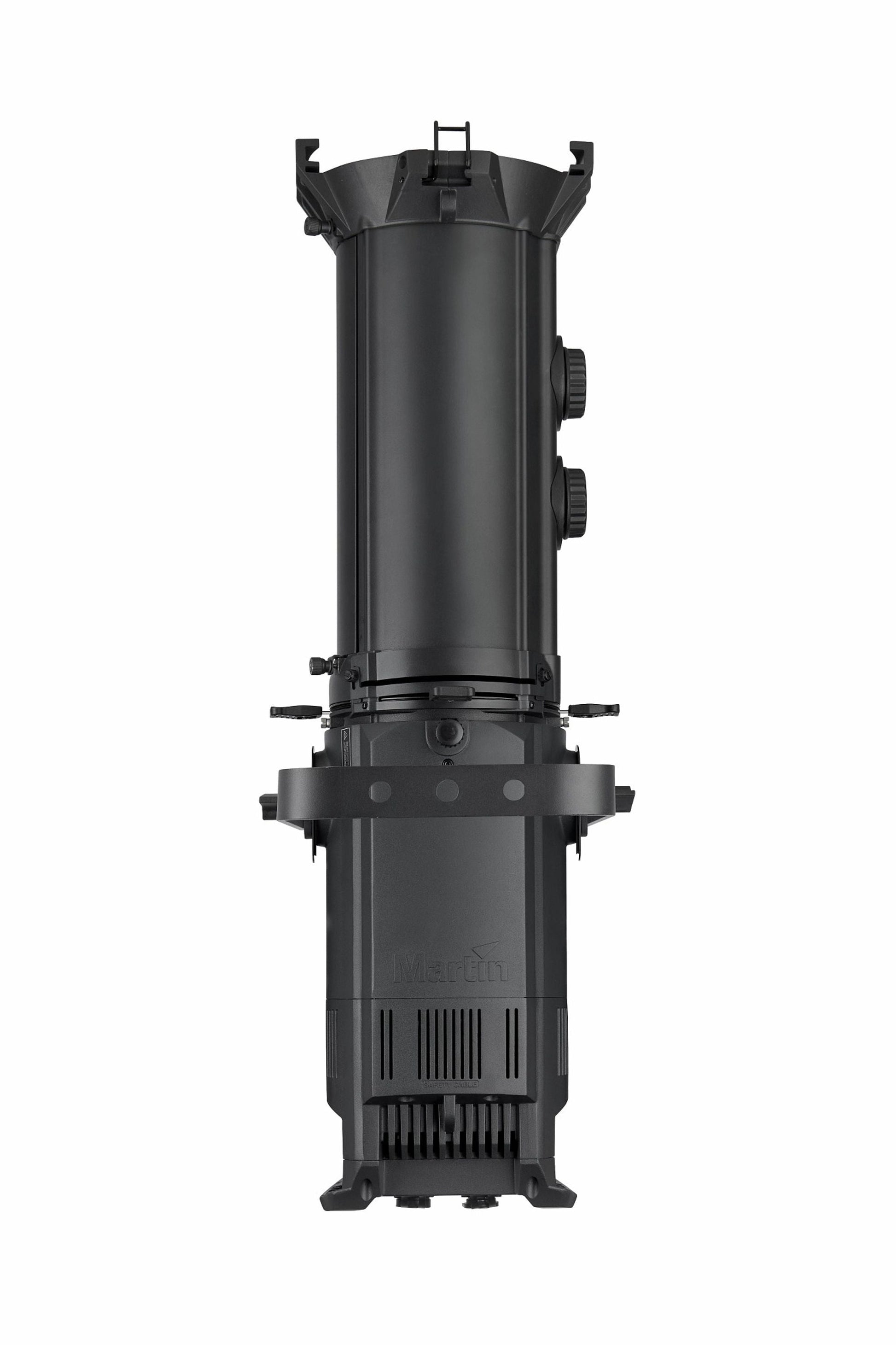

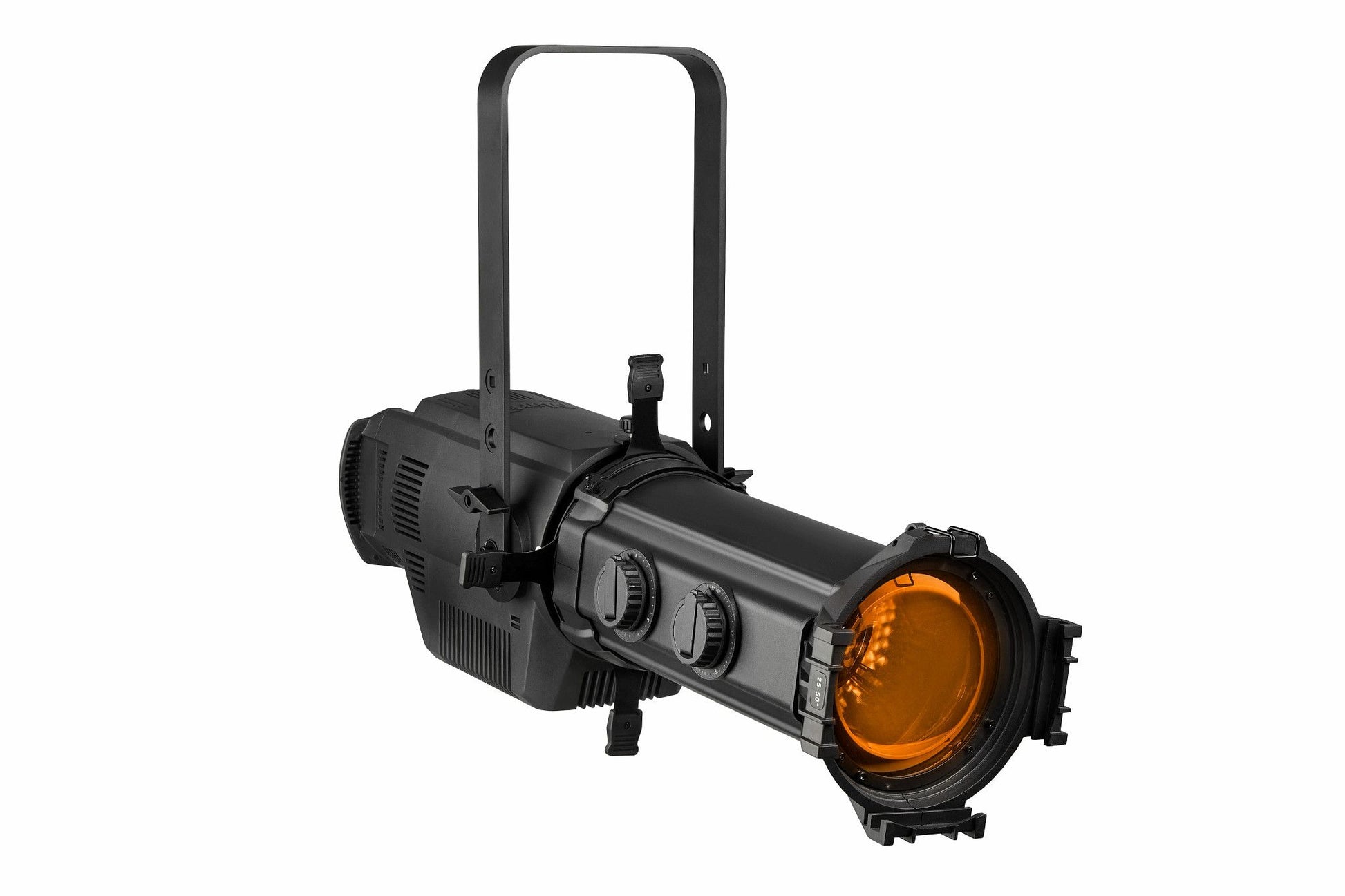

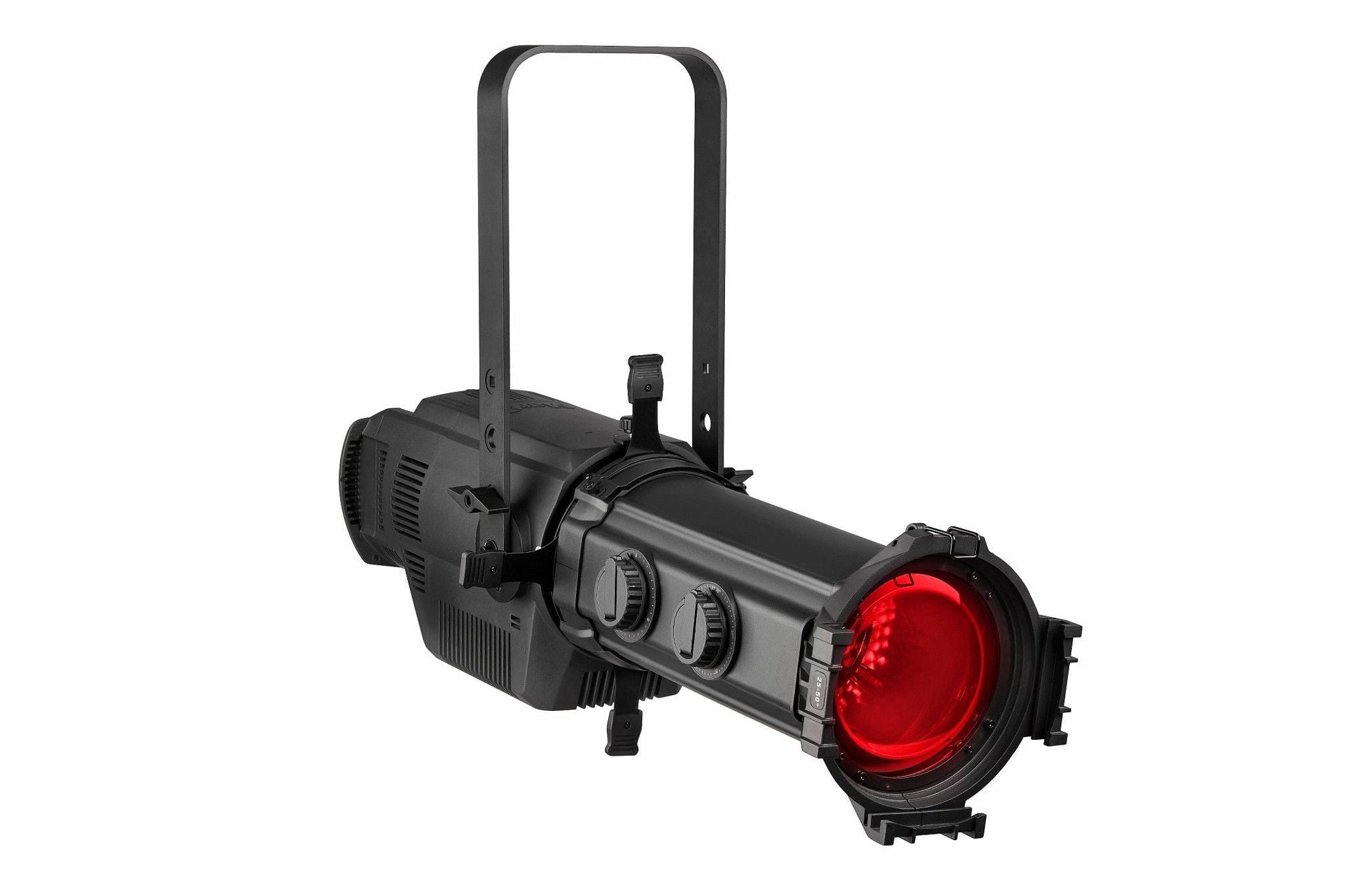

Martin Lighting ELP WW IP Warm White LED Ellipsoidal | Color: Black
Martin Lighting ELP WW IP Warm White LED Ellipsoidal | Color: Black
SoundPro Item: 95637 | Part Number: 9045122816
In stock and ready to ship
- Legendary Martin quality in LED ellipsoidal light fixtures
- Warm white light engine employs LED chipset technology for high output and smooth LED blending
- Impressive light output of 7,000 lumens (at 3000K)
- Industry-leading CRI rating of 97
- Fast focus feature for data free focusing
- Revolutionary fine focus gear-driven focus-adjustment knob locks in placement the first time
- IP65-rated for water resistance and complete protection against dust and other particulates
- 16-bit dimming with 4 selectable dimming curves
- Compatible with universal accessories such as gel frames and gobo holders and rotators
- Halation color correction removes atypical blue and brown halos when using Martin lens tubes
- Flicker-free operation
- 4-blade manual framing shutters
- Center of gravity at yoke for ergonomic use
- Tilt knobs positioned to clear framing shutters
- Regulated cooling for ultra-quiet operation
- 5-pin DMX/RDM and Neutrik True1 In/Thru connectivity
Martin ELP LED ellipsoidal fixtures deliver the luminance, brightness and vivid color rendering that have been synonymous with the Martin name for more than 30 years. Martin ELP WW IP offers the industry-leading color rendering and brightness as the original Martin ELP WW but expands its versatility into temporary outdoor applications through IP65 compliance for moisture resistance and complete dust protection, along with C3 corrosion resistance. ELP’s ergonomic Danish engineering offers advances in lighting functionality that include the highly efficient gear-based Fine Focus—an industry first; and Fast Focus which allows focusing of the fixture without data flowing to it. ELP also offers 16-bit dimming with 4 selectable curves.
ELP WW IP is available in black and white housing options and can be configured with one of four Martin static lens tubes in 19, 26, 36 and 50-degree beam angles, or a choice of two Martin Zoom lenses with choice of 15–30-degree and 25–50-degree range. ELP also offers flexibility in lighting design and inventory management through compatibility with third-party lens tubes along with a wide range of accessories including gel frames and gobos. Superior output, optics and color rendering, combined with robust protection from the elements, unparalleled ease-of-use and convenience, make Martin ELP the leading LED ellipsoidal fixture in its class.
- PHYSICAL
- Length: 648 mm (25.5 in.)
- Width: 259 mm (10.2 in.)
- Height: 254 mm (10 in.), 427 mm (16.8 in.) with bracket
- Weight: 7.7 kg (17 lbs) body only
- DYNAMIC EFFECTS
- Electronic dimming: 0 - 100%, four dimming curve options
- Strobe and pulse effects: Variable speed and action, random strobe
- Electronic shutter effect: Instant open and blackout
- CONTROL AND PROGRAMMING
- Control options: DMX, stand-alone
- DMX channels: 1/2/4
- 16-bit control: Intensity
- Setting and addressing: Control panel with OLED display or via RDM
- PWM: 600-2400 Hz
- Standalone programming: Control panel with OLED display
- DMX compliance: USITT DMX512-A
- RDM compliance: ANSI/ESTA E1.20
- Transceiver: Opto-isolated RS-485
- OPTICS
- Light source: 91 X 3W warm white LEDs
- Minimum LED lifetime: 30,000 hours (to >70% luminous output)*
- Color temperature: 3000K
- Lens tube options: 19°, 26°, 36°, 50°
- Zoom Lens Tube Options: 15–30° and 25–50°
- Binning: Tight color and flux binning
- *Figure obtained under manufacturer's test conditions
- PHOTOMETRIC DATA
- Light engine luminous output: 16,000 lumen
- Fixture luminous output: 7000 lumen
- CRI (Color Rendering Index) : >97
- CQS (Color Quality Scale): >93
- TM-30 Rf (IES TM-30-15 Fidelity Index): >93
- TM-30 Rg (IES TM-30-15 Gamut Index): >101
- TLCI (Television Lighting Consistency Index): >96
- * All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
- CONSTRUCTION
- Housing: Die-cast aluminum
- Color: Black or white variant
- Protection rating: IP20
- GOBOS AND COLOR FRAME
- Gobo size : A size, 100 mm OD, 75 mm image*, B size, 86 mm OD, 64.5 mm image*
- Color frame size: 159 X 159 mm (6.25 X 6.25 in.)
- *Gobo holder not included
- INSTALLATION
- Mounting: Adjustable bracket
- Location: Indoor use only
- Orientation: Any
- Minimum distance to combustible materials: 0.2 m (0.7 ft.)
- Minimum distance to illuminated surfaces: 0.5 m (1.6 ft.)
- CONNECTIONS
- AC power in, thru: Neutrik PowerCON TRUE1
- DMX and RDM data in/out: 5-pin locking XLR
- ELECTRICAL
- AC power: 100-240 V nominal, 50/60 Hz
- Idle power (zero intensity): 5 W
- Power supply unit: Auto-ranging electronic switch-mode
- Half-cycle RMS inrush current at 230 V, 50 Hz: 15.3 A
- Fixture link via PowerCON at 100-120 V: Up to 4 fixtures
- Fixture link via PowerCON at 200-240 V: Up to 9 fixtures
- Power consumption figures are typical, not maximum. Allow for +/- 10% variation.
- TYPICAL POWER AND CURRENT
- 110 V, 60 Hz: 2.6 A, 280 W, PF 0.99
- 208 V, 60 Hz: 1.4 A, 270 W, PF 0.97
- 230 V, 50 Hz: 1.2 A, 269 W, PF 0.96
- 240 V, 50 Hz: 1.2 A, 268 W, PF 0.96
- Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
- THERMAL
- Cooling: Forced air (temperature-regulated, low noise)
- Maximum ambient temperature (Ta max.): 40° C (104° F)
- Minimum ambient temperature (Ta min.): 0° C (32° F)
- Total heat dissipation (calculated, +/- 10%): 1000 BTU/hr. (at full intensity, full white)
- ENVIRONMENTAL
- RoHS: Compliant
- REACH: Compliant
- WEEE: Compliant
- Proposition 65: Compliant
- Efficacy (max output): 28 lm/W
- LWR*: 909 lm/kg (412 lm/lb)
- LWR = Lumen-to-Weight Ratio
- APPROVALS
- Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)
- EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
- EU EMC: EN 55015; EN 55032; EN 55103-2; EN 61000-3-2,-3; EN 61547
- US safety: UL 1573
- US EMC: FCC Part 15 Class B
- Canadian safety: CSA C22.2 No. 166
- Canadian EMC: ICES-003 Class B, ICES-005 Class B
- Australia/NZ: RCM
