- Electrical
- AC power: 100-240V nominal, 50/60 Hz
- Fuse: T 6.3A
- Power supply unit: Auto-ranging electronic switch mode
- Typical Power and Current
- 120 V, 60 Hz: 3.13A, 374W, PF 0.999
- 230 V, 50 Hz: 1.62A, 362W, PF 0.993

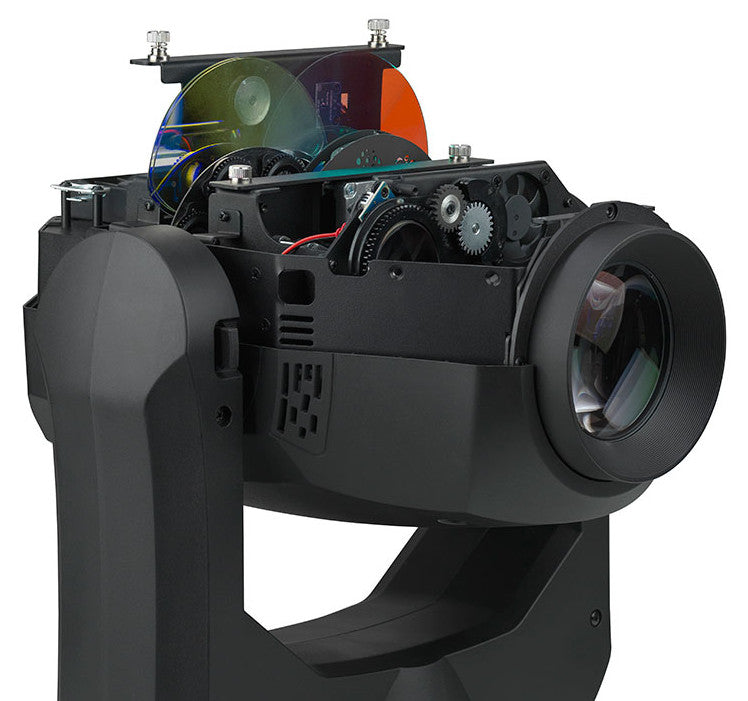

- Dynamic Effects
- Color mixing: CMY, independently variable 0-100%
- Color wheel: 9 color filters plus open
- Beam effects: Rotating three-facet prism
- Rotating gobo wheel: 7 gobos plus open, wheel rotation, gobo rotation, indexing and shake
- Static gobo wheel: 9 gobos plus open, wheel indexing, rotation and shake
- Iris: 0-100%
- Electronic dimming: 0 - 100%, four dimming curve options
- Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout
- Zoom: Motorized
- Pan: 540°, coarse & fine control and speed
- Tilt: 260°, coarse & fine control and speed
- Focus: Motorized
- Thermal
- Cooling: Forced air (temperature regulated, low noise)
- Maximum ambient temperature (Ta max.): 104°F (40° C)
- Minimum ambient temperature (Ta min.): 32°F (0° C)
- Environmental
- RoHS: Compliant
- REACH: Compliant
- WEEE: Compliant
- Proposition 65: Compliant
- Efficacy (max output): 30.3 lm/W
- Lumen to Weight Ratio: 559 lm/kg (250 lm/lb)
- Control and Programming
- Control options: DMX
- DMX channels: 21
- 16-bit control: Dimming, pan and tilt

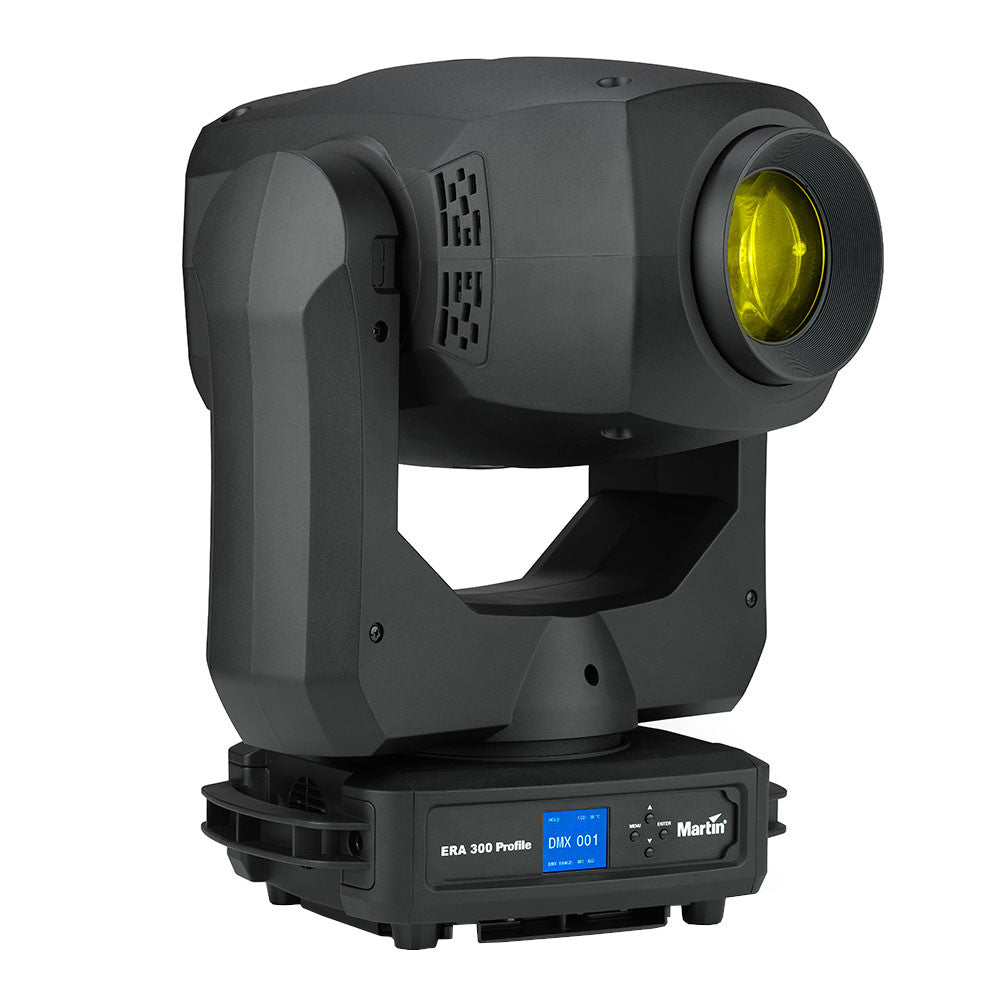

- Setting and addressing: Control panel with backlit LCD display
- DMX compliance: USITT DMX512/1990
- RDM compliance: ANSI/ESTA E1.20
- Transceiver: Opto-isolated RS-485
- Optics
- Zoom range: 13° - 28°
- Light source: 260W LED engine
- Minimum LED lifetime: 20,000 hours (to >70% luminous output)
- Binning: Tight color and flux binning
- Photometric Data
- Light engine luminous output: 20,000 lumens
- Fixture luminous output: 9,500 lumens
- CRI (Color Rendering Index) : >70
- CCT: 6500 Kelvin
- LED refresh rate : 1200 Hz
- Construction
- Housing: High-impact flame-retardant thermoplastic
- Protection rating: IP20
- Gobos
- Gobo diameter: 26.8 mm +/- 0.2 mm (1.1 in. +/- 0.008 in.)
- Maximum image diameter: 19.0 mm (0.75 in.)
- Gobo thickness, maximum: 1.1mm borosilicate glass
- Installation
- Mounting points: Two quarter-turn brackets for rigging clamps
- Orientation: Any

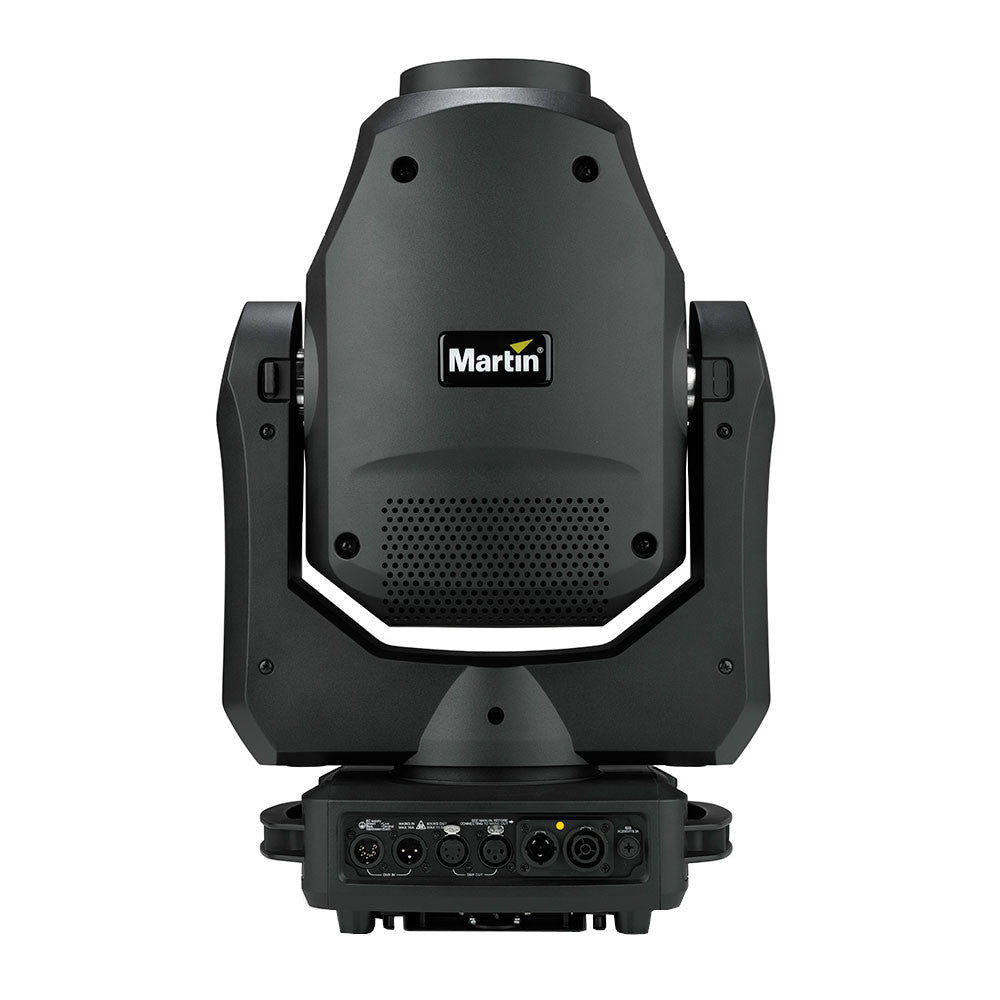

- Connections
- AC power in, thru: Neutrik powerCON TRUE1
- DMX data in/out: 3-pin & 5-pin locking XLR
- Dimensions (LxWxH)14.8" x 8.5" x 22.2"
- Weight38 pounds
