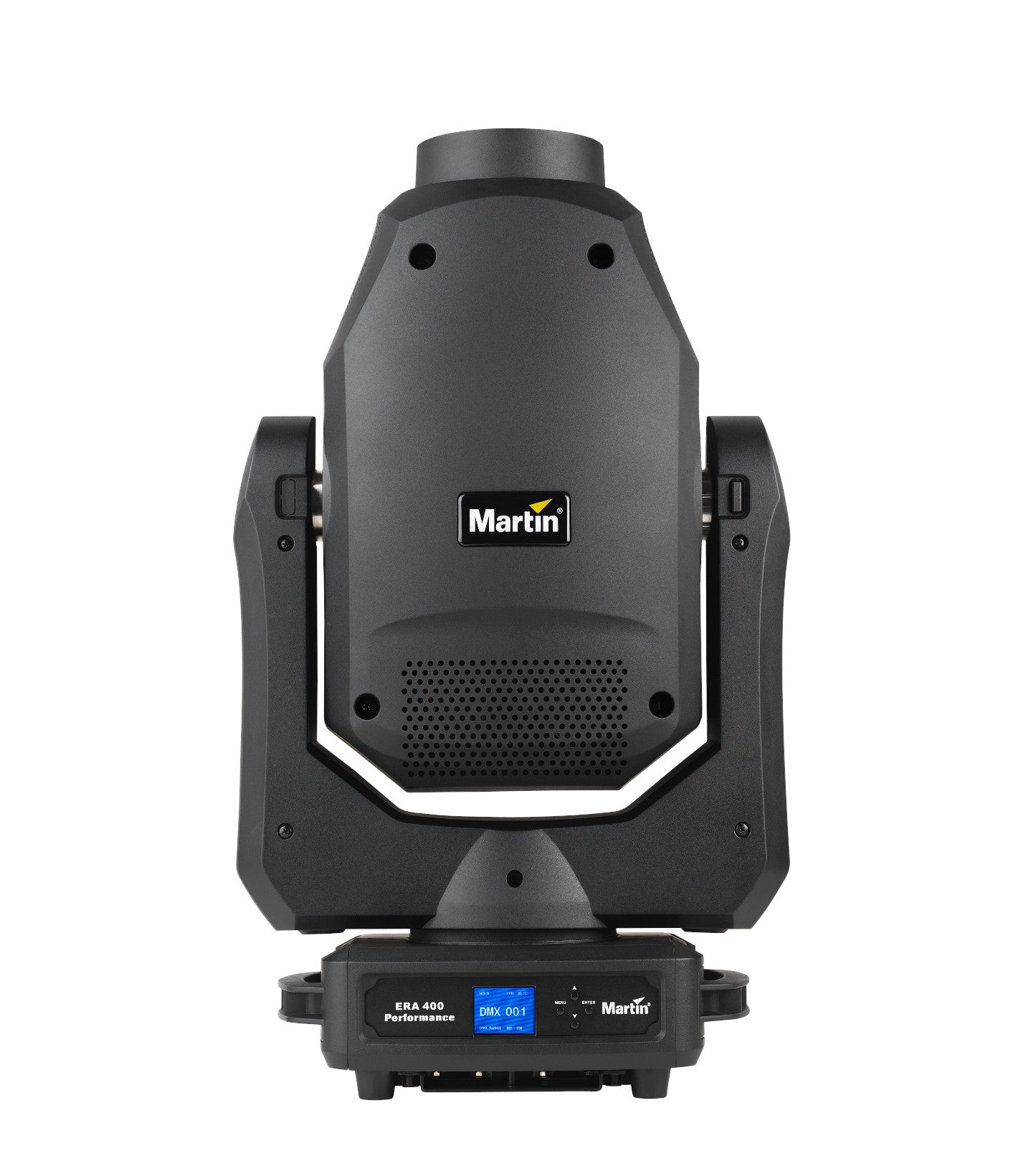

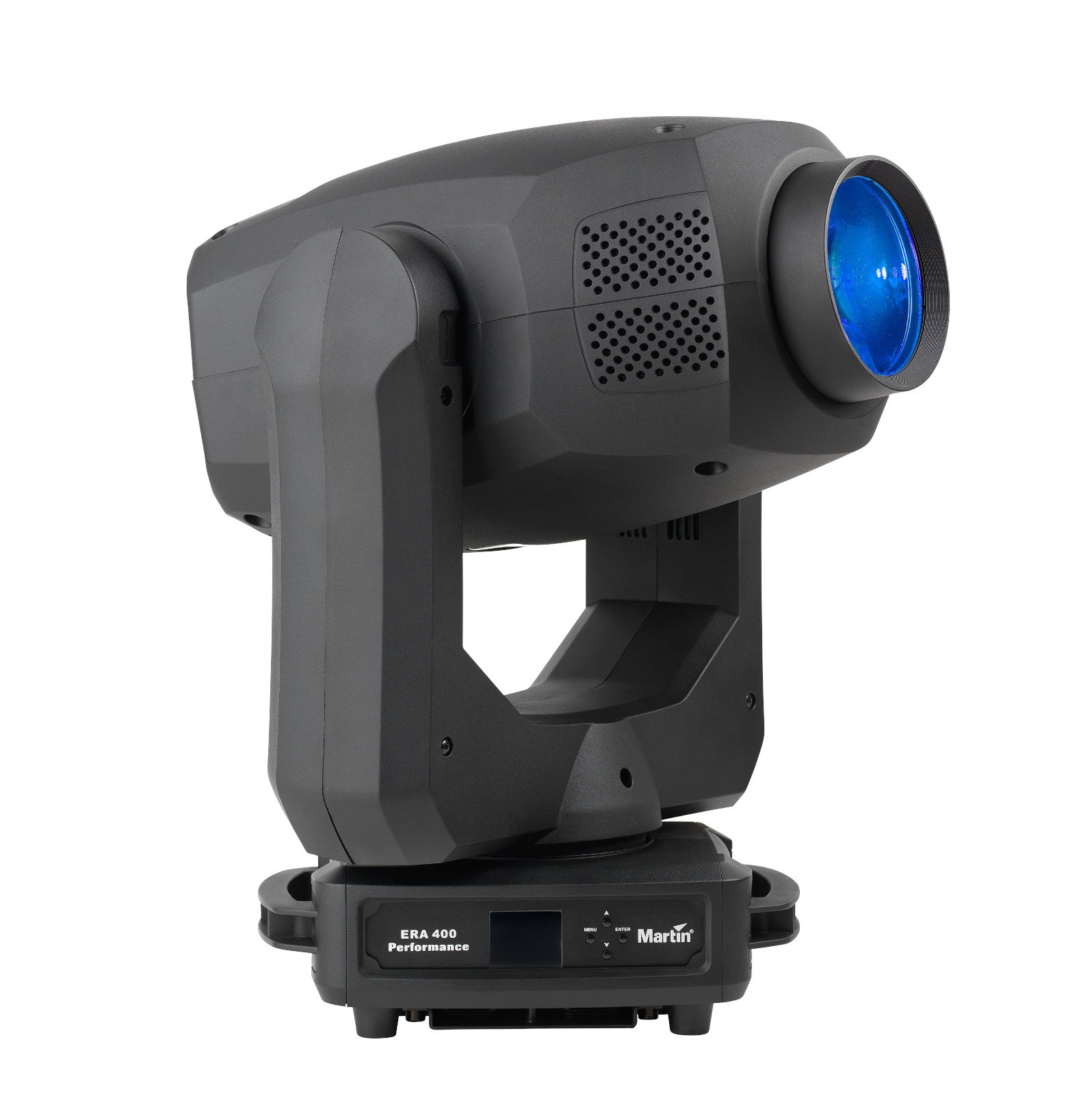

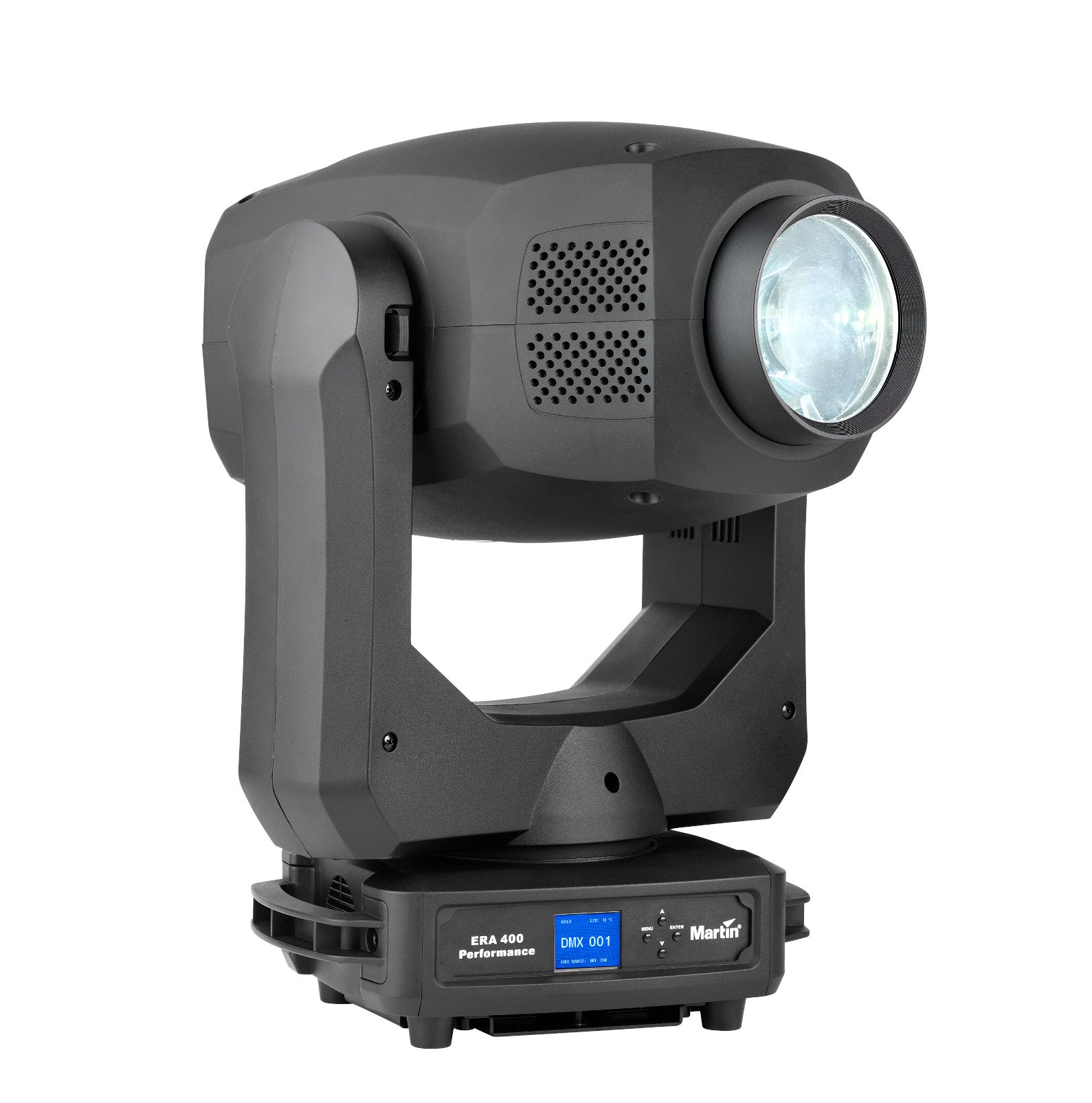

Martin Lighting ERA 400 Performance CLD 300W Moving Head
Martin Lighting ERA 400 Performance CLD 300W Moving Head
SoundPro Item: 95542 | Part Number: 9025121796
In stock and ready to ship
- Bright 300 watt / 6,500K LED light source
- 10,000 lumen output
- Smooth electronic dimming and fast strobe effects
- Crisp optics with flat field
- 1:3 fast zoom
- CMY color mixing - vibrant color mixing with a superior palette of colors matching the MAC range
- 9-slot color wheel for added color choice and split color effects
- Full curtain framing blades with +/- 45° rotation of entire system for flexible shape generation
- 7 rotating/indexing gobos – all renowned Martin glass gobos
- 9 static gobos for great morphing effects
- Fast and tight iris
- 3-facet prism – real beam separation with rotation and index control for dynamic effects
- Compact and low weight design
- CRI over 70
- 6500 Kelvin color temperature
Designed to fulfill the demand for a bright, compact, tour-worthy moving head, the Martin ERA 400 Performance CLD combines a feature-loaded and rugged, yet cost-efficient profile for entertainment and rental applications. It features a highly efficient 300W cold white LED engine that produces a bright, sharp 6,500K gobo projection with a flat field. Additional key benefits include 1:3 zoom, electronic dimming and strobe, full CMY color mixing and separate color wheel, iris for beam adjustment and fixed and rotating gobo wheels, loaded with user-favorite gobos from the renowned Martin MAC range that include a wide variety of effects, especially when combined with the included rotating prism.
The ERA 400 Performance CLD includes a full curtain framing system which offers lighting designers a high degree of flexibility to achieve precise looks on stage. When fully focused, gobos can be nicely framed with a soft edge, and each of the four framing blades can cross the entire beam independently for a full blackout. The entire system can rotate 90 degrees, allowing designers to direct light exactly where they want it to go and achieve unique movement effects not otherwise possible.
Whether being used for small and mid-sized concert and touring, live TV productions, corporate shows, cruise line or houses of worship, the Martin ERA 400 Performance CLD is ideal for a long list of scenarios, requiring a truly versatile LED profile that offers near limitless design and usage potential.
- Dynamic Effects
- Color mixing: CMY, independently variable 0-100%
- Color wheel: 9 color filters plus open
- Rotating gobo wheel: 7 gobos plus open, wheel rotation, gobo rotation, indexing and shake
- Static gobo wheel: 9 gobos plus open, wheel indexing, rotation and shake
- Iris: 0-100%
- Framing: Rotatable framing module, +/- 45°, with 4 individually controllable full framing blades with variable angle and position
- Prism: Rotating/indexing three-facet prism
- Electronic dimming: 0 - 100%, four dimming curve options
- Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout
- Zoom: Motorized
- Pan: 540°, coarse & fine control and speed
- Tilt: 260°, coarse & fine control and speed
- Focus: Motorized
- Control and Programming
- Control options: DMX
- DMX channels: 30
- 16-bit control: Dimming, pan and tilt
- Setting and addressing: Control panel with backlit LCD display
- DMX compliance: USITT DMX512/1990
- RDM compliance: ANSI/ESTA E1.20
- Transceiver: Opto-isolated RS-485
- Optics
- Front lens diameter: 110 mm
- Zoom range: 10° - 30°
- Light source: 300W LED engine
- Minimum LED lifetime: 20000 hours (to >70% luminous output)
- Binning: Tight color and flux binning
- Photometric Data
- Light engine luminous output: 26500 lumens
- Fixture luminous output: 10000 lumens
- CRI (Color Rendering Index) : >70
- CCT: 6500 Kelvin
- LED refresh rate : 1200 Hz
- Construction
- Housing: High-impact flame-retardant thermoplastic
- Protection rating: IP 20
- Gobo
- Gobo diameter: 26.8 mm +/- 0.2 mm (1.1 in. +/- 0.008 in.)
- Maximum image diameter: 19.0 mm (0.75 in.)
- Gobo thickness, maximum: 1.1mm borosilicate glass
- Installation
- Mounting points: Two quarter-turn brackets for rigging
- Orientation: Any

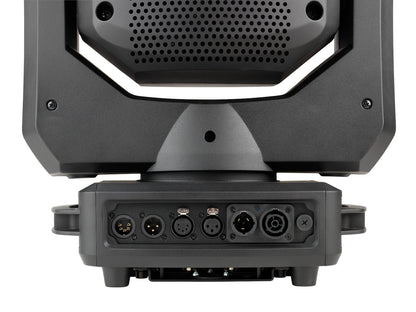

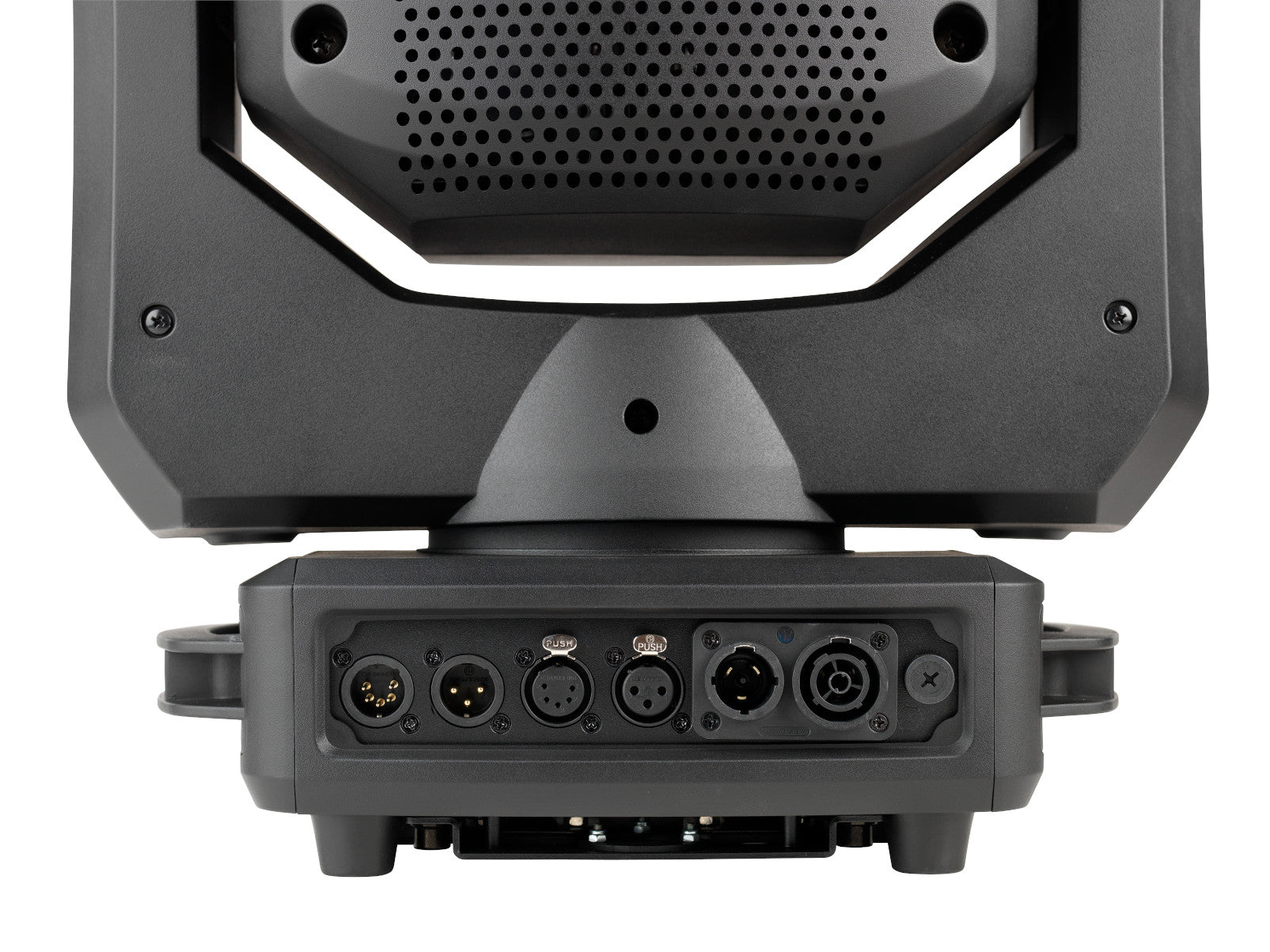

- Connections
- AC power input: Neutrik powerCON TRUE1
- DMX data in/out: 3-pin & 5-pin locking XLR
- Electrical
- AC power: 100-240V nominal, 50/60 Hz
- Power supply unit: Auto-ranging electronic switch mode
- Typical Power and Current
- 120 V, 60 Hz: 3.8A, 455W, PF 0.992
- 230 V, 50 Hz: 1.96A, 442W, PF 0.968
- Steady Power Consumption: 44 W, all effects static, zero light output
- Half-cycle RMS inrush current: 6 A (at 230 V, 50 Hz)
- Thermal
- Cooling: Forced air (temperature regulated, low noise)
- Maximum ambient temperature (Ta max.): 104°F (40°C)
- Minimum ambient temperature (Ta min.): 32°F (0°C)
- Maximum surface temperature, steady state, at 104° (40°C) ambient: 158°F (70°C)
- Total heat dissipation (calculated, +/- 10%): 1550 BTU/hr.
- Environmental
- RoHS: Compliant
- REACH: Compliant
- WEEE: Compliant
- Proposition 65: Compliant
- Efficacy (max output): 23.4 lm/W
- Lumen to Weight Ratio (LWR): 444 lm/kg (202 lm/lb)
- Dimensions (LxWxH)14.9" x 9.3" x 24.9"
- Weight49.6 pounds
