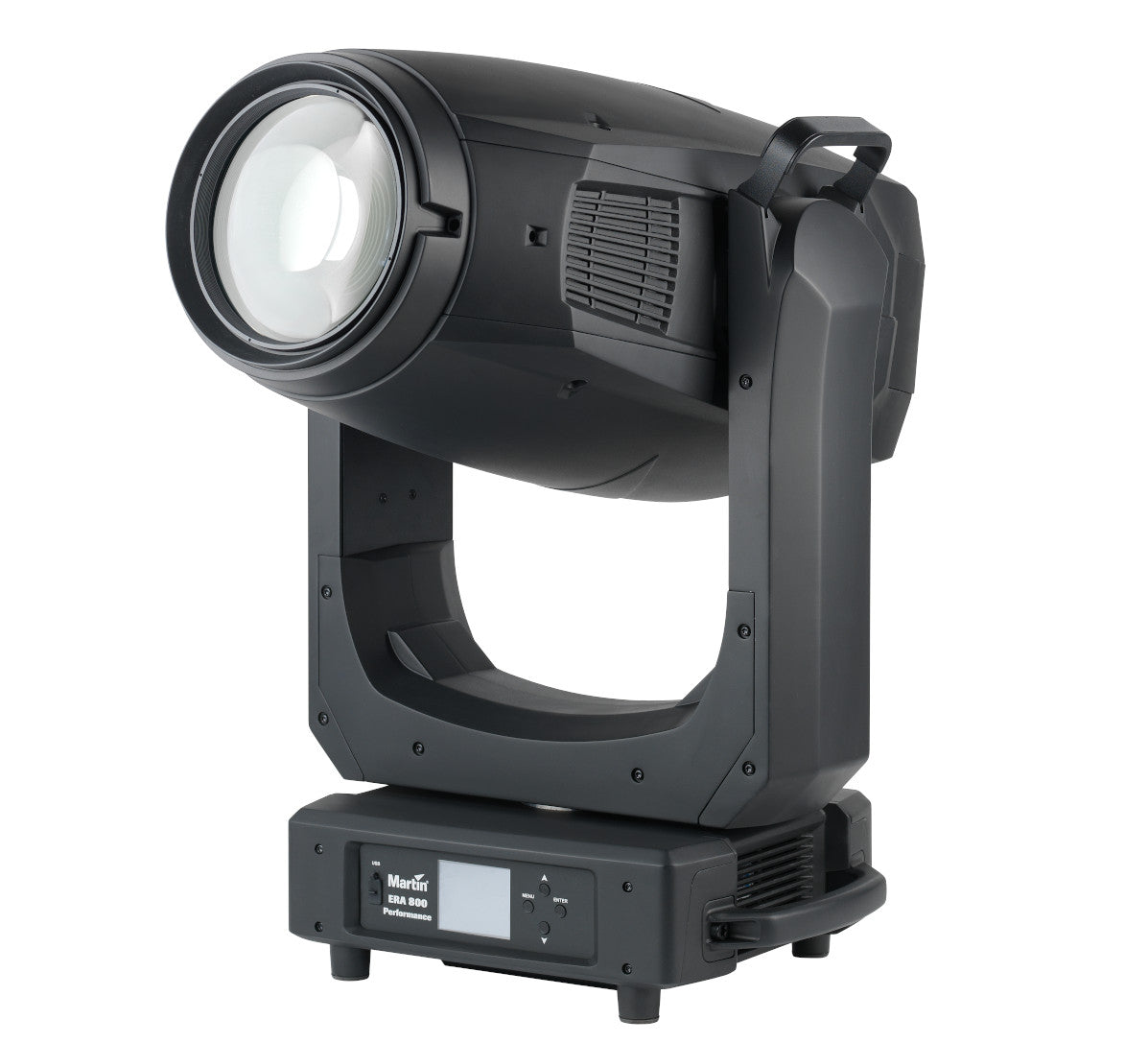

Martin Lighting ERA 800 Performance 800W Moving Head
Martin Lighting ERA 800 Performance 800W Moving Head
SoundPro Item: 95549 | Part Number: 9025122052
In stock and ready to ship
- Bright 800 watt / 6,500K LED light source
- 34,000 lumen output
- Crisp optics with flat field
- 1:8 fast zoom
- Fat beam look with 160 mm front lens
- CMY color mixing - vibrant color mixing with a superior palette of colors matching the MAC range
- Linear CTO – daylight to tungsten CCT control and expansion of the CMY palette
- 6-slot color wheel –for added color choice and split color effects
- Full curtain framing blades with +/- 60° rotation of entire system for flexible shape generation
- 6 rotating/indexing gobos – all renowned Martin glass gobos
- 7 static gobos for great morphing effects
- Animation wheel with continuous bi-directional rotation
- Fast and tight iris
- Two prisms - 4-facet and linear – rotation and index control for dynamic effects
- Soft frost – light frost leaves gobo artwork visible with a beautiful soft edge
- Heavy frost – for wash light effects
- Compact and low weight design
The Martin ERA 800 Performance combines a feature-loaded, rugged, yet cost-efficient profile for entertainment and rental applications.
Designed to fulfill the demand for an ultra-bright, compact, tour-worthy moving head, it features a highly efficient, super-bright 800W white LED engine that produces a bright, sharp 6,500K gobo projection with a flat field. Additional benefits include 1:8 zoom, electronic dimming and strobe, full CMY color mixing and separate color wheel, variable color temperature control, animation wheel, iris for beam adjustment and fixed and rotating gobo wheels, loaded with user-favorite gobos from the renowned Martin MAC range that include a wide variety of effects, especially when combined with the two included rotating prisms and soft and heavy frost filters.
The ERA 800 Performance includes a full curtain framing system which offers lighting designers a high degree of flexibility to achieve precise looks on stage. Perfect for big, stadium-sized stage and live productions, the Martin ERA 800 Performance is ideal for a long list of scenarios, requiring an extremely bright, yet truly versatile LED profile that offers near limitless design and usage potential.
- Dynamic Effects
- Color mixing: CMY, independently variable 0-100%
- Color wheel: 6 color filters plus open
- Gobo animation: Animation wheel, indexing, continuous rotation with variable speed and direction
- Rotating gobo wheel: 6 gobos plus open, wheel rotation, gobo rotation, indexing and shake
- Static gobo wheel: 7 gobos plus open, wheel indexing, rotation and shake
- Iris: 0-100%
- Framing: Rotatable framing module, +/-60°, with 4 individually controllable full framing blades with variable angle and position
- Prism: 2 rotating/indexing prisms (4-facet circular prism and 6-facet linear)
- Frost: Soft frost effect and heavy frost effect
- Color temperature control: Variable 6500 - 2700 K
- Electronic dimming: 0 - 100%, four dimming curve options
- Electronic shutter effect: Strobe effect, pulse effects, instant open and blackout
- Zoom: Motorized
- Pan: 540°, coarse & fine control and speed
- Tilt: 260°, coarse & fine control and speed
- Focus: Motorized
- Control and Programming
- Control options: DMX
- DMX channels: 42
- 16-bit control: Dimming, CMY, CTO, Zoom, Focus, Pan and Tilt
- Setting and addressing: Control panel with backlit LCD display
- DMX compliance: USITT DMX512/1990
- RDM compliance: ANSI/ESTA E1.20
- Transceiver: Opto-isolated RS-485
- Optics
- Front lens diameter: 160 mm (6.3 in.)
- Zoom range: 7° - 56° (1:8)
- Light source: 800 W LED engine
- Minimum LED lifetime: 20000 hours (to >70% luminous output)
- Binning: Tight color and flux binning
- Photometric Data
- Light engine luminous output: 70,000 lumens
- LED refresh rate : 3600 Hz
- Fixture luminous output: 35,000 lumens
- CRI (Color Rendering Index): >70
- CQS (Color Quality Scale): >67
- TM-30 Rf (IES TM-30-15 Fidelity Index): >65
- TM-30 Rg (IES TM-30-15 Gamut Index): >93
- TLCI (Television Lighting Consistency Index): >44
- CCT: 6900 K (+/- 250 K)
- Peak Luminous Intensity: 1,870,000 cd
- Construction
- Housing: High-impact flame-retardant thermoplastic
- Protection rating: IP 20
- Gobos
- Maximum image diameter: 25 mm (0.98 in.)
- Gobo material: Borofloat 33
- External diameter: 30.0 mm +0 / -0.2 mm (1.181 in. +0 / -0.008 in.)
- Maximum gobo thickness: 1.1 mm (0.04 in.)
- Coating: Heavy matted aluminum
- Installation
- Mounting points: 2 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega brackets
- Location: Dry location only, must be fastened to surface or structure
- Orientation: Any
- Minimum distance to combustible materials: 0.2 m (8 in.)
- Minimum distance to illuminated surfaces: 2.0 m (6.6 ft.)

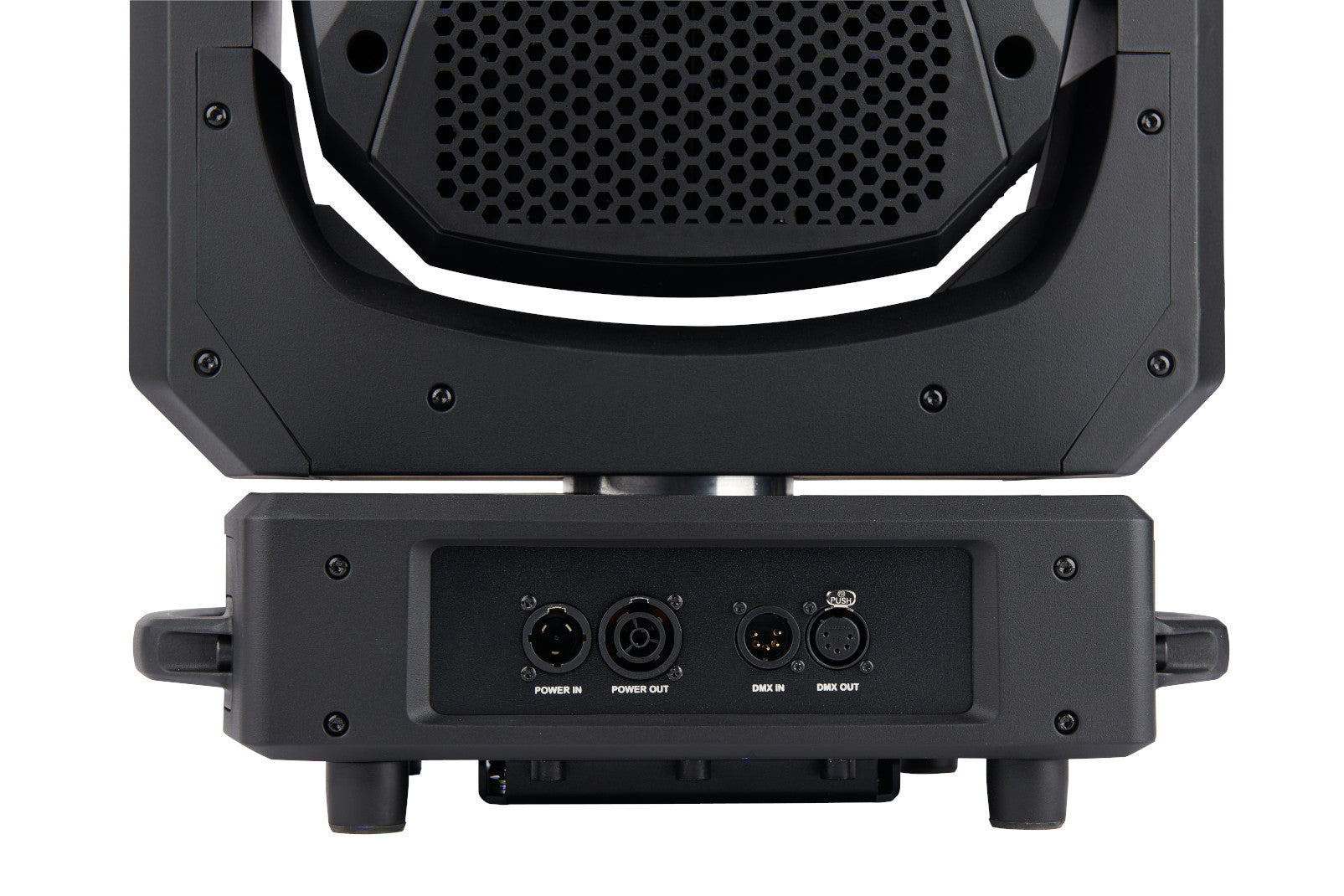

- Connections
- DMX and RDM data in/out: 5-pin locking XLR
- AC mains power input.: Neutrik TRUE1 socket, accepts TRUE1 NAC3FX-W (TOP) connector
- AC mains power throughput : Neutrik TRUE1 socket, accepts TRUE1 NAC3MX-W (TOP) connector
- Electrical
- AC power: 100-240 VAC (nominal), 50/60 Hz
- Power supply unit: Auto-ranging electronic switch mode
- Half-cycle RMS inrush current at 230 V, 50 Hz: 10.3 A
- Typical power consumption, all effects static, zero light output: 64 W
- Maximum total power consumption: 1397 W
- Recommended MCB (Miniature Circuit Breaker) per IEC 60898/UL489/CSA C22.2 No. 5: Type D
- Typical Power and Current
- 120 V, 60 Hz: 10.8A, 1270W, PF 0.99
- 230 V, 50 Hz: 5.5A, 1240W, PF 0.97
- Thermal
- Cooling: Forced air (temperature regulated, low noise)
- Maximum ambient temperature (Ta max.): 104°F (40°C)
- Minimum ambient temperature (Ta min.): 32°F (0°C)
- Maximum surface temperature, steady state, at 104°F (40°C) ambient: 167°F (75°C)
- Total heat dissipation (calculated, +/- 10%): 4340 BTU/hr.
- Acoustic Data
- Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 41.4 dB(A)
- Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 37.7 dB(A)
- Environmental
- RoHS: Compliant
- REACH: Compliant
- WEEE: Compliant
- Proposition 65: Compliant
- Efficacy (max output): 30.2 lm/W
- Lumen to Weight Ratio: 853 lm/W (387 lm/lb)
- Dimensions (LxWxH)24" x 17" x 33.5"
- Weight90.4 pounds
