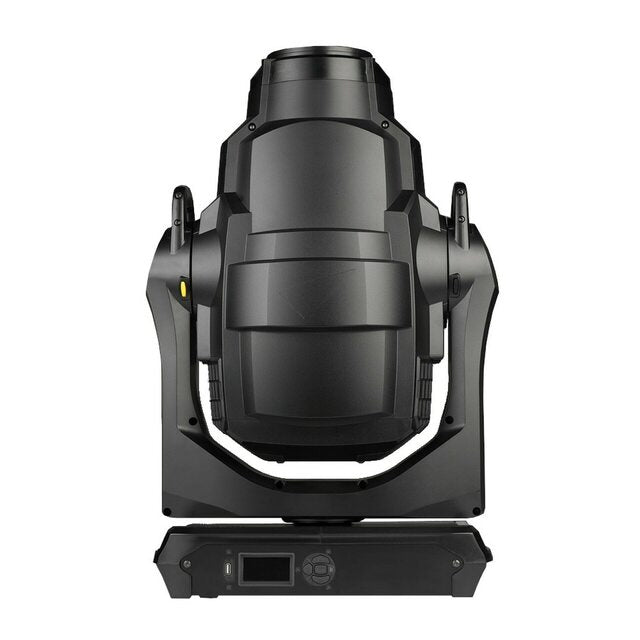

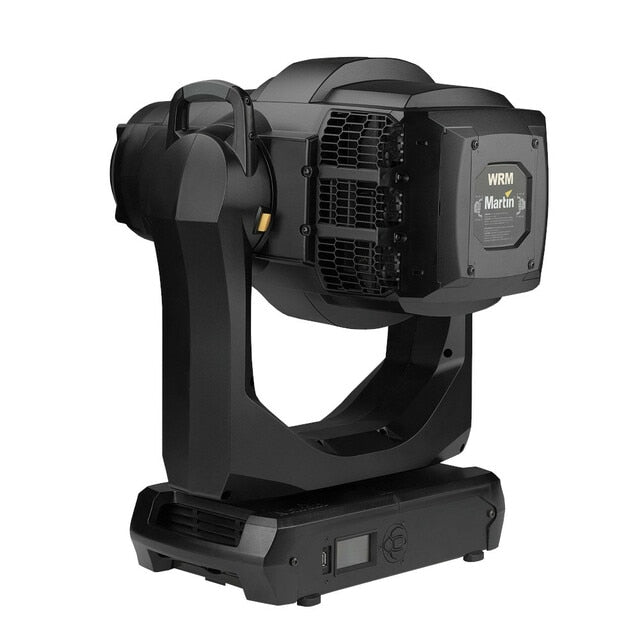

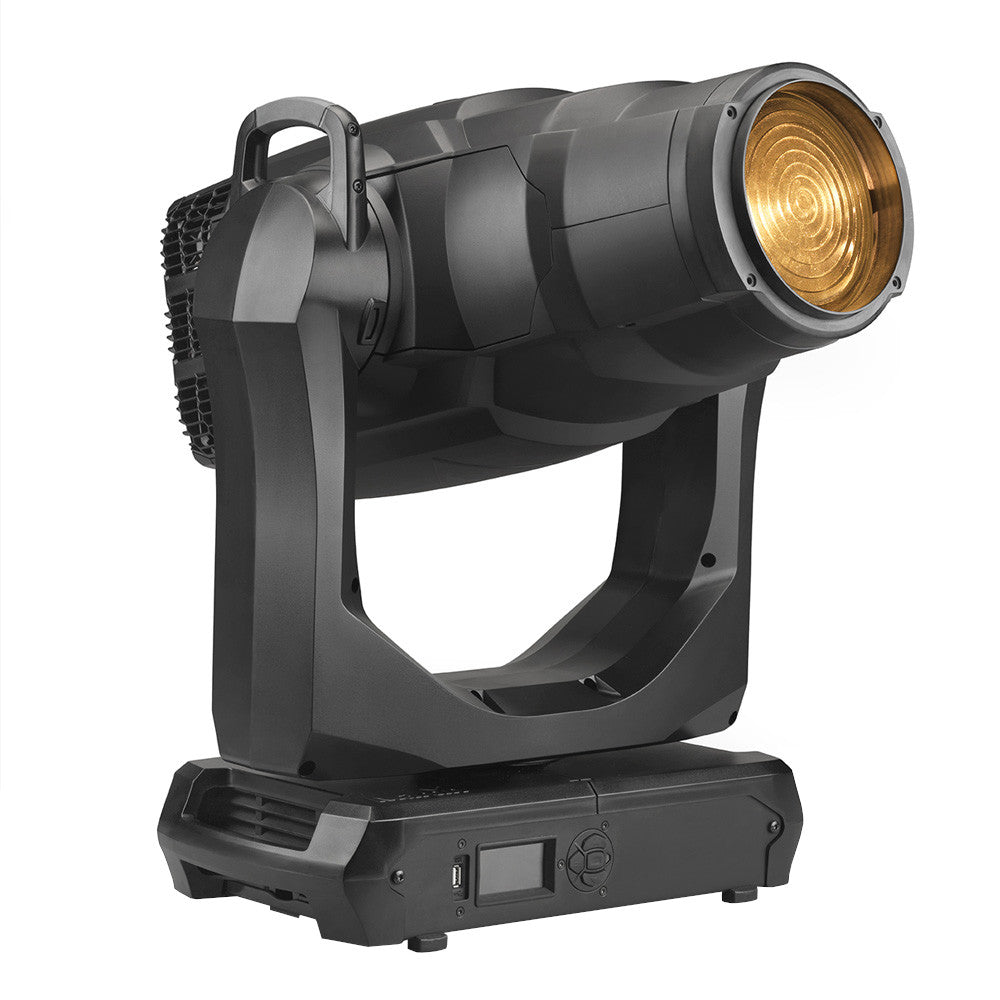

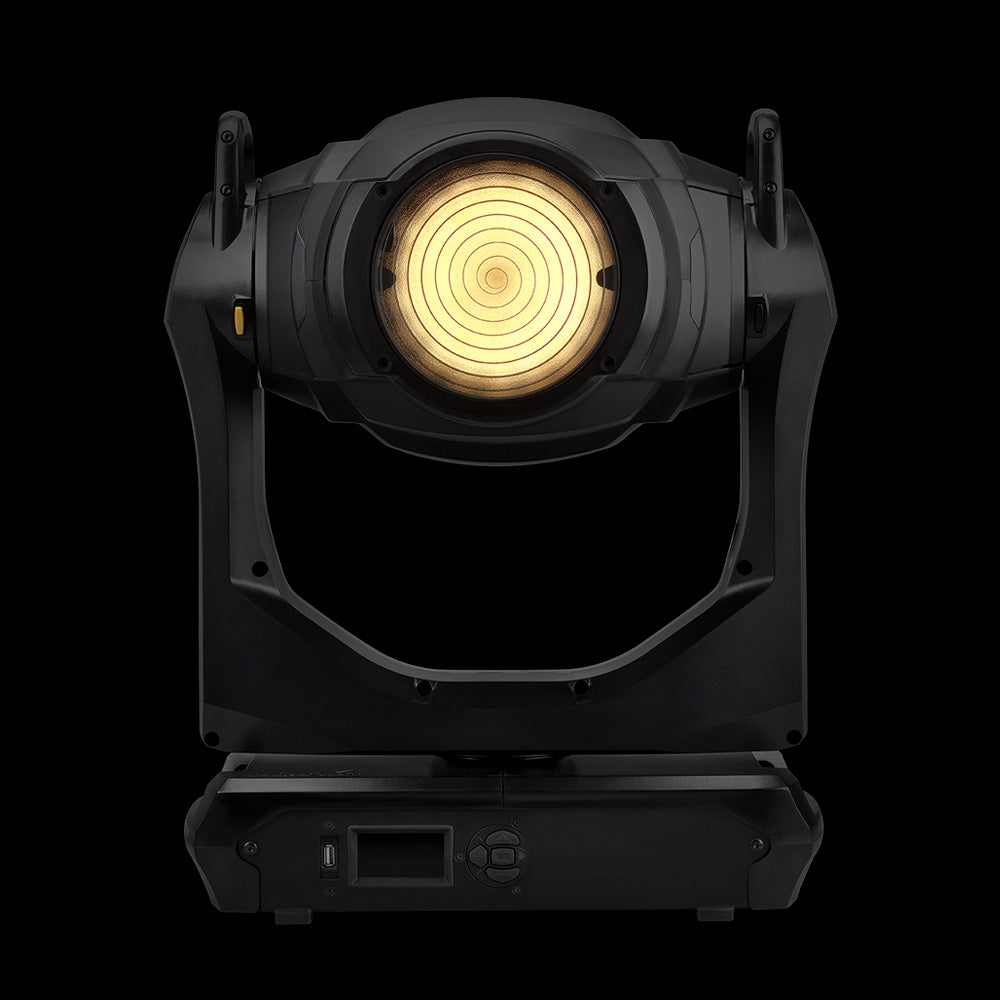

Martin Lighting MAC Encore Wash WRM EPS Moving Head
Martin Lighting MAC Encore Wash WRM EPS Moving Head
SoundPro Item: 95570 | Part Number: 90234025HU
In stock and ready to ship
- LED engine with 3000 K CCT
- Color temperature does not vary during zoom and dimming
- Flicker-free operation—LED driver frequency suitable for all camera applications
- Whisper-silent operation
- Fully electronic dimmer/shutter control with various dimming curves and tungsten red-shift emulation
- Vibrant CMY color mixing with a superior palette of colors ranging from rich, saturated primary colors to light and smooth pastel shades
- Variable CTB—tungsten to daylight CCT control and expansion of the CMY palette that stays true to black body curve
- Color wheel—6 interchangeable dichroic filters + open
- Fresnel lens: 1:4 zoom—precise, silent and fast zoom
- Internal barndoor system with two shutter blades and iris. Shutter blades can overlap for full blackout and the entire system rotates +/- 100°
- Precise and tight iris with adjustable dynamic effects
- Animotion™ FX System—internal dimming effect macros for stunning 3D mid-air and projection effects
- Super precise and silent pan/tilt movement and positioning due to 3-phase stepper motor technology and absolute position monitoring
Designed to produce rich color and premium white light in a wide variety of applications where light quality is critical, the MAC Encore™ Wash WRM is a perfect, LED-based, replacement for the much-loved, discontinued MAC TW1. The feature-packed soft edge moving head offers unparalleled 3000 K warm tungsten emulation that truly challenges the output quality of a real incandescent light source, and doubles as a modern replacement for generic fixtures like tungsten based Fresnel fixtures, with the additional benefit of color mixing and movement.
Designed for real life applications, 3000K color temperature offers comprehensive spectrum. High CRI, TM-30 and R9 values, ensure that skin tones, costumes, set pieces, and more have their true colors displayed. Carefully chosen LED refresh rates ensure flicker-free operation in camera applications. Precise color temperature control with variable color temperature correction (CTB) stays true to the black body curve without green or magenta shifts. Accurate control and smooth adjustment options help match the color temperature of other light sources on the set or stage. Vibrant CMY color mixing presents options from light and smooth pastels to rich, saturated primaries.

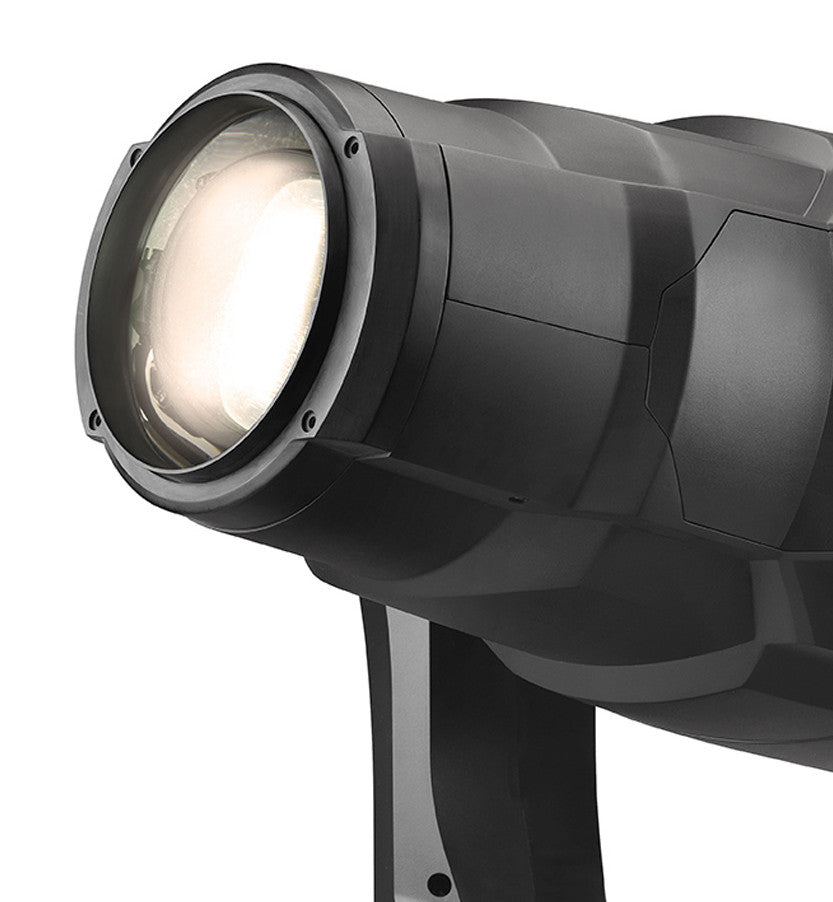

A diffused wash field optical system with no color temperature variation while zooming or dimming ensures even light and color temperature distribution across the beam from high to low intensity for perfect control. Its Fresnel lens offers Gaussian diffusion and its ultra-fast, precise, and super silent 1:4 zoom allows for both high and low ceiling usage that spans from tight beams to wide coverage. A PC lens with 1:5 zoom ratio for tighter beam and longer throw is available as an optional accessory.
Brightest-in-class LED wash light with internal barndoor system. Two internal overlapable shutter blades allow for full blackout and the entire system rotates +/- 100°. When combined with its ultra-precise and tight iris you can effectively crop the beam’s wide axis to precisely frame the lit area and repeat cues with great precision similar to a studio Fresnel with barndoors.
All motorized effect operations—cooling fans, barndoors, iris, zoom, pan and tilt—are engineered for applications where strict noise levels are a necessity. Design is compact and lightweight.
MAC Encore™ Wash CLD EPS is packaged in a cardboard box with polystyrene packaging.
- Dynamic Effects
- Pre-programmed effects: Two ranges of FX, independent or synchronized/combined
- Color mixing: CMY, independently variable 0 - 100%
- Color wheel: 6 x interchangeable dichroic filters + open, indexing, continuous rotation, random color
- Iris: Variable 0 - 100%
- Barn doors: Internal, two blades with individually controllable insertion, +/- 100° module rotation
- Dimmer/shutter: 0 - 100% continuous dimming, regular and random strobe and pulse effects, instant open and blackout
- Color temperature control: Variable 3000 - 7000 K
- Dimming options: Choice of four dimming curves
- Zoom: Motorized
- Pan: 540°
- Tilt: 268°
- Position correction system: Absolute position monitoring
- Focus: Range varies with zoom angle, from approx. 2 m (6.6 ft.) / 6 m (19.7 ft.) to infinity
- Control and Programming
- DMX channels: 24
- 16-bit control: Dimming, pan and tilt
- Movement control options: Tracking and vector
- Setting and addressing: Control panel with backlit graphic display and jog wheel or via DMX
- Fixture Identification: User-settable ID number
- DMX compliance: USITT DMX512-A
- RDM compliance: ANSI/ESTA E1.20
- Transceiver: Opto-isolated RS-485
- Fixture software update: USB memory device or over DMX link
- Optics
- Light source: 468 W custom Martin LED engine
- Minimum LED lifetime: 50,000 hours (to >80% luminous output)
- Zoom range with Fresnel lens (standard): 14° - 60° one-tenth peak (1:4)
- Zoom range with PC lens (optional): 11° - 58° one-tenth peak (1:5)
- Photometric Data
- Light engine luminous output: ≥ 31,500 lumens
- Fixture luminous output with Fresnel lens (standard): 8,500 lumens
- Fixture luminous output with PC lens (optional): 9,500 lumens
- CRI (Color Rendering Index) : >90
- CQS (Color Quality Scale): >90
- TM-30 Rf (IES TM-30-15 Fidelity Index): >90
- TM-30 Rg (IES TM-30-15 Gamut Index): >98
- TLCI (Television Lighting Consistency Index): >90
- CCT: 3000 K (+/- 250 K)
- Construction
- Housing: High-impact flame-retardant thermoplastic
- Protection rating: IP20
- Installation
- Mounting points: 4 pairs of 1/4-turn locks
- Location: Dry location only, must be fastened to surface or structure
- Orientation: Any
- Minimum distance to combustible materials: 0.2 m (8 in.)
- Minimum distance to illuminated surfaces: 2.0 m (6.6 ft.)
- Connections
- AC power input: Neutrik TRUE1 socket (accepts Neutrik TRUE1 NAC3FX-W connector)
- DMX and RDM data in/out: 5-pin locking XLR
- Electrical
- AC power: 120-240 V nominal, 50/60 Hz
- Power Consumption: 64 W, all effects static, zero light output
- Power supply unit: Auto-ranging electronic switch-mode
- Half-cycle RMS inrush current at 230 V, 50 Hz: 10.3 A
- Typical Power and Current
- 120 V, 60 Hz: 5.0 A, 596 W, PF 0.998
- 208 V, 60 Hz: 2.9 A, 581 W, PF 0.988
- 230 V, 50 Hz: 2.6 A, 580 W, PF 0.981
- 240 V, 50 Hz: 2.2 A, 585 W, PF 0.979
- Figures are typical, not maximum
- Thermal
- Cooling: Combined convection and forced air (temperature-regulated, low noise, user-definable levels)
- Maximum ambient temperature (Ta max.): 40° C (104° F)
- Minimum ambient temperature (Ta min.): 5° C (41° F)
- Maximum surface temperature, steady state, at 40° C ambient: 75° C (167° F)
- Total heat dissipation (calculated, +/- 10%): 2000 BTU/hr.
- Dimensions (LxWxH)17.8" x 18.9" x 29.8"
- Weight62.9 pounds
