Martin Lighting MAC One Compact RGBL Fresnel Beam Wash Moving Head | Cardboard | Black
Martin Lighting MAC One Compact RGBL Fresnel Beam Wash Moving Head | Cardboard | Black
SoundPro Item: 146532 | Part Number: MAR-90250200HU
Usually ships in 5-7 business days
- 150 mm Fresnel Lens With 6°–27° Soft-Edge Wash And Defined Narrow Beam
- 120W RGBL Engine: CRI ≥86 And TLCI ≥87 In Optimized Color Mode
- 24 RGB Backlight LEDs With Individual Pixel Control Via DMX Or P3
- 23.0 dB(A) Ultra-Low Noise Mode — All Fans In Head, None In Base
- VDO Grid Mount Ring Compatible With VDO Atomic Bold And Dot Matrix Systems
- 4.40 kg Compact Form Factor — 8 Units Per Flightcase For Efficient Touring
- Martin P3 Video Mapping With Crossfade On Beam And Backlight Independently

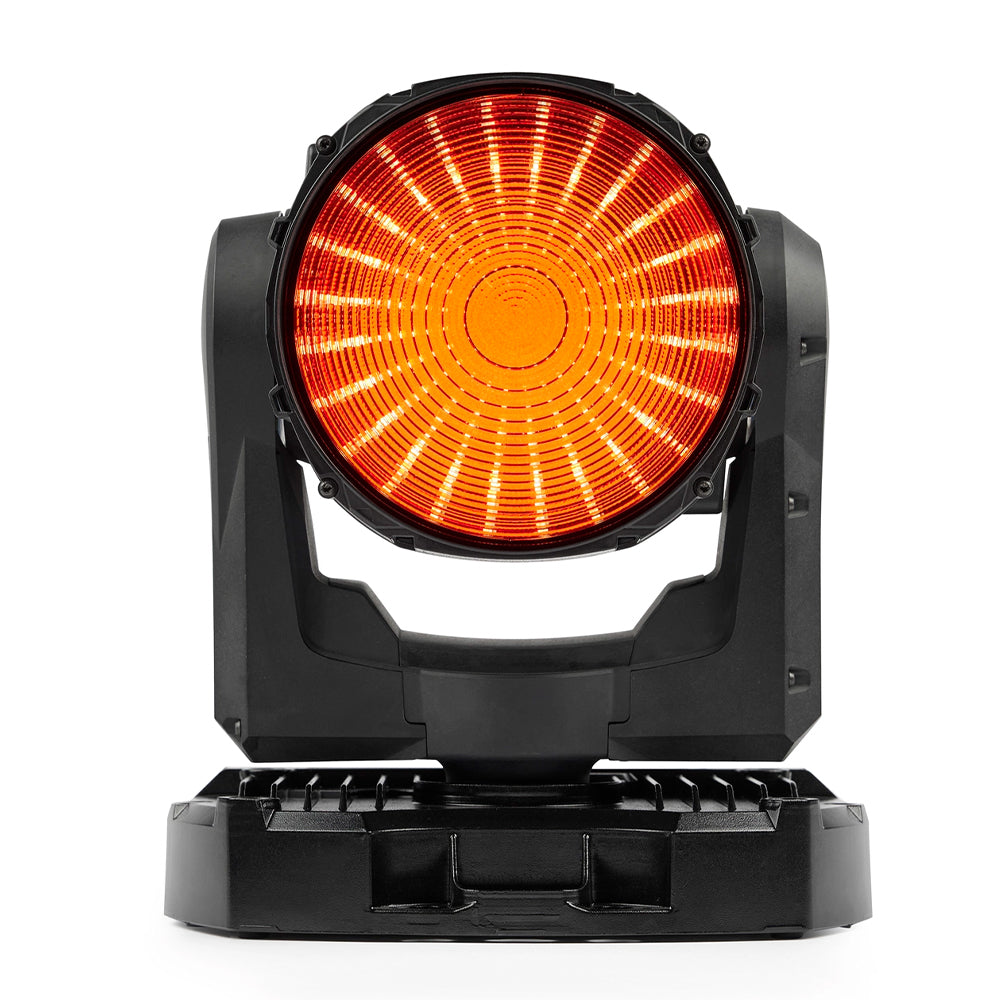

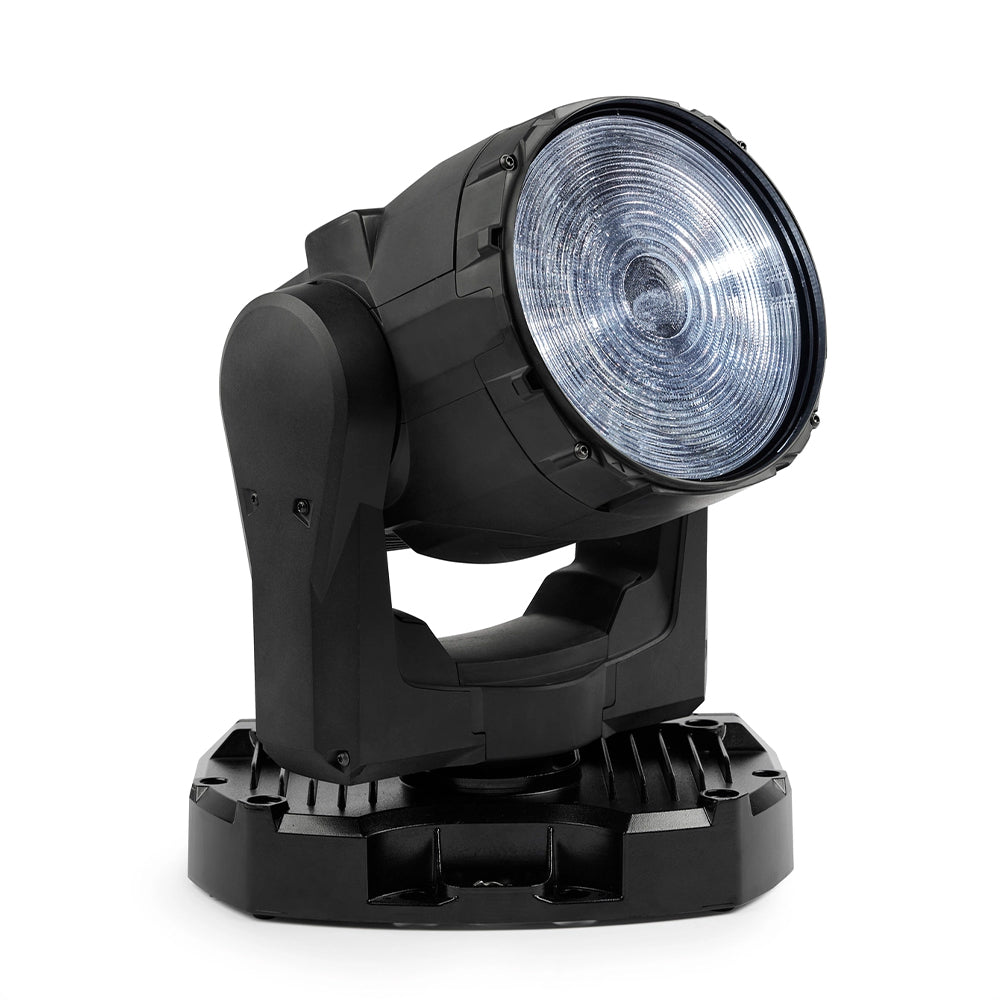

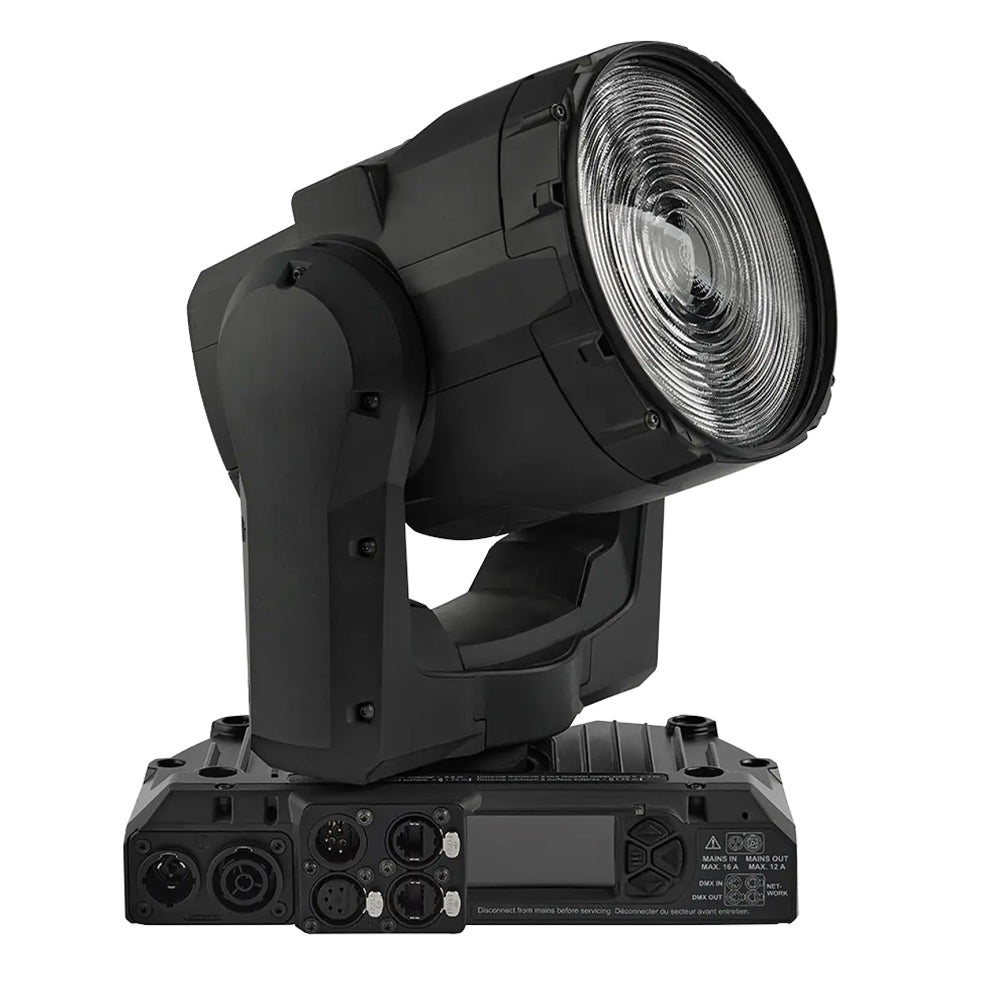

The Martin MAC One delivers three performance modes — narrow high-intensity beam, soft Fresnel wash, and RGB backlight eye-candy — in a 4.40 kg (9.70 lbs.) fixture. Powered by a custom 120W RGBL LED engine through a 150 mm Fresnel lens, it produces 2,500 lumens output with a 375,000 cd peak beam intensity and a soft-edge wash field from 6° to 27° field angle. The Lime LED element elevates CRI and TLCI performance above conventional RGBW fixtures of similar power class.

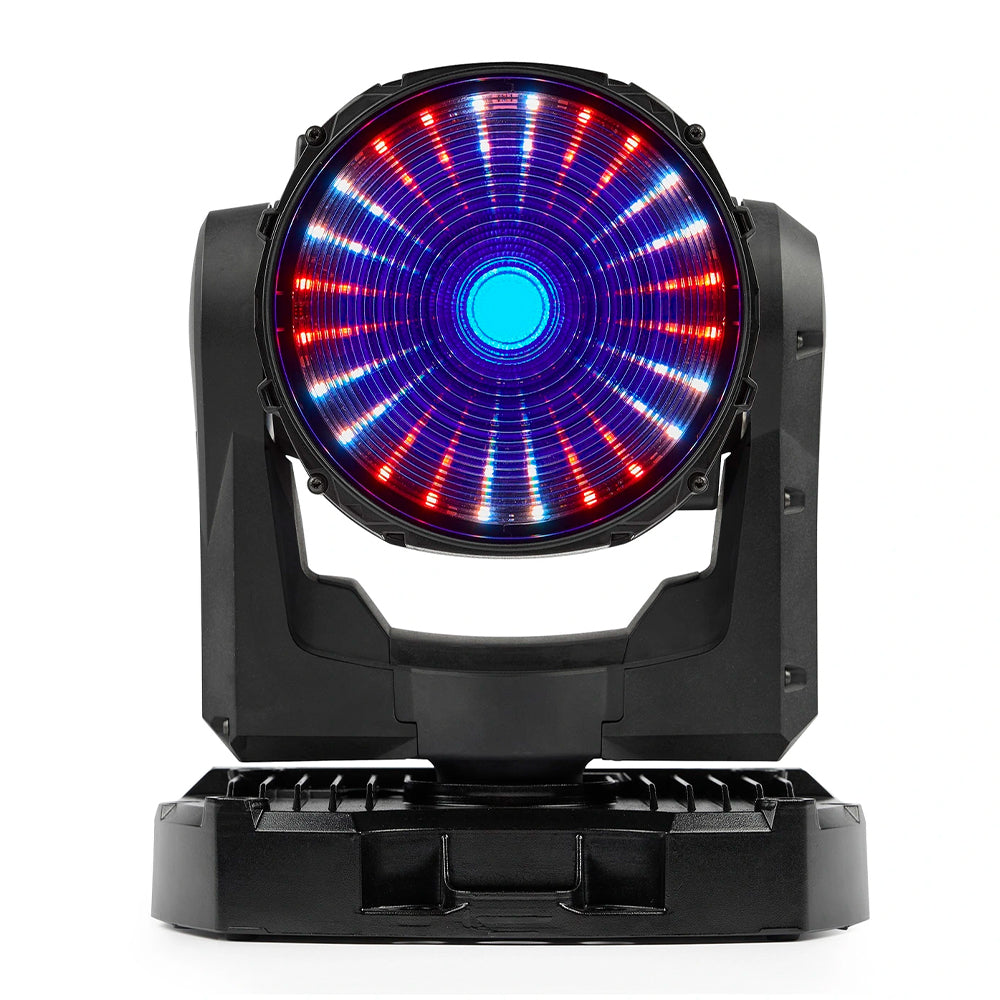

The 24 RGB backlight LEDs within the Fresnel lens are individually pixel-controllable via DMX in Ludicrous mode (108 channels) or via Martin P3 video mapping with crossfade between video and DMX control. VDO Grid Mount Ring compatibility enables integration into matrix arrays alongside VDO Atomic Bold and Dot products, with PDE Adapter Cables supporting power, DMX, and Ethernet distribution within the grid.
At 23.0 dB(A) in ultra-low constant fan mode — with all fans confined to the head — the MAC One meets the acoustic requirements of theater, television studio, and broadcast environments. Eight fixtures ship per flightcase, and the included SoftLens attaches to the front lens without removal for transport. Compatible with MAC One Family Fourbar and VDO Grid Mount Ring accessories for flexible large-quantity deployment.
- Dynamic Effects
- Beam Dimmer/Shutter: 0 - 100% continuous dimming, regular and random strobe/pulse/burst, instant open and blackout
- Beam Dimming options: Choice of four dimming curves
- Beam Color Mixing: RGB, independently variable 0 - 100%
- Beam Color Temperature Control: Variable 2,500 – 12.850K
- Beam Tint Control: Variable green-magenta shift Æuv -0.05 - +0.05
- Beam Virtual Color wheel: 48 color presets, continuous rotation & random color
- Zoom: Motorized with 1:5 zoom ratio
- Pan: Motorized 540°
- Tilt: Motorized 240°
- Beam P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
- Backlight Dimmer/Shutter: 0-100% continuous dimming, regular and random strobe, instant open and blackout
- Backlight Dimming options: Choice of four dimming curves
- Backlight Color Mixing: RGB, independently variable 0-100%
- Backlight Color Temperature Control: Variable 2,000-12,850 K
- Backlight Tint Control: Variable green-magenta shift Æuv -0.05 - +0.05
- Backlight Virtual Color Wheel: 48 color presets, continuous rotation & random color
- Backlight Pixelmapping: Individual RGB control of each of the 24 Backlight panels
- Backlight P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
- Pre-programmed effects: Two ranges of FX on Beam, Backlight or Combination; independent or synchronized/combined
- LED Frequency control: Variable LED PWM control
- Control and Programming
- Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3
- Protocol Detection: Automatic
- DMX Modes: Compact, Basic, Ludicrous & Compact Direct
- DMX Channels: 20, 36, 108 & 20
- 16-bit Controllable Parameters: Beam & Backlight Dimming, Beam Color Mixing, Zoom, Pan and Tilt
- Setting and Addressing: Display Menu, RDM, RDM over Art-Net or P3
- Local User Interface: Backlit LCD Display with battery-powered operation
- Fixture identification: User-settable ID number
- DMX Compliance: USITT DMX512-A
- RDM Compliance: ANSI/ESTA E1.20
- DMX/RDM Transceiver: Galvanic-isolated RS-485
- Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
- sACN Compliance: ANSI E1.31 - 2016
- Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer
- DMX/RDM Transceiver: Galvanic-isolated RS-485
- Ethernet Transceiver:10/100Mbit (with fail-safe bypass)
- Firmware Update: via DMX using Martin Companion or via Ethernet using Martin Companion / P3 System Controller
- Optics

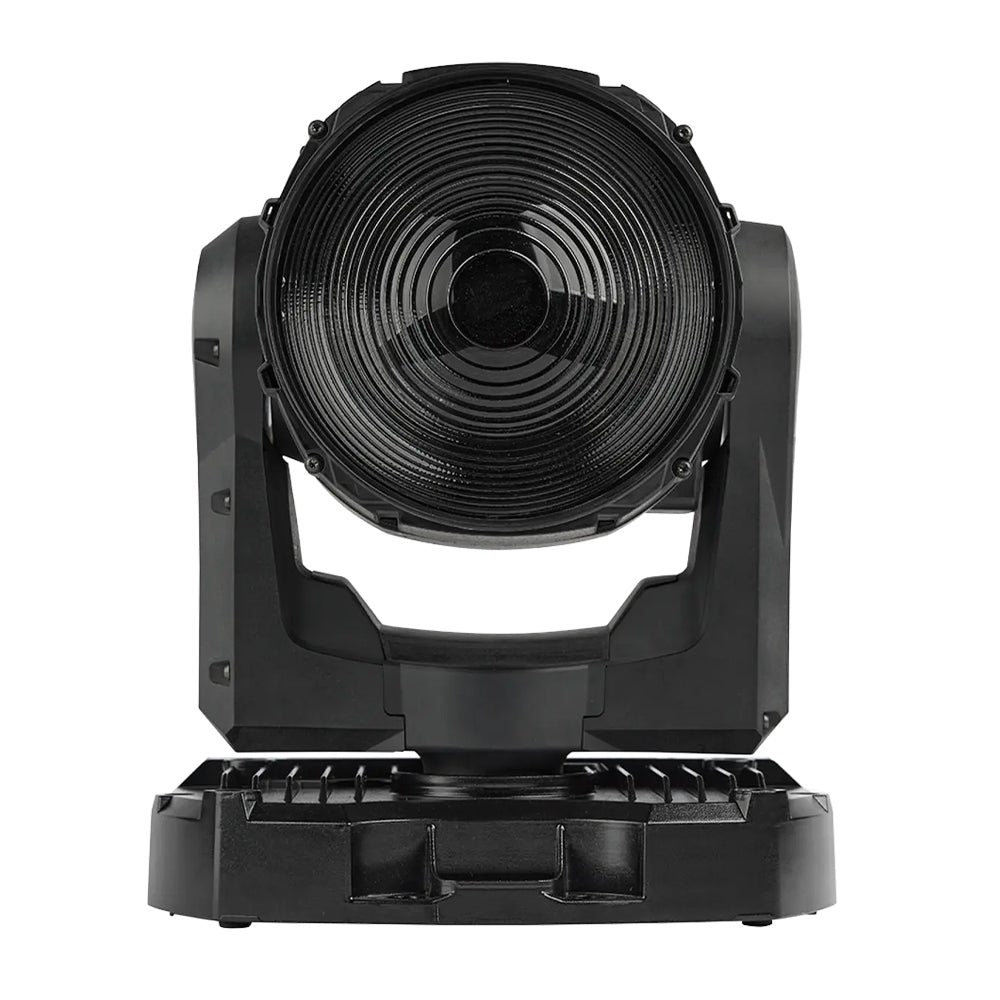

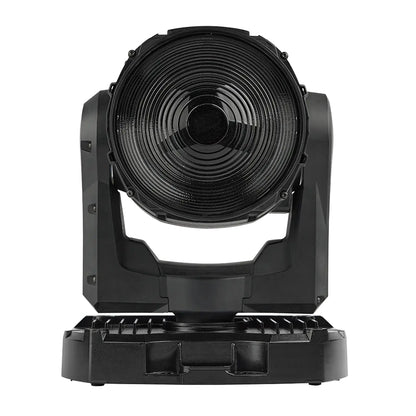

- Front Lens Diameter: 150 mm (5.91 in.)
- Zoom Range: 1:5
- Full Zoom Range at Half Peak (Beam Angle): 4.0° - 19.0°
- Full Zoom Range at Tenth Peak (Field Angle): 6.0° - 27.0°
- Beam Light Source: 1 x 120 W RGBL LED
- Backlight Light Source: 24 x 0.25 W RGB LED
- Max. Total Beam LED Engine Power: 120 W
- Max. Total Backlight LED Engine Power: 6 W
- Minimum LED lifetime: > 50.000 hours (to > 70% luminous output)
- Photometric Data
- Light Engine Luminous Output: 5,700 lumens
- Fixture Luminous Output Wide: 2,500 lumens
- Fixture Luminous Output Narrow: 1,900 lumens
- Peak Luminous Intensity Narrow: 375,000 cd
- CCT: Variable 2,000 K - 12,850 K (+/- 200 K)
- CRI (Color Rendering Index) (default): ≥ 77
- CRI (Color Rendering Index) (optimized): ≥ 86
- CQS (Color Quality Scale) (default): ≥ 86
- CQS (Color Quality Scale) (optimized): ≥ 89
- TM-30 Rf (IES TM-30-15 Fidelity Index) (default): ≥ 80
- TM-30 Rf (IES TM-30-15 Fidelity Index) (optimized): ≥ 84
- TM-30 Rg (IES TM-30-15 Gamut Index) (default): ≥ 114
- TM-30 Rg (IES TM-30-15 Gamut Index) (optimized): ≥ 105
- TLCI (Television Lighting Consistency Index) (default): ≥ 68
- TLCI (Television Lighting Consistency Index) (optimized): ≥ 87
- Beam LED Refresh Rate: 2,400 Hz with adjustment (+/- 2%) via DMX
- Backlight LED Refresh Rae: 1,200 Hz
- Binning: Tight color and flux binning
- Calibration: Full Gamut Color Calibration of Beam and Backlight
- Color Modes: Extended Color Mode, Calibrated Color Mode
- Construction
- Housing: High-impact thermoplastic, flame-retardant, black
- Protection rating: IP20
- Installation
- Mounting options: Clamps on fixture, omega on fixture, Fourbar or VDO Grid Mount Ring
- Mounting points: 1 pair of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega bracket and two M12 threaded holes
- Location: Indoor or outdoor protected from elements
- Orientation: Any
- Minimum distance to combustible materials: 0.2 m (7.87 in.)
- Minimum distance to illuminated surfaces: 1.75 m (68.90 in.)

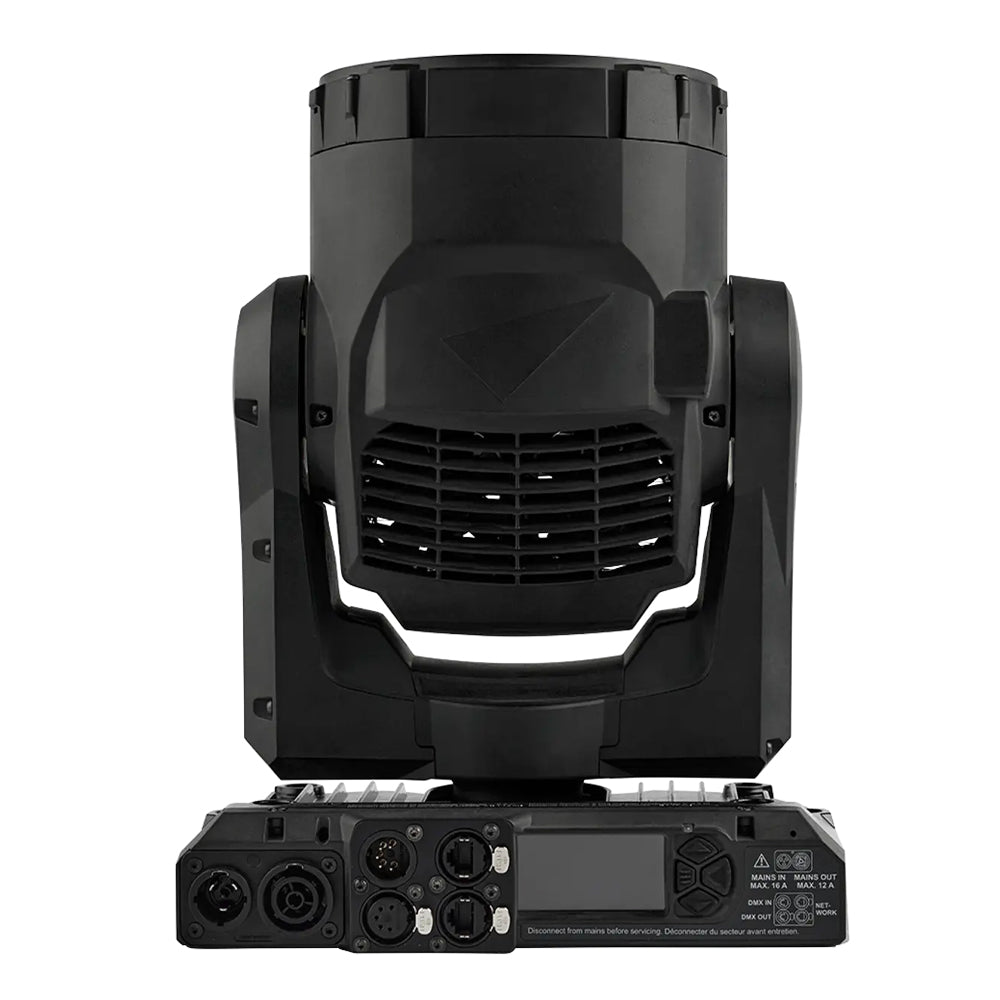

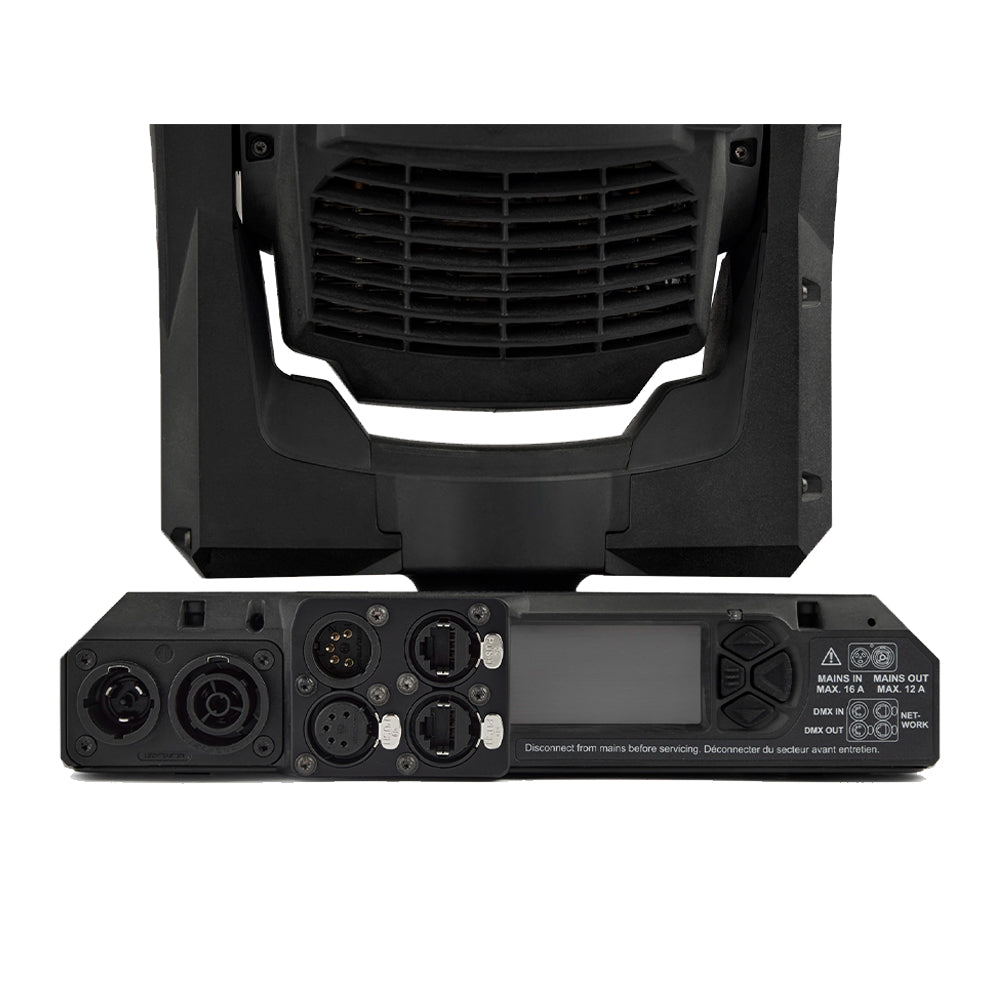

- Connections
- AC mains power in/thru: Neutrik powerCON TRUE1 TOP
- DMX and RDM data in/thru: Neutrik 5-pin locking XLR
- Ethernet (Art-Net, sACN and P3) in/thru, including fail-safe bypass: Neutrik etherCON
- Electrical
- AC power: 100-240 V AC nominal, 50/60 Hz
- Power supply unit: Auto-ranging electronic switch mode
- Maximum total power consumption: 400 W
- Maximum total current at 100-120V: 3.8 A
- Maximum total current at 200-240V: 1.8 A
- Typical half-cycle RMS inrush current at 230 V, 50 Hz: 3.5 A
- Typical earth-leakage current: 0.50 mA
- Max current draw: 2.0 A @ 100 V / 120 V, 0.9 A @ 208 V / 230 V / 240 V
- Typical current draw: 1.6 A @ 100 V, 1.4 A @ 120 V, 0.9 A @ 208 V, 0.8 A @ 230 V, 0.8 A @ 240 V
- Typical Power and Current
- Max.:180 W
- Typical:160 W
- Idle:24 W
- Hibernation:9 W
- Thermal
- Cooling: Forced air (temperature-regulated, low noise, user-definable levels)
- Maximum ambient temperature (Ta max.): 40° C (104° F)
- Minimum ambient temperature (Ta min.): 5° C (41° F)
- Total heat dissipation (calculated, +/- 10%): 1230 BTU/hr.
- Acoustic Data
- Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 26.3 dB(A)
- Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 23.0 dB(A)
- Environmental
- RoHS: Compliant
- REACH: Compliant
- WEEE: Compliant
- Proposition 65: Compliant
- Efficacy (max output): 21.4 lm/W
- Lumen to Weight Ratio: 568 lm/kg (417 lm/lb)
- Dimensions (WxHxD)10.00" W x 13.74 H" x 8.66 L"
- Weight9.7 pounds
