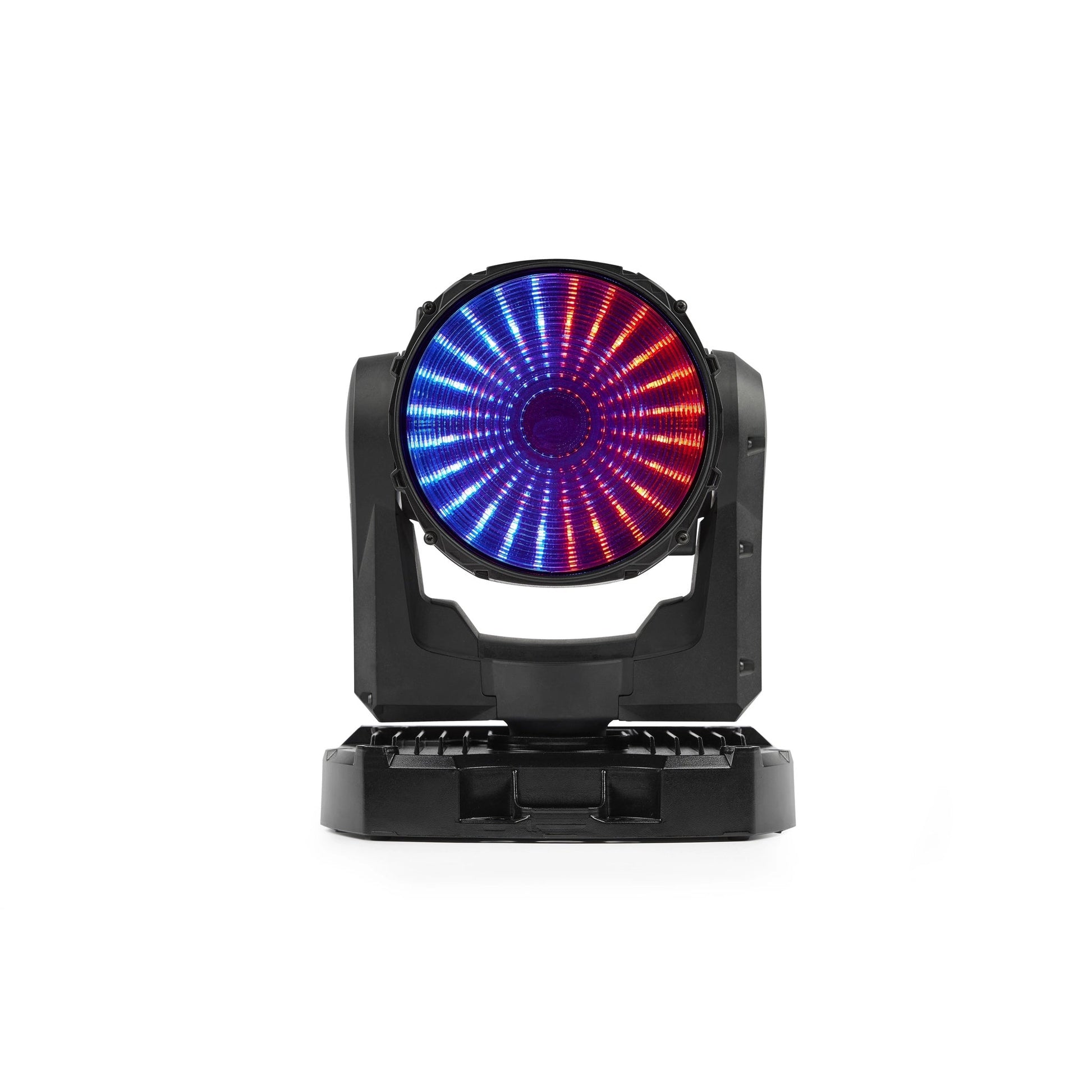

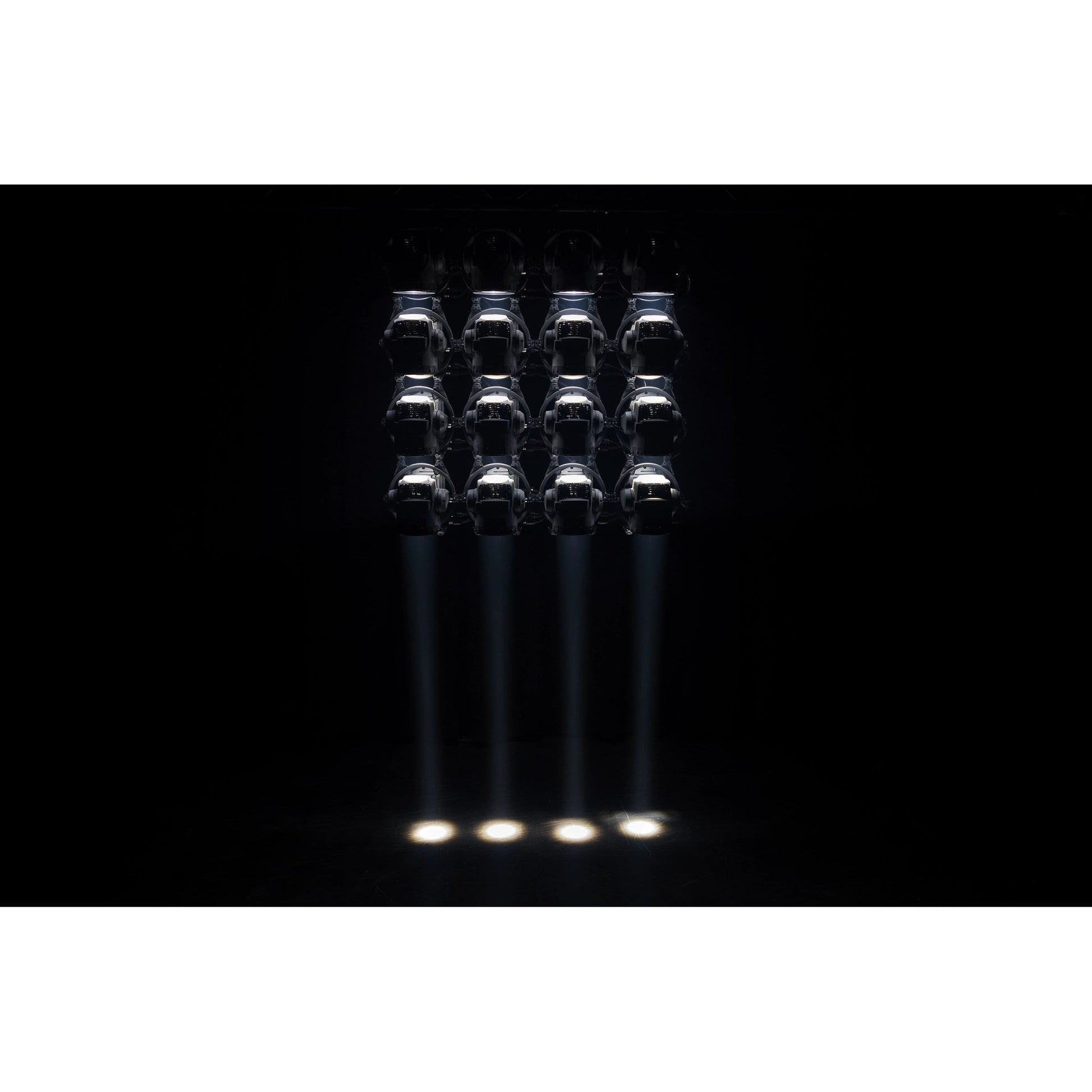

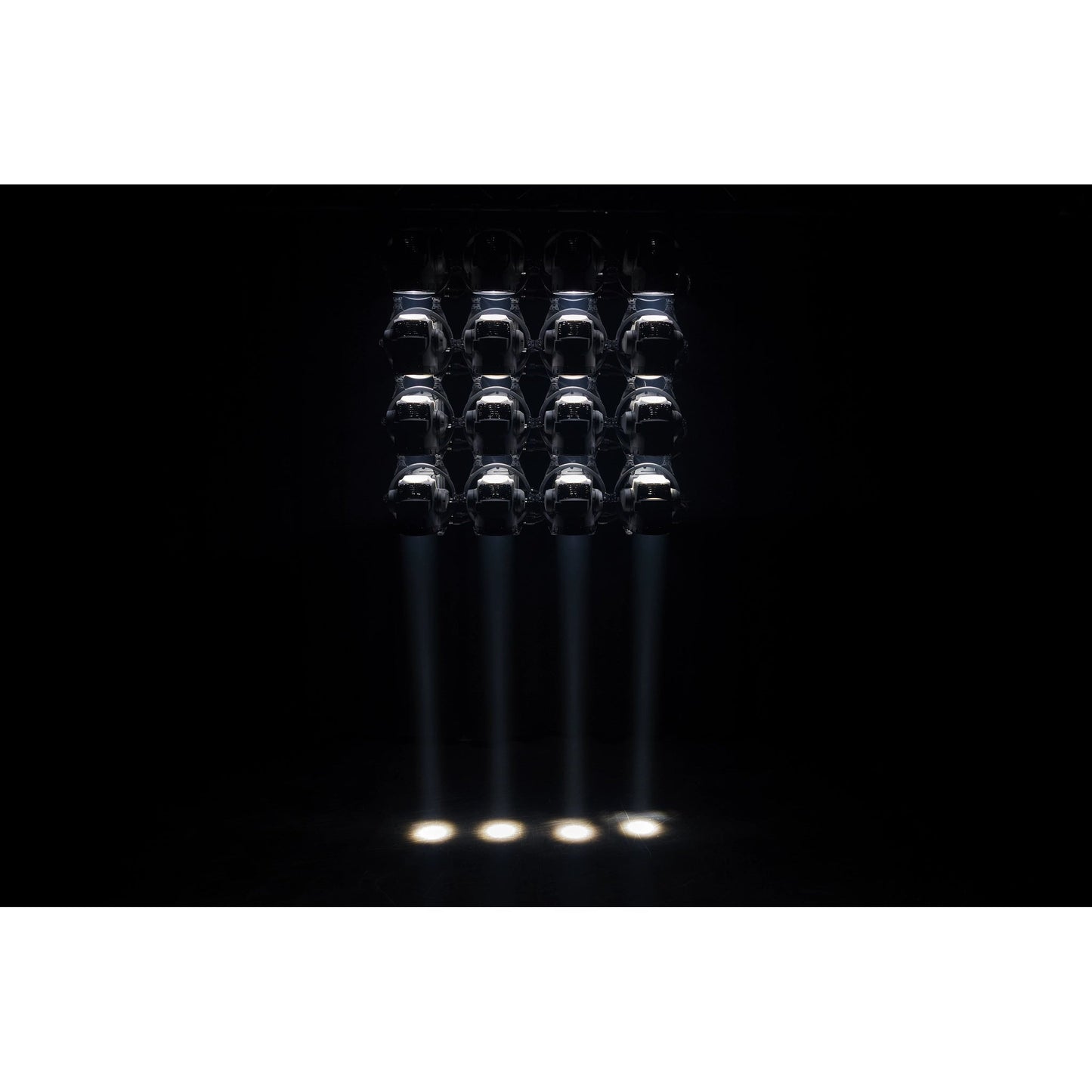

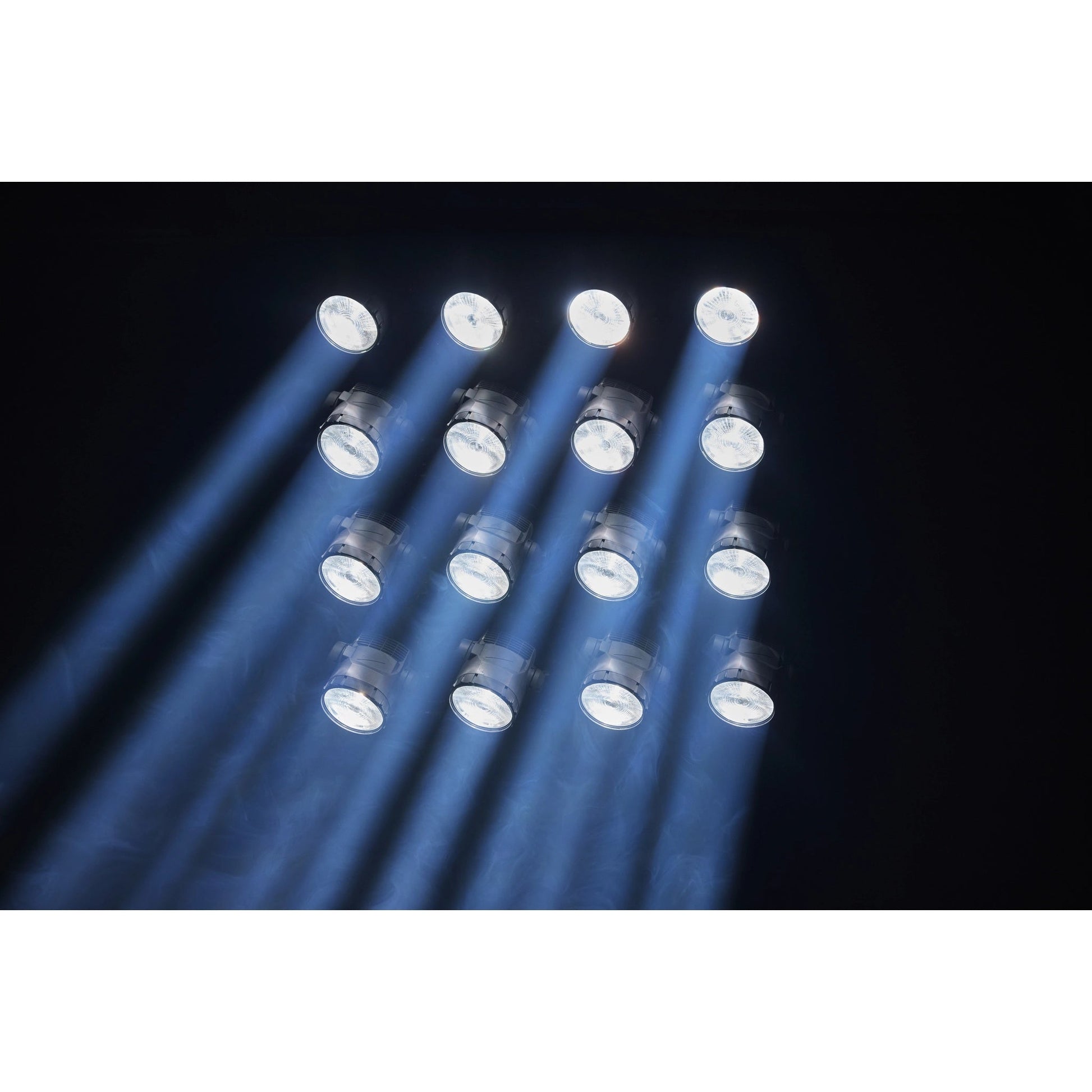

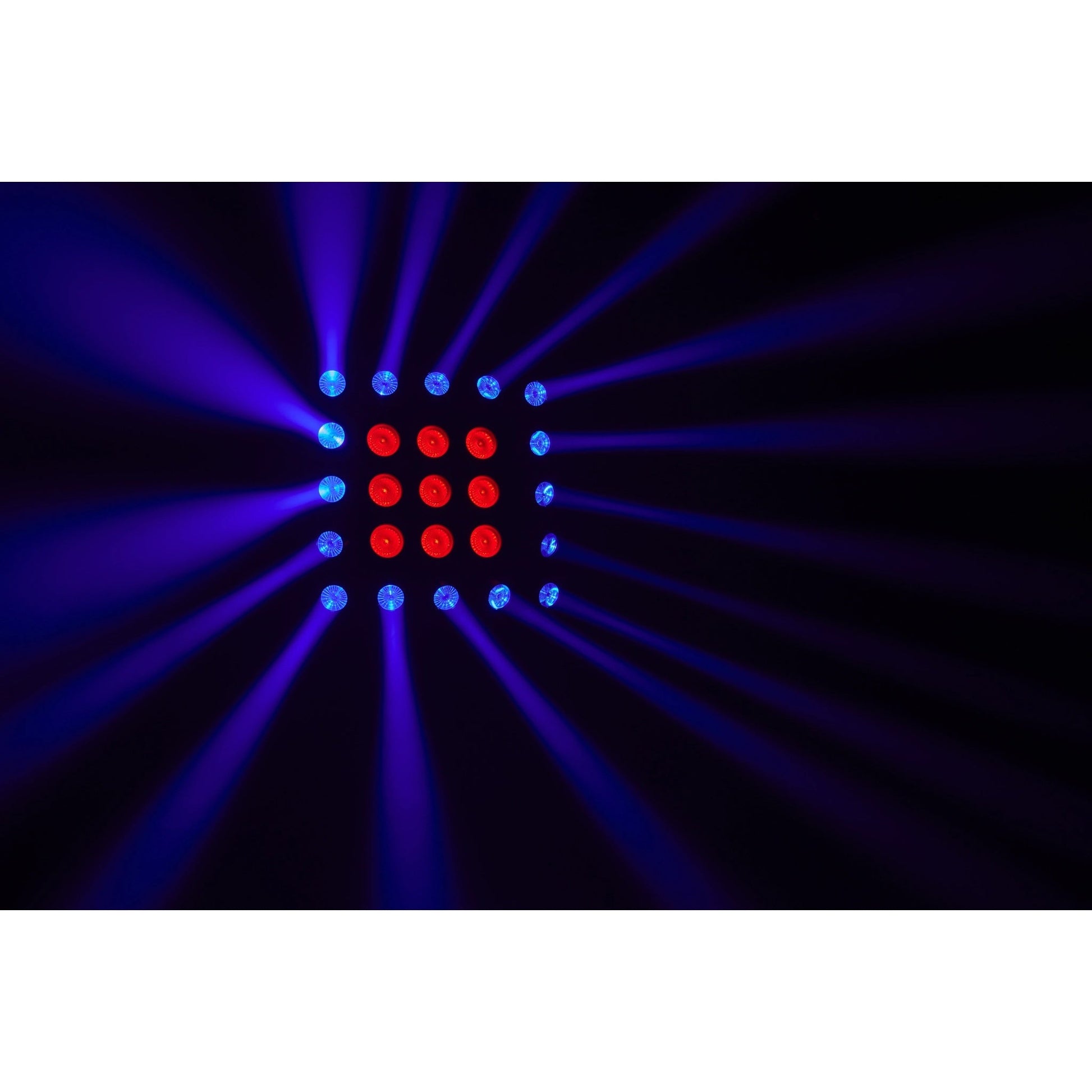

• MAC ONE illuminated
  • MAC ONE illuminated

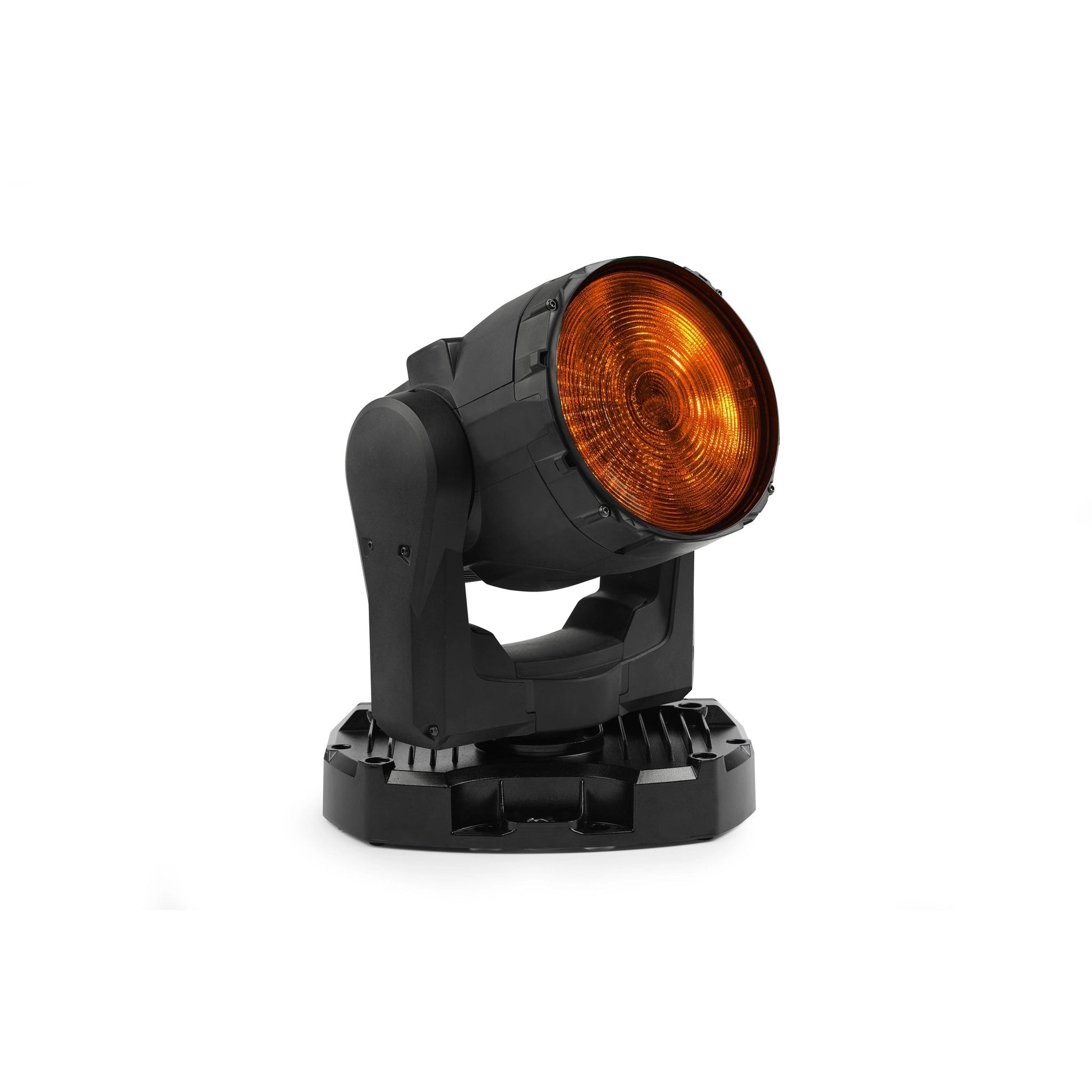

  • Martin Lighting MAC ONE BeamWash Moving Head with Fresnel Lens

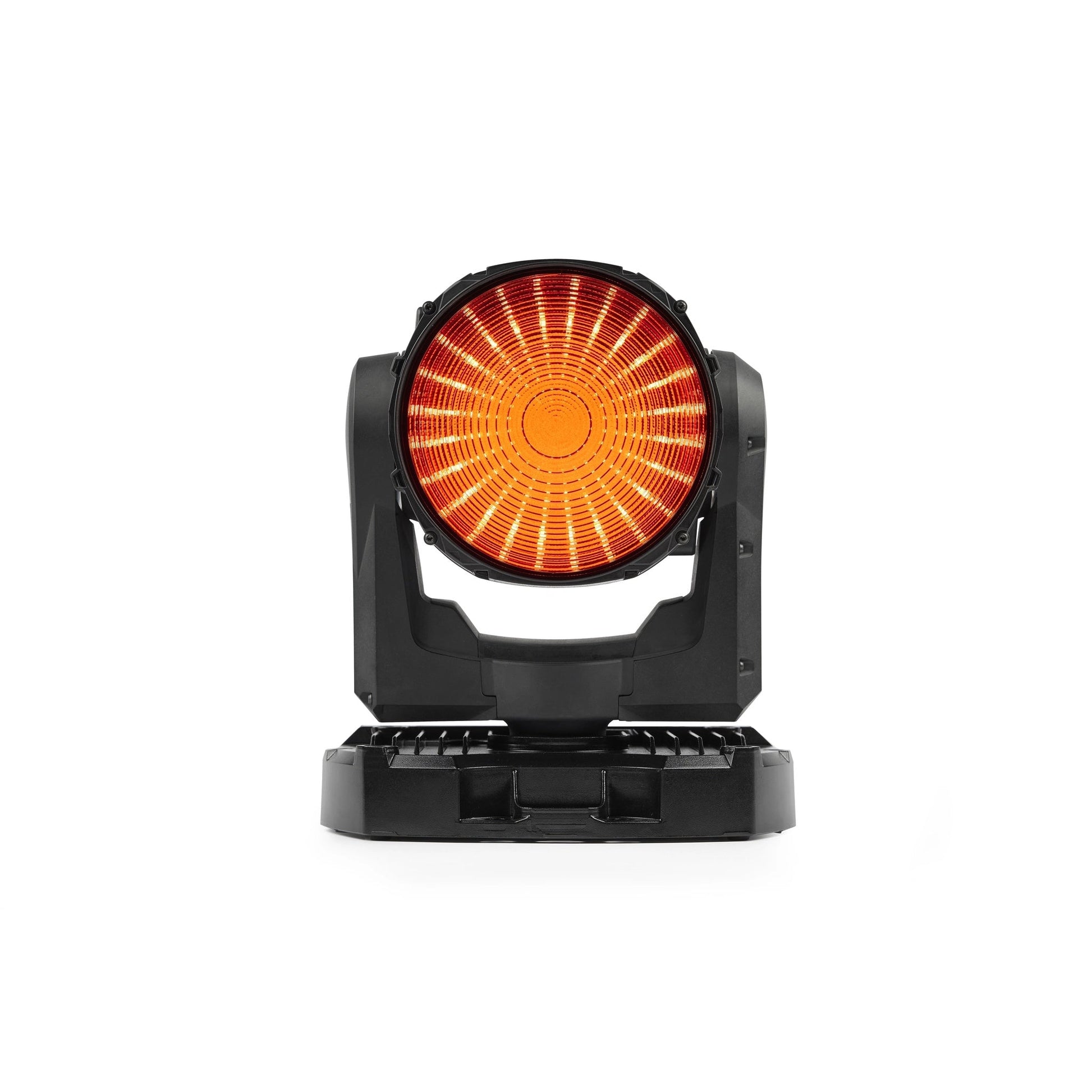

  • MAC ONE illuminated

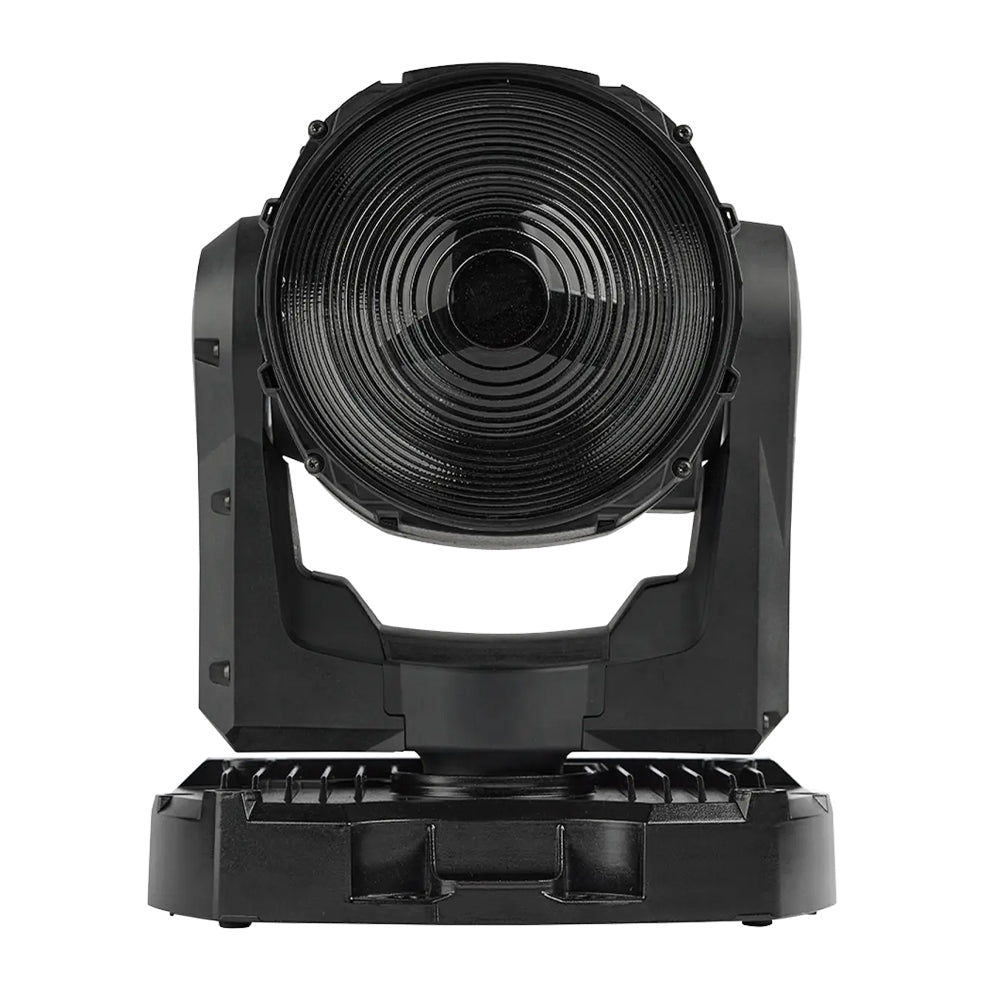

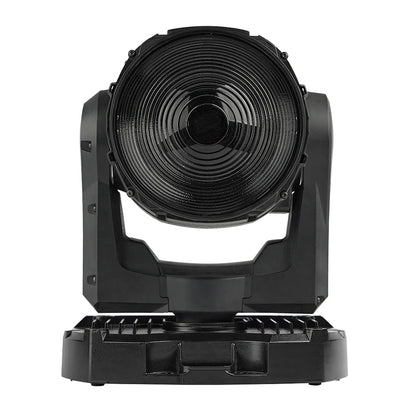

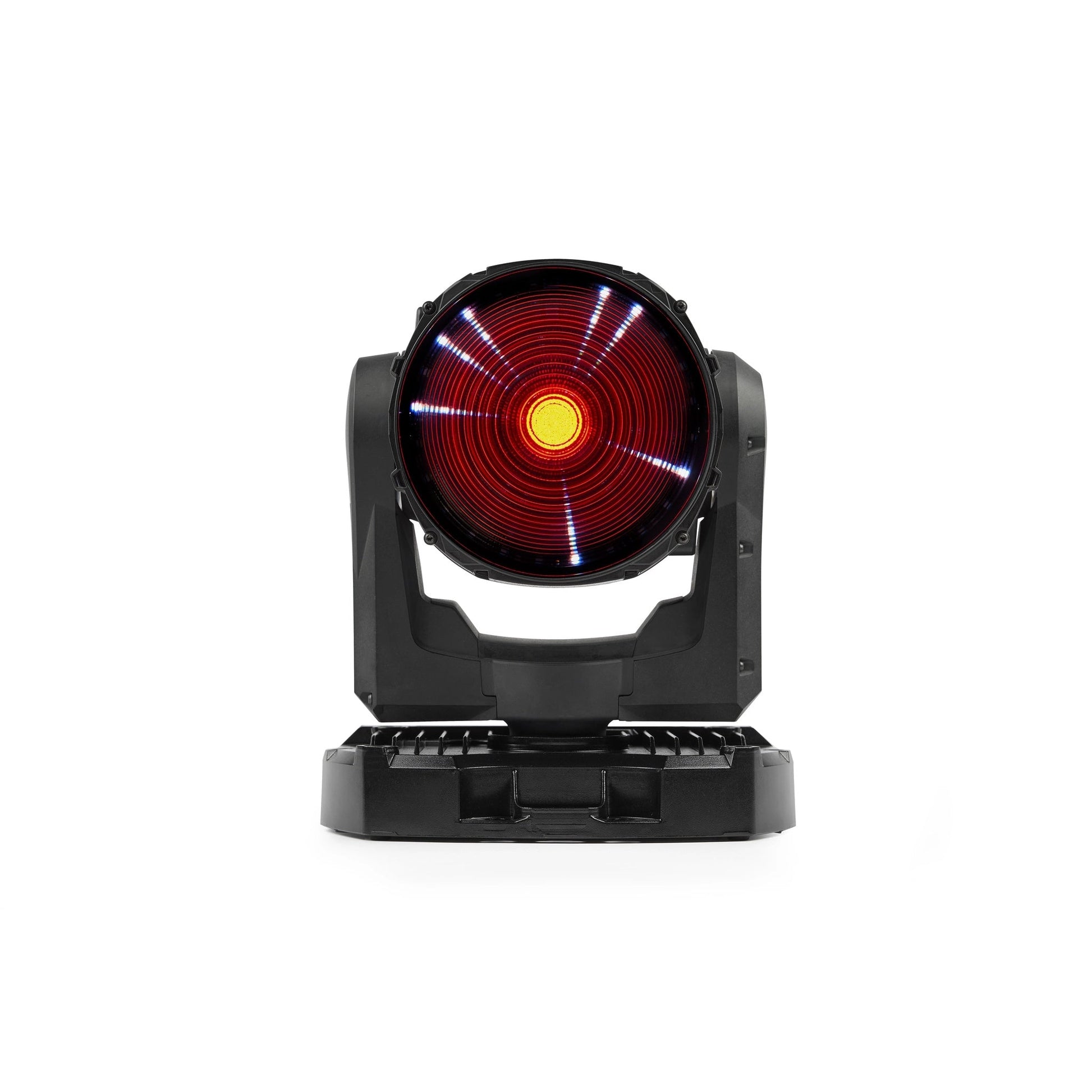

  • MAC ONE front

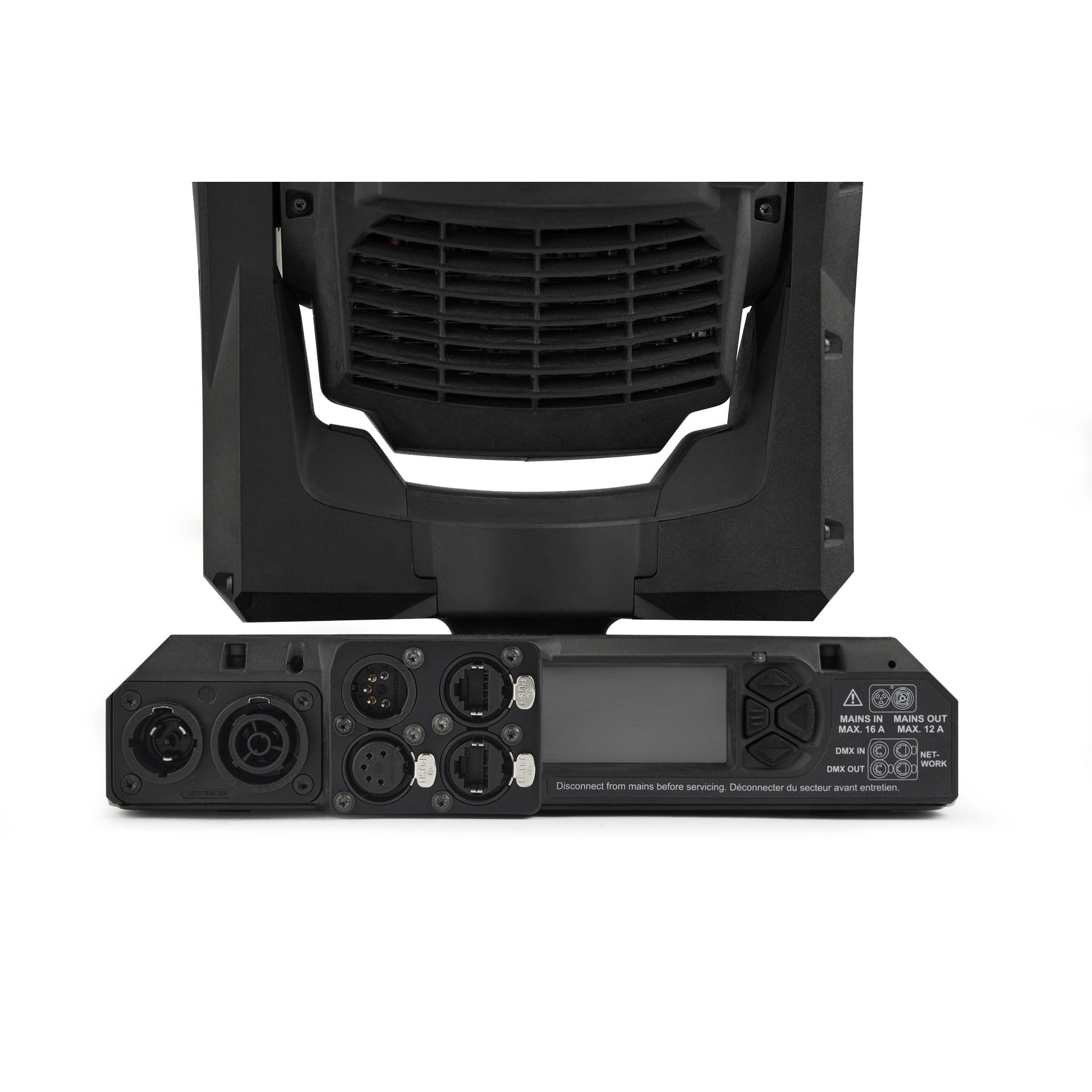

  • MAC ONE back panel close up
  • MAC ONE angled back panel

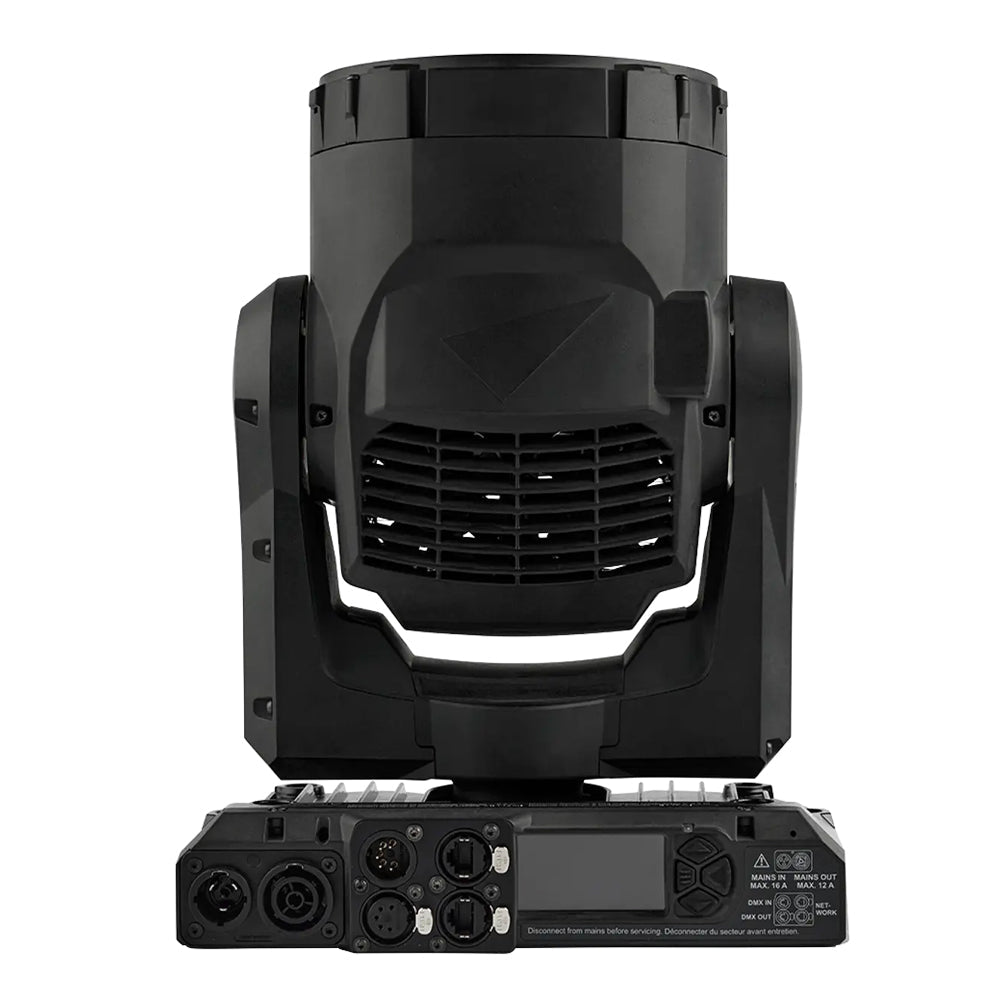

  • MAC ONE back panel up position

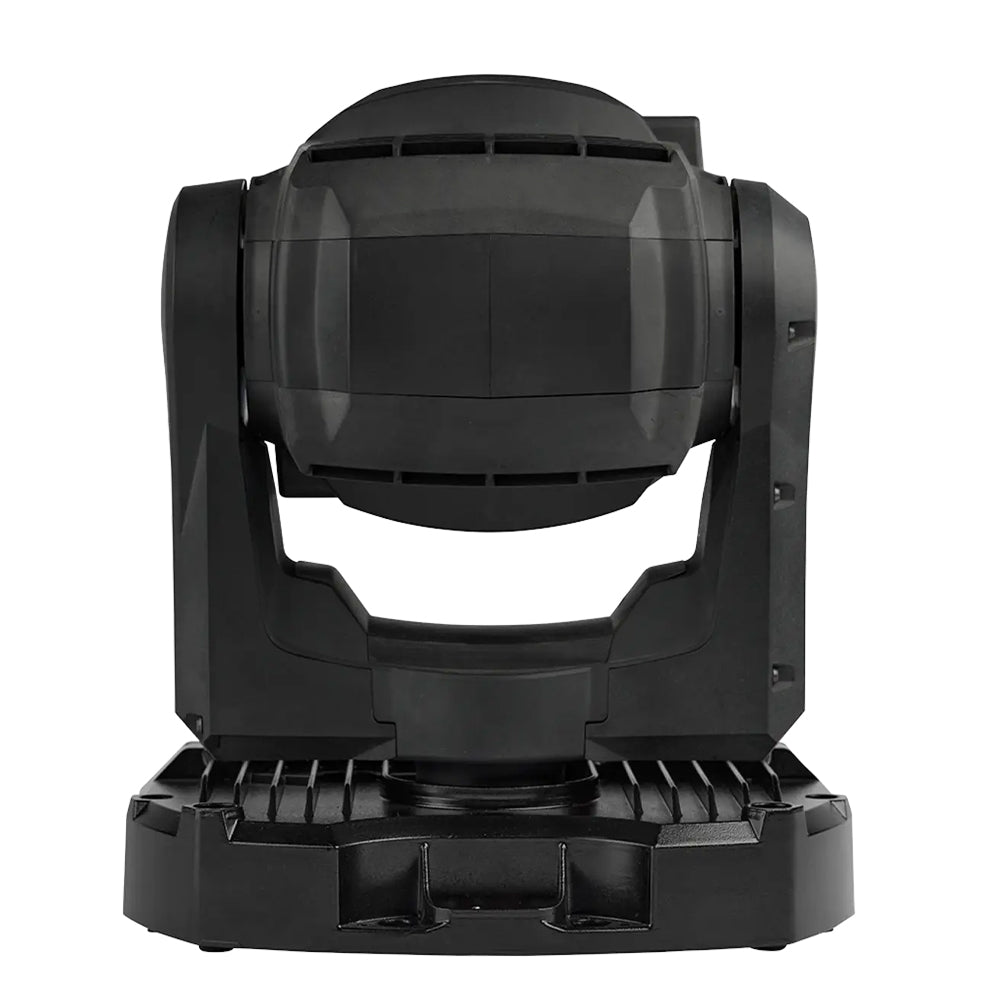

  • MAC ONE back panel

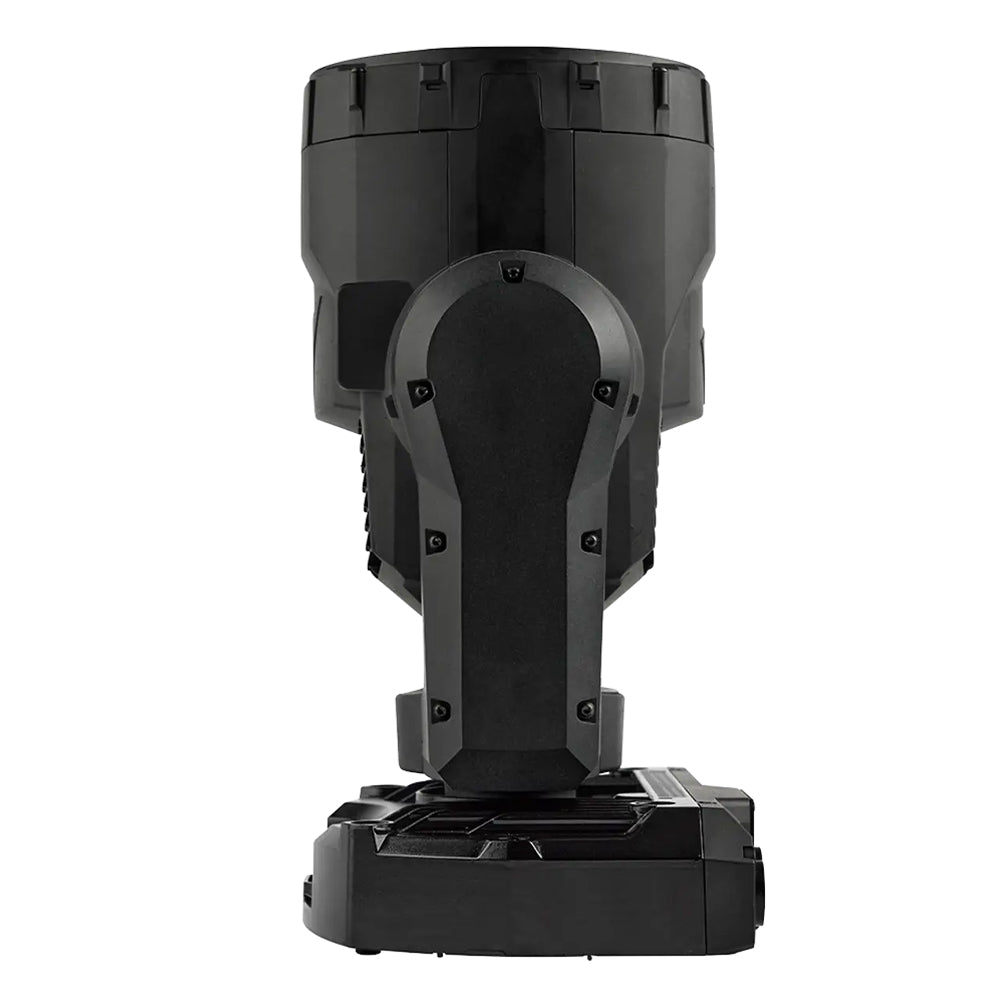

  • MAC ONE side up position
1 34

Martin Lighting MAC One Compact RGBL Fresnel Beam Wash Moving Head

Martin Lighting MAC One Compact RGBL Fresnel Beam Wash Moving Head

SoundPro Item: 146532 | Part Number: MAR-90250200HU

$2,499.00
$2,925.00 $2,499.00
Your Price Sold out
MSRP: $2,925.00 | MAP: $2,499.00

Usually ships in 5-7 business days

  • 150 mm Fresnel Lens With 6°–27° Soft-Edge Wash And Defined Narrow Beam
  • 120W RGBL Engine: CRI ≥86 And TLCI ≥87 In Optimized Color Mode
  • 24 RGB Backlight LEDs With Individual Pixel Control Via DMX Or P3
  • 23.0 dB(A) Ultra-Low Noise Mode — All Fans In Head, None In Base
  • VDO Grid Mount Ring Compatible With VDO Atomic Bold And Dot Matrix Systems
  • 4.40 kg Compact Form Factor — 8 Units Per Flightcase For Efficient Touring
  • Martin P3 Video Mapping With Crossfade On Beam And Backlight Independently
Log in or register for YOUR best price

The Martin MAC One delivers three performance modes — narrow high-intensity beam, soft Fresnel wash, and RGB backlight eye-candy — in a 4.40 kg (9.70 lbs.) fixture. Powered by a custom 120W RGBL LED engine through a 150 mm Fresnel lens, it produces 2,500 lumens output with a 375,000 cd peak beam intensity and a soft-edge wash field from 6° to 27° field angle. The Lime LED element elevates CRI and TLCI performance above conventional RGBW fixtures of similar power class.

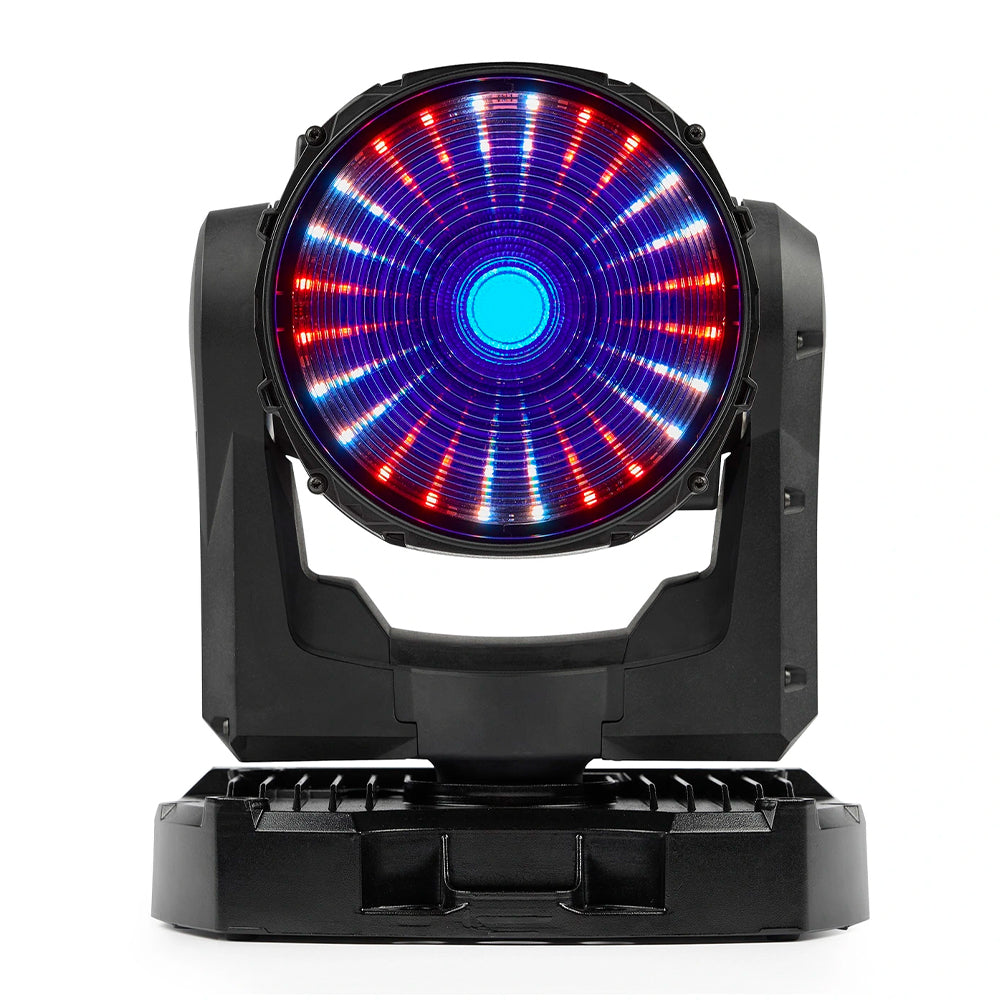

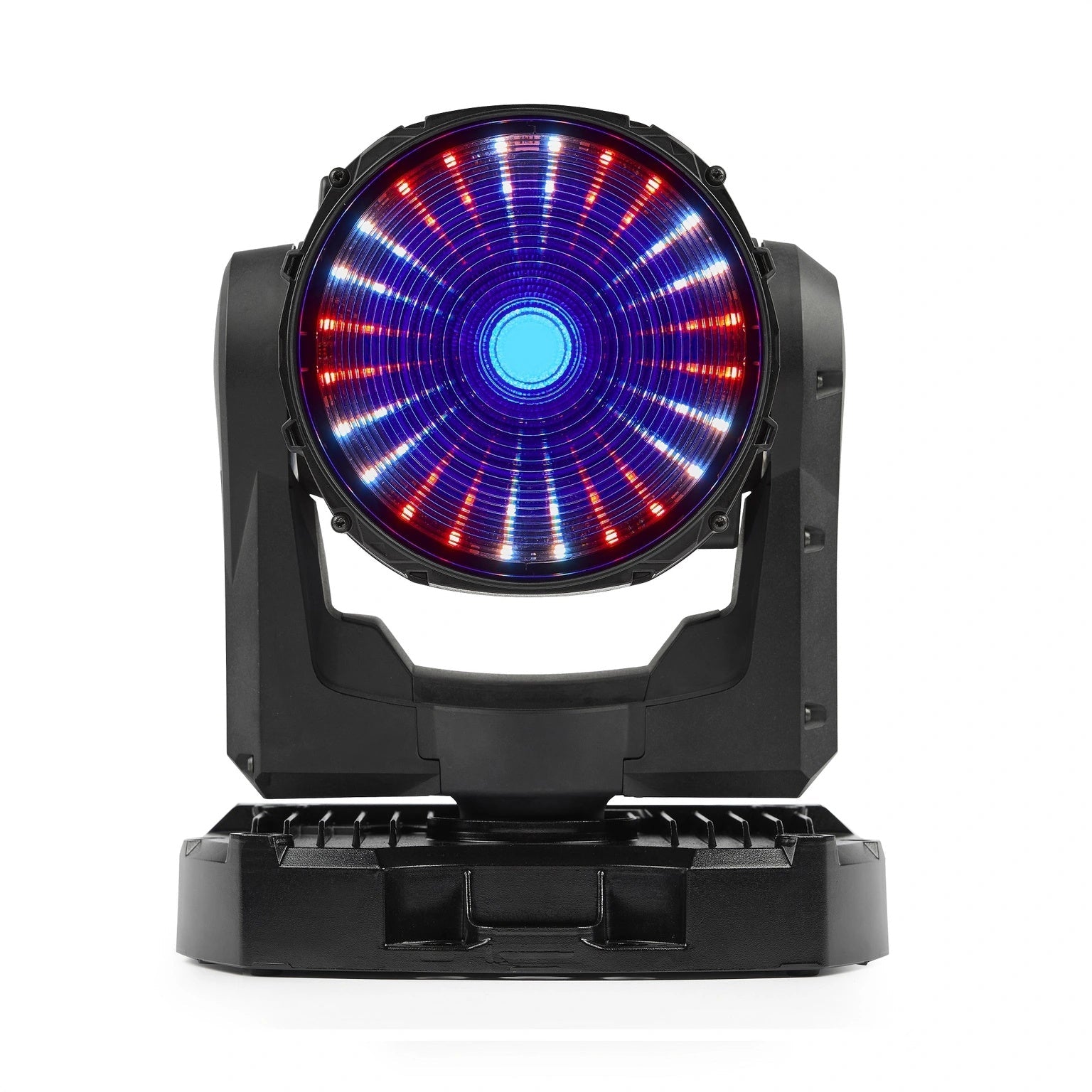

The 24 RGB backlight LEDs within the Fresnel lens are individually pixel-controllable via DMX in Ludicrous mode (108 channels) or via Martin P3 video mapping with crossfade between video and DMX control. VDO Grid Mount Ring compatibility enables integration into matrix arrays alongside VDO Atomic Bold and Dot products, with PDE Adapter Cables supporting power, DMX, and Ethernet distribution within the grid.

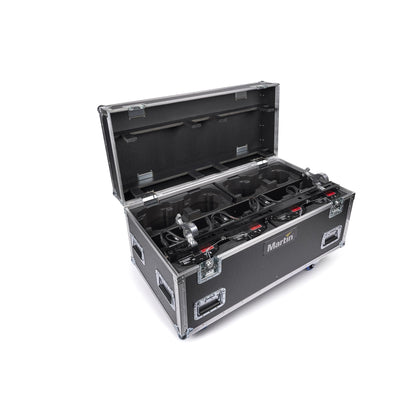

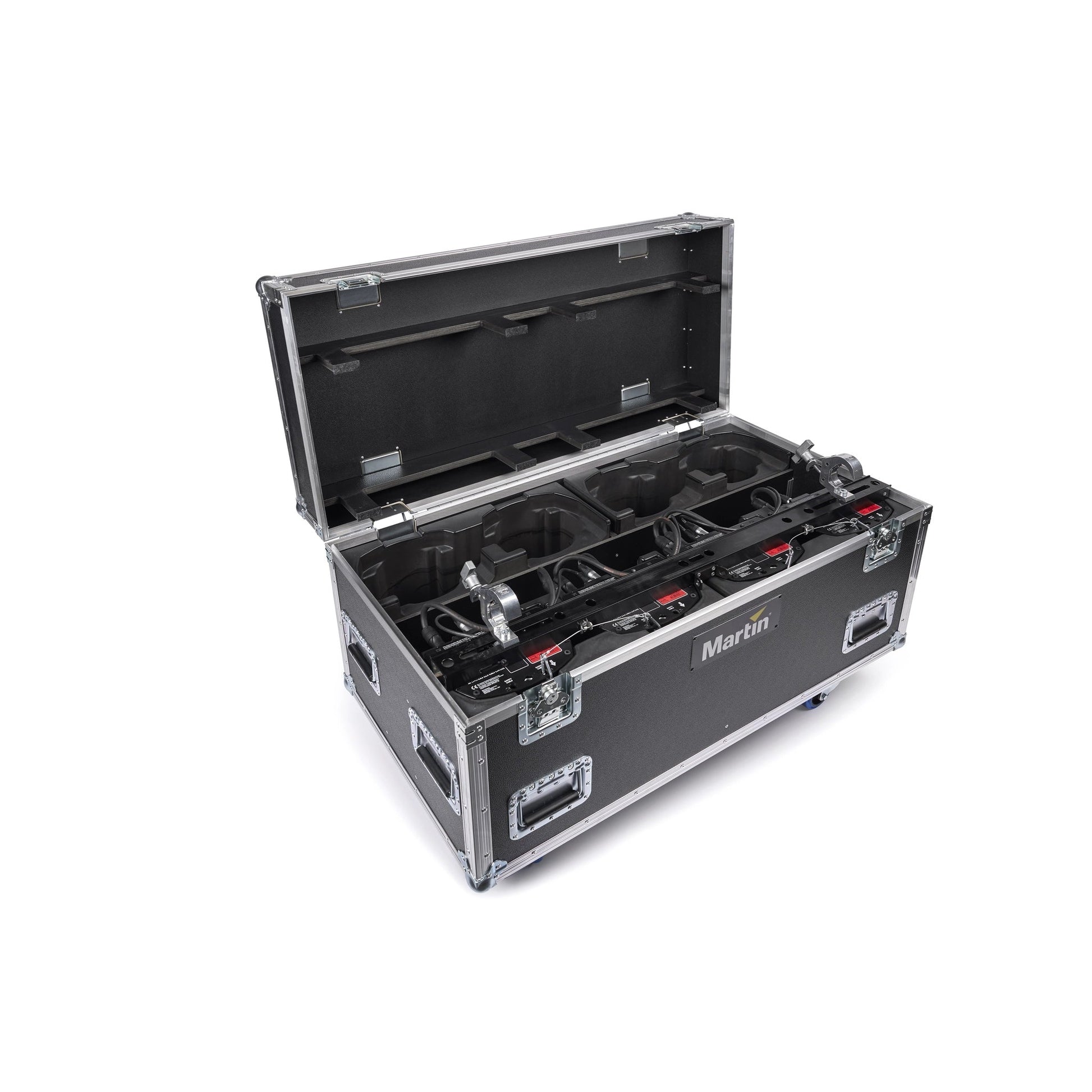

At 23.0 dB(A) in ultra-low constant fan mode — with all fans confined to the head — the MAC One meets the acoustic requirements of theater, television studio, and broadcast environments. Eight fixtures ship per flightcase, and the included SoftLens attaches to the front lens without removal for transport. Compatible with MAC One Family Fourbar and VDO Grid Mount Ring accessories for flexible large-quantity deployment.

View full details

Specifications

Physical
Width (Across Yoke)
226 mm (8.90 in.)
Width (Base)
254 mm (10.00 in.)
Height (Head Forward)
297 mm (11.69 in.)
Height (Maximum)
349 mm (13.74 in.)
Depth (Head)
220 mm (8.66 in.)
Weight
4.40 kg (9.70 lbs.)
Optics
Front Lens Diameter
150 mm (5.91 in.)
Zoom Range
1:5
Field Angle (Tenth Peak)
6° – 27°
Beam Angle (Half Peak)
4° – 19°
Beam Light Source
1 x 120 W RGBL LED
Backlight Light Source
24 x 0.25 W RGB LED
Max Beam LED Power
120 W
Max Backlight LED Power
6 W
Minimum LED Lifetime
>50,000 hours (to >70% output)
Photometric
Light Engine Output
5,700 lumens
Fixture Output Wide
2,500 lumens
Fixture Output Narrow
1,900 lumens
Peak Intensity Narrow
375,000 cd
CCT Range
2,000 K – 12,850 K (±200 K)
CRI (Default)
≥77
CRI (Optimized)
≥86
TLCI (Default)
≥68
TLCI (Optimized)
≥87
TM-30 Rf (Default)
≥80
TM-30 Rg (Default)
≥114
Movement
Pan
Motorized 540°
Tilt
Motorized 225°
Control
Control Protocols
DMX, RDM, Art-Net, sACN, Martin P3
DMX Modes
Compact, Basic, Ludicrous, Compact Direct
DMX Channels
20, 36, 108, 20
Electrical
AC Power
100–240 V AC, 50/60 Hz
Power Consumption (Max)
180 W
Power Consumption (Typical)
160 W
Power Consumption (Idle)
24 W
Construction
Housing
High-impact flame-retardant thermoplastic
Color
Black
Protection Rating
IP20
Location
Indoor or Outdoor Protected From Elements
Thermal
Max Ambient Temperature
40°C (104°F)
Min Ambient Temperature
5°C (41°F)
Noise (Regulated Fan, Full Output)
26.3 dB(A) @ 1 m
Noise (Ultra Low Constant Fan)
23.0 dB(A) @ 1 m

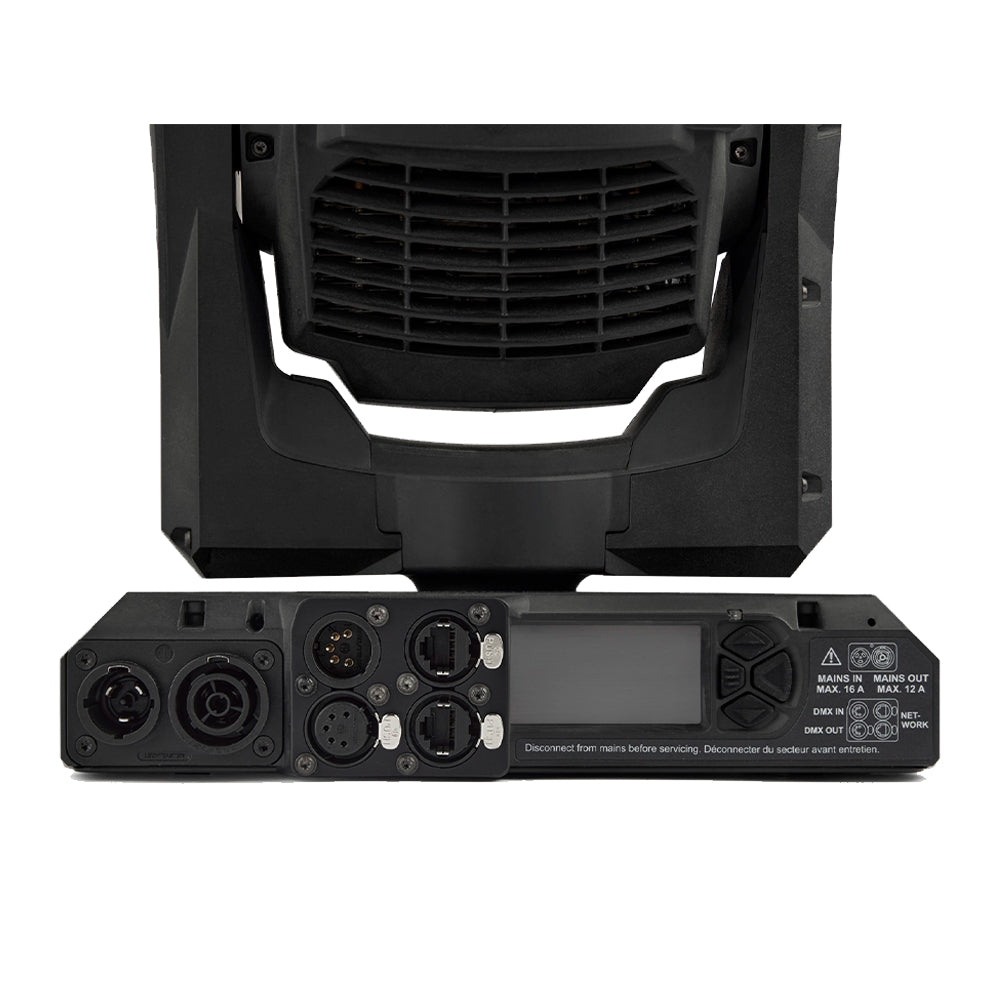

Connections
Power In/Thru
Neutrik powerCON TRUE1 TOP
DMX/RDM In/Thru
Neutrik 5-pin locking XLR
Ethernet In/Thru
Neutrik etherCON (with fail-safe bypass)
