Specifications
Dimensions
Width Across Yoke
479 mm (18.9")
Width Base
429 mm (16.9")
Height Head Straight Up
758 mm (29.8")
Height Maximum
776 mm (30.6")
Length Head
596 mm (23.5")
Depth Base
275 mm (10.8")
Minimum Center-To-Center Distance Side-By-Side
720 mm (28")
Weight
Fixture Weight
36.8 kg (81.1 lbs.)
Optics
Front Lens Diameter
150 mm (5.9")
Zoom Range
1:10
Full Zoom Range Field Angle
5.7° - 54.0°
Light Source
55 x 18W High Light Quality White LED, custom Martin engine
Max Total LED Engine Power
760W
Minimum LED Lifetime
>30,000 hours (to >80% luminous output)
Photometric Data
Light Engine Luminous Output
57,000 lumens
Fixture Luminous Output Wide (Without Spectral Enhancement Filter)
21,000 lumens
Peak Luminous Intensity Narrow (Without Spectral Enhancement Filter)
2,000,000 cd
Fixture Luminous Output Wide (With Spectral Enhancement Filter)
13,600 lumens
Peak Luminous Intensity Narrow (With Spectral Enhancement Filter)
1,300,000 cd
CCT
5,600K (+/- 300K)
CRI Without Spectral Enhancement Filter
90 (+/- 3)
CRI With Spectral Enhancement Filter
95 (+/- 3)
CQS Without Spectral Enhancement Filter
88 (+/- 3)
CQS With Spectral Enhancement Filter
91 (+/- 3)
TM-30 Rf Without Spectral Enhancement Filter
90 (+/- 3)
TM-30 Rf With Spectral Enhancement Filter
95 (+/- 3)
TM-30 Rg Without Spectral Enhancement Filter
100 (+/- 3)
TM-30 Rg With Spectral Enhancement Filter
100 (+/- 3)
TLCI Without Spectral Enhancement Filter
90 (+/- 3)
TLCI With Spectral Enhancement Filter
95 (+/- 3)
LED Refresh Rate
2,400 Hz with fine adjustment (+/- 2%) and Hybrid mode
Binning
Tight color and flux binning
Calibration
Full Gamut Color Calibration
Color Modes
Direct Color Mode, Extended Gamut Mode, Calibrated Color Mode
Dynamic Effects
Dimmer/Shutter
0-100% continuous dimming, regular and random strobe, instant open and blackout
Dimming Curves
Choice of four
Color Mixing
CMY, independently variable 0-100%
Physical Color Temperature Control
Variable 5,600-2,600K
Virtual Color Temperature Control
Variable 2,000-12,850K
Virtual Tint Control
Variable green-magenta shift Duv -0.05 to +0.05
Color Wheel
5 dichroic filters (incl. Spectral Enhancement Filter) + open, indexing, shake, continuous wheel rotation and random color
Rotating Gobo Wheel
7 interchangeable gobos + open, indexing, shake, continuous rotation, continuous wheel rotation and random gobo
Static Gobo Wheel
11 gobos + open, indexing, shake, continuous wheel rotation and random gobo
Gobo Color Temperature Correction
Automatic
Animation Wheel
Interchangeable, indexing, shake, bounce, continuous rotation and variable wheel insertion angle
Light Frost
Variable 0-100%
Heavy Frost
Variable 0-100%
Prism
4-facet, indexing, shake and continuous rotation
Iris
Variable 0-100%, opening and closing pulse effects
Focus
Motorized, approx. 4.5 m (14.8 ft.) to infinity, including focus tracking
Framing
Rotatable framing module +/- 83 degrees, 4 individually controllable full curtain blades +/- 30 degrees, 0-100% insertion
Pan
Motorized 540 degrees
Tilt
Motorized 268 degrees
PixelMapping
Individual control of each of the 6 LED segments
Pre-Programmed Effects
Two ranges of FX, independent or synchronized/combined
LED Frequency Control
Variable LED PWM control
Control and Programming
Control Protocols
DMX, RDM, Art-Net, RDM over Art-Net, sACN, Martin P3
Protocol Detection
Automatic
DMX Modes
Basic, Extended, and Ludicrous
DMX Channels
52, 62, and 68
Multi-Universe Overflow
Yes, in all DMX modes
DMX Compliance
USITT DMX512-A
RDM Compliance
ANSI/ESTA E1.20
Art-Net Compliance
Art-Net 1, 2, 3, and 4 including RDM over Art-Net
sACN Compliance
ANSI E1.31-2018
Martin P3 Compliance
P3 System Controller Software 5.1.0 or newer
DMX/RDM Transceiver
Galvanic-isolated RS-485
DMX/RDM Daisy-Chain Limit
32 fixtures
Ethernet Transceiver
10/100Mbit with fail-safe bypass
Ethernet Daisy-Chain Limit Recommendation
50 fixtures
Local User Interface

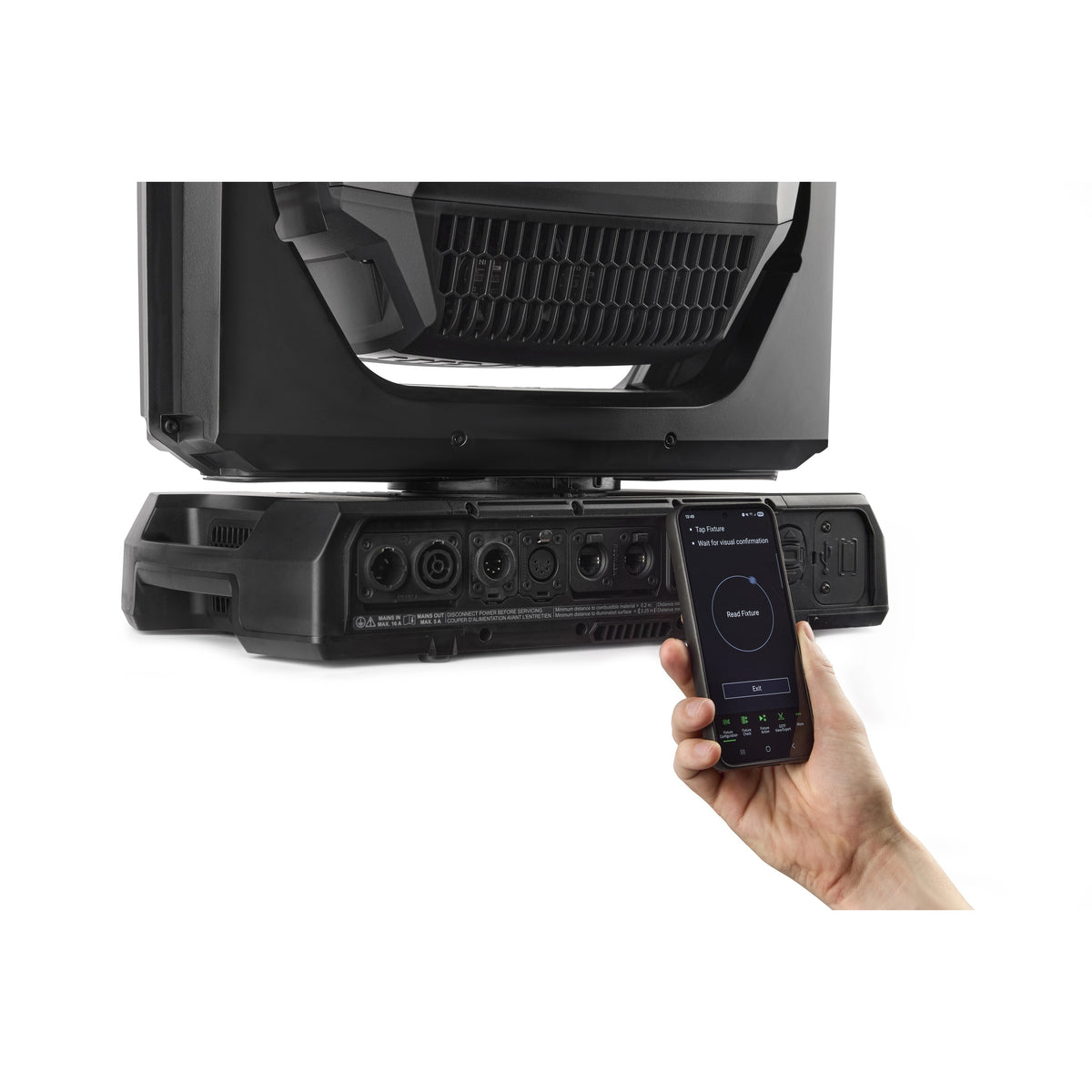

Backlit LCD display with battery-powered operation and integrated NFC antenna
Firmware Update
Via USB type C memory device, via DMX using Martin Companion, or via Ethernet using Martin Companion/P3 System Controller

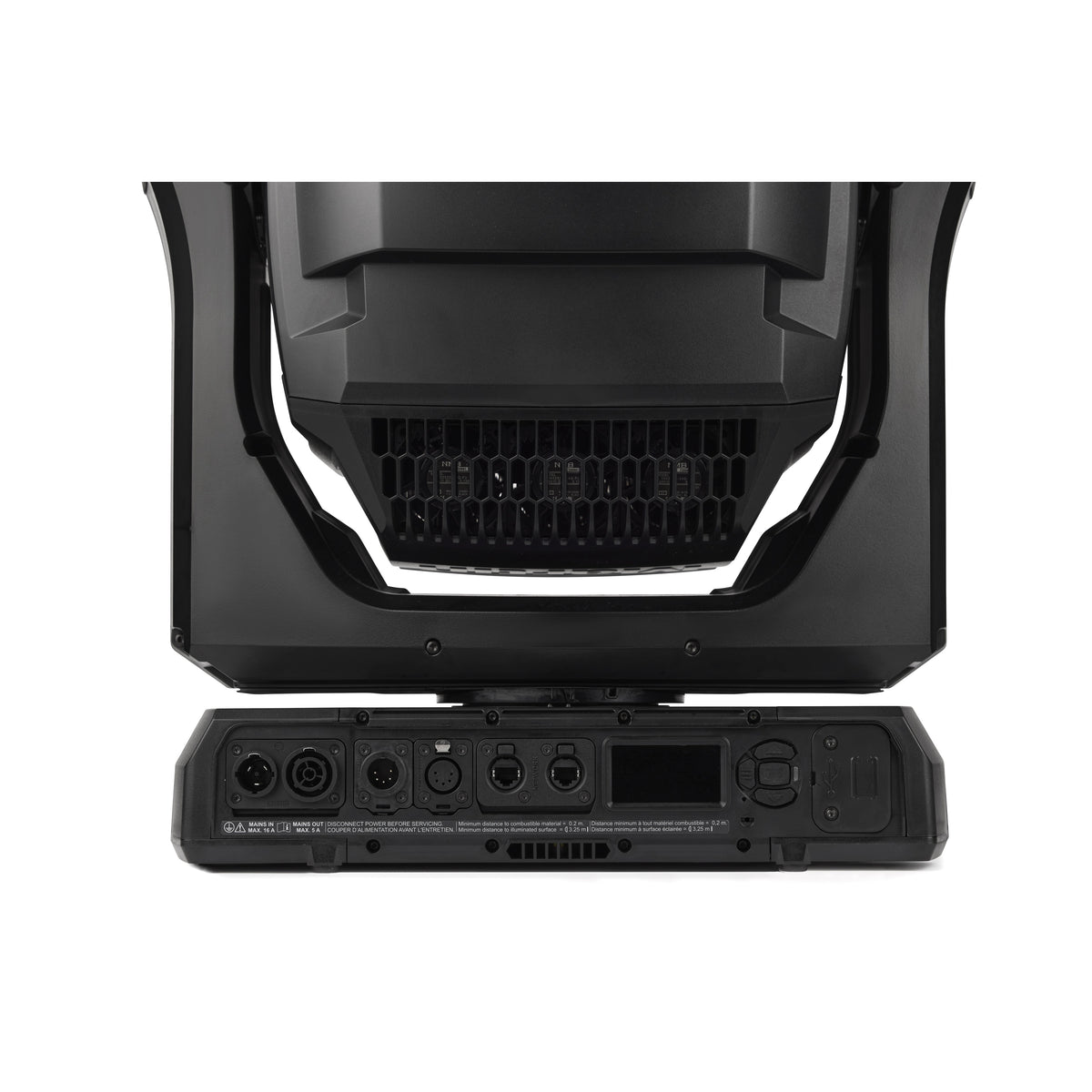

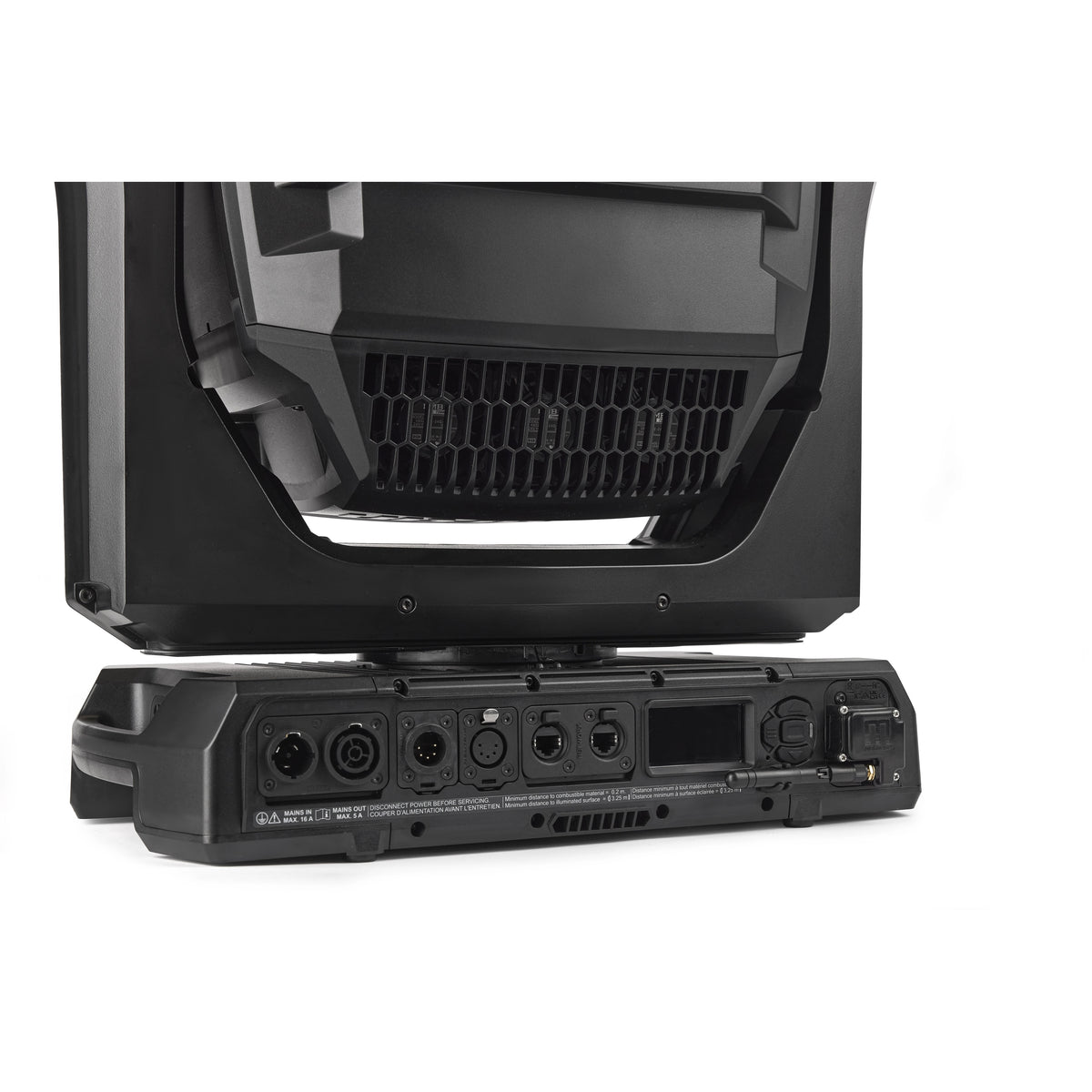

Connectivity
AC Mains Power In/Thru
Neutrik Rean powerCON TRUE1
DMX and RDM Data In/Thru
Neutrik 5-pin locking XLR
Ethernet In/Thru
Neutrik etherCON with fail-safe bypass
Firmware Port
USB 2.0 type C
Accessory Plug-In
Universal Connect Module Slot
Construction
Housing Material
High-impact flame-retardant thermoplastic
Color
Black
Protection Rating
IP20
Gobos
Maximum Image Diameter
22 mm (0.866")
External Diameter
27.1 mm +0/-0.2 mm (1.067")
Maximum Gobo Thickness
1.1 mm (0.04")
Gobo Coating
Heavy matted aluminum
Gobo Material
Borofloat 33
Installation

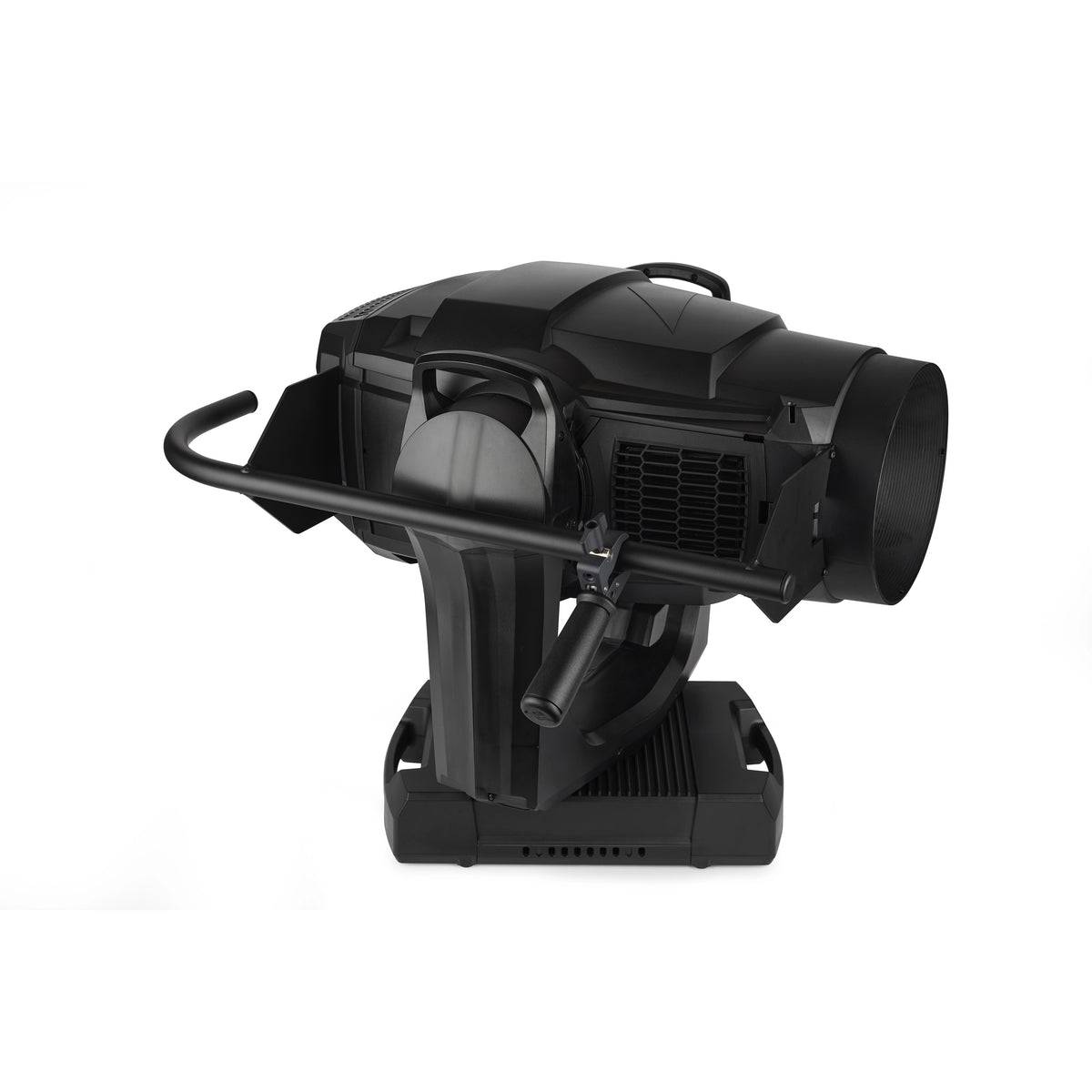

Mounting Points
2 pairs of 1/4-turn points for 106 mm (4.17") center-to-center omega brackets
Location
Dry location only, must be fastened to surface or structure
Orientation
Any
Minimum Distance To Combustible Materials
0.2 m (8")
Minimum Distance To Illuminated Surfaces
3.25 m (10.7 ft.)
Electrical
AC Power
100-240V AC nominal, 50/60 Hz
Power Supply Unit
Auto-ranging electronic switch mode
Power Factor
0.99 @ 100V/120V/208V/230V; 0.98 @ 240V
Max Current Draw
11.0A @ 100V/120V; 5.2A @ 208V; 4.6A @ 230V/240V
Typical Current Draw
9.5A @ 100V; 7.8A @ 120V; 4.4A @ 208V; 4.0A @ 230V; 3.9A @ 240V
Power Consumption Maximum
1040W
Power Consumption Typical
945W
Power Consumption Idle
68W
Power Consumption Hibernation
6W
Inrush Current (Typical Half-Cycle RMS, 230V 50Hz)
17A
Earth-Leakage Current (Typical)
0.7 mA
Thermal
Cooling
Forced air, temperature regulated, low noise, user-definable levels
Maximum Ambient Temperature
40 degrees C (104 degrees F)
Minimum Ambient Temperature
5 degrees C (41 degrees F)
Maximum Surface Temperature Steady State At 40 Degrees C Ambient
80 degrees C (176 degrees F)
Total Heat Dissipation (Calculated +/- 10%)
3550 BTU/hr.
Acoustic Data
SPL At 1 m Regulated High Fan Mode Full Output
36.2 dB(A)
SPL At 1 m Regulated Medium Fan Mode
31.7 dB(A)
SPL At 1 m Regulated Low Fan Mode
27.6 dB(A)
SPL At 1 m Regulated Ultra-Low Fan Mode
27.2 dB(A)
Environmental
Efficacy Max Output
22.2 lm/W
Lumen-To-Weight Ratio
580 lm/kg (262 lm/lbs.)
Packaging
FSC Certified cardboard outer packaging and Recycled EPS inner packaging
RoHS
Compliant
REACH
Compliant
WEEE
Compliant
Proposition 65
Compliant
Certifications and Approvals
Global CB Certification/IECEE
IEC 60598-2-17 (IEC 60598-1)
EU Safety
EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC
EN 55015; EN 55032; EN 55035; EN 61547; EN 61000-3-3
US Safety
UL 1573
US EMC
FCC Part 15 Class B
Canadian Safety
CSA C22.2 No. 166
Canadian EMC
ICES-003 Class B, ICES-005 Class B
Australia/NZ
RCM
United Kingdom
UKCA
Thailand
TISI 1955-2551
Korea
KS C 9832, KS C 9835
Warranty
Fixture Warranty
2 years
Light Engine Warranty
5 years
Included Items
Rigging Hardware
Two omega brackets with 1/4-turn fasteners for rigging clamp attachment
Documentation
Multi-language Safety and Installation Manual
Identifiers
MPN
MAR-90250600HU
