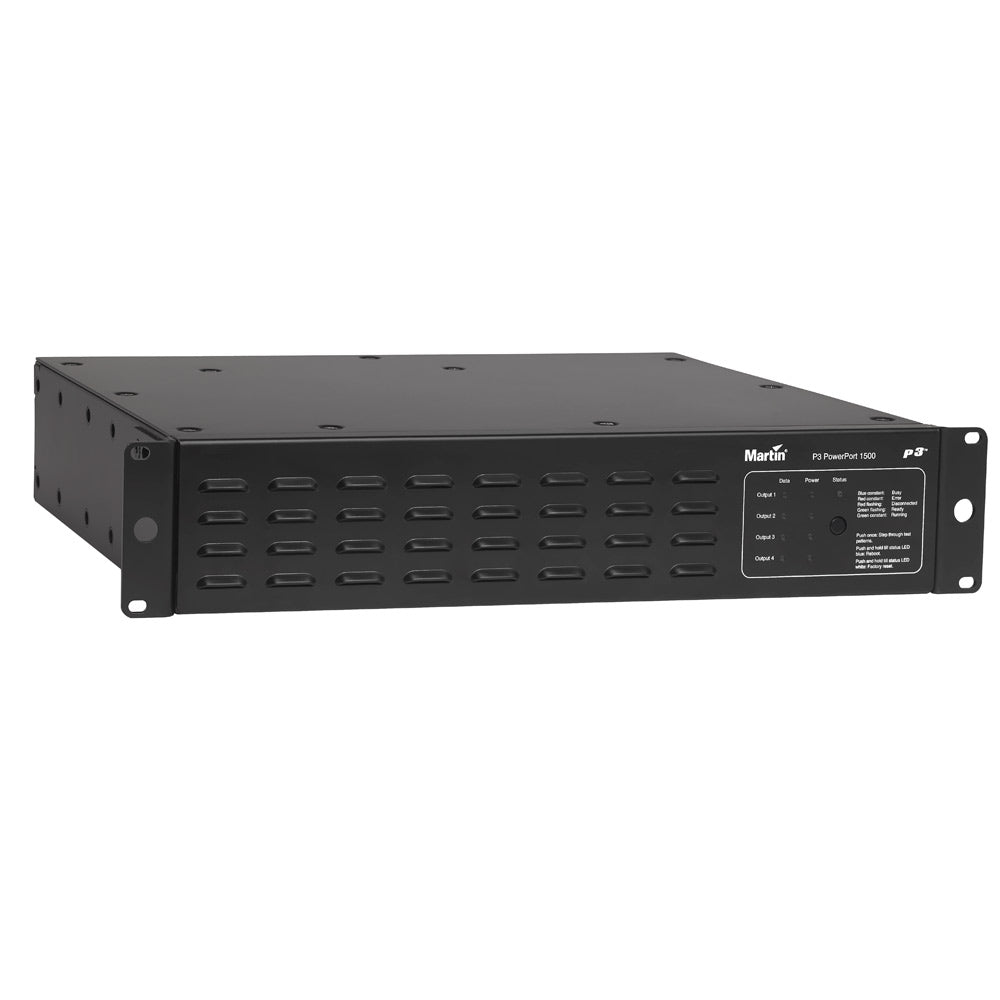

• Martin Lighting P3 PowerPort 1500 Indoor Power & Data Unit

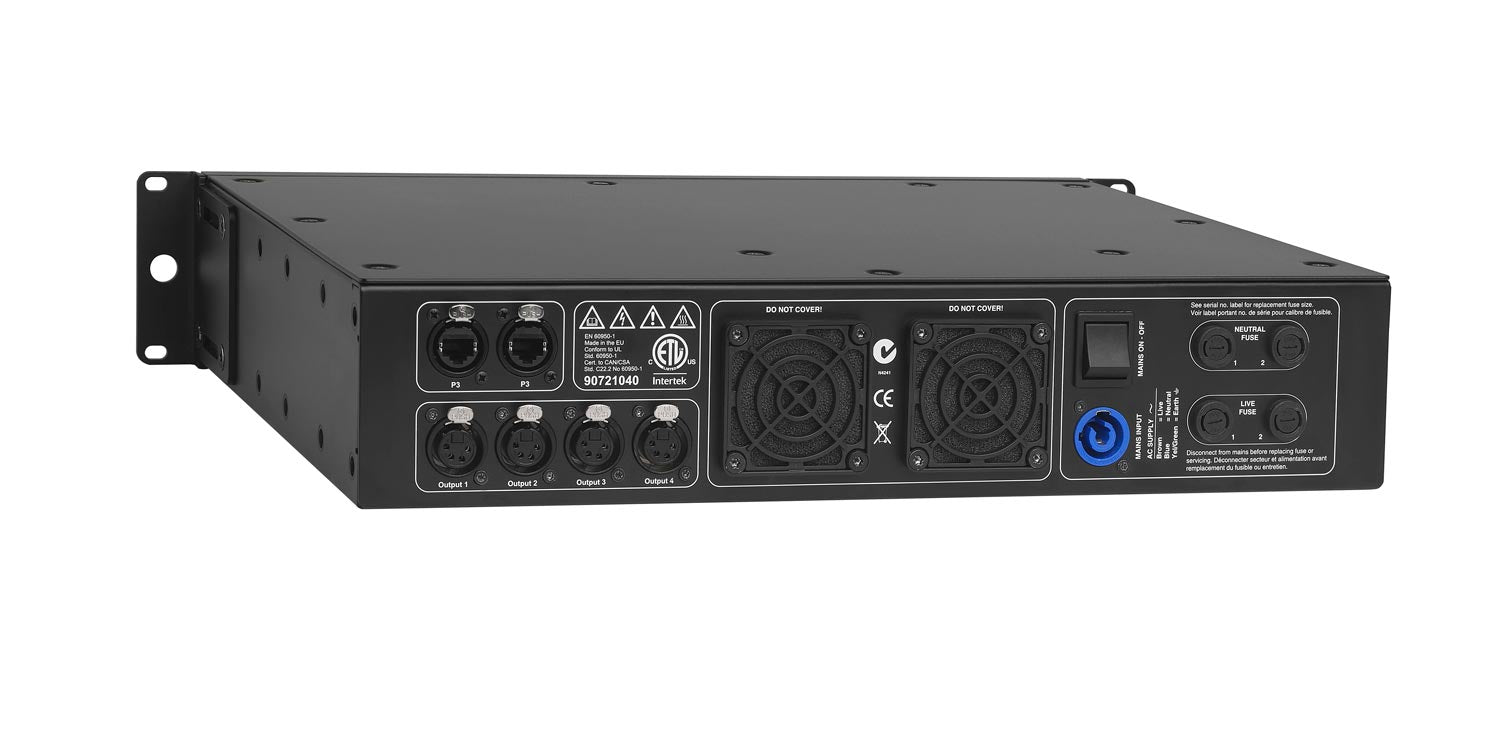

  • Martin Lighting P3 PowerPort 1500 Indoor Power & Data Unit back

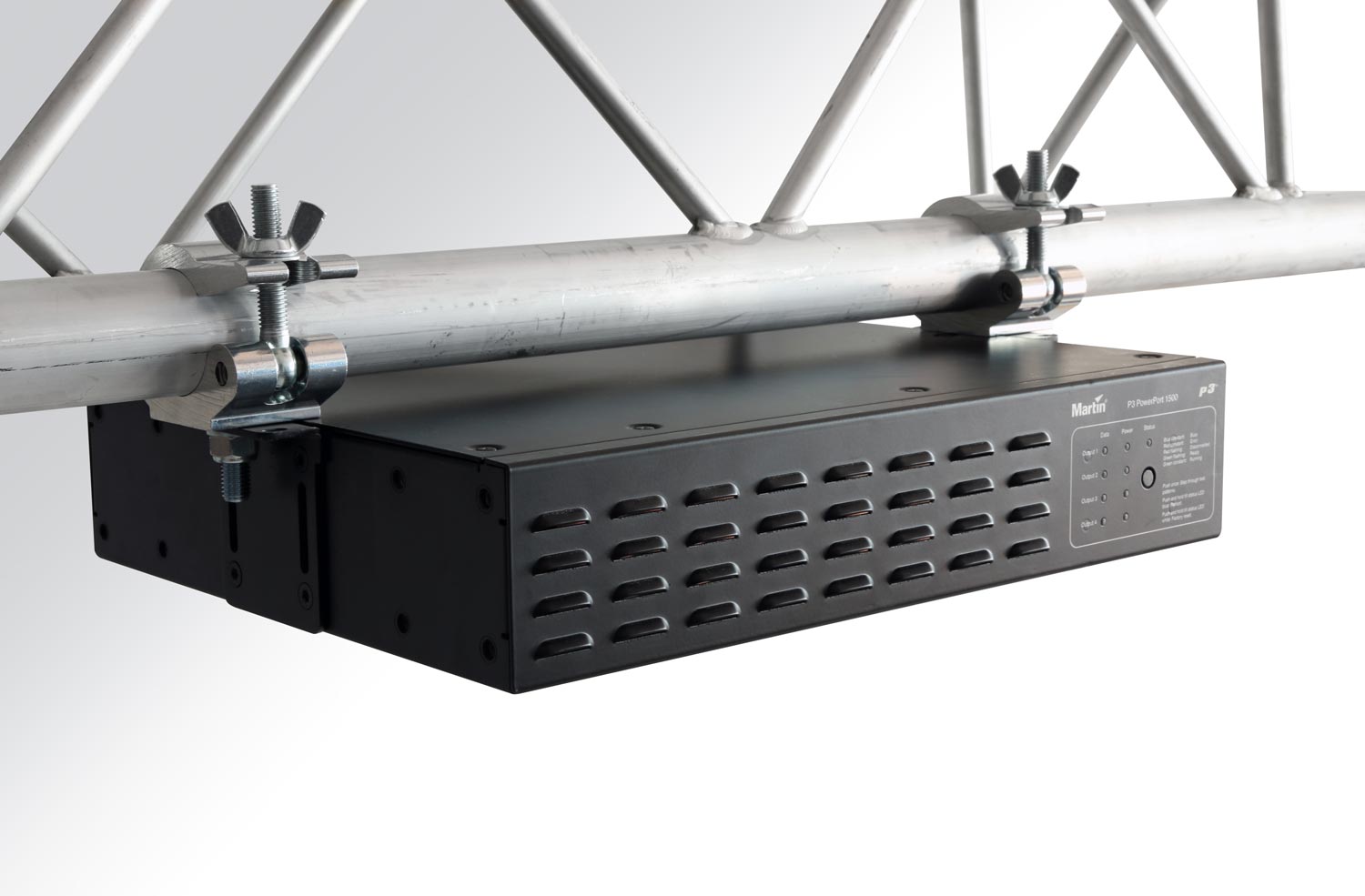

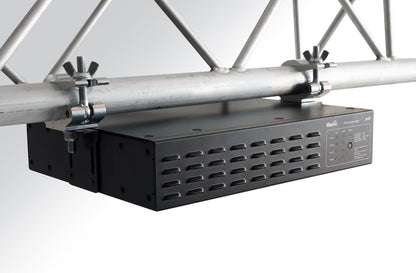

  • Martin Lighting P3 PowerPort 1500 Indoor Power & Data Unit in use
1 3

Martin Lighting P3 PowerPort 1500 Indoor Power & Data Unit

Martin Lighting P3 PowerPort 1500 Indoor Power & Data Unit

SoundPro Item: 96724 | Part Number: 90721040

$4,395.00
$4,395.00 $4,395.00
Your Price Sold out
MSRP: $4,395.00 | MAP: $4,395.00

Usually ships in 5-7 business days

  • P3 image processing technology
  • Set-up and addressing via P3 System Controller family
  • P3 input and thru to allow daisy-chaining
  • 4 hybrid power/data output ports
  • Wall-, truss- and rack-mountable
  • Can be located up to 50 m away from the creative LED video products
Log in or register for YOUR best price

Many of the Martin Creative LED fixtures run at 48Vdc and require an external power supply unit. The P3 PowerPort 1500 is one option that is compatible with the Martin Creative LED portfolio.

The P3 PowerPort 1500 is an integrated power supply and data processor for the Martin™ range of creative LED video products. When driven by one of Martin’s award-winning P3™ System Controllers, it combines stable power delivery with high-speed, high-capacity video processing. Setup and configuration are easy and intuitive.

Please note that a power input cable is not supplied with the product and must be ordered separately.

View full details
  • Compatibility
    • Martin VDO Fatron
    • Martin VDO Dotron
    • Martin VDO Sceptron
    • Martin VC-Grid
    • Martin VC-Strip
    • Martin VC-Dot
    • Martin Exterior PixLine
    • Martin Exterior Dot-HP
  • PHYSICAL
    • Width: 482 mm (19.0 in.)
    • Height: 88 mm (3.5 in.) rackmount 2U
    • Depth: 335 mm (13.2 in.)
    • Weight: 10 kg (22.1 lbs.)
  • CONTROL AND PROGRAMMING
    • Addressing and status: Via P3 System Controller
    • Mapping: Via P3 System Controller
    • Firmware update: Via P3 System Controller
  • CONTROL/USER INTERFACE
    • Device status: Multicolor status LED
    • Power output status: Four LEDs
    • Data output status: Four LEDs
    • Device test and reset: Pushbutton to call up local test patterns and reset device
  • P3 SIGNAL PROTOCOL
    • Signal type: Gigabit Ethernet
    • Protocol : Proprietary Martin P3
    • Hot pluggable: Yes, electrically isolated at all connections
    • Cable type: Ethernet, CAT 5e or better
    • Cable length: Up to 100 m between any 2 devices, extendable with Ethernet switch
  • SYSTEM INTEGRATION
    • VDO Sceptron™ family
    • VDO Fatron™ family
    • VDO Dotron™ family
    • Exterior PixLine™ family
    • Exterior Dot-HP™ family
    • VC-Grid™ family
    • VC-Strip™ family
    • VC-Dot™ family via VC-Feeder™
  • CONSTRUCTION
    • Housing: Steel and aluminum
    • Color: Matte black
    • Protection rating: IP20
  • INSTALLATIONMounting: 19-inch rackmount, wall mount, flown from rigging clamps
  • CONNECTIONS
    • Power input: Neutrik PowerCon
    • P3 data in/out: Two Neutrik Ethercon RJ-45 sockets
    • Combined power & data out: Four 4-pin female XLR sockets (hybrid power & data cable)
  • ELECTRICAL
    • AC power: 100-240 V nominal, 50/60 Hz
    • Typical total power consumption: 1540 W (including full load of connected display devices, all at full intensity)
    • Power supply unit: Auto-ranging electronic switch-mode
    • Main fuse: 10 AT (slow blow) x 4
  • THERMAL
    • Cooling: Filtered forced air (temperature-regulated, low noise)
    • Maximum ambient temperature (Ta max.): 45° C
    • Minimum ambient temperature (Ta min.): -20° C
    • Total heat dissipation (calculated, +/- 10%): 530 BTU/hr. (not including display devices but with system at full load) Approvals
  • APPROVALS
      EU safety: EN 60950 EU EMC: EN 55103-1, EN 55103-2, EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3 US safety: ANSI/UL 60950-1 Canadian safety: CSA C22.2 No. 60950-1
