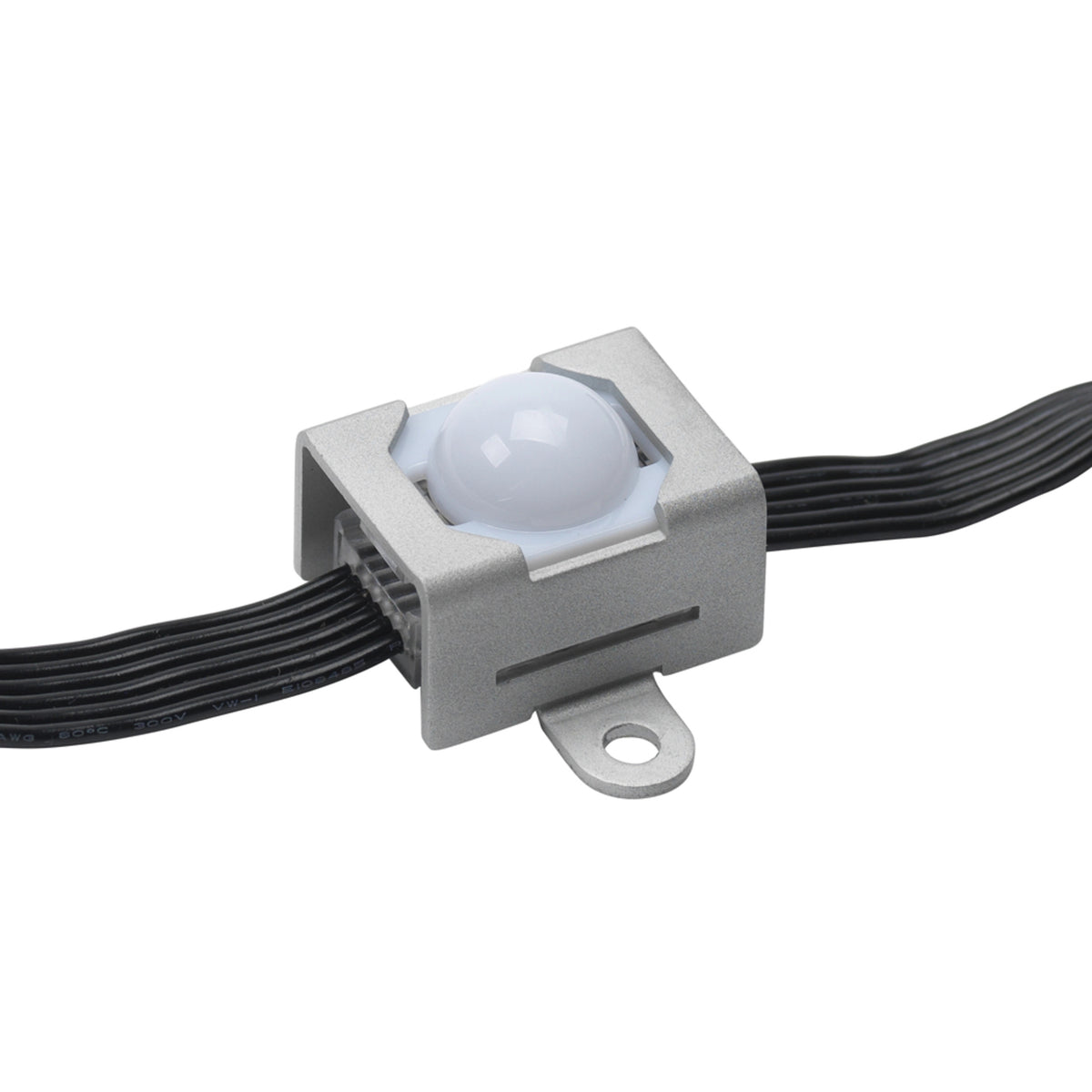

• VC-Dot 1 diffuser dome fitted to LED pixel in aluminum mounting bracket with flat ribbon cable, Martin Lighting
  • VC-Dot 1 replacement diffuser dome installed on clear pixel housing with mounting clip, side view, Martin Lighting
  • VC-Dot 1 diffuser dome fitted to pixel dot in aluminum mounting bracket with flat black cable run, Martin Lighting

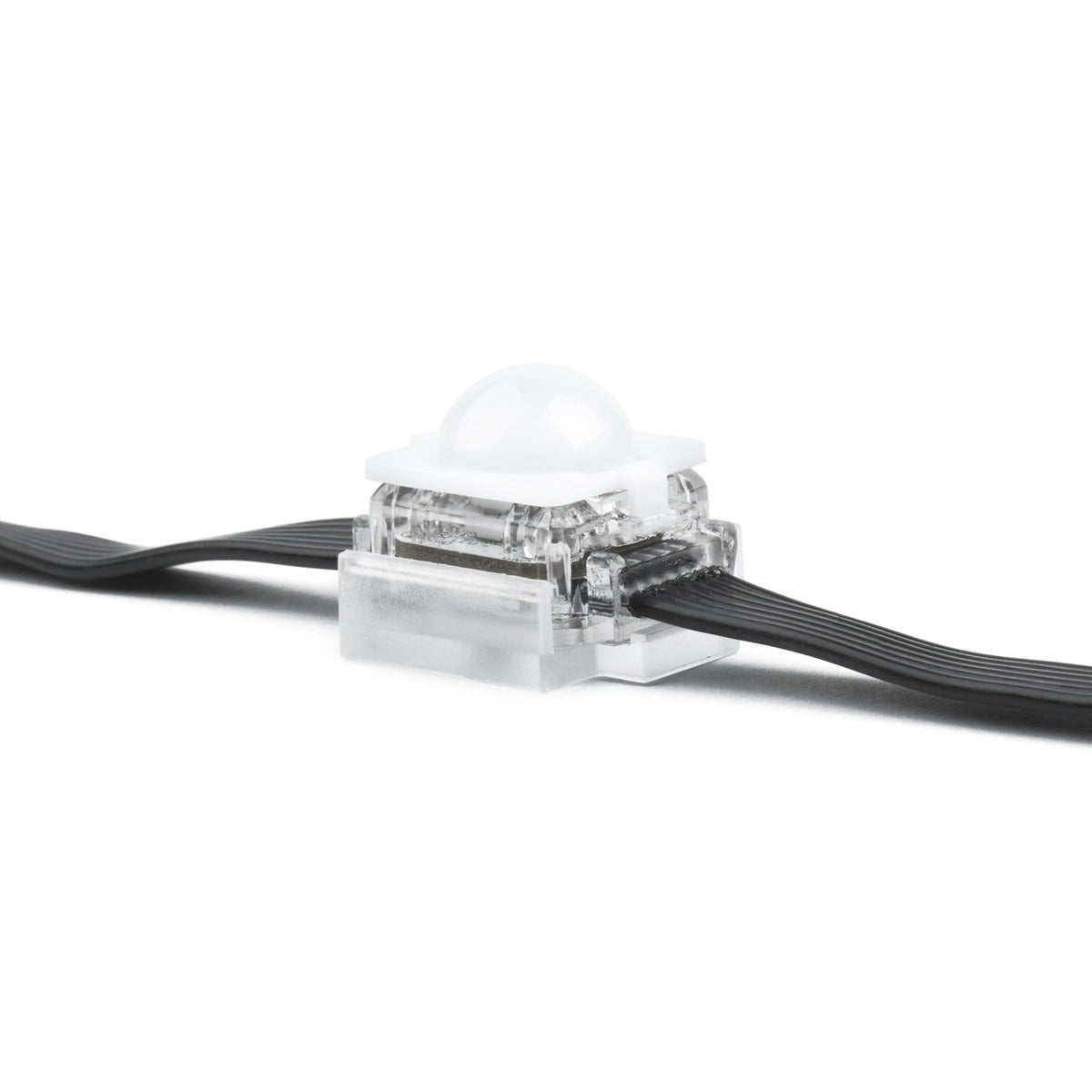

  • VC-Dot 1 replacement diffuser dome seated on clear mounting clip and ribbon cable, angled detail view, Martin Lighting
1 4

Martin Lighting VC-Dot 1 Diffuser Domes

Martin Lighting VC-Dot 1 Diffuser Domes

| Part Number: 90357180

Pricing available upon request

Pricing available upon request

Your Price Sold out

Out of stock

  • Widens Pixel Viewing Angle To 180 x 180 Degrees For Broader Light Coverage
  • Polycarbonate Construction Matches The IP67-Rated Durability Of The VC-Dot 1 System
  • Available In Clear And Smoked Finishes To Suit Different Installation Aesthetics
  • Sold In Sets Of 10 For Efficient Batch Replacement Or Customization Across A String
  • Direct Compatibility With VC-Dot 1 Pixels And The Full Martin VC-Dot 1 Accessory Ecosystem
Log in or register for YOUR best price

Lighting designers and production integrators working with Martin VC-Dot 1 pixel strings rely on these replacement diffuser domes to optimize light distribution across facades, stage structures, ceilings, and architectural installations. Each dome snaps onto an individual VC-Dot 1 pixel and widens the viewing angle from 127 degrees to 180 degrees in both axes, ensuring smooth, even coverage across direct-view LED arrays whether the rig is indoors or exposed to outdoor conditions.

The polycarbonate construction is engineered to survive the IP67-rated operating environment of the VC-Dot 1 system, making these domes a practical maintenance and customization item for permanent installs and touring rigs alike. Sold in sets of 10, they allow technicians to replace domes selectively after physical damage or to swap dome finishes across sections of a string for creative effect. Available in clear and smoked versions, these domes give production teams and integrators a straightforward way to tune the visual character of a VC-Dot 1 array without modifying the underlying pixel or cabling infrastructure.

These domes are purpose-built for VC-Dot 1 pixels and are fully compatible with the broader Martin VC-Dot 1 ecosystem including VC-Feeder power and data distribution, P3 System Controllers, and all standard mounting profiles and clips.

View full details

Specifications

Physical
Pixel Dimensions (Without Dome)
28 x 23 x 11 mm (1.1 x 0.9 x 0.5 in.)
Pixel Dimensions (With Dome)
28 mm x 23 mm x 20 mm (1.1 x 0.9 x 0.8 in.)
Construction
Diffuser Dome Material
White translucent polycarbonate
Dot Construction
Clear polycarbonate, clear silicone filled
Mounting Clip Material
White polycarbonate
Interconnecting Cable
6 x 20 AWG, black
Minimum Cable Bend Radius
26 mm (1.1 in.)
Protection Rating
IP67
RoHS
Compliant
Photometric Data
Viewing Angle (Without Dome)
127° x 127°
Viewing Angle (With Dome)
180° x 180°
Luminous Intensity, RGB, Calibrated Mode
2 cd
Luminous Intensity, RGB, Raw Mode
2.5 cd
Total Output, RGB, Calibrated Mode
5.4 lm
Red Output, RGB, Calibrated Mode
1.5 lm
Green Output, RGB, Calibrated Mode
3.6 lm
Blue Output, RGB, Calibrated Mode
0.4 lm
Identifiers
MPN
90357180
Set Quantity
10
