• VC-Dot 9 diffuser dome fitted to LED pixel in metal mounting bracket with flat black cable run, Martin Lighting
  • VC-Dot 9 diffuser dome installed on clear clip-mounted pixel module, side angle showing frosted polycarbonate cap, Martin Lighting

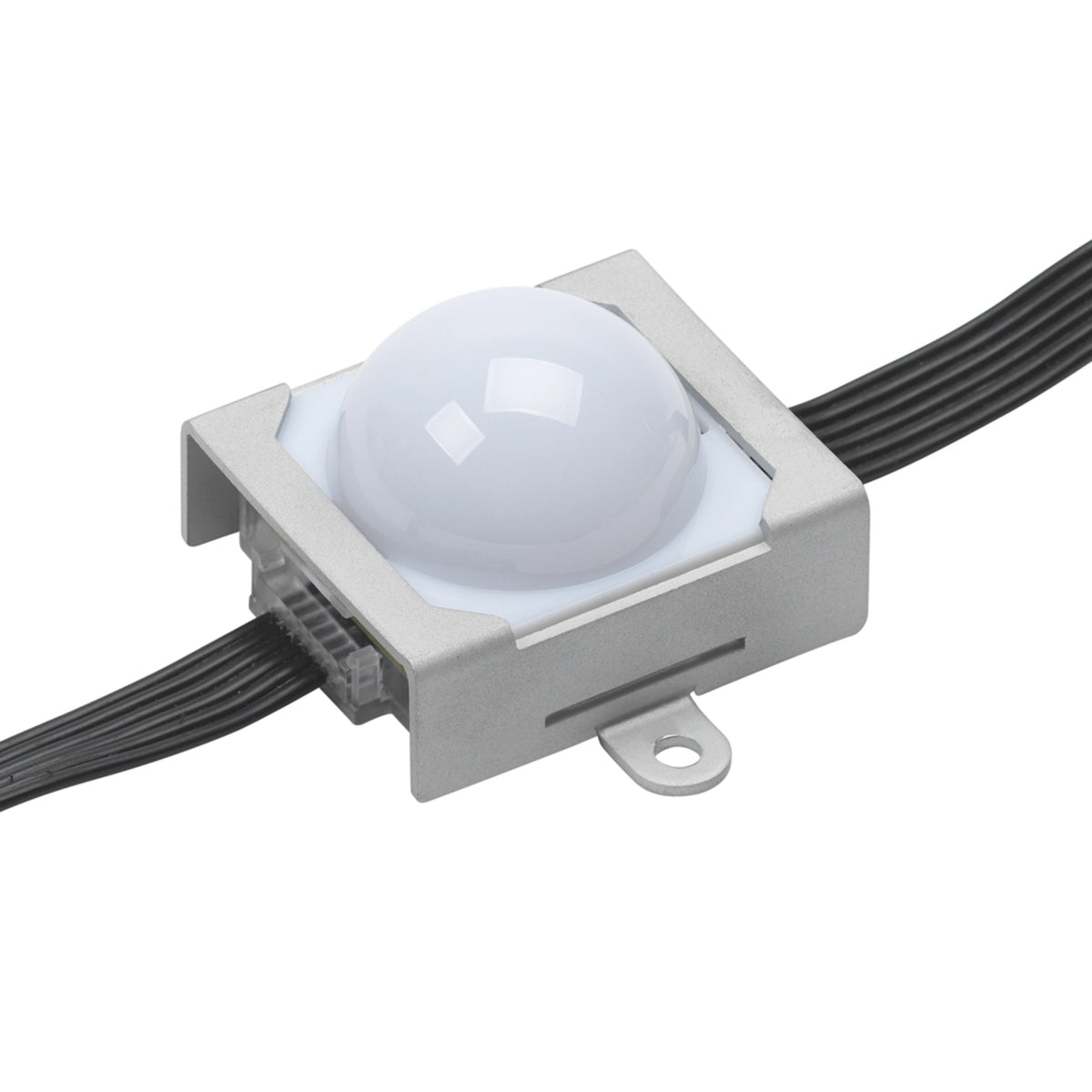

  • VC-Dot 9 diffuser dome fitted to LED pixel dot in silver mounting bracket with flat black cable run, Martin Lighting

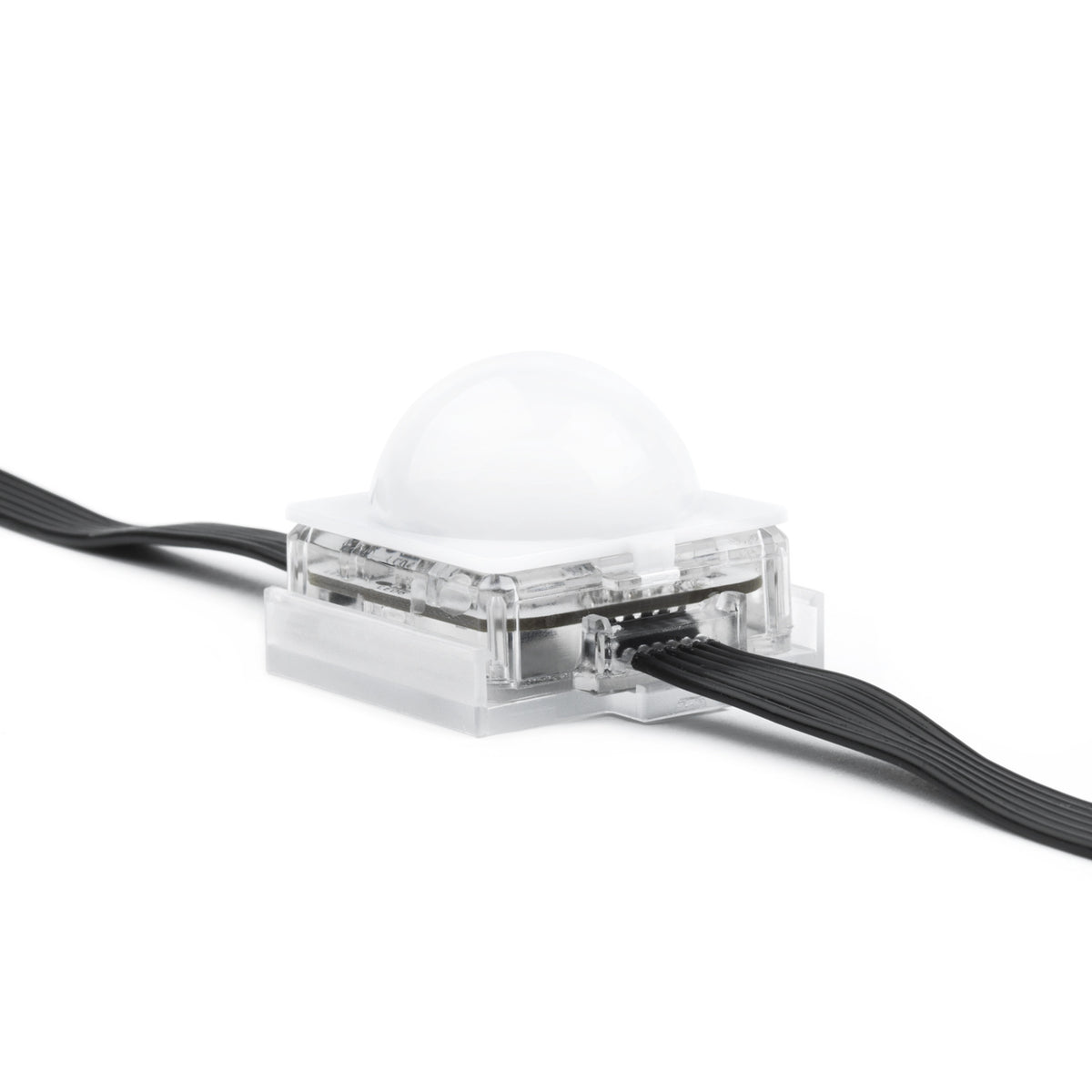

  • VC-Dot 9 diffuser dome seated on clear clip-mounted pixel module, angled view showing ribbon cable entry, Martin Lighting
1 4

Martin Lighting VC-Dot 9 Diffuser Domes

Martin Lighting VC-Dot 9 Diffuser Domes

| Part Number: 90357200

Pricing available upon request

Pricing available upon request

Your Price Sold out

Out of stock

  • Widens Pixel Viewing Angle To 180 x 180 Degrees For Better Off-Axis Coverage
  • Polycarbonate Construction Withstands Permanent Indoor And Outdoor Deployments
  • Available In Clear And Smoked Finishes To Match Design And Ambient Light Conditions
  • Compatible With Full Range Of VC-Dot 9 Mounting Hardware And Profiles
  • Set Of 10 Domes Matches VC-Dot 9 Pixel String Scaling For Efficient Stocking
  • No Rewiring Or Reprogramming Required For Installation
Log in or register for YOUR best price

Martin Lighting VC-Dot 9 Diffuser Domes are purpose-built accessories for production designers, lighting integrators, and rental companies deploying VC-Dot 9 LED pixel strings in stage, facade, architectural, or permanent installation environments. Fitting directly over the VC-Dot 9 pixel housing, these polycarbonate domes increase the viewing angle from 127 degrees x 127 degrees to a full 180 degrees x 180 degrees, delivering a wider, more uniform wash of pixel output critical for close-viewer installations, front-of-stage looks, and LED video integration on ceilings or curved surfaces where off-axis visibility matters.

Available in clear and smoked color options, the domes allow production teams to tailor pixel visibility and apparent intensity to the demands of the design. A smoked finish can reduce hot-spotting in ambient light conditions or blend pixels into dark scenic elements when the installation is not active, while the clear option maintains maximum output. Each set includes 10 domes, sized to match the VC-Dot 9 pixel form factor and compatible with the full range of VC-Dot 9 mounting solutions including interior clips, truss clips, aluminum profiles, and mounting brackets. The polycarbonate construction holds up in permanent outdoor installs backed by the IP67 protection rating of the VC-Dot 9 system. For integrators building out custom pixel arrays using the P3 System Controller ecosystem, these domes are a straightforward upgrade that requires no tools and no additional addressing or programming changes.

View full details

Specifications

Physical
Pixel Dimensions (Without Dome)
48 x 40 x 13 mm (1.9 x 1.6 x 0.6 in.)
Pixel Dimensions (With Dome)
48 x 40 x 31 mm (1.9 x 1.6 x 1.3 in.)
Color
Clear
Construction
Diffuser Dome Material
White translucent polycarbonate
Protection Rating
IP67
RoHS
Compliant
Photometric Data
Viewing Angle (Without Dome)
127° x 127°
Viewing Angle (With Dome)
180° x 180°
Environmental
RoHS
Compliant
REACH
Compliant
WEEE
Compliant
Proposition 65
Compliant
Identifiers
MPN
90357200
