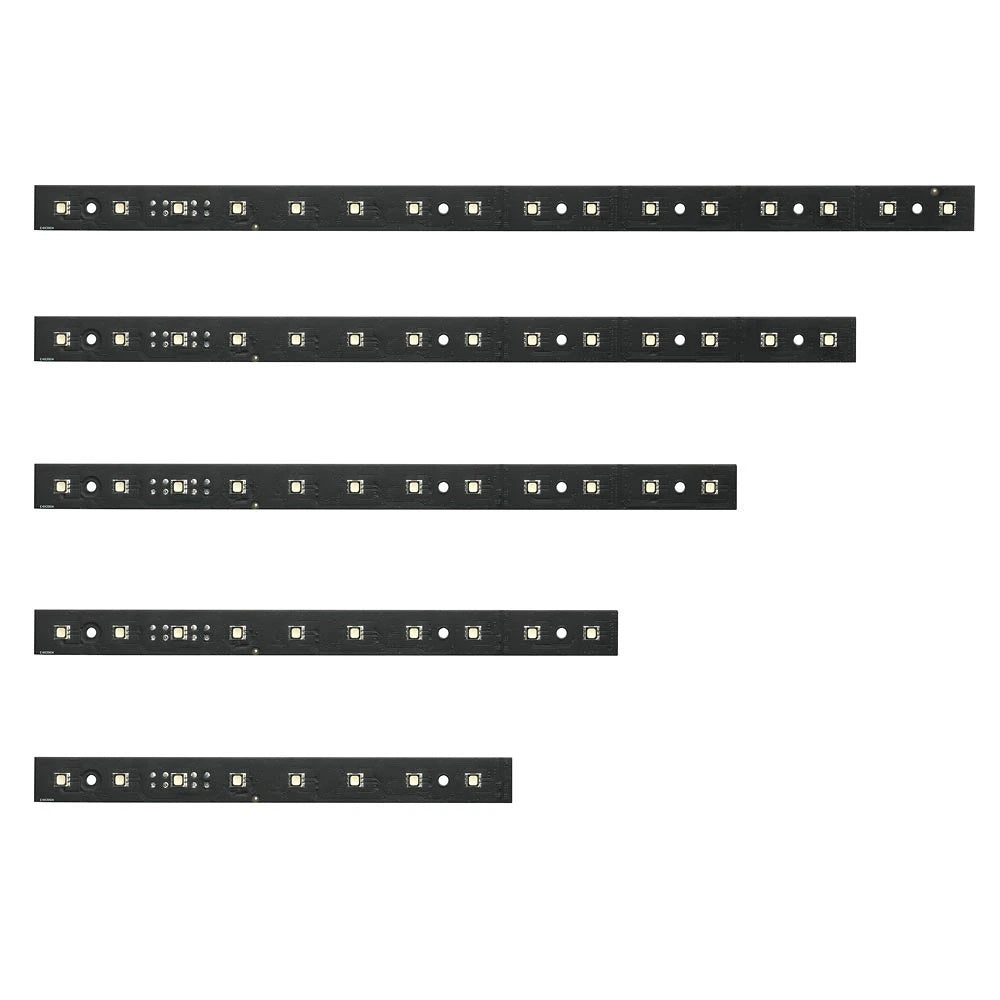

  • VC-Strip 25 five strip lengths stacked to show cuttable pixel segment options, Martin Lighting

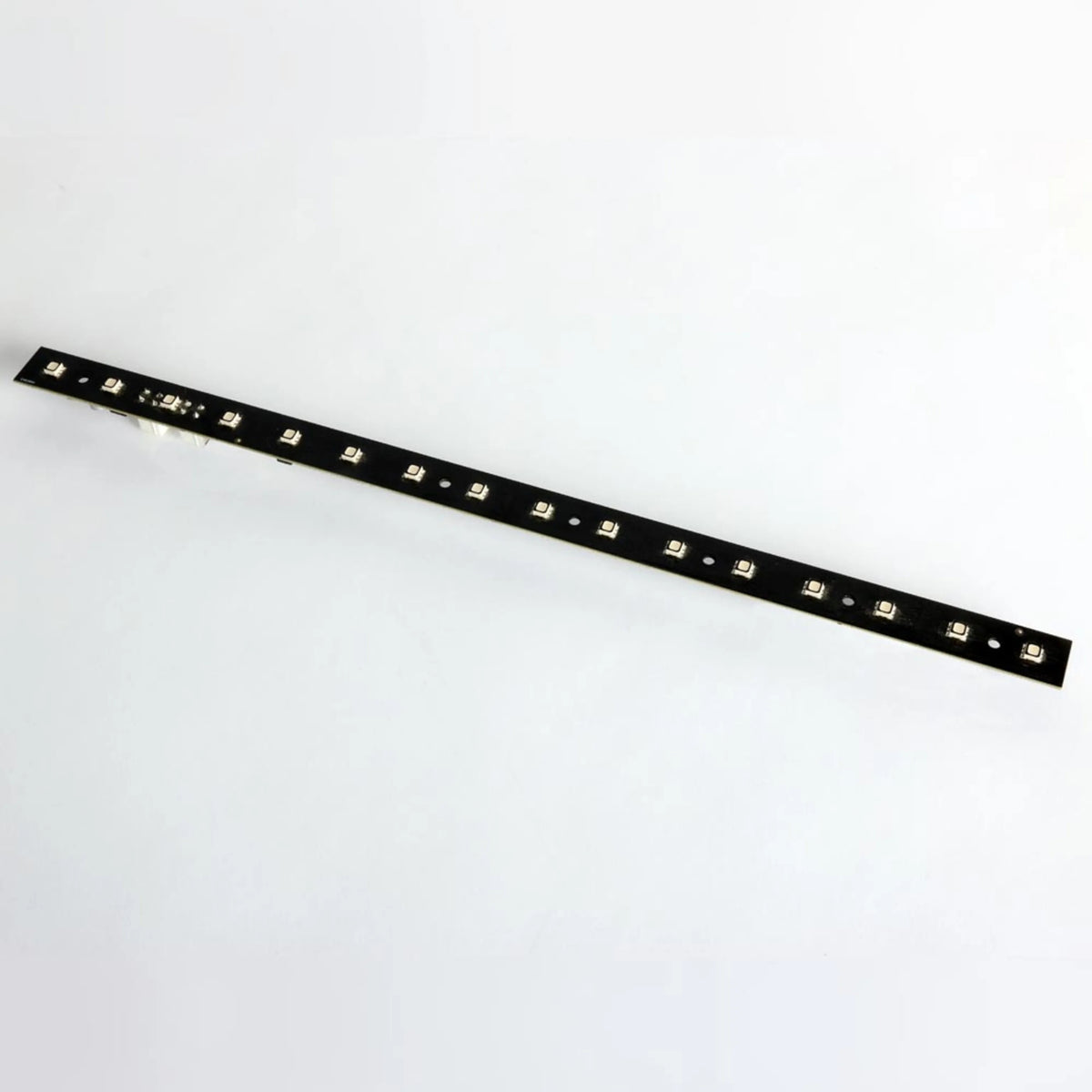

  • VC-Strip 25 RGB LED Tape front view of narrow black PCB strip with evenly spaced surface-mount RGB pixels, Martin Lighting

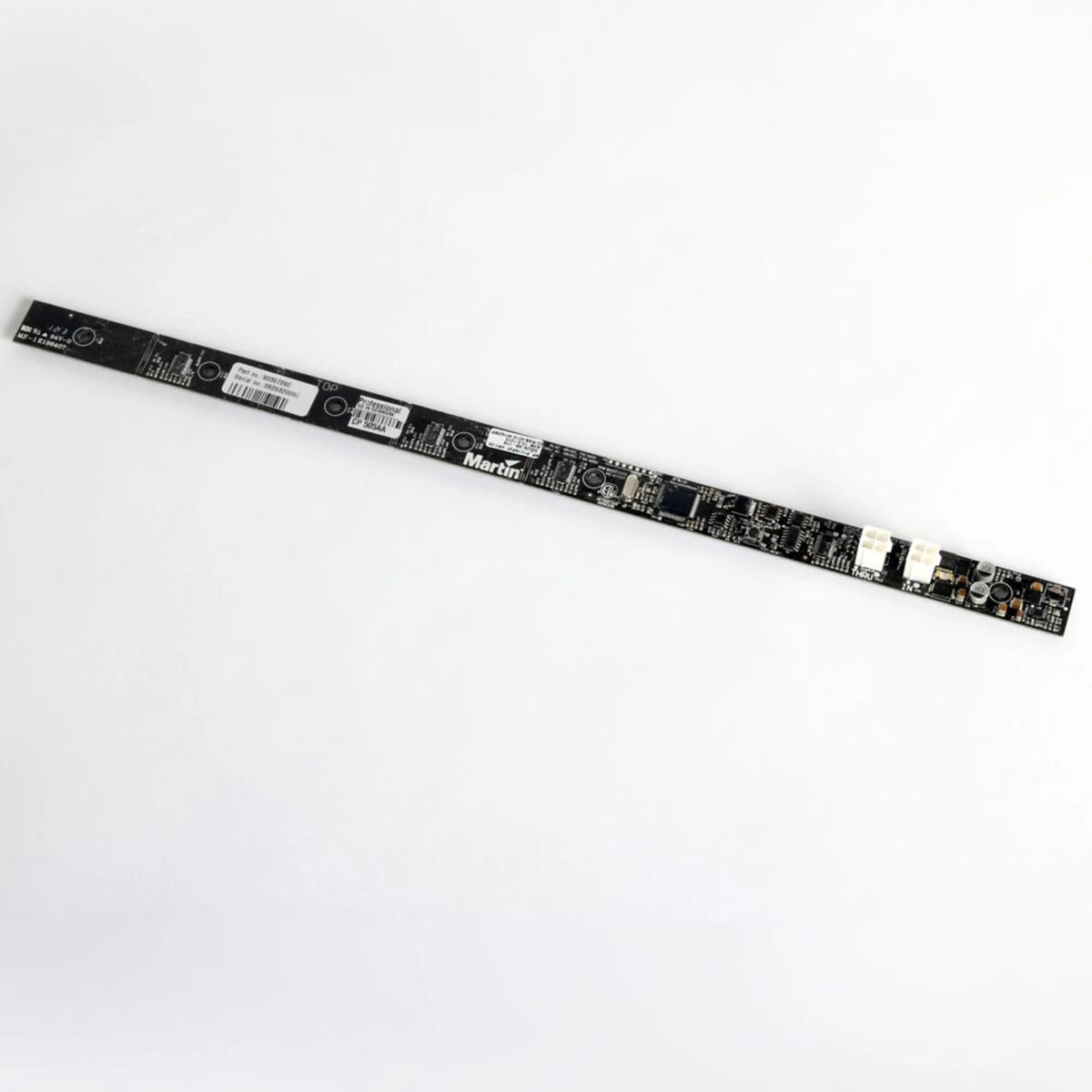

  • VC-Strip 25 rear view of circuit board showing Martin logo, part number label and white power/data IN and THRU connectors, Martin Lighting

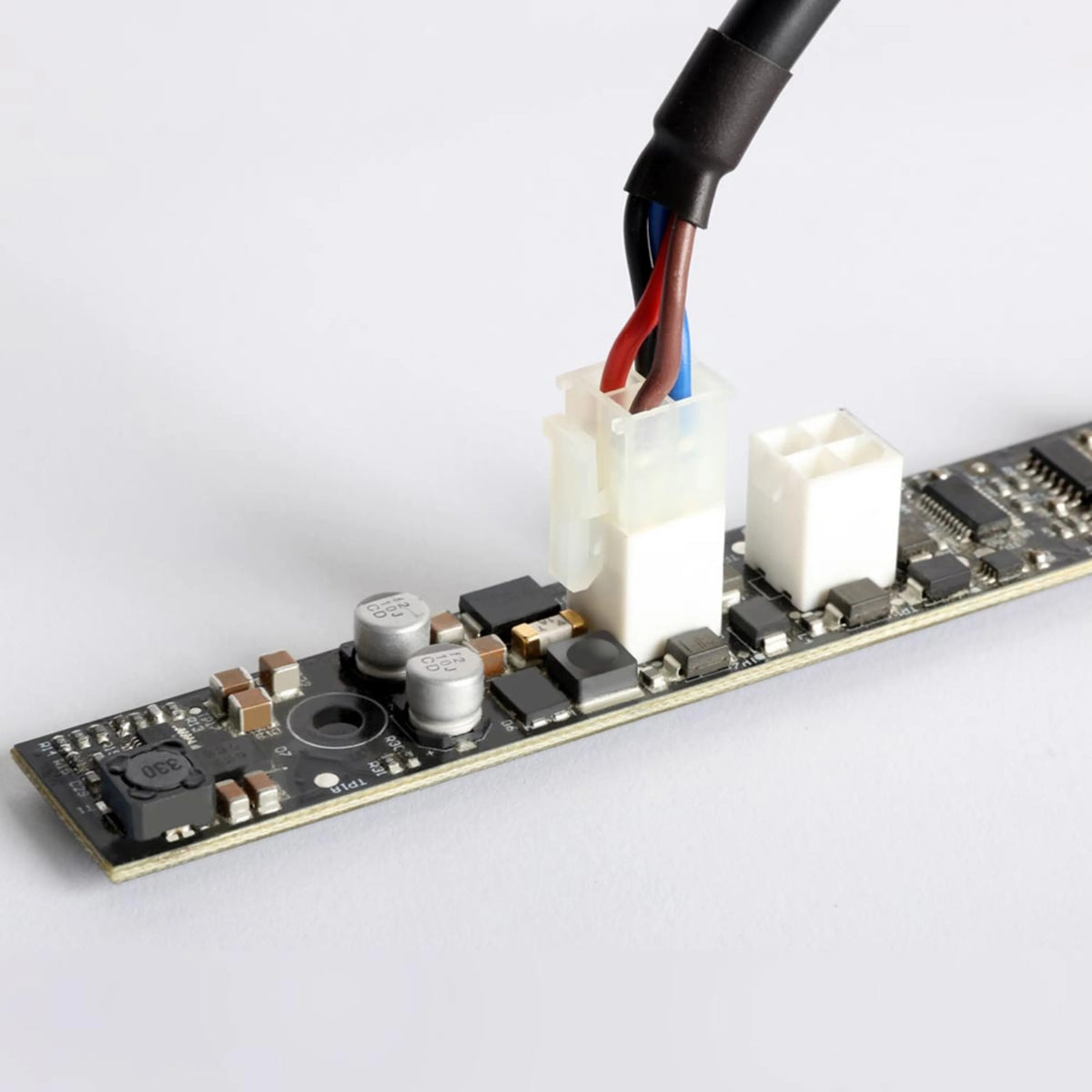

  • VC-Strip 25 connector detail with multi-conductor power lead plugged into white JST-style header beside spare THRU socket, Martin Lighting

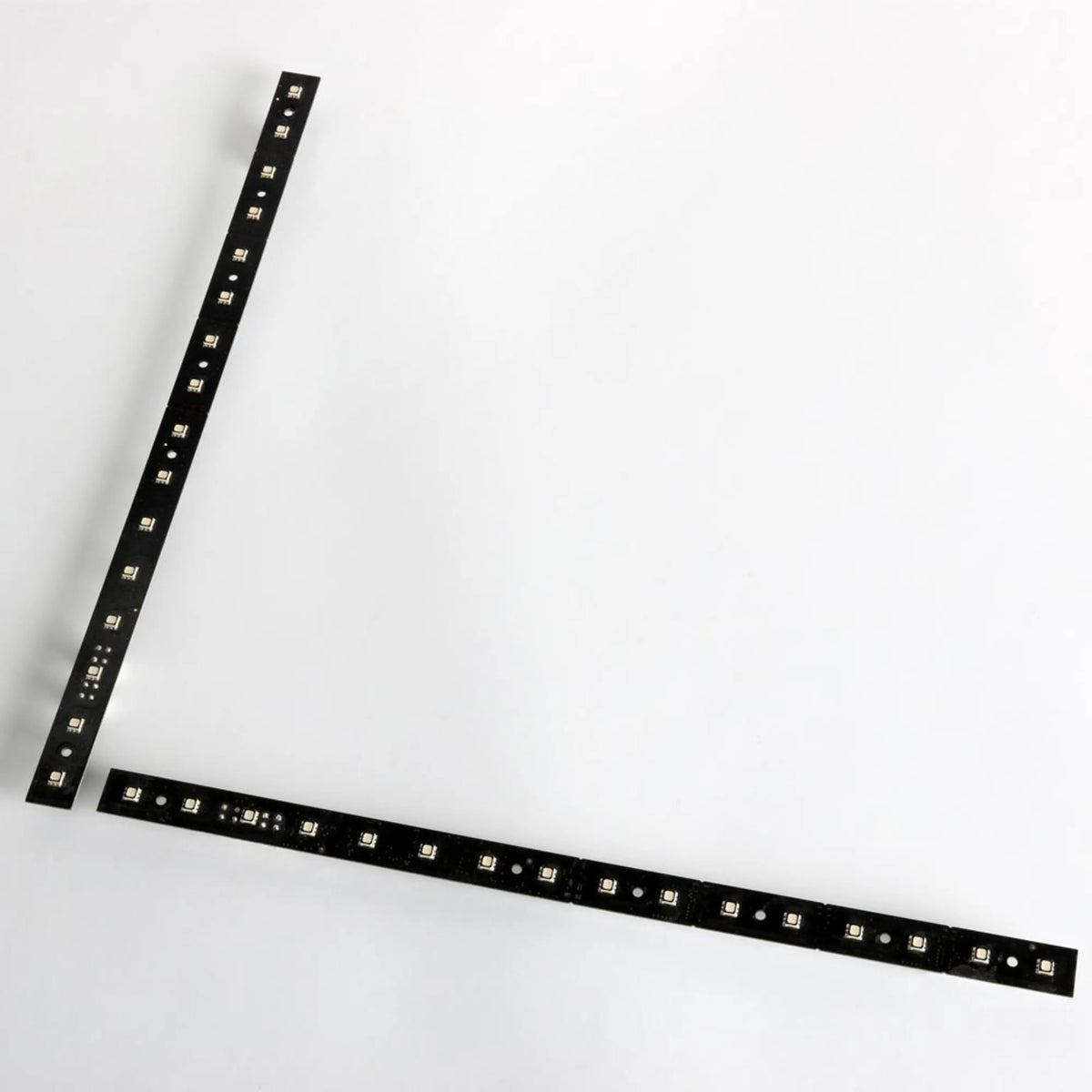

  • VC-Strip 25 two LED strips arranged at right angles showing pixel pitch and mounting holes, Martin Lighting

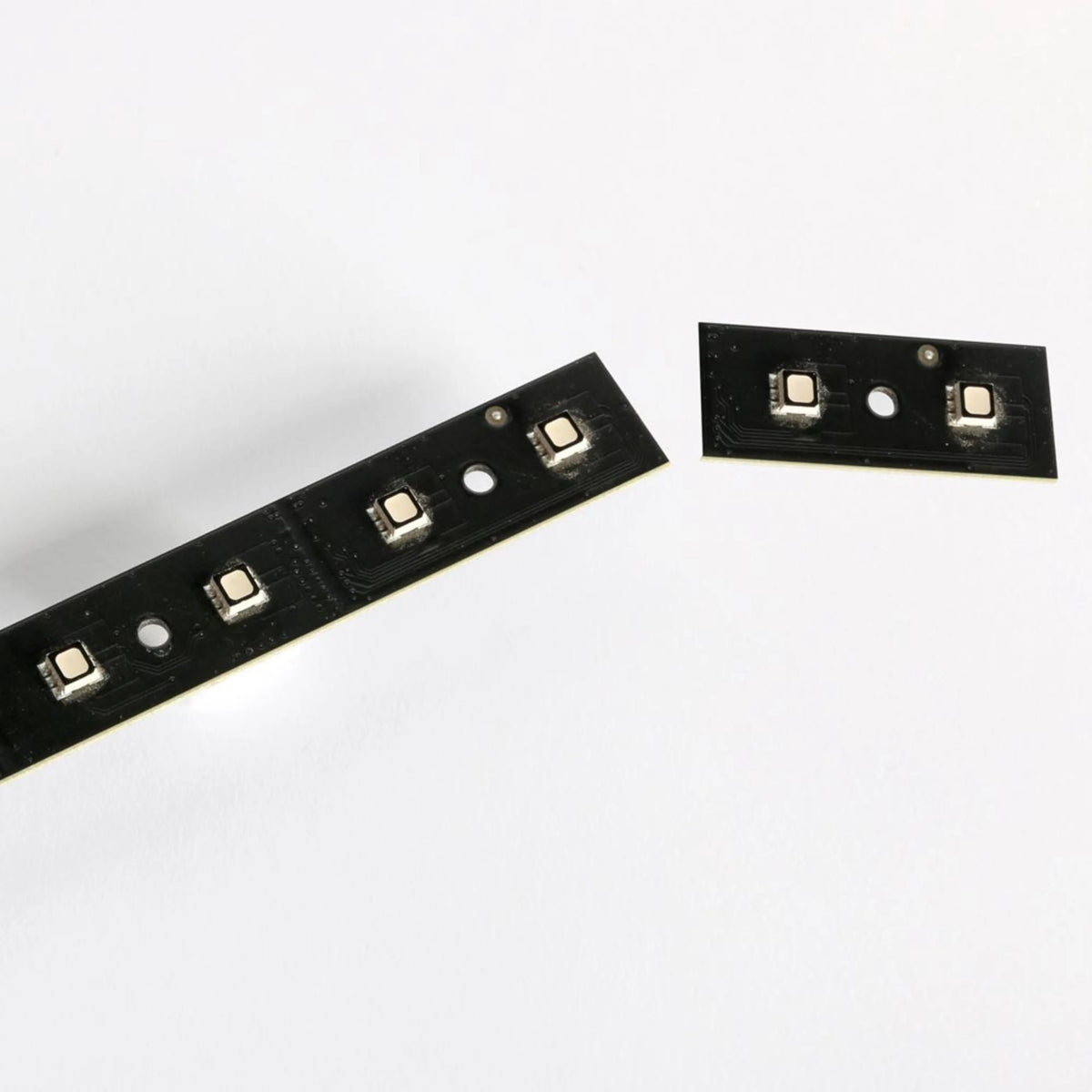

  • VC-Strip 25 close-up of break-apart pixel segments separated from the strip end, Martin Lighting

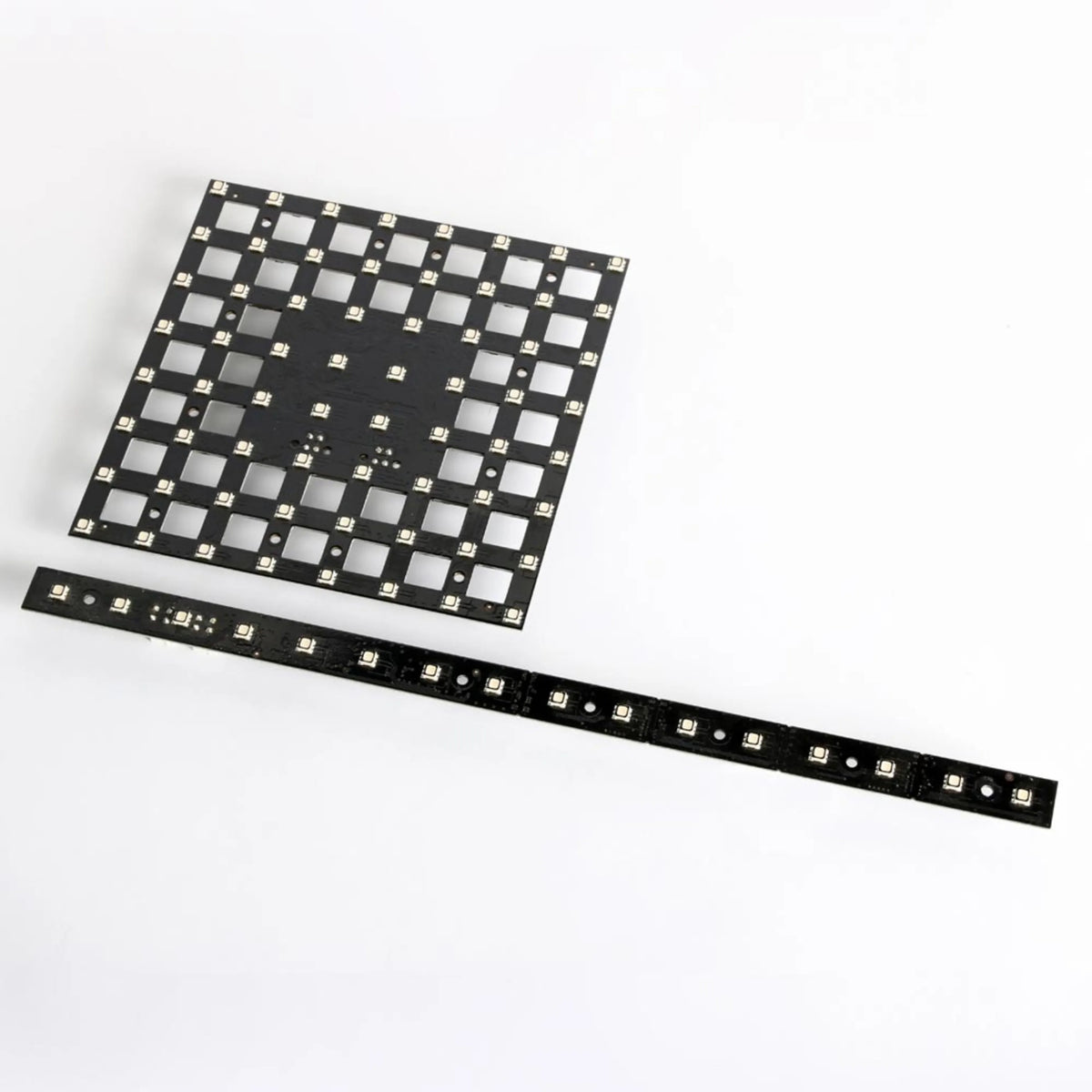

  • VC-Strip 25 LED strip shown next to a square VC-Dot style RGB pixel tile for scale, Martin Lighting

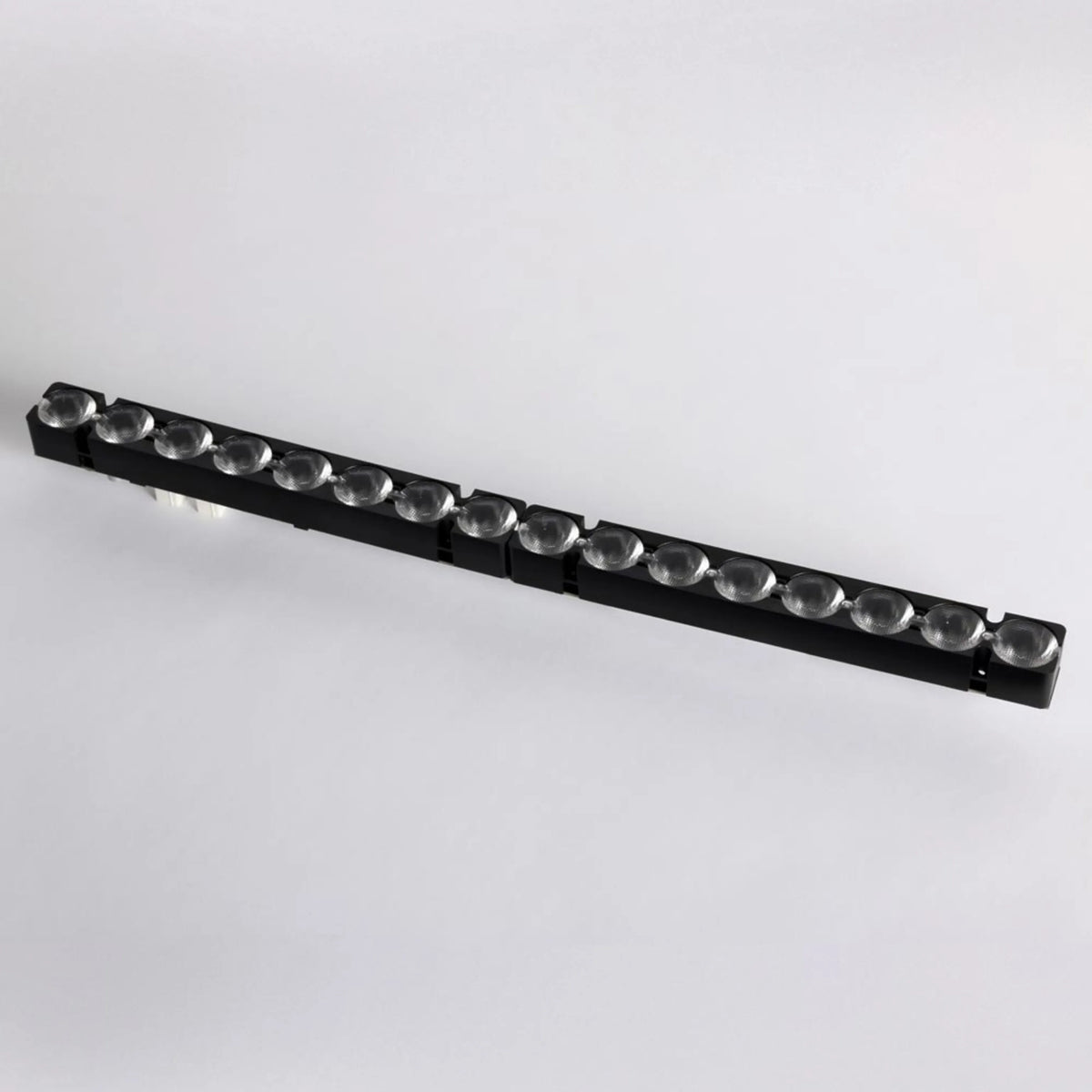

  • VC-Strip 25 with narrow beam lens optic housing fitted over the LED row, Martin Lighting

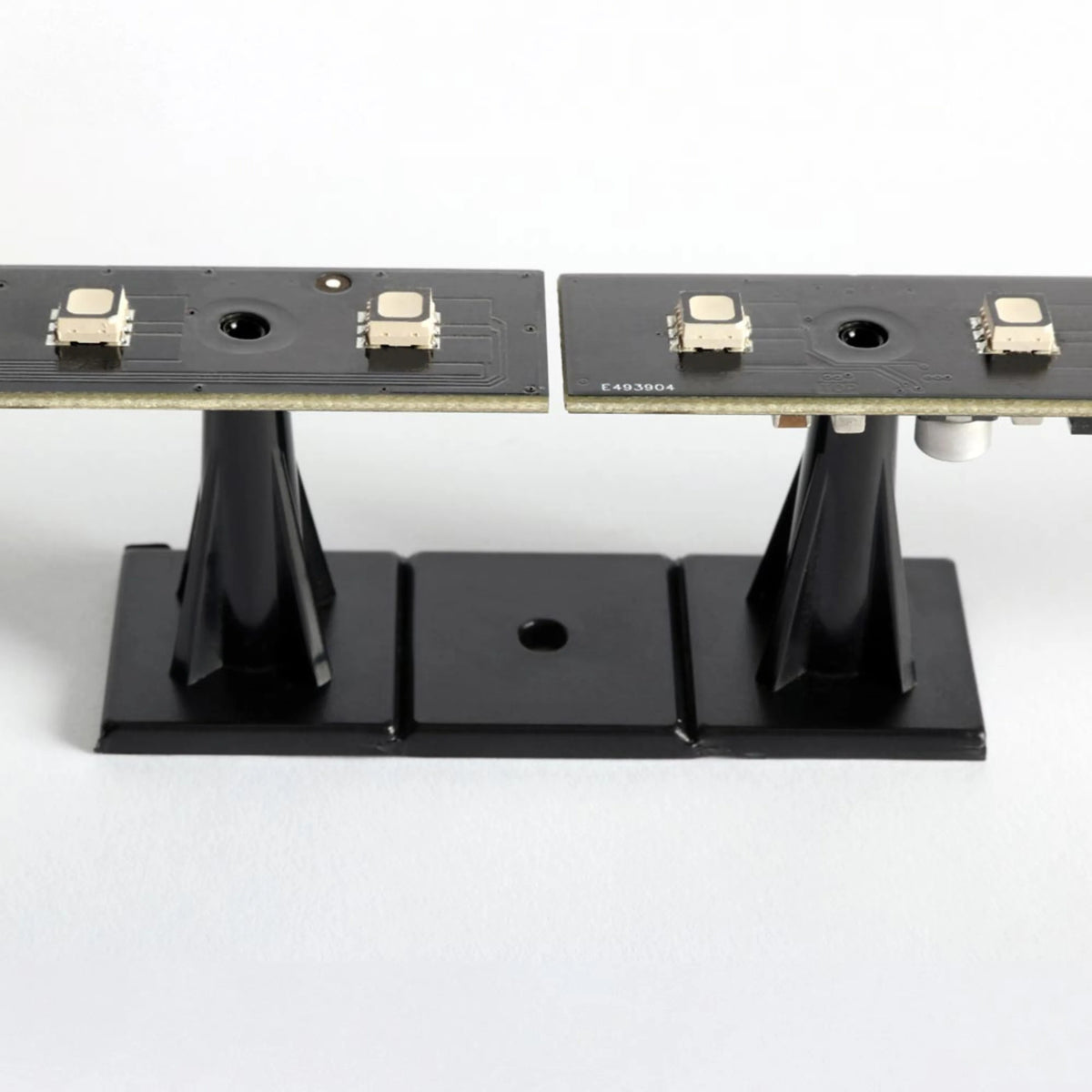

  • VC-Strip 25 side view mounted on black pedestal standoff bases showing edge profile of the PCB, Martin Lighting
  • VC-Strip 25 five strip lengths stacked to show available pixel-count segment sizes, Martin Lighting
1 18

Martin Lighting VC-Strip 25 RGB LED Tape

Martin Lighting VC-Strip 25 RGB LED Tape

| Part Number: 90357290HU

Pricing available upon request

Pricing available upon request

Your Price Sold out

Out of stock

  • Pixel-Level Brightness And Color Calibration Ensures Uniformity Across Multi-Module Surfaces
  • Available In Two Pixel Configurations To Match Resolution And Coverage Needs
  • Hybrid DMX And P3 Control With Real-Time Toggle Between DMX, PixelMapping, And VideoMapping
  • 16-Bit Per Color Image Processing Delivers Smooth, High-Quality Video Playback
  • Single Combined Power And Data Cable Simplifies Installation And Daisy-Chaining
  • On-Site Cuttable Length Adapts Each Module To Exact Integration Dimensions
  • Compatible With VC-Grid And Full Martin P3 Ecosystem For Scalable Pixel Surfaces
Log in or register for YOUR best price

The Martin Lighting VC-Strip 25 RGB LED Tape family is engineered for production designers, lighting integrators, and technical directors who need precise, high-output pixel mapping embedded directly into stage sets, scenic elements, broadcast environments, and permanent architectural installations. Each module delivers full pixel-level brightness and color calibration, ensuring consistent uniformity across an entire surface when multiple strips are deployed side by side or end to end. With 4000 nits of calibrated output and 300 lumen per meter, these strips perform in both low-ambient theatrical settings and high-ambient broadcast or live event environments where lesser tape products wash out.

Control flexibility sets the VC-Strip 25 apart from generic LED tape solutions. Operators can run strips directly via USITT DMX512-A at 8-bit resolution or step up to Martin's P3 System Controller for 16-bit per color processing, VideoMapping, PixelMapping, and real-time hybrid switching between modes via a dedicated P3 Switch channel. Protocol detection is automatic, eliminating manual configuration at the fixture. A combined power and data connection on a single 4-pin Molex cable simplifies installation and daisy-chaining, and modules can be cut to a custom length on-site to meet exact integration dimensions. The VC-Strip 25 is compatible with the VC-Grid system and is supported by a full ecosystem of PowerPort processors, mounting frames, and lens arrays, making it a scalable foundation for pixel-mapped video surfaces of any size.

Available in two pixel configurations to match the resolution and coverage requirements of a given project, the VC-Strip 25 is built on a black FR4 circuit board with IP20 protection and rated for ambient operating temperatures from -20 degrees C to 45 degrees C. RoHS, REACH, WEEE, and Proposition 65 compliance, along with EU and North American safety approvals, make it suitable for permanent installed applications worldwide.

View full details

Specifications

Dimensions
Length (16x1 module)
400 mm (15.8 in.)
Width
20 mm (0.8 in.)
Height
18 mm (0.7 in.)
Note
Length includes 1 mm board-to-board gap
Weight
Unit Weight (16x1 module)
43 g (0.1 lbs.)
Electrical
Nominal Input Voltage
48 VDC +/- 4%
Maximum Power Consumption (16x1, all LEDs full)
6.7 W
Power Supply Options
Martin P3 PowerPort 1500, DMX PowerPort 375, Martin IP66 PSU 240W or generic 48 VDC PSU
Control and Programming
Control Options
Martin P3 System Controller (via Martin P3 PowerPort) or DMX
Control Resolution
16-bit (P3) or 8-bit (DMX) control of each color
Protocol Detection
Automatic
Setting and Addressing
Martin P3 System Controller or RDM-compliant controller
Color and Intensity Calibration
Pixel-level
DMX Compliance
USITT DMX512-A
RDM Compliance
ANSI/ESTA E1.20
Firmware Update
Via Martin P3 System Controller
Control Modes, Direct DMX
Module and Pixel
DMX Channels, Direct DMX
3/24/48
Control Modes, DMX via P3
P3 Intensity, P3 RGB, P3 Basic, P3 Hybrid and P3 PixelMap
DMX Channels, DMX via P3
Wide range of options from 1 to 51
P3 Video Processing
Brightness control, Gamma correction and control, Color temperature control, Color space control, Calibration processing, Synchronization
Photometrics
Pixel Pitch (center-to-center)
25.00 mm
Total Output, Calibrated Mode
4000 nits (fixtures placed in continuous surface)
Luminous Output, Calibrated Mode
300 lumen per meter
Color Resolution
16 bits per color (48 bits per pixel)
Viewing Angle
120 x 120 degrees (half-peak)
LED Array (16x1)
16 x 1
Minimum LED Lifetime
50,000 hours (to >70% luminous output)
Binning
Tight color and flux binning
Calibration
Full Gamut Pixel Calibration
Construction
Base
Black FR4 circuit board
Protection Rating
IP20
RoHS
Compliant
Connectivity
Power and Data Input
4-pin Molex connector
Power and Data Thru
4-pin Molex connector
Signal Protocol
Martin P3 (via Martin P3 PowerPort) or DMX (direct)
Installation
Mounting
Mounting holes in module
Orientation
Any
Maximum Modules Per Daisy-Chain (16x1)
45
Thermal
Cooling
Convection
Maximum Ambient Temperature
45 degrees C
Minimum Ambient Temperature
-20 degrees C
Maximum Heat Dissipation (16x1, +/- 10%)
23 BTU/hr
Environmental
RoHS
Compliant
REACH
Compliant
WEEE
Compliant
Proposition 65
Compliant
Certifications
EU Safety
EN 60950
EU EMC
EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3
US Safety
ANSI/UL 60950-1
Canadian Safety
CSA C22.2 No. 60950-1
Identifiers
Ordering Note
To be ordered in multiples of 6
