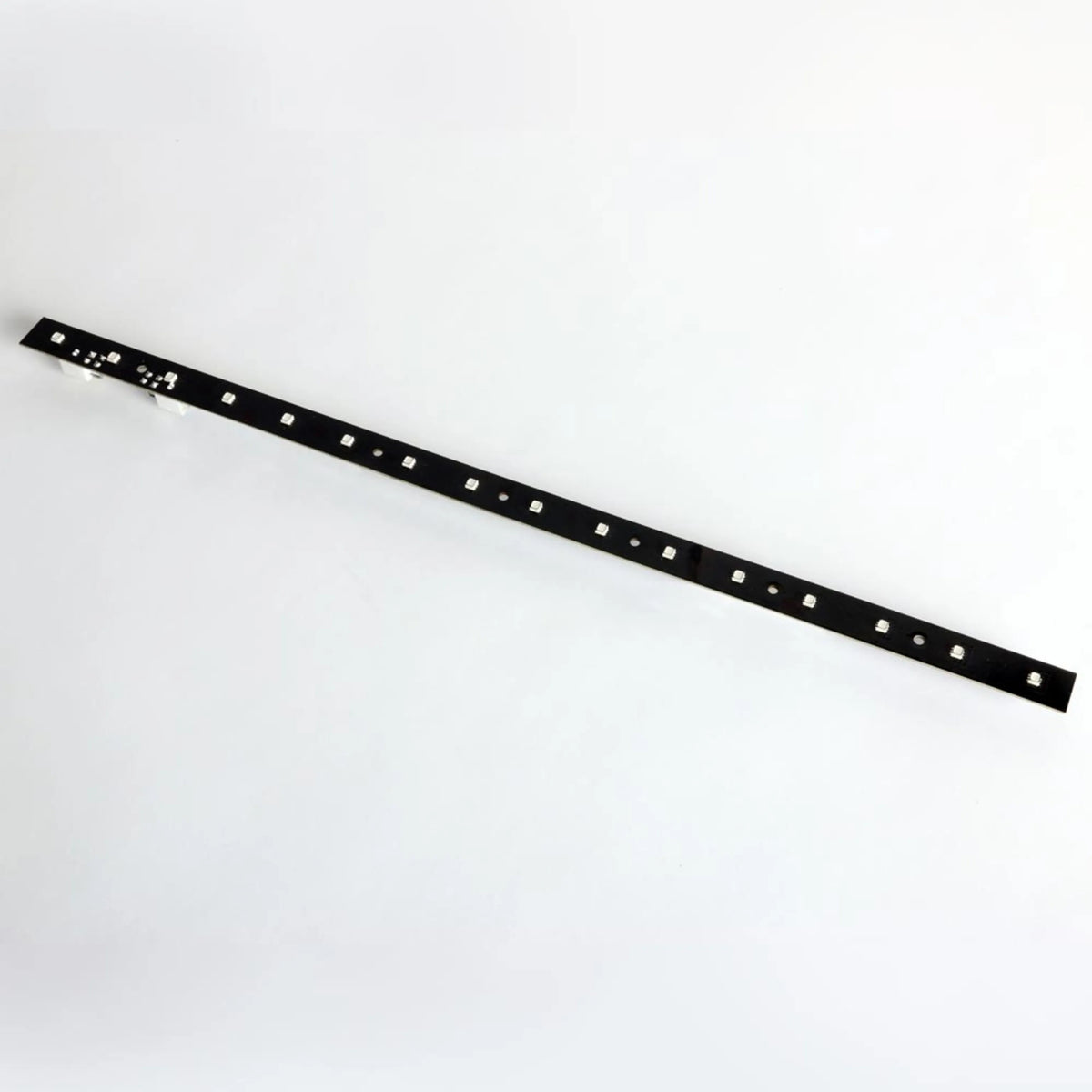

• VC-Strip 30 RGB LED narrow pixel strip front view showing evenly spaced surface-mount RGB pixels on black PCB, Martin Lighting

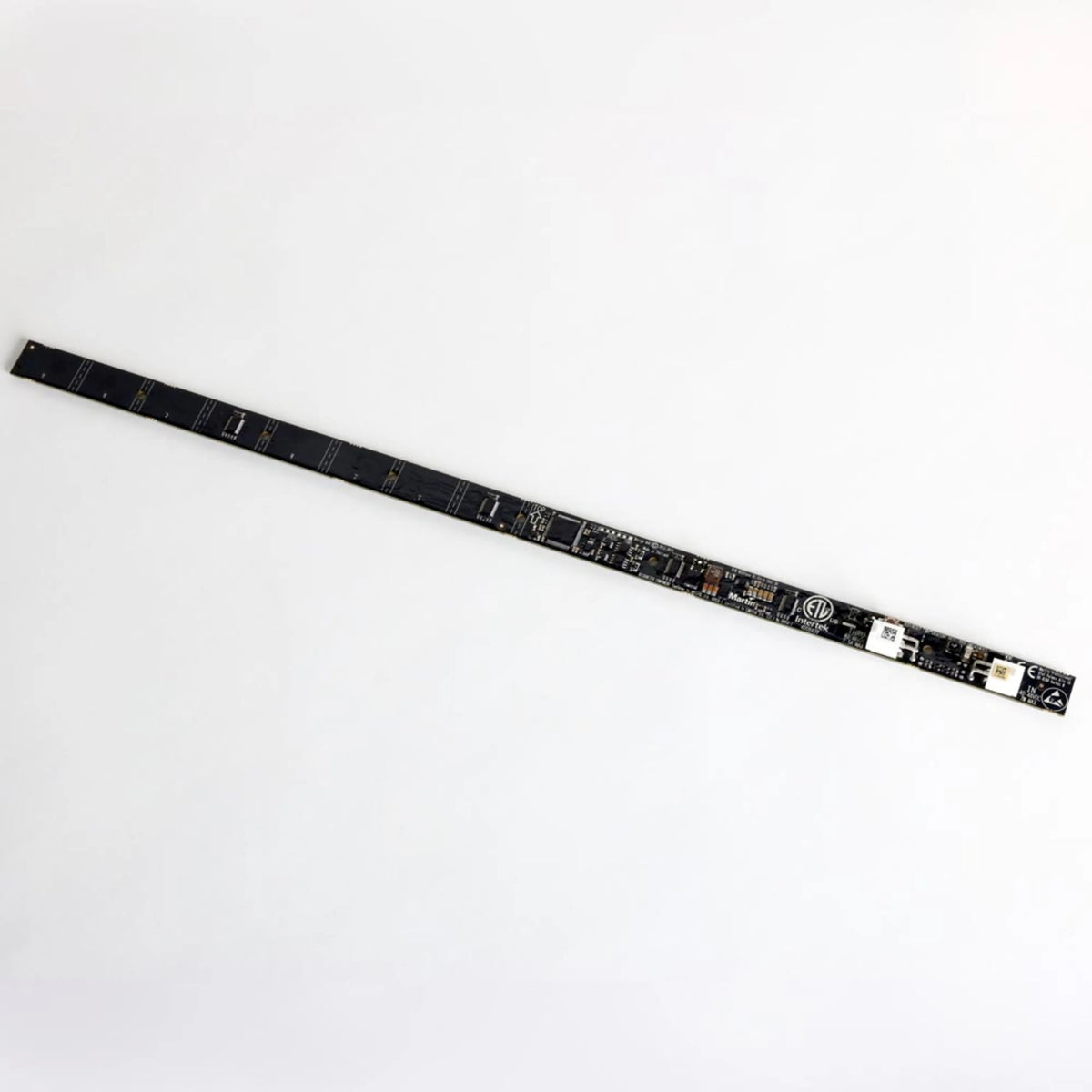

  • VC-Strip 30 rear view of the black PCB with driver components, ETL Intertek and CE markings, Martin Lighting

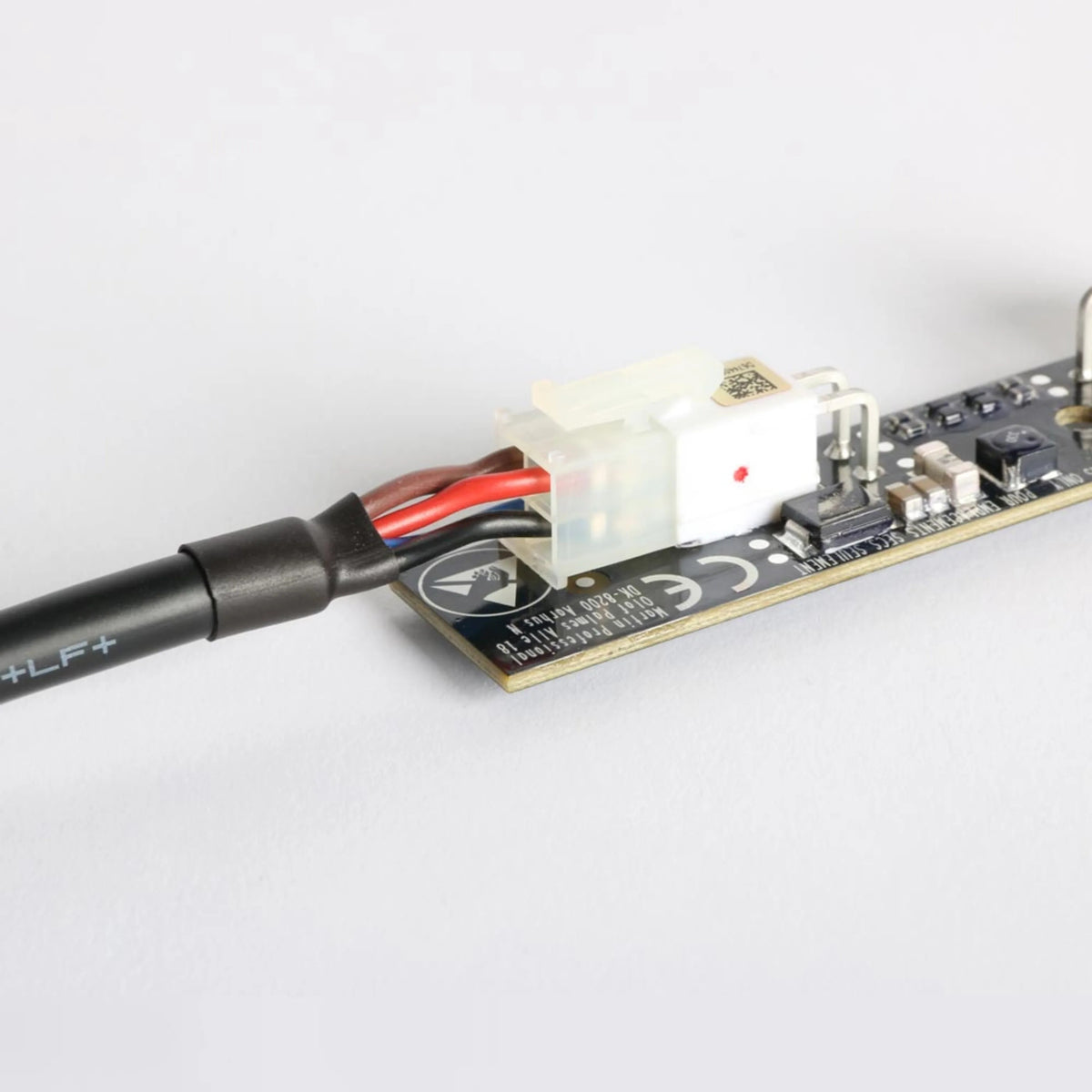

  • VC-Strip 30 close-up detail of white keyed power/data connector with red and black wiring at the strip end, Martin Lighting

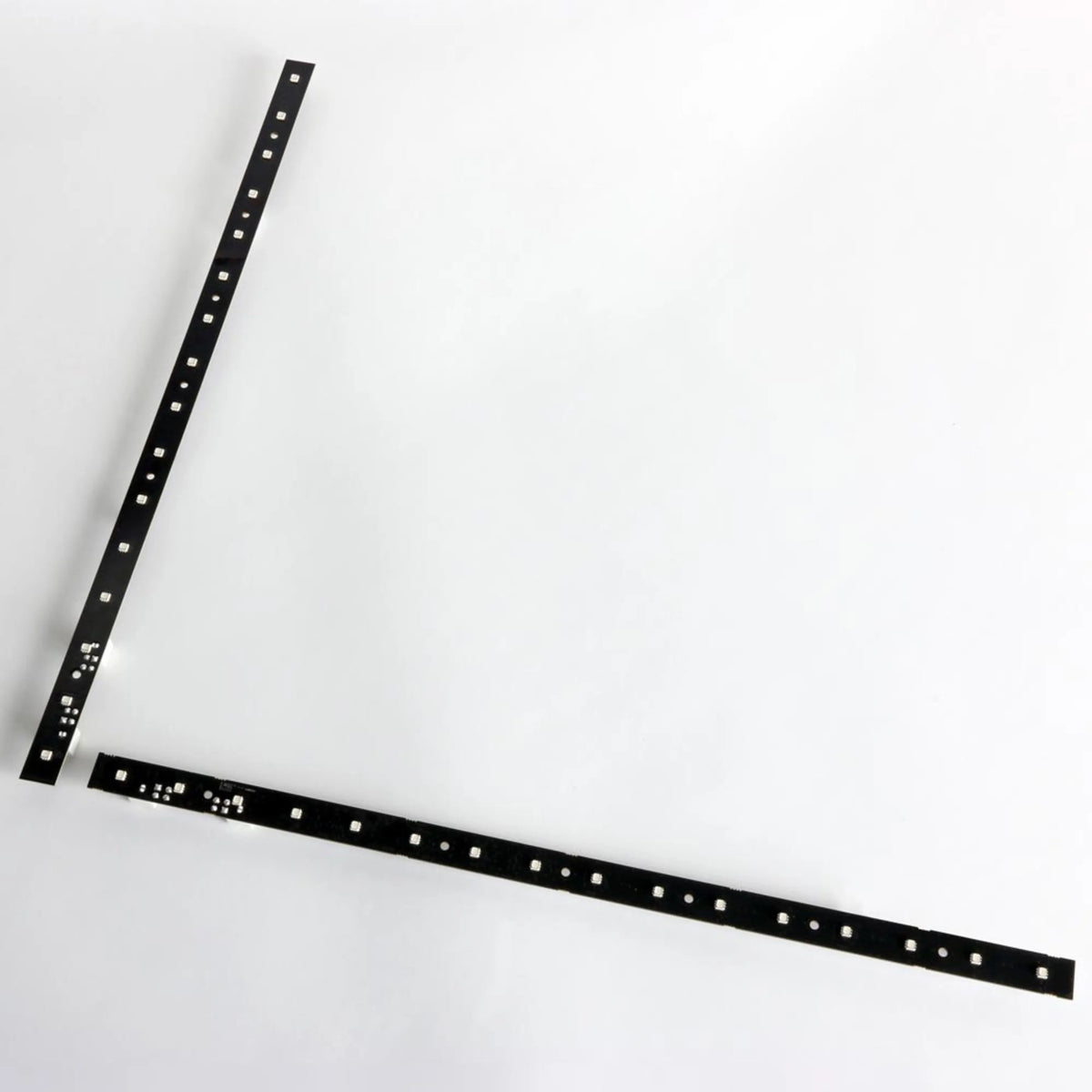

  • VC-Strip 30 two pixel strips arranged at right angles showing pixel pitch and end connection points, Martin Lighting

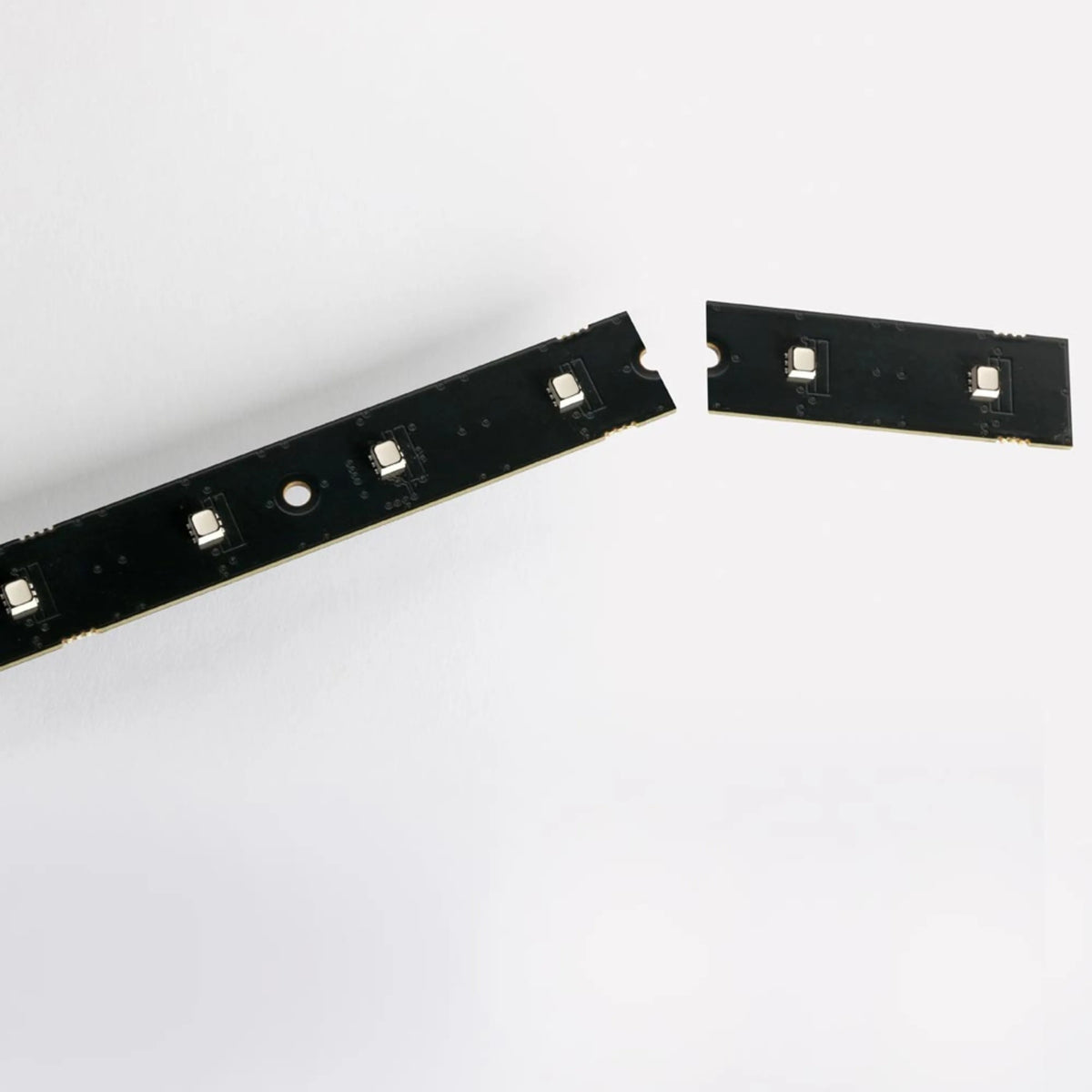

  • VC-Strip 30 macro detail of cut point separating a short pixel segment from the main strip, Martin Lighting

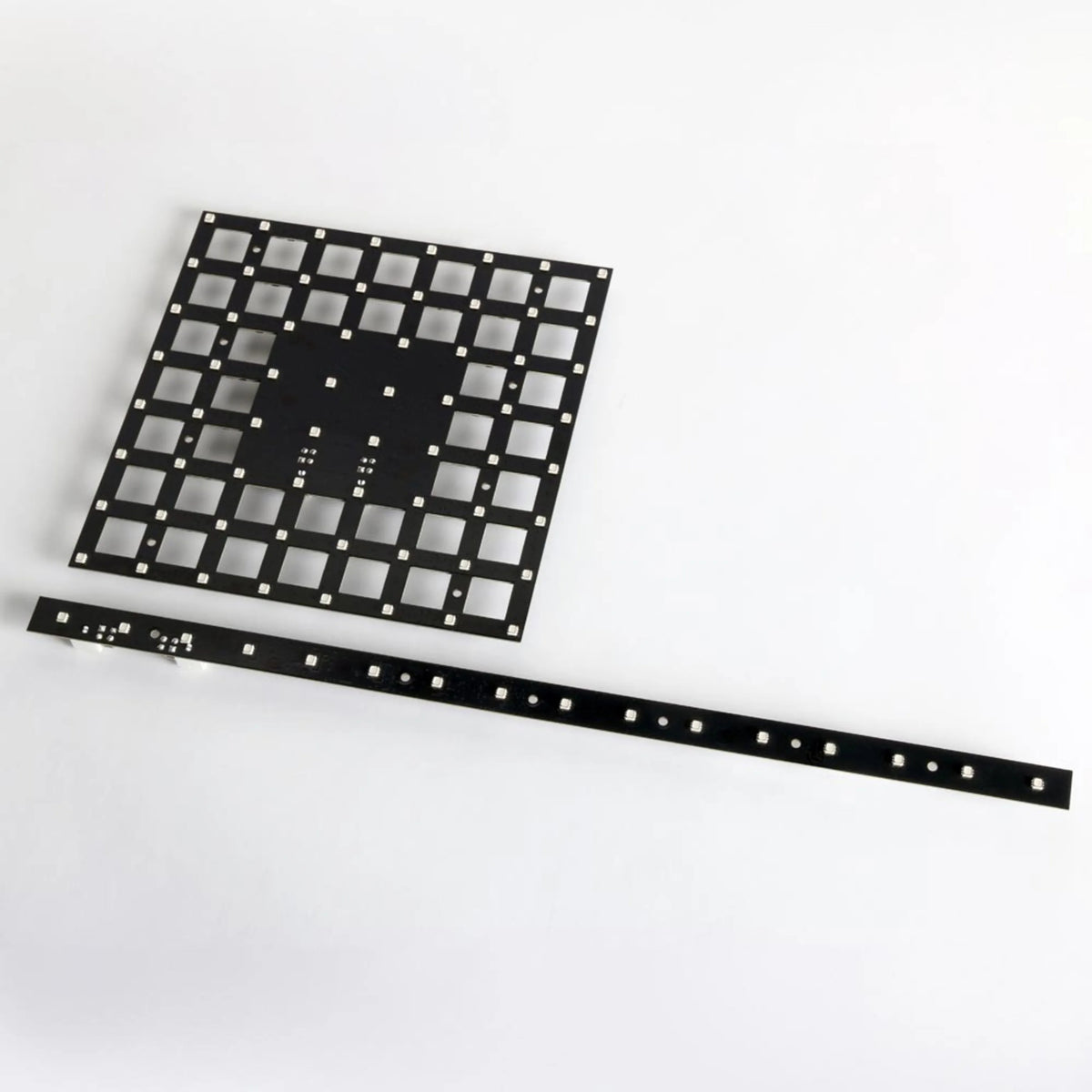

  • VC-Strip 30 pixel strip shown alongside a square VC-Dot style LED panel for scale comparison, Martin Lighting

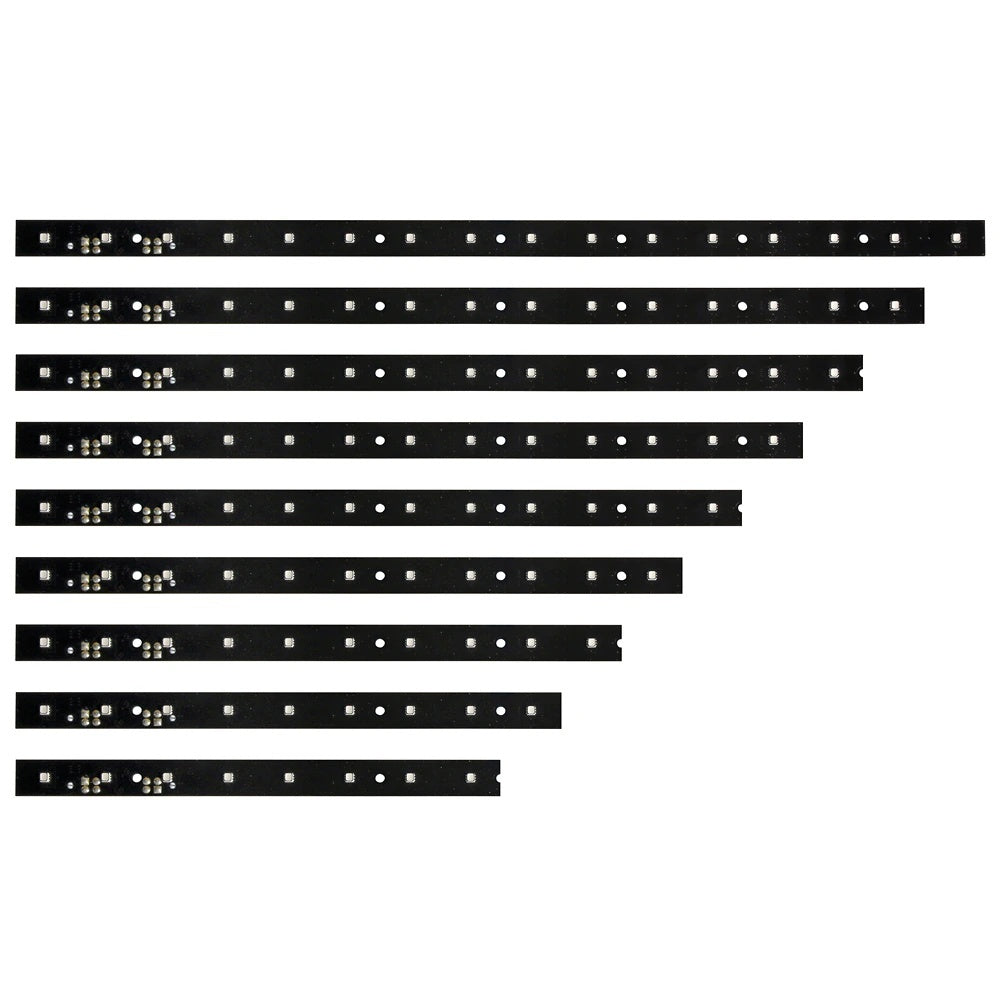

  • VC-Strip 30 lineup of nine strip lengths stacked to show available pixel counts, Martin Lighting
  • VC-Strip 30 RGB LED narrow pixel strip front view showing evenly spaced surface-mount RGB LEDs on slim black PCB, Martin Lighting
  • VC-Strip 30 rear view of PCB showing solder-side components, ETL and CE markings and data barcode labels, Martin Lighting
  • VC-Strip 30 connection detail with white power/data connector plugged into strip end and heat-shrunk red and black leads, Martin Lighting
  • Two VC-Strip 30 pixel strips arranged in an L layout showing input end connectors and LED pitch, Martin Lighting
  • VC-Strip 30 close-up of cut-to-length break point with mounting hole and RGB pixel LEDs, Martin Lighting
  • VC-Strip 30 pixel strip shown beside a square VC-Dot style LED panel for scale comparison, Martin Lighting
  • VC-Strip 30 length options laid out in nine graduated pixel-strip sizes, Martin Lighting
1 14

Martin Lighting VC-Strip 30 RGB LED Tape

Martin Lighting VC-Strip 30 RGB LED Tape

| Part Number: 90357460HU

Pricing available upon request

Pricing available upon request

Your Price Sold out

Out of stock

  • Pixel-Level Brightness And Color Calibration Ensures Uniformity Across All Modules
  • Hybrid DMX And P3 Control With Real-Time Toggle Between Control Modes
  • 16-Bit Per Color Image Processing For Smooth, High-Resolution Video Rendering
  • On-Site Cuttable Length Adapts Each Strip To Fit Custom Integration Requirements
  • Combined Power And Data Cable Reduces Wiring Complexity On Complex Builds
  • Daisy-Chain Architecture Supports Multiple Modules Per Run From A Single Source
  • Compatible With VC-Grid 30 For Scalable Grid-Format Video Surface Builds
Log in or register for YOUR best price

The Martin Lighting VC-Strip 30 RGB LED tape family is designed for lighting designers, AV integrators, and production teams who need precise, high-uniformity video-grade LED strips built into stage sets, architectural interiors, broadcast environments, and custom scenic elements. Unlike generic LED tape, every module is individually calibrated at the pixel level for brightness and color, ensuring consistent output across entire surfaces whether modules are sourced from different batches or deployed across large-scale installations.

Where the VC-Strip family separates itself from DMX-only LED solutions is its native compatibility with Martin's P3 System Controller platform. P3 enables smooth video playback, pixel mapping, and real-time VideoMapping, all with 16-bit color resolution per channel. For productions that require flexibility, a hybrid control mode lets operators toggle in real-time between DMX, PixelMapping, and VideoMapping via the P3 Switch channel without interrupting the show. Direct DMX operation using USITT DMX512-A and ANSI/ESTA E1.20 RDM is also fully supported for environments where P3 infrastructure is not in place.

VC-Strip modules daisy-chain using a single combined power and data cable, simplifying runs and reducing cable density on complex builds. Modules can be cut to custom lengths on-site to meet precise integration requirements, and mounting holes in each module support flexible orientation in any direction. The strips are compatible with VC-Grid 30 for grid-format video surface builds, and the full ecosystem of Martin PowerPort and PSU options covers both permanent installs and touring rental deployments.

View full details

Specifications

Dimensions
Length
480 mm (18.9")
Width
19 mm (0.8")
Height
15 mm (0.6")
Weight
Unit Weight
51 g (0.12 lbs.)
Electrical
Nominal Input Voltage
48 VDC +/- 4%
Maximum Power Consumption (All LEDs Full Intensity)
6.7 W
Power Supply Options
Martin P3 PowerPort 1500, DMX PowerPort 375, Martin IP66 PSU 240W or generic 48 VDC PSU
Photometric Data
Pixel Pitch (Center-to-Center)
30.00 mm
Total Output, Calibrated Mode
2750 nits (fixtures placed in continuous surface)
Luminous Output, Calibrated Mode
248 lumen per meter
Color Resolution
16 bits per color (48 bits per pixel)
Viewing Angle
120 x 120 (half-peak)
LED Array
16 x 1
Control and Programming
Control Resolution
16-bit (P3) or 8-bit (DMX) per color
Control Options
Martin P3 System Controller (via Martin P3 PowerPort) or DMX
Protocol Detection
Automatic
Setting and Addressing
Martin P3 System Controller or RDM-compliant controller
Color and Intensity Calibration
Pixel-level
DMX Compliance
USITT DMX512-A
RDM Compliance
ANSI/ESTA E1.20
Firmware Update
Via Martin P3 System Controller
Control Modes, Direct DMX
Module and Pixel
DMX Channels, Direct DMX
3/24/48
Control Modes, DMX via P3
P3 Intensity, P3 RGB, P3 Basic, P3 Hybrid and P3 PixelMap
DMX Channels, DMX via P3
Wide range of options from 1 to 51
Optics
Minimum LED Lifetime
50,000 hours (to >70% luminous output)
Binning
Tight color and flux binning
Calibration
Full Gamut Pixel Calibration
Construction
Base
Black FR4 circuit board
Protection Rating
IP20
Compliance
RoHS compliant
Installation
Mounting
Mounting holes in module
Orientation
Any
Maximum Modules Per Daisy-Chain
45
Connectivity
Power and Data Input
4-pin Molex connector
Power and Data Thru
4-pin Molex connector
Signal Protocol
Martin P3 (via Martin P3 PowerPort) or DMX (direct)
Thermal
Cooling
Convection
Maximum Ambient Temperature
45 C
Minimum Ambient Temperature
-20 C
Maximum Heat Dissipation (Calculated, +/- 10%)
23 BTU/hr
Environmental
RoHS
Compliant
REACH
Compliant
WEEE
Compliant
Proposition 65
Compliant
Certifications
EU Safety
EN 60950
EU EMC
EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3
US Safety
ANSI/UL 60950-1
Canadian Safety
CSA C22.2 No. 60950-1
Identifiers
MPN
90357460HU
