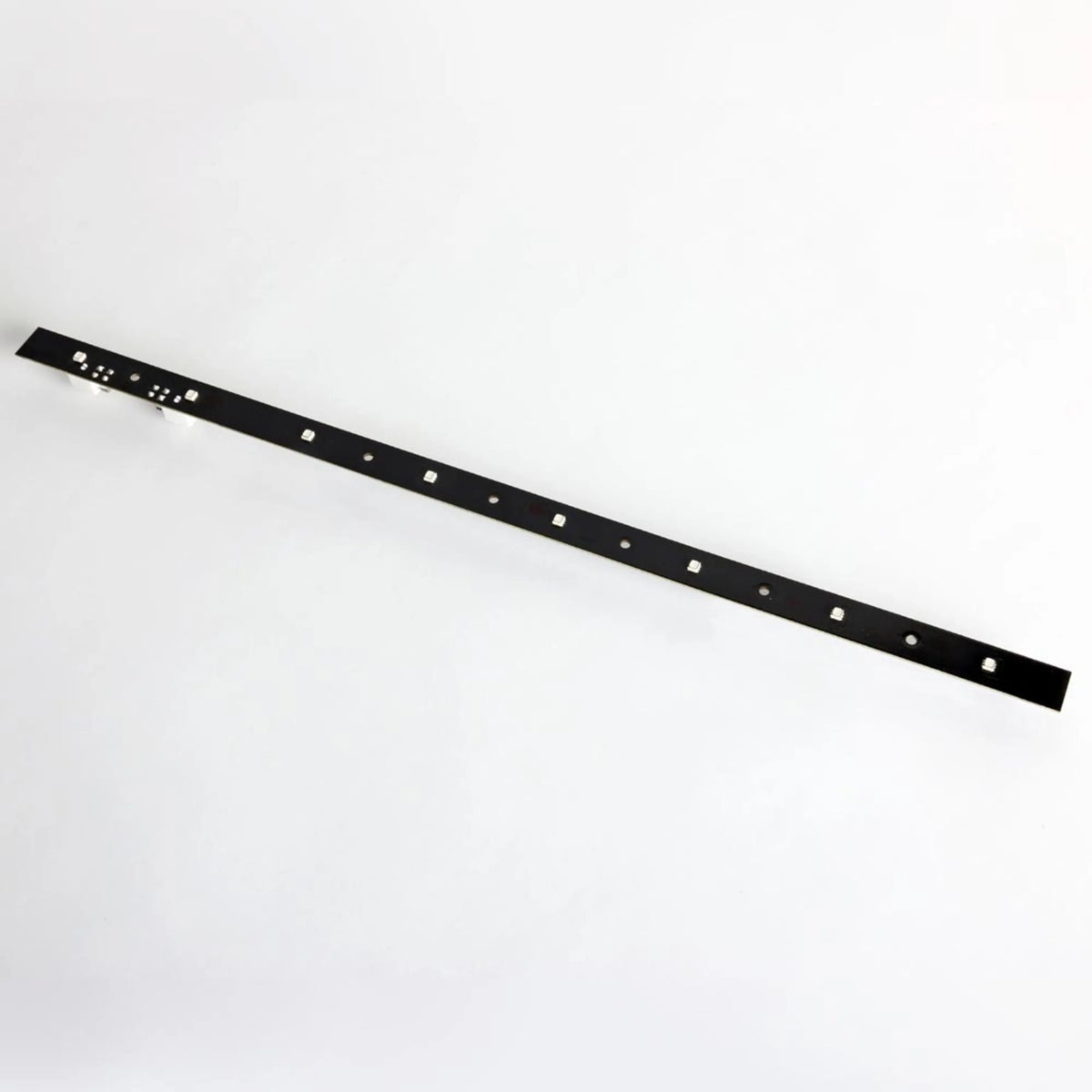

• VC-Strip 60 RGB narrow pixel strip front view showing evenly spaced surface-mount RGB LEDs and mounting holes on black PCB, Martin Lighting

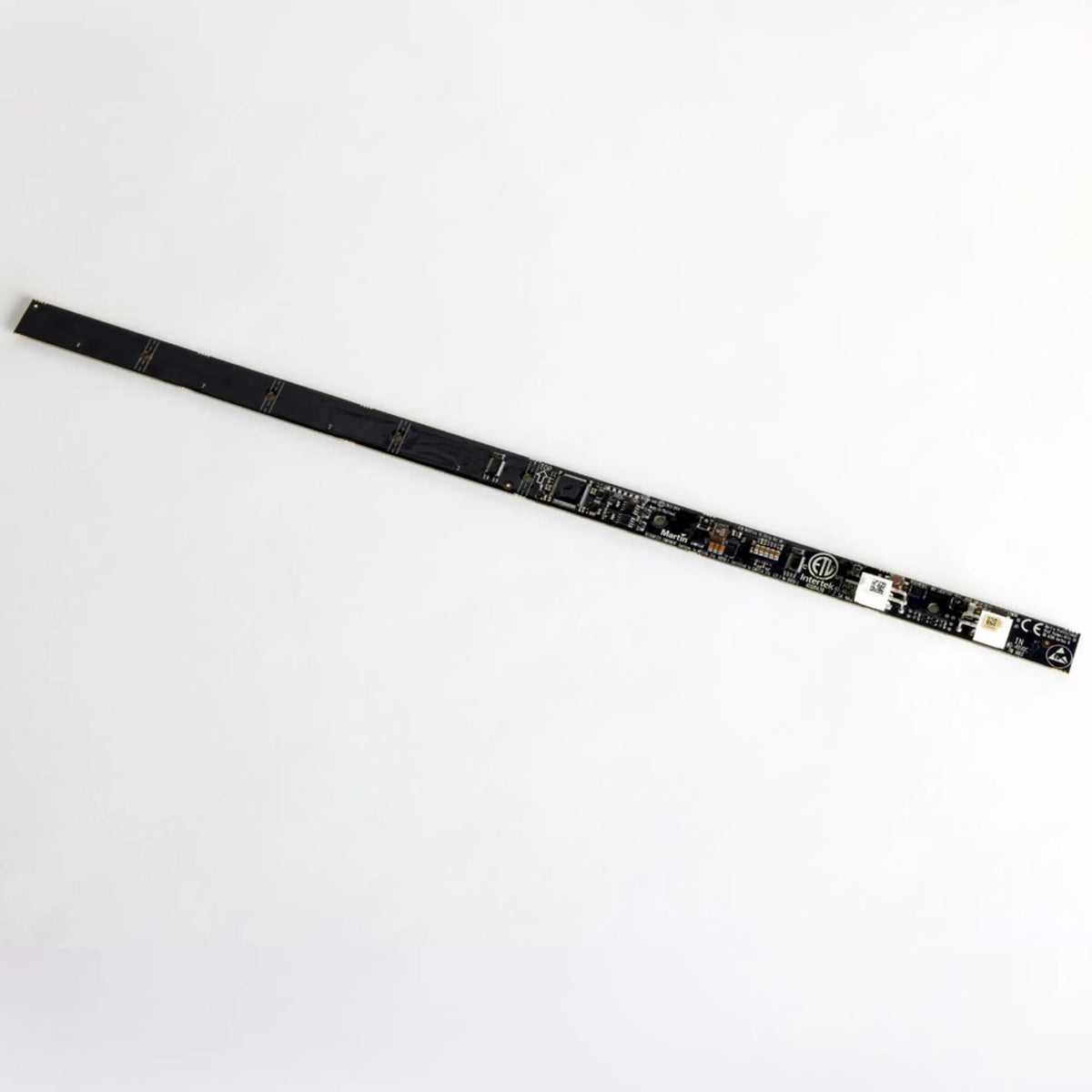

  • VC-Strip 60 rear view of PCB showing driver circuitry, ETL and CE certification marks, Martin Lighting

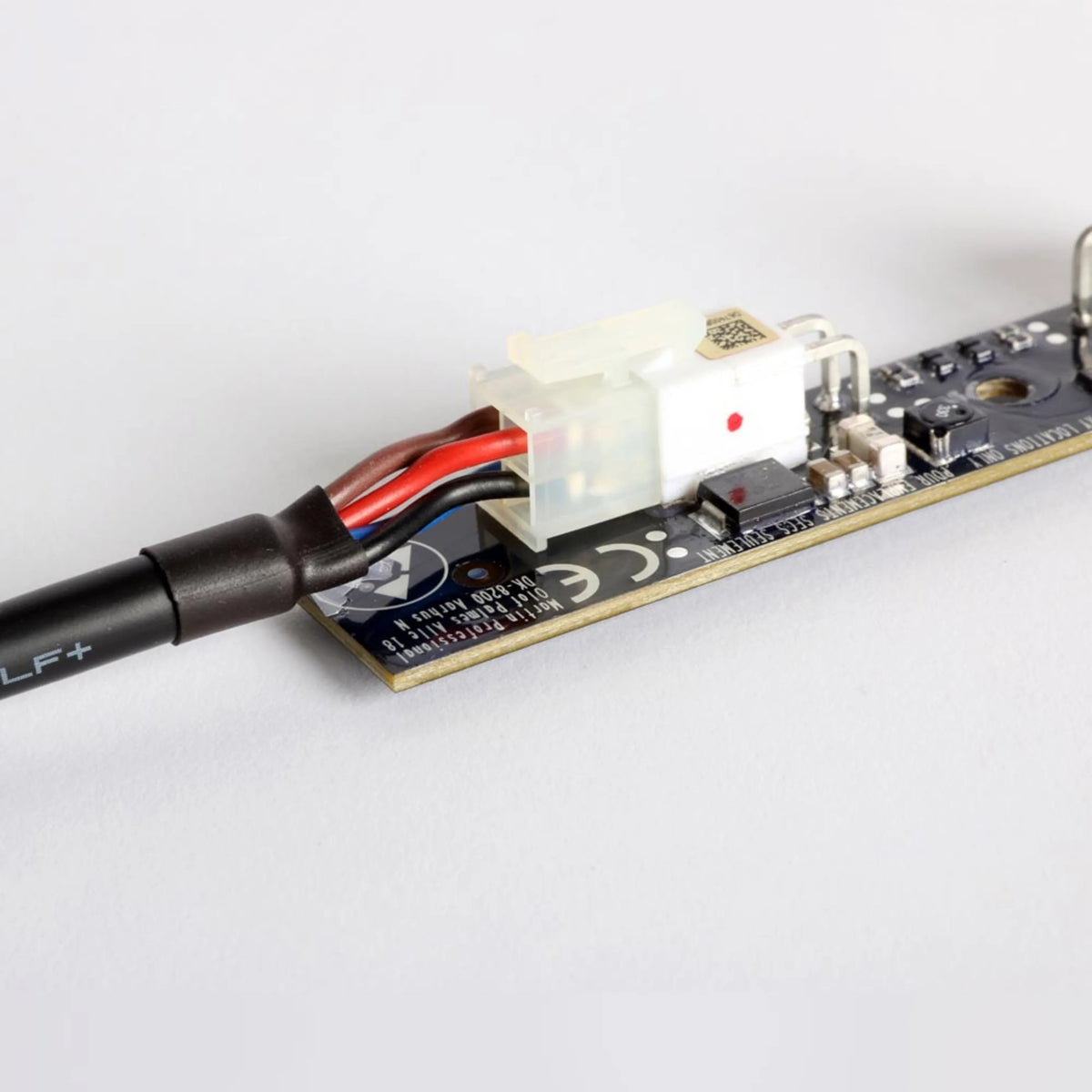

  • VC-Strip 60 close-up of white power input connector with red and black leads wired to the strip PCB, Martin Lighting

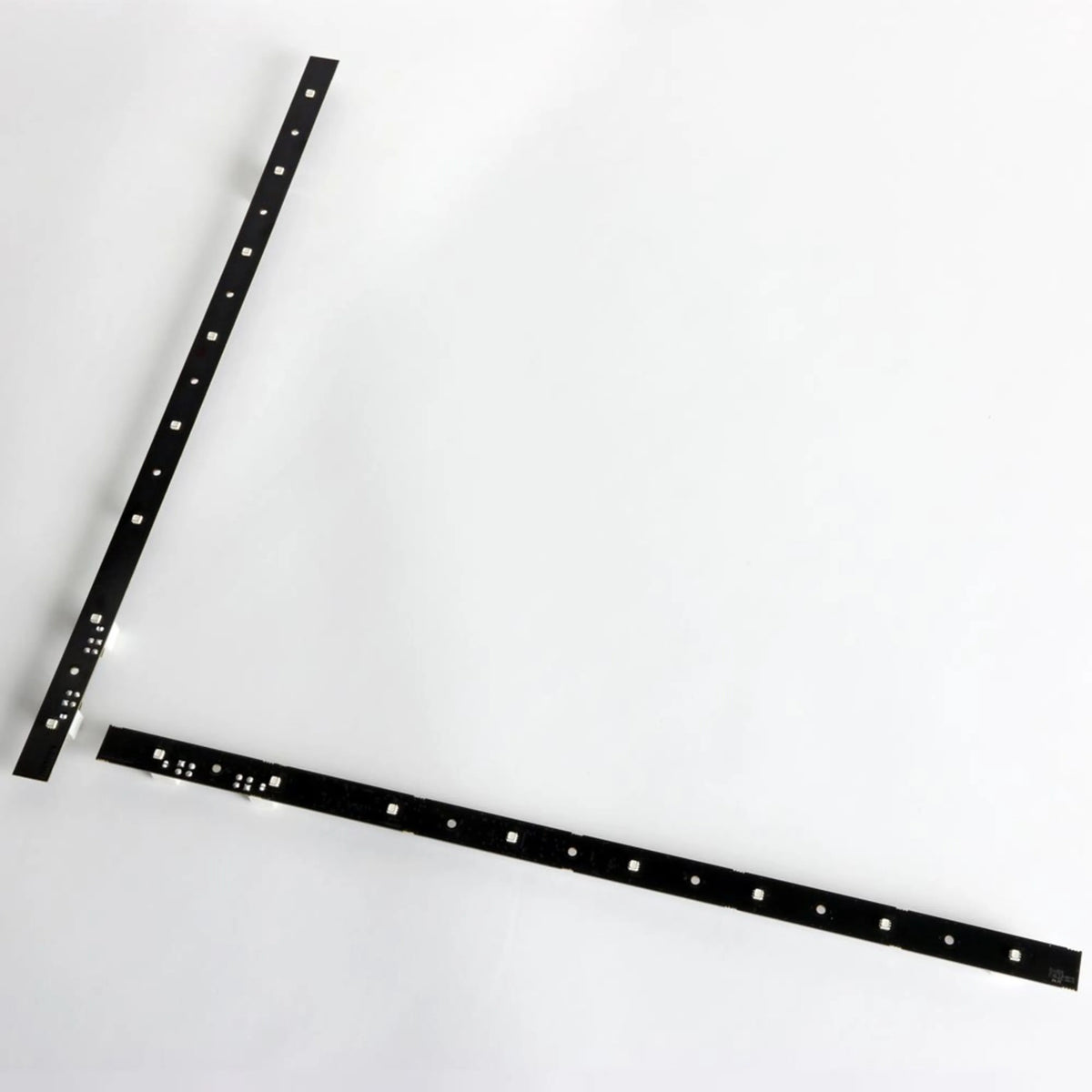

  • VC-Strip 60 two narrow pixel strips arranged in an L layout showing input end connectors, Martin Lighting

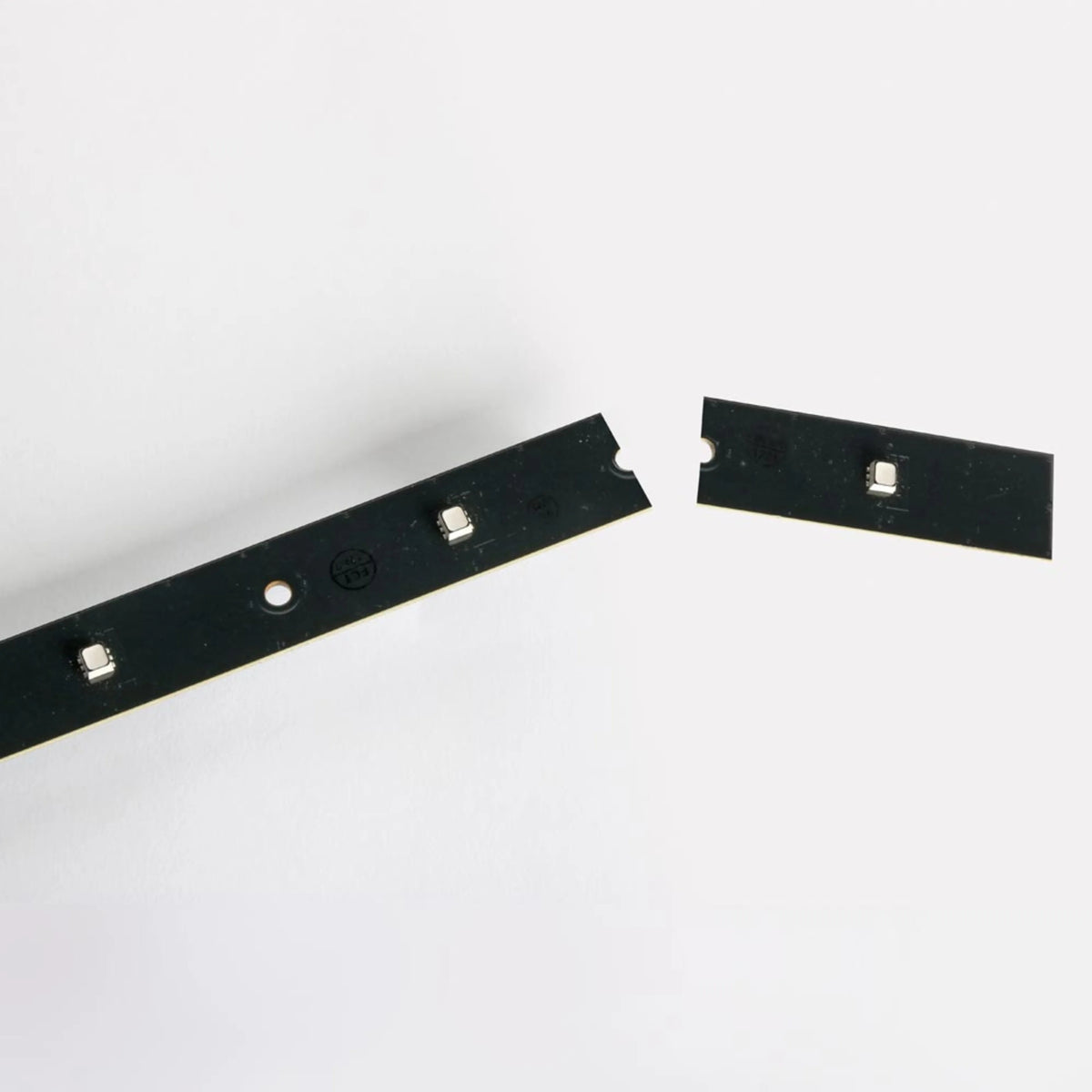

  • VC-Strip 60 detail of cut-to-length strip end with trimmed segment and notched mounting holes, Martin Lighting

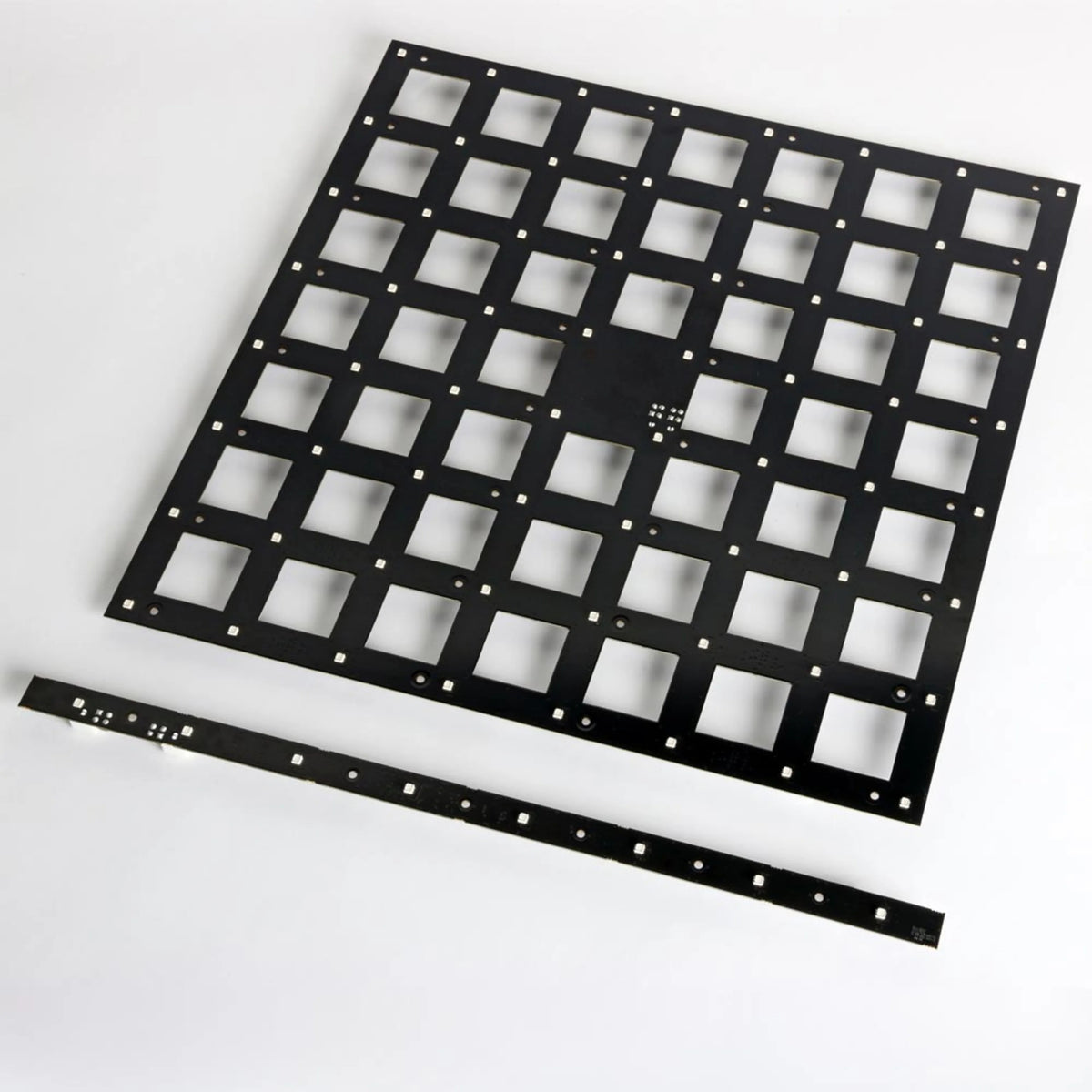

  • VC-Strip 60 narrow pixel strip shown beside a large VC-Grid style LED panel for scale, Martin Lighting

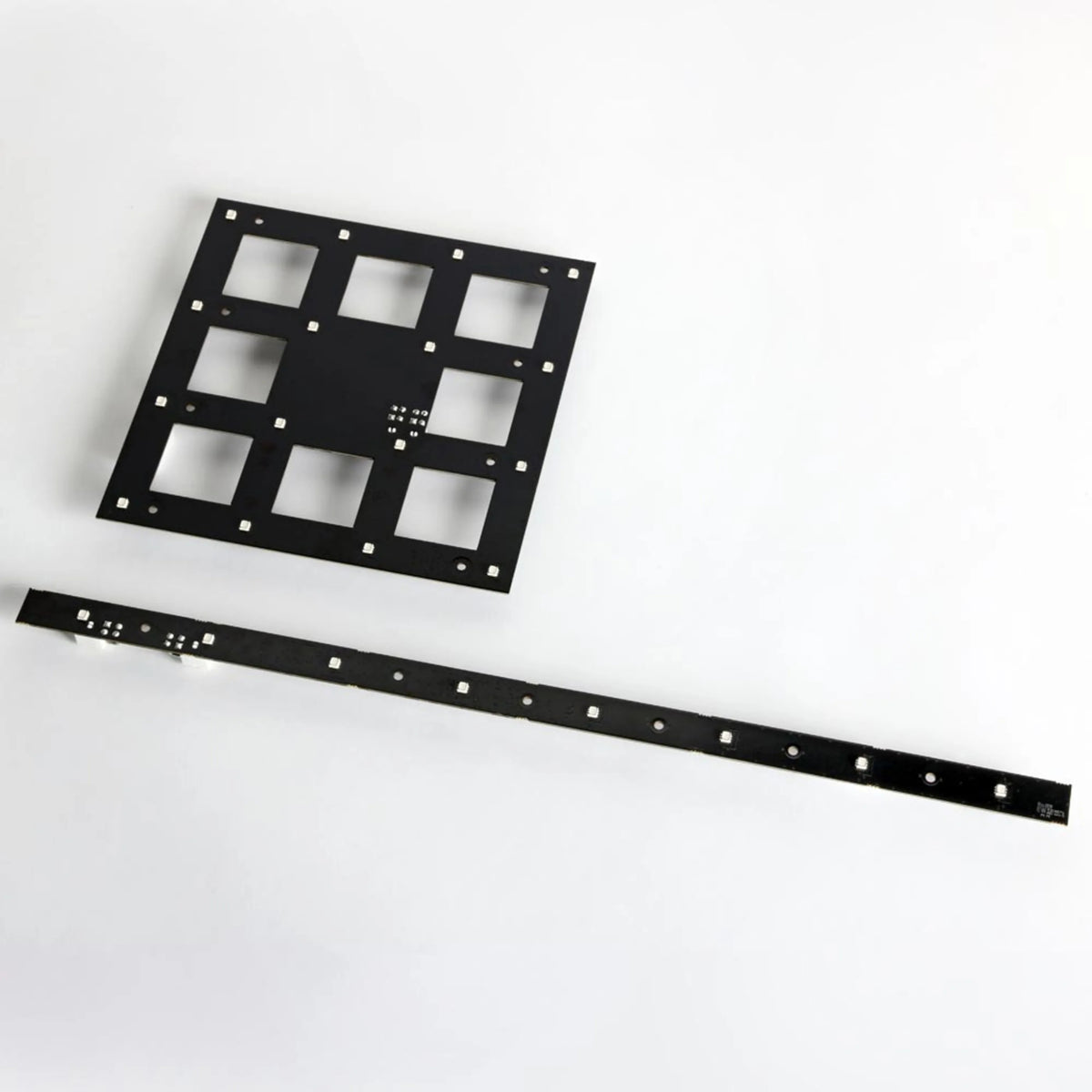

  • VC-Strip 60 narrow pixel strip paired with a smaller 3x3 LED grid panel on white background, Martin Lighting

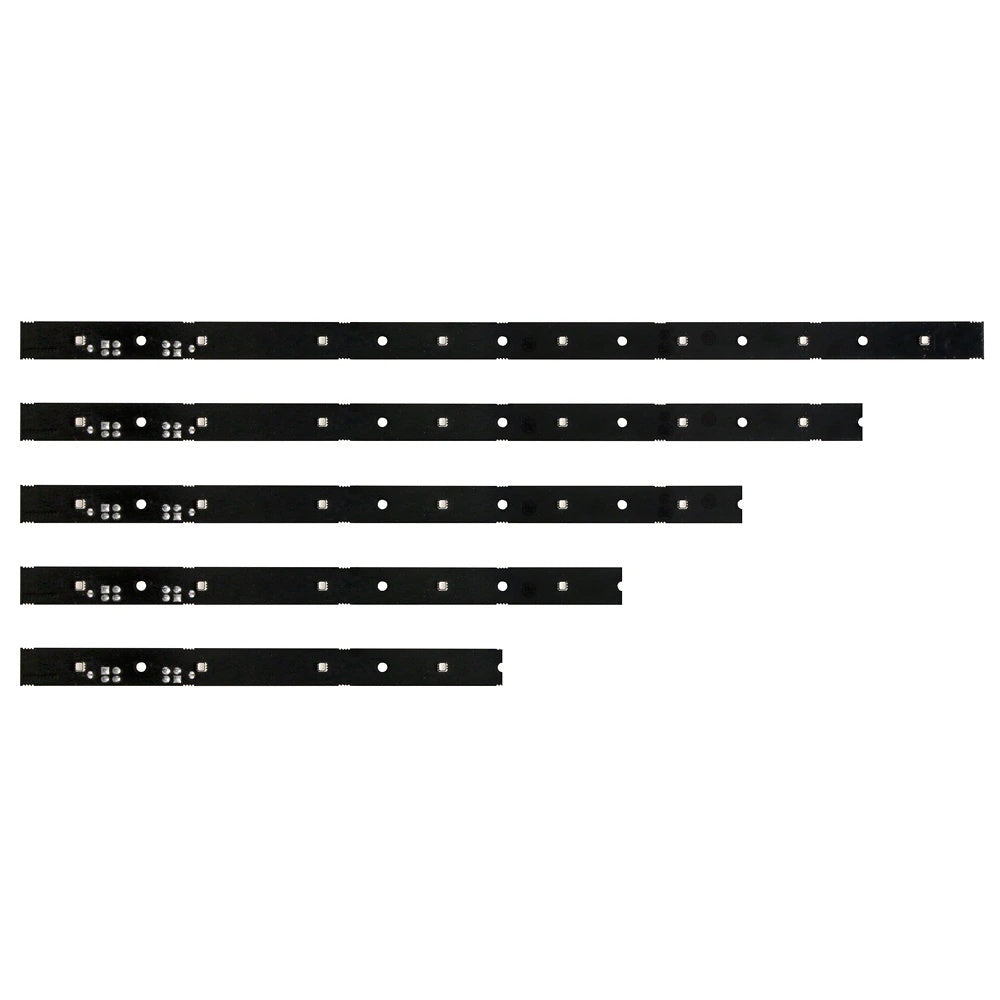

  • VC-Strip 60 five strips in descending lengths showing cut-to-size pixel segment options, Martin Lighting
  • VC-Strip 60 RGB LED narrow pixel strip front view showing evenly spaced surface-mount RGB LEDs and mounting holes along the black PCB, Martin Lighting
  • VC-Strip 60 rear view of the black PCB with driver circuitry, ETL and CE certification markings, Martin Lighting
  • VC-Strip 60 close-up of the white keyed power and data connector with red, black and blue leads at the strip end, Martin Lighting
  • VC-Strip 60 two pixel strips arranged in an L formation showing input connector ends and LED pitch, Martin Lighting
  • VC-Strip 60 detail of a strip cut at a breakpoint, showing separated pixel segment with LED and mounting notch, Martin Lighting
  • VC-Strip 60 pixel strip shown beside a large 7x7 VC-Grid style LED panel for scale, Martin Lighting
  • VC-Strip 60 pixel strip next to a 3x3 LED grid panel illustrating the Versatile Creative range, Martin Lighting
  • VC-Strip 60 five strips cut to graduated lengths, showing customizable pixel counts from a single connector end, Martin Lighting
1 16

Martin Lighting VC-Strip 60 RGB LED Tape

Martin Lighting VC-Strip 60 RGB LED Tape

| Part Number: 90357490HU

Pricing available upon request

Pricing available upon request

Your Price Sold out

Out of stock

  • Available In 4x1 And 8x1 LED Array Configurations To Match Pixel Density Needs
  • Pixel-Level Brightness And Color Calibration Ensures Uniformity Across All Modules
  • Hybrid DMX And P3 Control Mode Enables Real-Time Toggle Between Control Protocols
  • P3 VideoMapping And PixelMapping Support Delivers Smooth Playback Beyond DMX
  • Single Combined Power And Data Cable Simplifies Daisy-Chain Wiring
  • Cut-To-Length On-Site Capability Fits Irregular Or Constrained Installation Geometries
  • Compatible With VC-Grid 60 For Expanded Configuration Options
Log in or register for YOUR best price

The Martin Lighting VC-Strip 60 RGB is a narrow, flexible LED video strip engineered for production designers, lighting integrators, and set builders who need pixel-accurate video output embedded directly into stage sets, architectural interiors, and custom scenic elements. Each module is fully pixel-level calibrated for brightness and color, ensuring consistent uniformity across large installations and precise matching between units. The strips are available in 4x1 and 8x1 LED array configurations to match the pixel density requirements of a given design.

Where DMX-only systems fall short on smooth video playback, the VC-Strip 60 connects to Martin's P3 System Controller ecosystem for full VideoMapping and PixelMapping support. A Hybrid control mode lets operators toggle in real time between DMX, PixelMapping, and VideoMapping via a P3 Switch channel, making these strips viable for both traditional lighting rigs and dedicated video playback systems. Modules daisy-chain via a single combined power and data cable, simplifying runs across complex set architectures.

The VC-Strip 60 is compatible with the VC-Grid 60 and can be cut to a custom length on-site, giving integrators the flexibility to fit constrained or irregular installation geometries without ordering custom hardware. Power and data integration is handled through P3 PowerPort or DMX PowerPort processors, keeping cabling infrastructure manageable on large-scale productions.

View full details

Specifications

Dimensions
Length
240 mm (9.5 in.)
Width
19 mm (0.8 in.)
Height
15 mm (0.6 in.)
Weight
Unit Weight
32 g (0.07 lbs.)
Photometric Data
LED Array
4 x 1
Pixel Pitch
60.00 mm
Total Output, Calibrated Mode
750 nits (fixtures placed in continuous surface)
Luminous Output, Calibrated Mode
135 lumen per meter
Viewing Angle
120° x 120° (half-peak)
Color Resolution
16 bits per color (48 bits per pixel)
Electrical
Nominal Input Voltage
48 VDC +/- 4%
Maximum Power Consumption
1.7 W
Power Supply Options
Martin P3 PowerPort 1500, DMX PowerPort 375, Martin IP66 PSU 240W, or generic 48 VDC PSU
Control and Programming
Control Options
Martin P3 System Controller (via Martin P3 PowerPort) or DMX
Control Resolution
16-bit (P3) or 8-bit (DMX) per color
Protocol Detection
Automatic
Setting and Addressing
Martin P3 System Controller or RDM-compliant controller
Color and Intensity Calibration
Pixel-level
DMX Compliance
USITT DMX512-A
RDM Compliance
ANSI/ESTA E1.20
Firmware Update
Via Martin P3 System Controller
Control Modes, Direct DMX
Module and Pixel
DMX Channels, Direct DMX
3/12/24
Control Modes, DMX via P3
P3 Intensity, P3 RGB, P3 Basic, P3 Hybrid and P3 PixelMap
DMX Channels, DMX via P3
Wide range of options from 1 to 27
Connectivity
Power and Data Input
4-pin Molex connector
Power and Data Thru
4-pin Molex connector
Construction
Base
Black FR4 circuit board
Protection Rating
IP20
Compliance
RoHS compliant
Installation
Mounting
Mounting holes in module
Orientation
Any
Maximum Modules Per Daisy-Chain
63
Optics
Minimum LED Lifetime
50,000 hours (to >70% luminous output)
Binning
Tight color and flux binning
Calibration
Full Gamut Pixel Calibration
Thermal
Cooling
Convection
Maximum Ambient Temperature
45° C
Minimum Ambient Temperature
-20° C
Maximum Heat Dissipation
6 BTU/hr
Environmental
RoHS
Compliant
REACH
Compliant
WEEE
Compliant
Proposition 65
Compliant
Certifications
EU Safety
EN 60950
EU EMC
EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3
US Safety
ANSI/UL 60950-1
Canadian Safety
CSA C22.2 No. 60950-1
Identifiers
Ordering Note
To be ordered in multiples of 20
