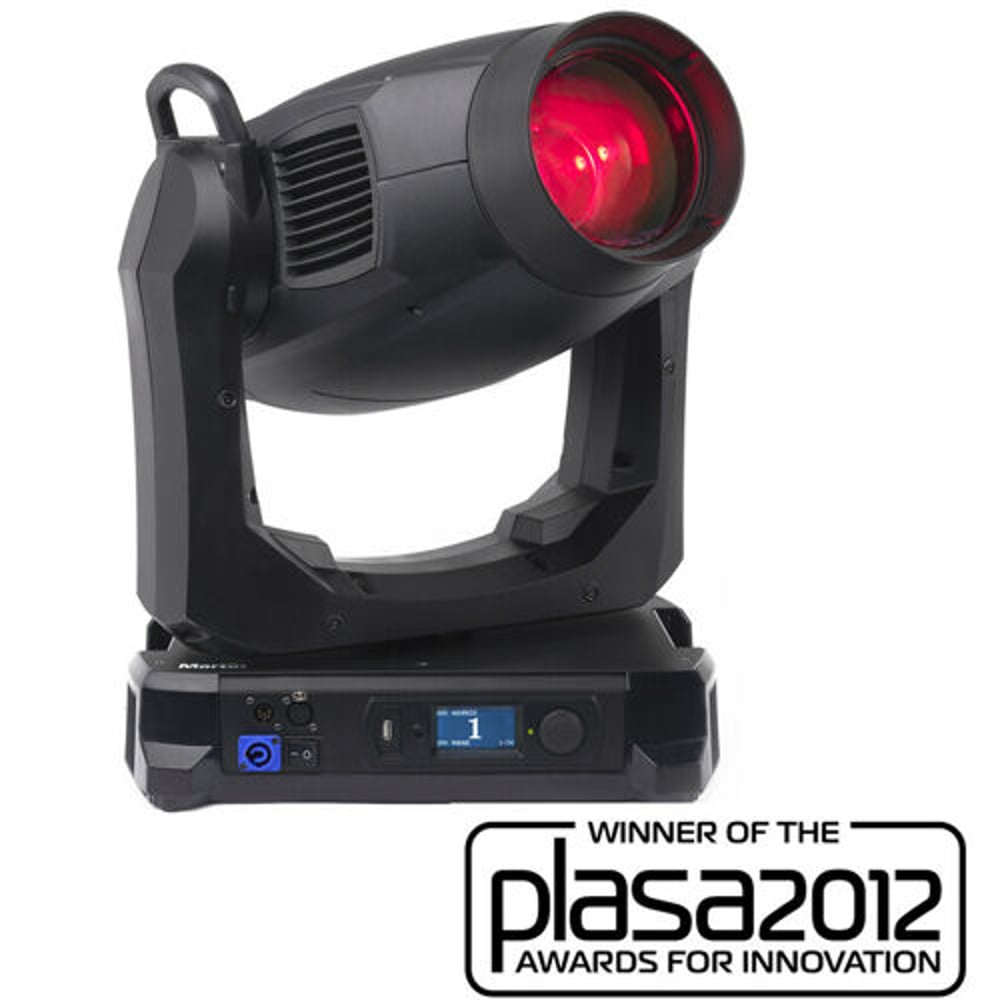

Martin Lighting 90233000HU Mac Viper Profile In Cardboard

Martin Lighting 90233000HU Mac Viper Profile In Cardboard

SoundPro Item: 57095 | Part Number: 90233000HU

$14,184.00
$15,760.00 $14,184.00
Your Price Sold out
MSRP: $15,760.00 | MAP: $14,184.00

Usually ships in 5-7 business days

  • Product Color: Black
  • Product Material: Composite
  • Height: 29.4"
  • Width: 18.6"
  • Weight (Approximate): 82.01 lb
  • Environmentally Friendly: Yes
  • Limited Warranty: 24 Month
  • Environmental Certification: WEEE
  • Environmental Certification: REACH
  • Limited Warranty: 24 Month
Log in or register for YOUR best price

HIGH OUTPUT DISCHARGE-BASED PROFILE LUMINARE WITH CMY COLOR MIXING
The MAC Viper Profile is a new breed of high-output profile luminaire with an exceptional feature set, superior light quality and a highly efficiet optical system. It outperforms all market-leading profiles in the 1200-watt range and is even an alternative to 1500-watt fixtures. The Viper Profile is not only brighter, it is also a faster and more compact solution. With its 1000-watt HID source, the Viper consumes less power, making it over 50% more efficient than its 1200-watt rivals.

  • 26000 Lumens - Excellent light quality with a very flat and uniform field and 6000K color temperature
  • 1:4 zoom - Fast zoom with auto-linked focus
  • Large aperture front lens - The 140 mm front lens exceeds the size of any other fixture in this segment for just the right fat beam look
View full details

Specifications

'General Information
Manufacturer
Harman International Industries, Inc
Manufacturer Part Number
90233000HU
Brand Name
Martin
Product Line
MAC Viper Profile
Product Name
MAC Viper Profile Special Effect Light
Product Type
Special Effect Light
Technical Information
Maximum Bulb Power
1000 W
Color Temperature
10340.3°F (5726.8°C)
Physical Characteristics
Product Color
Black
Product Material
Composite
Length
22.3"
Miscellaneous
Package Contents
MAC Viper Profile Special Effect Light Lamp (Installed) 2 x Omega Clamp Attachment Brackets with 1/4-turn Fasteners Safety and Installation Manual
Additional Information
in Cardboard Box DYNAMIC EFFECTS: Color mixing: CMY, independently variable 0 - 100% Color wheel: 8 interchangeable dichroic filters + open, indexing, continuous rotation, random color Aerial wheel: 5 interchangeable aerial effects + open, indexing, continuous rotation and shake Breakup wheel: 5 interchangeable texture/breakup gobos + open, indexing, continuous rotation and shake FX wheel: Interchangeable static gobo and gobo animation effects Iris: 0 - 100%, pulse effects Prism: Interchangeable 4-facet rotating prism Frost: Frost filter Mechanical dimmer/shutter: 0 - 100% continuous dimming, variable & random strobe & pulse effects, instant open & blackout Dimming options: Choice of four dimming curves Zoom-focus linking system: 3-zone Zoom: Motorized Pan: 540° Tilt: 268° Position correction system: Absolute position monitoring Focus: Range varies with zoom angle, from 2 m / 6 m to infinity (approx.) CONTROL AND PROGRAMMING: DMX channels: 26/34 16-bit control: Aerial, breakup and texture effect rotation and indexing, focus, zoom, pan and tilt Setting and addressing: Control panel with backlit graphic display and jog wheel or via DMX Receiver: Opto-isolated RS-485 DMX compliance: USITT DMX512-A RDM compliance: ANSI/ESTA E1.20 Firmware update: USB memory device or USB/DMX hardware interface over DMX link OPTICS: Zoom range: 10-44° (1:4) Output: 26,000 lumens LAMP: CRI (Color rendering index): >85 Average lifetime: 750 hours Socket: PGJX36 Ballast: Electronic Approved lamps: Osram Lok-it! 1000/PS Brilliant, Osram Lok-it! 1000W/PS VS1, Philips SERVICE UTILITIES: Fixture identification: User-settable fixture ID number CONSTRUCTION: Reflector: Glass, cold light Protection rating: IP20 GOBOS: Size: E27 (Size E, max. image diameter 27 mm) Approved material: Borosilicate 3.3 or better with dichroic or heavy matted aluminum coating (metal gobos not approved) Outside diameter: 37.5 mm +0/- 0.2 mm (1.5 in. +0/- 0.01 in.) Maximum image diameter: 27 mm (1.1 in.) Maximum thickness: 1.1 mm +/- 0.1 mm (0.1 in. +/- 0.01 in.) INSTALLATION: Mounting points: Eight quarter-turn locking points Minimum distance to combustible materials: 0.3 m (1.0 ft.) Minimum distance to illuminated surfaces: 3.4 m (11.2 ft.) CONNECTIONS: AC power input: Neutrik PowerCon DMX and RDM data in/out: 5-pin locking XLR USB memory devices: USB host socket
Environmentally Friendly
Yes
Environmental Certification
RoHS
WEEE
REACH
Warranty
Limited Warranty
24 Month
