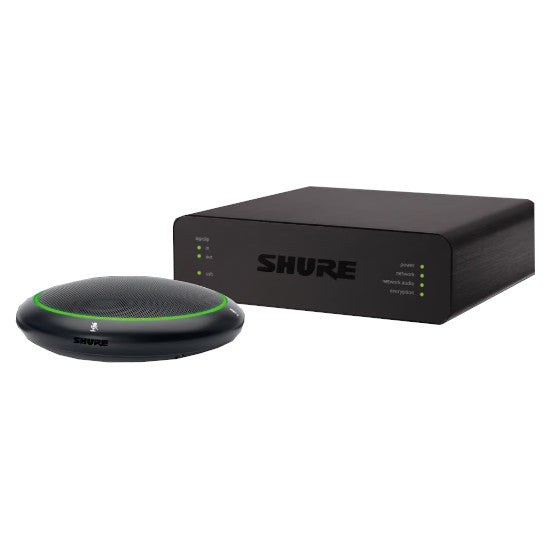

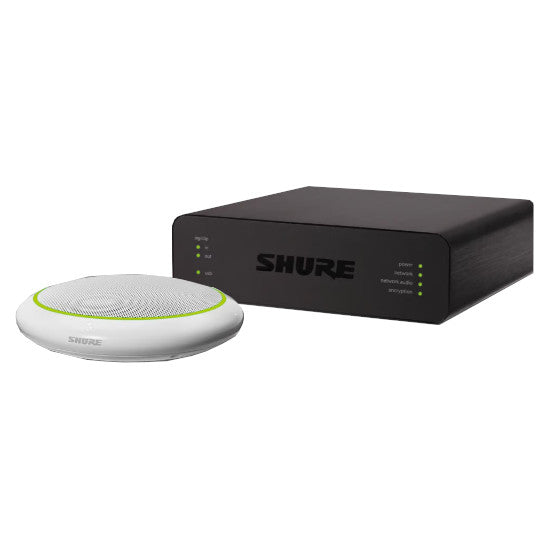

Shure MXA310 + ANIUSB-MATRIX AV Conferencing Bundle | Color: Black
Shure MXA310 + ANIUSB-MATRIX AV Conferencing Bundle | Color: Black
SoundPro Item: 48395 | Part Number: MXA310B-USB-P
Usually ships in 5-7 business days
- Shure MXA certifications are required for purchase. Reach out to SoundPro’s 100% Shure MXA Certified Account Managers for more information.
- Steerable Coverage™ of 4 separate polar patterns
- Toroid polar pattern that rejects overhead HVAC and fan
- Dante (4 in / 2 out)
- Analog audio (1 block in / 1 block out) to room AV conferencing system
- USB (1 in /out) connection to PC-based AV conferencing application
- Shure Network Audio Encryption
The Microflex® Advance™ MXA310 Table Array Microphone combined with the ANIUSB-Matrix Audio Network Interface delivers premium conferencing audio with flexible signal routing and versatile connectivity options.
This perfectly paired microphone and interface together significantly improves the quality of conference calls by leveraging the processing built into Shure microphones, like Automatic Mixing and EQ, while using the acoustic echo cancellation and noise reduction provided by hardware or software codecs.
The ANIUSB-MATRIX connects easily to a computer running soft codecs like Skype for Business or BlueJeans, or to other all-in-one collaboration devices equipped with a USB or analog audio interface.

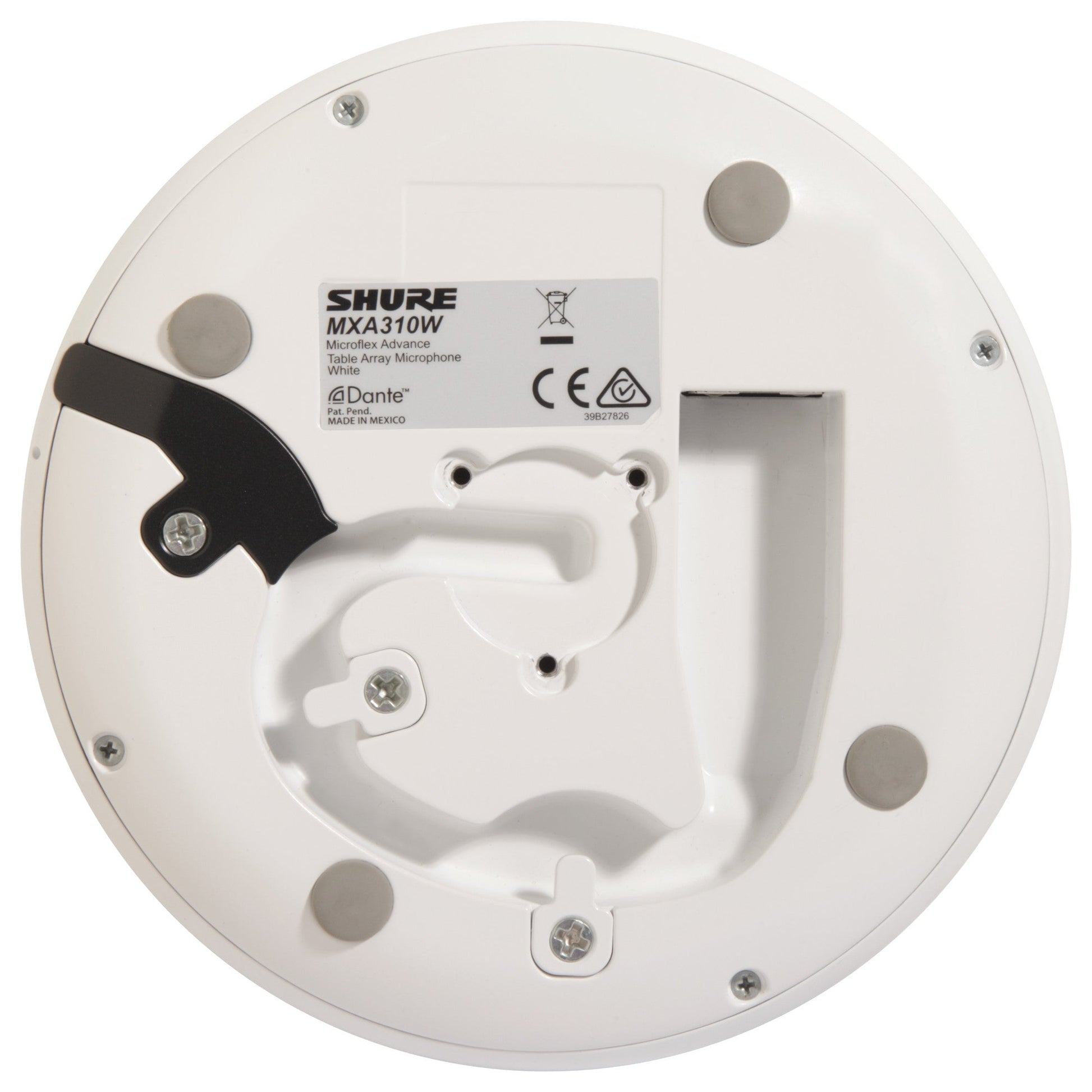

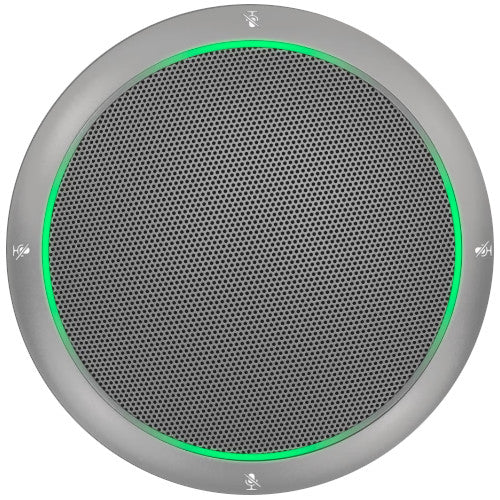

- MXA310
- Polar Pattern
- All channels independently adjustable
- Cardioid, Hypercardioid, Supercardioid, Toroid, Omnidirectional, Bidirectional
- Connector TypeRJ45
- Power RequirementsPower over Ethernet (PoE), Class 0 Power Consumption4W, maximum
- Weight362 g (0.8 lbs)
- Dimensions (HxWxD) 3.6x13.4x13.4 cm (1.4x5.3x5.3”)
- Control applicationHTML5 Browser-based
- Operating Temperature Range−6.7°C (20°F) to 40°C (104°F)
- Storage Temperature Range−29°C (-20°F) to 74°C (165°F)
- Audio Frequency Response100 to 20,000 Hz
- AES67 or Dante Digital Output
- Channel Count: 5 total channels ( 4 independent transmit channels, 1 Automatic mixing transmit channel)
- Sampling Rate: 48 kHz
- Bit Depth: 24
- Sensitivity (at 1 kHz, -15 dB Gain Setting) -21 dBFS/Pa
- Maximum SPL (1 kHz at 1% THD, -15 dB Gain Setting) 115.2 dB SPL
- Signal-To-Noise Ratio (Ref. 94 dB SPL at 1 kHz, -15 dB Gain Setting)
- Cardioid: 75 dB
- Toroid: 67 dB
- Latency (Not including Dante latency): <1 ms
- Self Noise (-15 dB Gain Setting)
- Cardioid: 19.2 dB SPL-A
- Toroid 26.8 dB SPL-A
- Dynamic Range (-15 dB Gain Setting)
- Cardioid: 96 dB
- Toroid: 90 dB SPL
- Built-in Digital Signal Processing
- Per Channel: Equalizer (4-band Parametric), Mute, Gain (140 dB range)
- System: Automatic mixing, Low-Cut Filter (-12 dB/octave @ 150 Hz)
- Networking Cable Requirements: Cat 5e or higher (shielded cable recommended)
- Polar Pattern

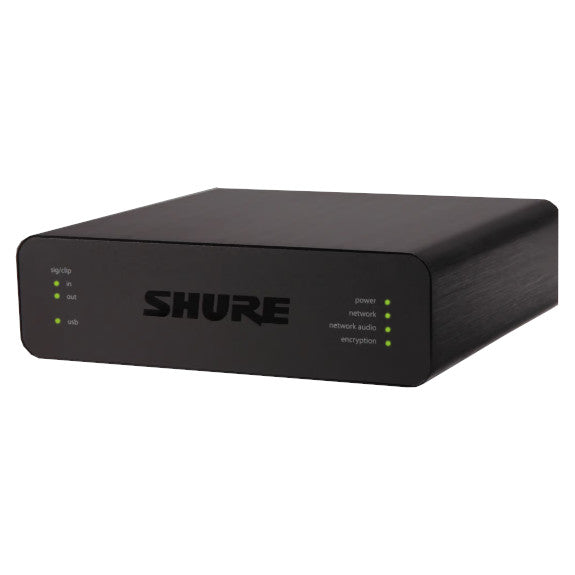

- ANIUSB MATRIX

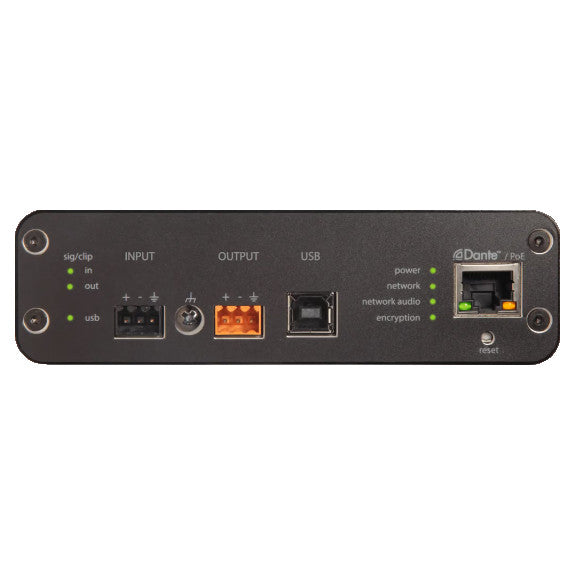

- Analog Connections
- Input (1) 3-pin block connector (Active Balanced)
- Output (1) 3-pin block connector (Impedance Balanced)
- USB Connections
- (1) USB 2.0, Type B
- Single port carries 1 input and 1 output channel (Summed mono)
- Network Connections (Dante Digital Audio)
- (1) RJ45
- 4 input channels, 2 output channels
- Polarity: Non-inverting, any input to any output
- Power Requirements: Power over Ethernet (PoE), Class 0. (PoE Plus compatible).
- Power Consumption: 6.5W, maximum
- Weight: 668 g (1.5 lbs)
- Dimensions (HxWxD): 4x14x12.8cm (1.6x5.5x5”)
- Control Software: Shure Designer
- Operating Temperature Range: −6.7°C (20°F) to 40°C (104°F)
- Storage Temperature Range: −29°C (-20°F) to 74°C (165°F)
- Thermal Power Dissipation
- Maximum 6.8W ( 23.0BTU/hr)
- typical 6.0W ( 20.8BTU/hr)
- Audio
- Frequency Response (+1, -1.5 dB): 20 to 20,000 Hz
- Dante Digital Audio
- Sampling Rate: 48 kHz
- Bit Depth: 24
- USB Audio
- Sampling Rate: 48 kHz
- Bit Depth: 16, 24
- Latency (Does not include Dante latency)
- Analog to Analog: 0.98 ms
- Analog to Dante: 0.39 ms
- Dante to Analog: 0.72 ms
- Dante to Dante: 0.14 ms
- Dynamic Range (20 Hz to 20 kHz, A-weighted, typical)
- Analog-to-Dante: 113 dB
- Dante-to-Analog: 117 dB
- Equivalent Input Noise (20 Hz to 20 kHz, A-weighted, input terminated with 150Ω)
- Line -86: dBV
- Aux -98: dBV
- Total Harmonic Distortion (@ 1 kHz, 0 dBV Input, 0 dB analog gain): <0.05%
- Common Mode Rejection Ratio (150Ω balanced source @ 1 kHz): >70 dB
- Impedance: 10.6 kΩ
- Input Clipping Level
- Line: +27 dBV
- Aux: +15 dBV
- Output Clipping Level
- Line: +20 dBV
- Aux: +0 dBV
- Mic: -26 Dbv
- Built-in Digital Signal Processing
- Per Channel: Equalizer (4-band Parametric, Analog and USB output channels only), Mute, Limiter, Gain ( 140 dB range)
- System: Matrix mixer
- Networking Cable Requirements: Cat 5e or higher (shielded cable recommended)
- Analog Connections
