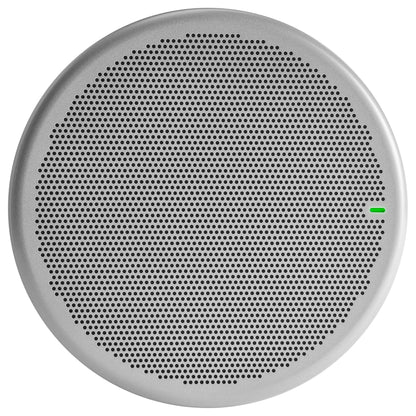

Shure MXA901 Round Conferencing Ceiling Array Microphone | Color: Aluminum
Shure MXA901 Round Conferencing Ceiling Array Microphone | Color: Aluminum
SoundPro Item: 142360 | Part Number: MXA901AL-R
Pricing available upon request
Pricing available upon request
Usually ships in 5-7 business days
- Shure MXA certifications are required for purchase. Reach out to SoundPro’s 100% Shure MXA Certified Account Managers for more information.
- Single Zone Automatic Coverage™ technology captures simultaneous talkers in different parts of the coverage area while avoiding sounds in other areas.
- Covers a 20 by 20 foot (6 by 6 meters) seating area out of the box with no setup.
- Onboard IntelliMix® DSP applies automatic mixing, echo cancellation, noise reduction, and automatic gain control for a pristine audio mix.
- Sleek 13.5" round form factor complements any interior design.
- Use one MXA901 in small or medium-sized rooms, or use multiple MXA901’s to cover larger spaces.
- White, black, and aluminum finishes to match room décor.
- Certified for use with Microsoft Teams and Zoom; compatible with other popular collaboration tools.
- Compatible with Microflex Ecosystem networked mute buttons, DSP, and loudspeakers.
- Shure Audio Encryption keeps meeting content secure between the MXA901 and other Microflex Ecosystem devices in the room.
The MXA901 provides superb AV conferencing audio in a discreet and stylish 13.5-inch round form factor that complements any interior design. Single Zone Automatic Coverage™ technology captures talkers clearly with no setup. Use one MXA901 in smaller rooms or multiple units in larger spaces. Onboard IntelliMix® DSP delivers echo- and noise-free audio, while next-generation array architecture ensures natural speech and enhanced directional pickup.
The Microflex Advance MXA901 Conferencing Ceiling Array Microphone is the most discreet approach to AV conferencing audio for meeting rooms. Its compact and stylish round form factor complements any interior design without drawing attention. Choose from white, black, or aluminum finishes, or paint the MXA901 to match your color scheme. Cover Everyone Single Zone Automatic Coverage™ technology requires no setup, and captures every talker in a 20 by 20 foot area out of the box. Use one MXA901 in small or medium-size rooms, or use multiple MXA901s to cover larger spaces. A variety of on-ceiling, in-ceiling, and suspended mounting options are available to suit different ceiling types.
Onboard IntelliMix® DSP includes echo-cancellation and noise reduction to eliminate annoying distractions. Automatic gain control adjusts talker levels so that everyone is heard clearly no matter where they sit. The built-in automatic mixer delivers a pristine audio mix to your favorite videoconferencing software.
- Coverage Area Size20x20 feet (6.1x6.1m)
- Coverage TypeSingle-zone automatic
- Power RequirementsPower over Ethernet (PoE), Class 0
- Power Consumption10.1 W maximum
- Control SoftwareShure Designer or web application
- Cable RequirementsCat 5e or higher (shielded cable recommended)
- Connector TypeRJ45
- Plenum RatingUL2043 (Suitable for Air Handling Spaces)
- Dust ProtectionIEC 60529 IP5X Dust Protected
- Operating Temperature Range−6.7°C (20°F) to 40°C (104°F)
- Storage Temperature Range−29°C (-20°F) to 74°C (165°F)
- Audio
- Microphone Elements: 85 MEMS
- Frequency Response: 100 Hz to 20 kHz
- AES67 or Dante Digital Output
- Channel Count: 2 total channels: 1 automix output, 1 AEC reference in channel Sampling Rate: 48 kHz
- Bit Depth: 24
- Sensitivity (at 1 kHz): −4.4 dBFS/Pa
- Maximum SPL (Relative to 0 dBFS overload): 98.4 dB SPL
- Signal-To-Noise Ratio (Ref. 94 dB SPL at 1 kHz): 67.1 dB A-weighted
- Latency (Does not include Dante latency): 33.5 ms
- Self Noise: 26.9 dB SPL-A
- Dynamic Range: 71.5 dB
- Built-in Digital Signal Processing: Automatic mixing, acoustic echo cancellation (AEC), noise reduction, automatic gain control, compressor, delay, equalizer (4-band parametric), mute, gain (140 dB range)
- Acoustic Echo Cancellation Tail Length: Up to 250 ms
- Dimensions
- A (Height): 1.64" (41.66mm)
- B (Circumference): 13.5" (342.9mm)
- C (Smaller top circumference): 11.61" (294.89mm)
- Weight: 5 lbs. (2.3kg)
