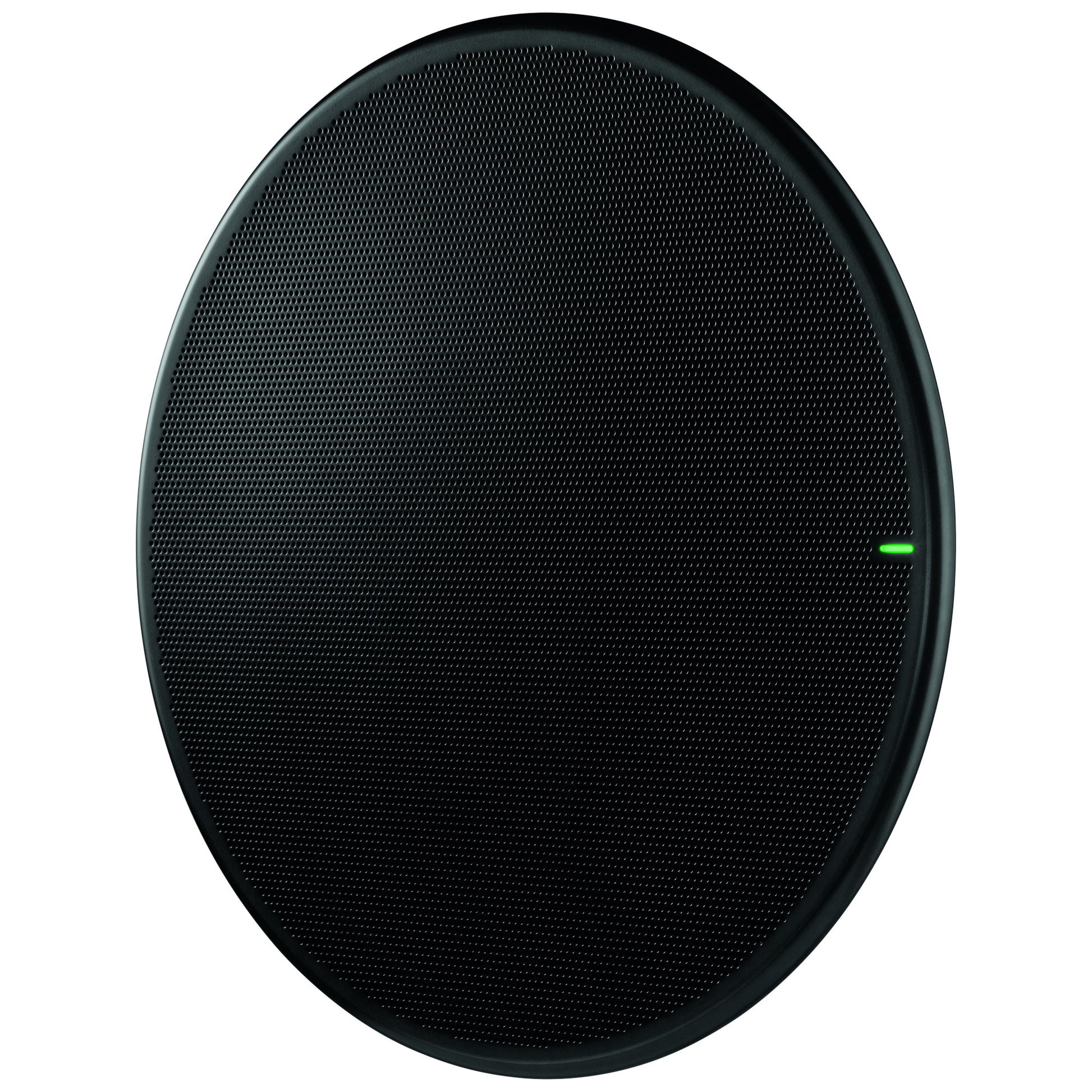

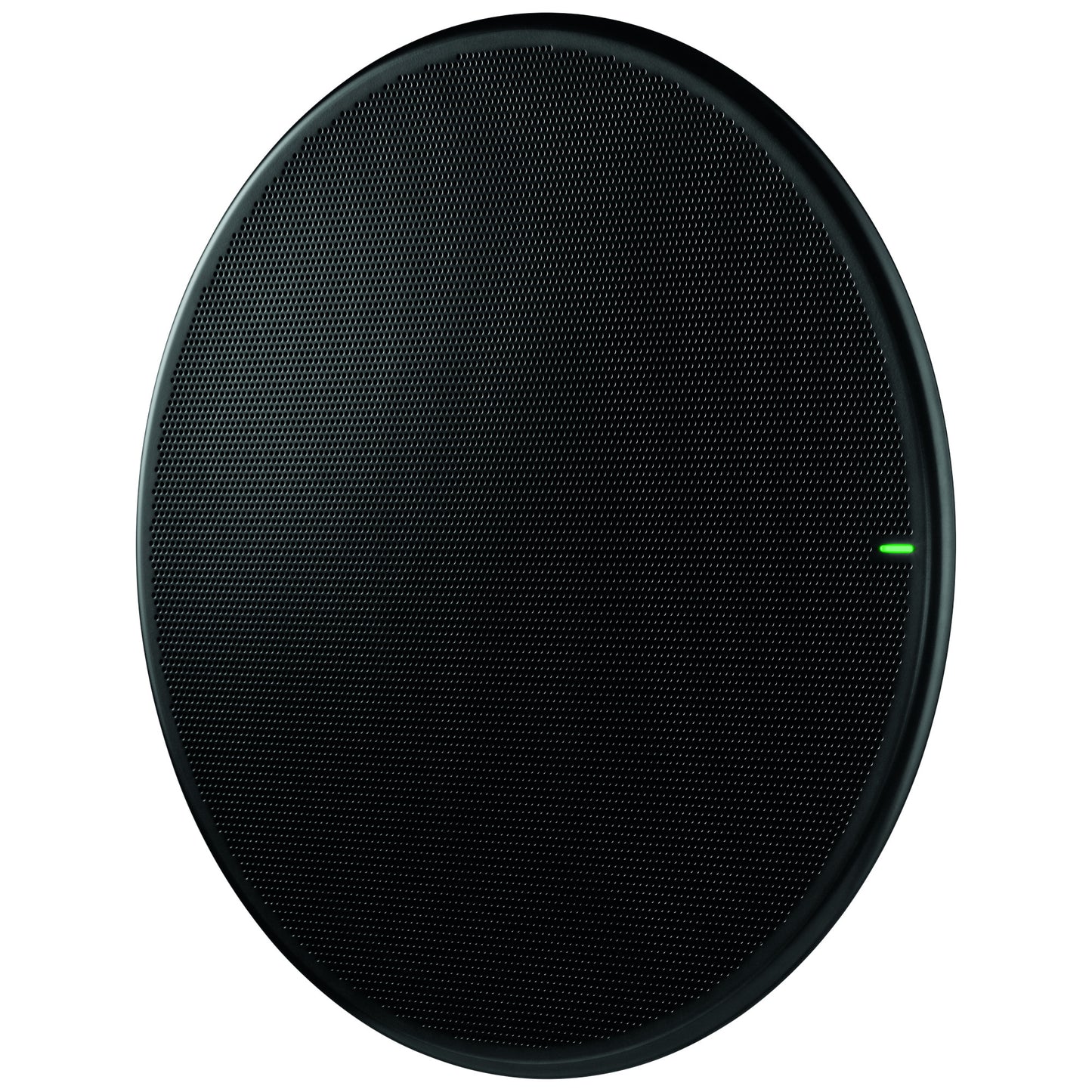

Shure MXA920 25-Inch Round Ceiling Array Microphone | Color: Black

Shure MXA920 25-Inch Round Ceiling Array Microphone | Color: Black

SoundPro Item: 142166 | Part Number: MXA920B-R

Pricing available upon request

Pricing available upon request

Your Price Sold out

In stock and ready to ship

  • Shure MXA certifications are required for purchase. Reach out to SoundPro’s 100% Shure MXA Certified Account Managers for more information.
  • White, black, and aluminum finishes to complement your interior design; all paintable for custom needs
  • Certified for use with Microsoft Teams and compatible with popular collaboration tools
  • Audio, PoE power, and control signals connect via Dante/AES67 digital audio networking over a single cable
  • Shure Audio Encryption keeps meeting content secure between the MXA920 and other Microflex ecosystem devices in the room
  • LED status bar with configurable colors and brightness
  • Command strings enable seamless integration with third-party camera and room control systems

The MXA920 is the next evolution of the market-leading Microflex® Advance™ ceiling array microphone from Shure. It is the premier microphone solution for AV conferencing, camera tracking, voice lift, and sound reinforcement applications in corporate, education, and government environments. It automatically picks up every talker clearly, no matter where they are in the room. With Next Generation Array Architecture for better sound capture than ever, the MXA920 is even easier to use and faster to deploy than the MXA910 that it replaces.

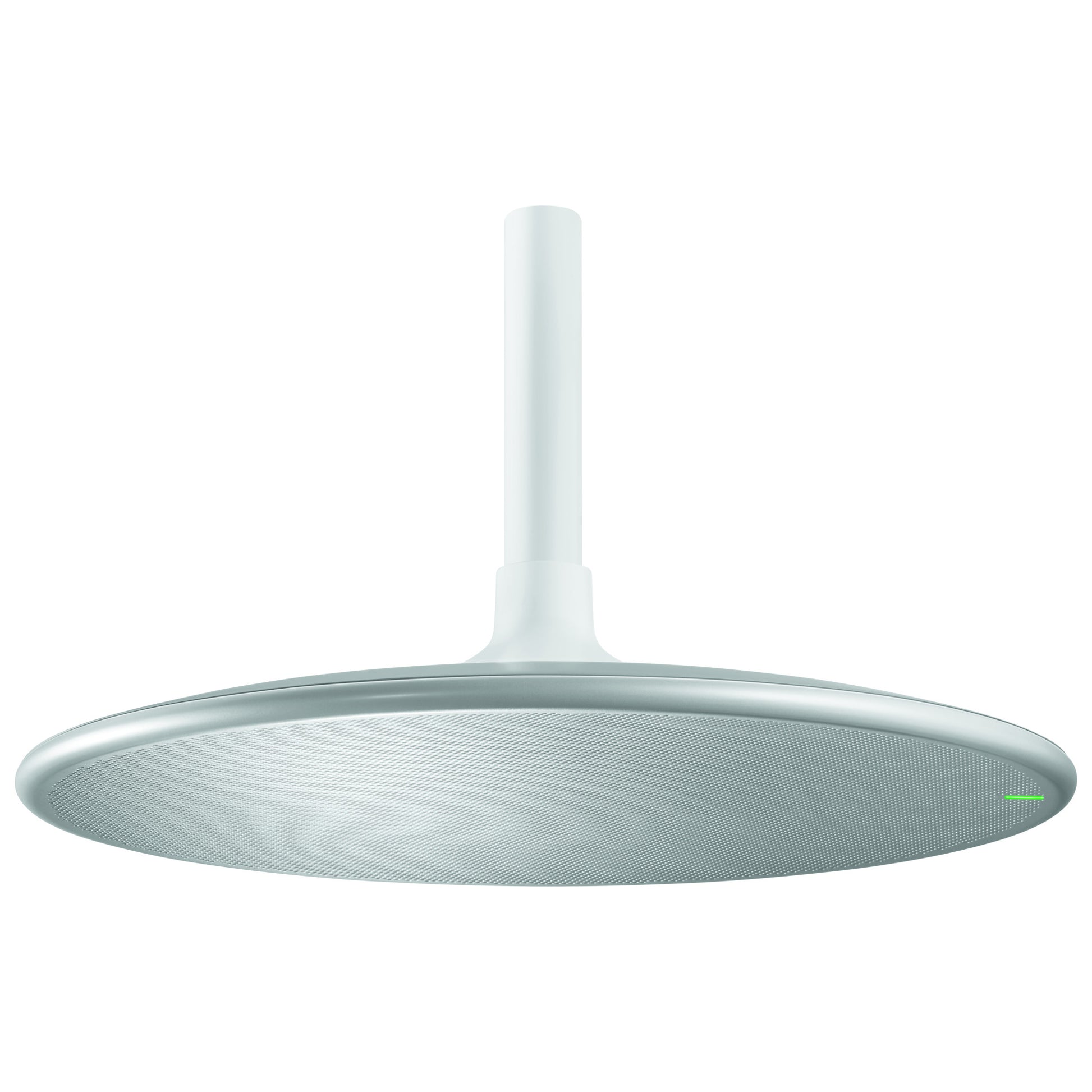

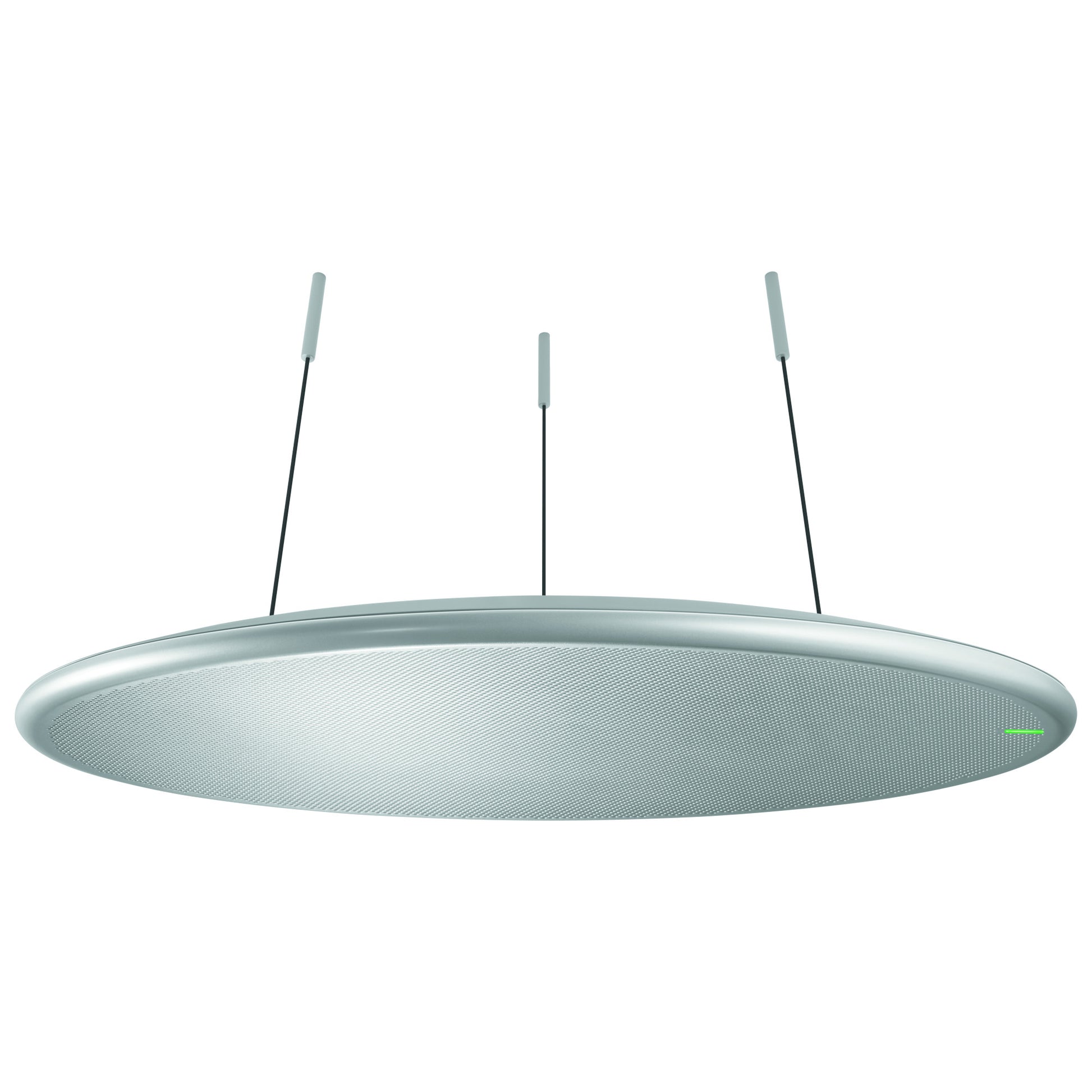

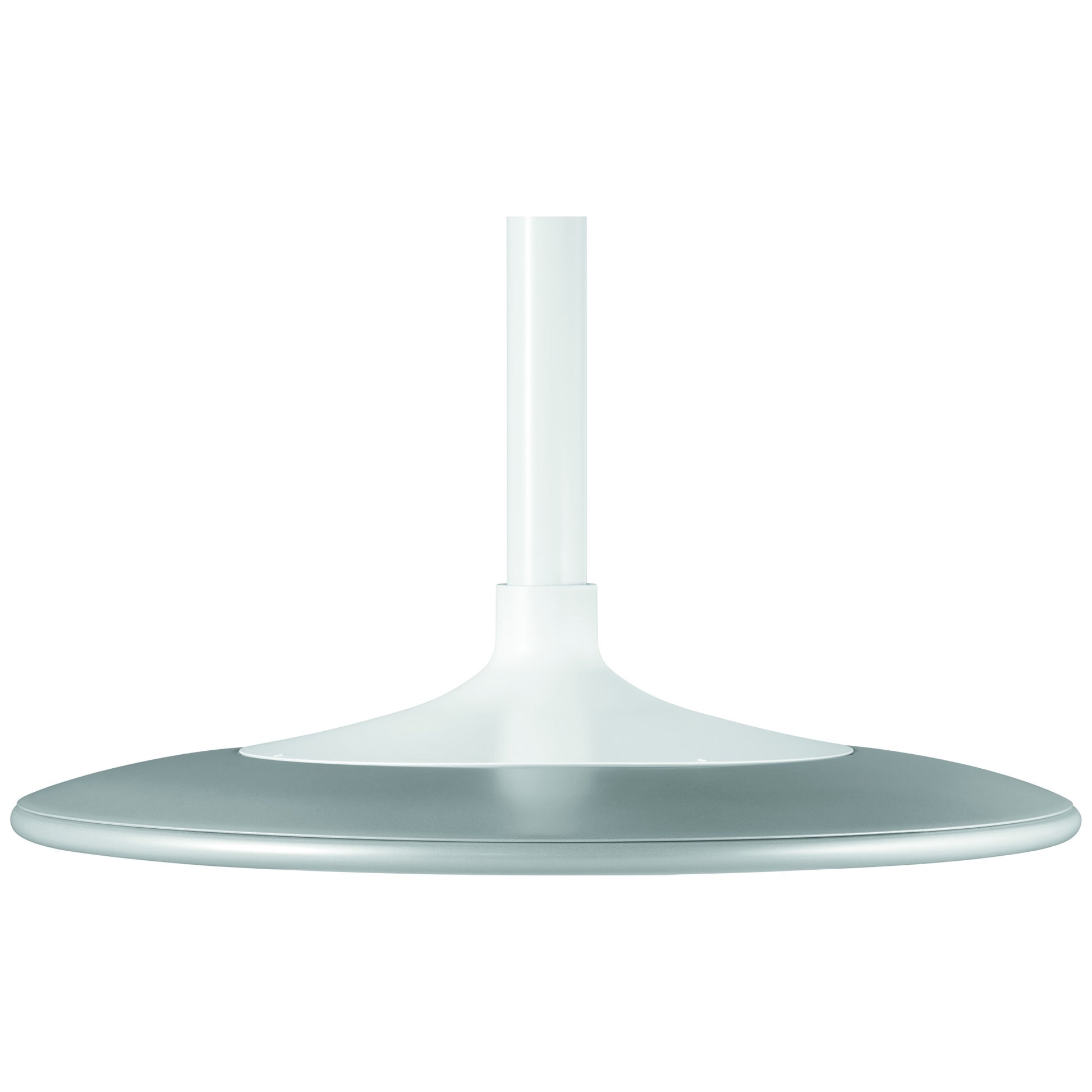

Features Automatic Coverage™ technology to capture audio from up to eight distinct coverage areas anywhere in the room. Covers up to a 30 by 30 foot (9 by 9 meter) area out of the box with minimal setup time and effort. Available in square or round form factors and choice of colors to suit different interior designs and ceiling types. Onboard IntelliMix® DSP provides all the signal processing needed for echo- and noise-free audio. Create room configurations offline and deploy to Microflex® Ecosystem devices with Designer System Configuration Software. Versatile options for mounting to a hard or grid ceiling, VESA pole mount, or wire rope suspension.

The MXA920 is part of the Microflex® Ecosystem portfolio that delivers unprecedented clarity and intelligibility for AV conferencing, camera tracking, sound reinforcement, or voice lift in the most challenging rooms. The Microflex Ecosystem is the premier solution for corporate, education, and government environments.

View full details
  • Coverage TypeAutomatic or steerable
  • Power RequirementsPower over Ethernet (PoE), Class 0
  • Power Consumption10.1 W maximum
  • Control SoftwareDesigner or web application
  • Plenum Rating
      MXA920-R: Not rated
    • Dust ProtectionIEC 60529 IP5X Dust Protected
    • Operating Temperature Range−6.7°C (20°F) to 40°C (104°F)
    • Storage Temperature Range−29°C (−20°F) to 74°C (165°F)
    • Networking Cable RequirementsCat5e or higher (shielded cable recommended)
    • Connector TypeRJ45
    • AES67 or Dante Digital Output
      • Channel Count
        • Automatic coverage on: 2 total channels (1 output, 1 AEC reference in channel) Shure Incorporated
        • Automatic coverage off: 10 total channels (8 independent transmit channels, 1 automix output, 1 AEC reference in channel)
      • Sampling Rate: 48 kHz
      • Bit Depth: 24
    • Sensitivity (at 1 kHz)−1.74 dBFS/Pa
    • Maximum SPL (Relative to 0 dBFS overload)95.74 dBSPL
    • Signal-to-Noise Ratio (Ref. 94 dBSPL at 1 kHz)75.76 dB Aweighted
    • Latency (Does not include Dante latency)
    • Direct outputs (Automatic coverage off): 15.9 ms
    • Automix output (Includes IntelliMix processing): 26.6 ms
  • Self Noise18.24 dB SPLA
  • Dynamic Range77.5 dB
  • Digital Signal ProcessingAutomatic mixing, acoustic echo cancellation (AEC), noise reduction, automatic gain control, compressor, delay, equalizer (4band parametric), mute, gain (140 dB range)
  • Acoustic Echo Cancellation Tail LengthUp to 250 ms
  • Frequency Response125 Hz to 20,000 Hz
  • MXA920 Frequency ResponseFrequency response measured directly on-axis from a distance of 6 feet (1.83 m).
  • WeightMXA920-R: 12.7 lbs (5.8 kg)
