- Coverage TypeAutomatic or steerable
- Power RequirementsPower over Ethernet (PoE), Class 0
- Power Consumption10.1 W maximum
- Control SoftwareDesigner or web application
- Plenum Rating
- MXA920-R: Not rated
- Dust ProtectionIEC 60529 IP5X Dust Protected
- Operating Temperature Range−6.7°C (20°F) to 40°C (104°F)
- Storage Temperature Range−29°C (−20°F) to 74°C (165°F)
- Networking Cable RequirementsCat5e or higher (shielded cable recommended)
- Connector TypeRJ45
- AES67 or Dante Digital Output
- Channel Count
- Automatic coverage on: 2 total channels (1 output, 1 AEC reference in channel) Shure Incorporated
- Automatic coverage off: 10 total channels (8 independent transmit channels, 1 automix output, 1 AEC reference in channel)
- Sampling Rate: 48 kHz
- Bit Depth: 24
- Channel Count
- Sensitivity (at 1 kHz)−1.74 dBFS/Pa
- Maximum SPL (Relative to 0 dBFS overload)95.74 dBSPL
- Signal-to-Noise Ratio (Ref. 94 dBSPL at 1 kHz)75.76 dB Aweighted
- Latency (Does not include Dante latency)
- Direct outputs (Automatic coverage off): 15.9 ms
- Automix output (Includes IntelliMix processing): 26.6 ms
- Self Noise18.24 dB SPLA
- Dynamic Range77.5 dB
- Digital Signal ProcessingAutomatic mixing, acoustic echo cancellation (AEC), noise reduction, automatic gain control, compressor, delay, equalizer (4band parametric), mute, gain (140 dB range)
- Acoustic Echo Cancellation Tail LengthUp to 250 ms
- Frequency Response125 Hz to 20,000 Hz
- MXA920 Frequency ResponseFrequency response measured directly on-axis from a distance of 6 feet (1.83 m).

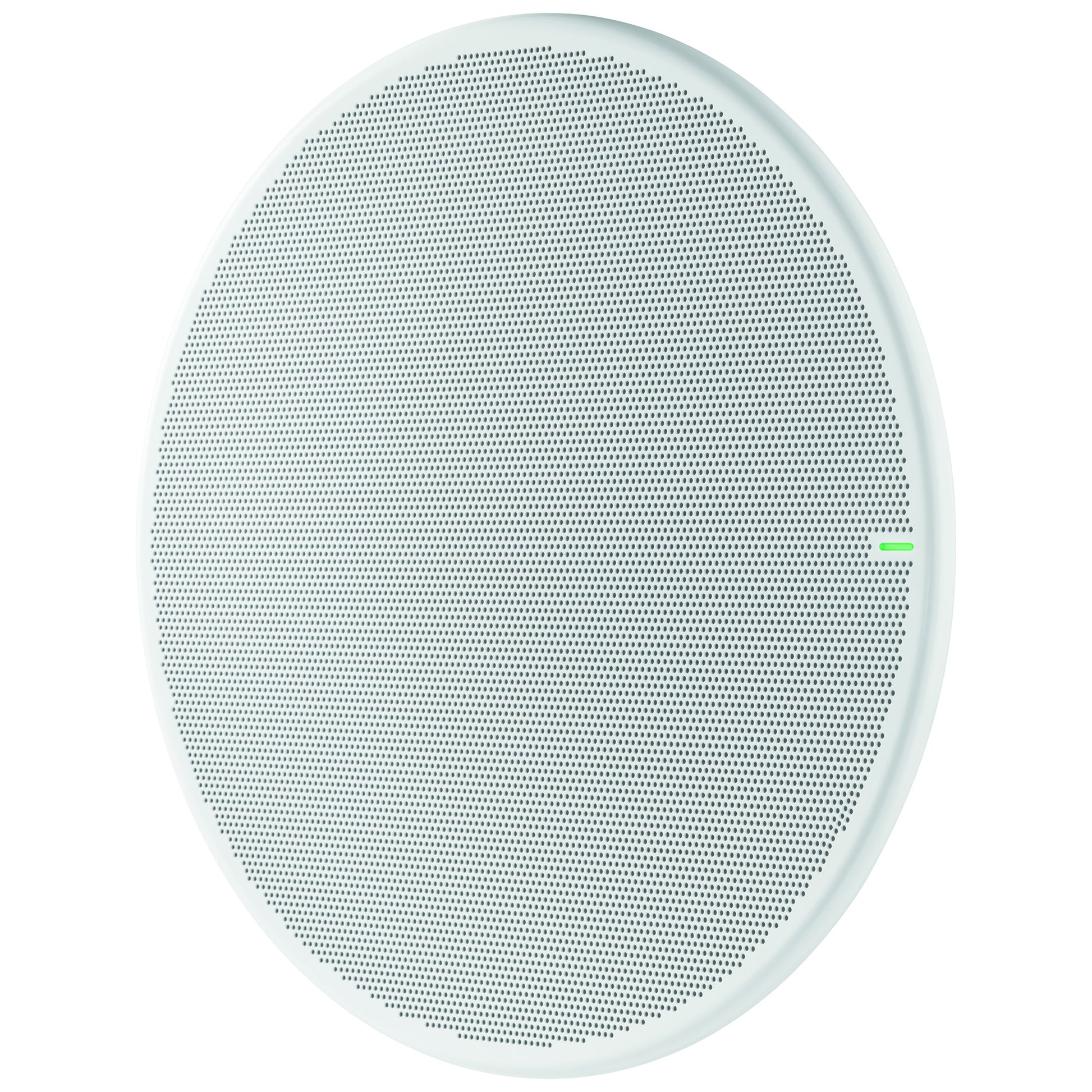

- WeightMXA920-R: 12.7 lbs (5.8 kg)
