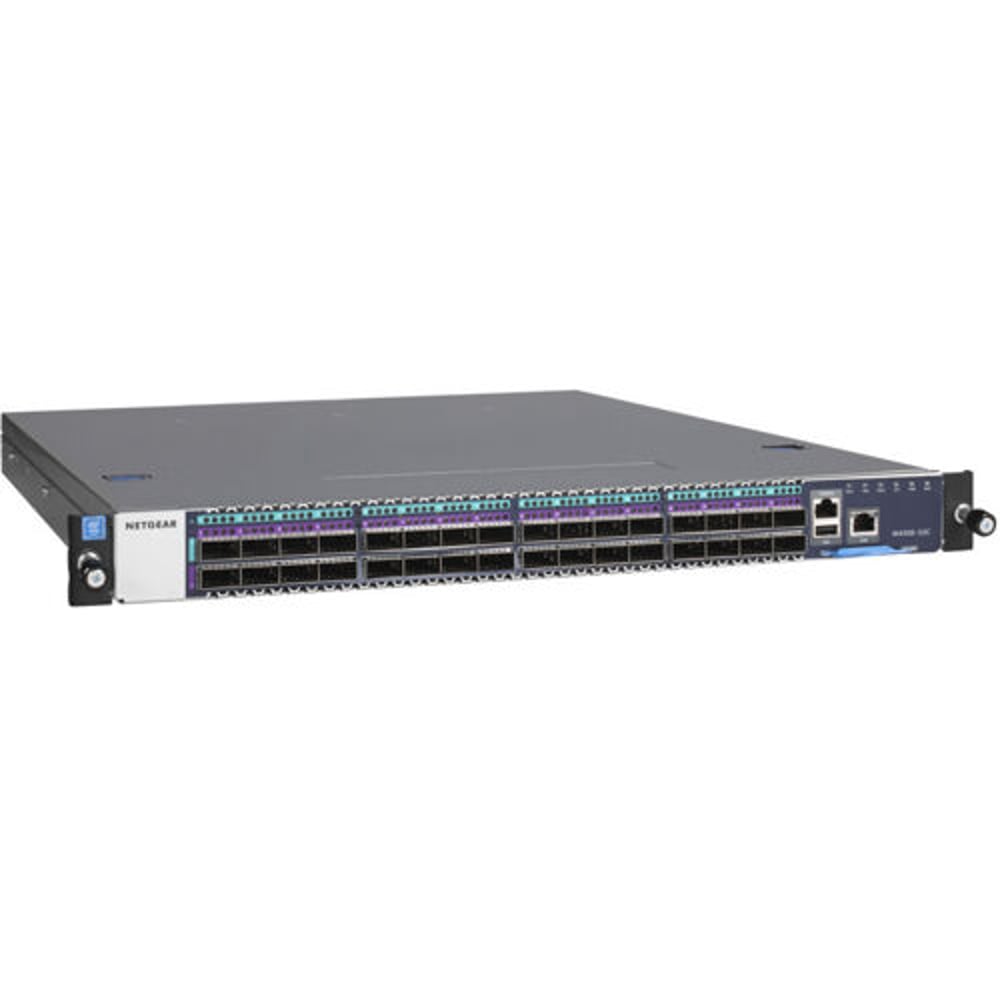

NETGEAR CSM4532-100NAS M4500-32C Managed Switch Perp 32Port 40/50/100G
NETGEAR CSM4532-100NAS M4500-32C Managed Switch Perp 32Port 40/50/100G
SoundPro Item: 100098 | Part Number: CSM4532-100NAS
Regular price
$14,482.74
Regular price
$14,482.74
Sale price
$14,482.74
Unit price
per
MSRP: $14,482.74
| MAP: $14,482.74
Usually ships in 5-7 business days
- Total Number of Network Ports: 32
- Modular: Yes
- Port/Expansion Slot Details: 32 x 100 Gigabit Ethernet Expansion Slot
- Media Type Supported: Twisted Pair
- Ethernet Technology: 100 Gigabit Ethernet
- Network Technology: 100GBase-X
- Number of Total Expansion Slots: 32
- Expansion Slot Type: QSFP28
- Layer Supported: 3
- Manageable: Yes
- Power Source: Power Supply
- Redundant Power Supply Supported: Yes
- Compatible Rack Unit: 1U
- Form Factor: Rack-mountable
- Form Factor: Rail-mountable
- Height: 1.7"
- Width: 17.3"
- Depth: 20"
- Weight (Approximate): 21.54 lb
The trend of moving matrix switching into the Ethernet network is accelerating and AV over IP already delivers capabilities far beyond that of a traditional matrix switch. Historically it has been simple to design AV over IP systems of up to 96 I/Os using a single switch and Layer-2 Multicast IGMP. However, larger installations required data center-class 100G Ethernet switches with more complex Layer-3 multicast routing techniques, adding complexity and cost to the Ethernet infrastructure. As networked AV systems become ever larger, a new class of switches has come to market. They combine the configurability of a matrix switch with the power and scalability of Ethernet to support hundreds of AV over IP endpoints, at a price point dramatically cheaper than comparable matrix switches. Introducing two new 100GE enabled switches for ProAV, the M4500 series. Removing the need for Layer-3 PIM routing, these new switches offer IGMP Plus and greatly simplify system architectures with the same well-known Layer-2 techniques across the entire AV over IP network. Installers opting to use M4500 switches in their installation will find that it is already preconfigured out of the box.
- The M4500-32C offers 32-port QSFP28 preconfigured for 100G and can support 40G QSFP+ and 50G QSFP28 optics or DAC cables
- The M4500-48XF8C offers 48-port SFP28 preconfigured for 10G with 8-port 100G QSFP28 uplinks, and the SFP28 ports can support 10G and 25G
- Installers opting to use M4500 switches in their installation will find that it is already preconfigured out of the box
- True AV and multicast Zero Touch network configuration: Connect AV-over-IP encoders and decoders, and power on the switch. It just works!
- IGMP Plus multicast allows for scalable Pro AV installations at Layer 2 without the PIM (Protocol Independent Multicast) complexity
- IGMP Plus is default on VLAN 1 out of the box and can be configured on another VLAN for automatic IGMP across M4500 and M4300 switches on that VLAN
- Meet the requirements of high performance, high availability, fast scale out, low latency performance, and continuous serviceability in sensible applications
- The M4500 switches offer 1+1 power and 4+2 fan redundancy, an x86 Intel Atom® Processor C3558 with 8GB DDR3/ECC RAM and 128GB SSD storage
- The M4500 switches come with an industry standard command line interface (CLI), SSH, SNMP, sFlow, and MLAG
- An out of band 1 Gigabit Ethernet port facilitates management, with simplified macro-commands for AV-over-IP configuration
- NETGEAR M4500 series is covered under NETGEAR ProSAFE Limited Lifetime Hardware Warranty
- 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement
Specifications
'General Information
Manufacturer
Netgear, Inc
Manufacturer Part Number
CSM4532-100NAS
Brand Name
Netgear
Product Series
M4500
Product Model
CSM4532
Product Name
CSM4532 Ethernet Switch
Product Type
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports
32
Modular
Yes
Port/Expansion Slot Details
32 x 100 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported
Twisted Pair
Ethernet Technology
100 Gigabit Ethernet
Network Technology
100GBase-X
I/O Expansions
Number of Total Expansion Slots
32
Expansion Slot Type
QSFP28
Network & Communication
Layer Supported
3
Management & Protocols
Manageable
Yes
Power Description
Power Source
Power Supply
Redundant Power Supply Supported
Yes
Physical Characteristics
Compatible Rack Unit
1U
Form Factor
Rack-mountable
Rail-mountable
Miscellaneous
Package Contents
CSM4532 Ethernet Switch 2 x Power Supplies and Six Fan Trays Already Installed Power Cord(s) Console Cable with One DB9 Female Connector and One RJ-45 Serial Connector 2 x Mounting Ears and Screws For Rack Mounting (Front) 1 x Set of Rail Kits For Rack Mounting (Back)
Environmentally Friendly
Yes
Environmental Certification
RoHS
WEEE
REACH
ErP
Warranty
Limited Warranty
Lifetime
