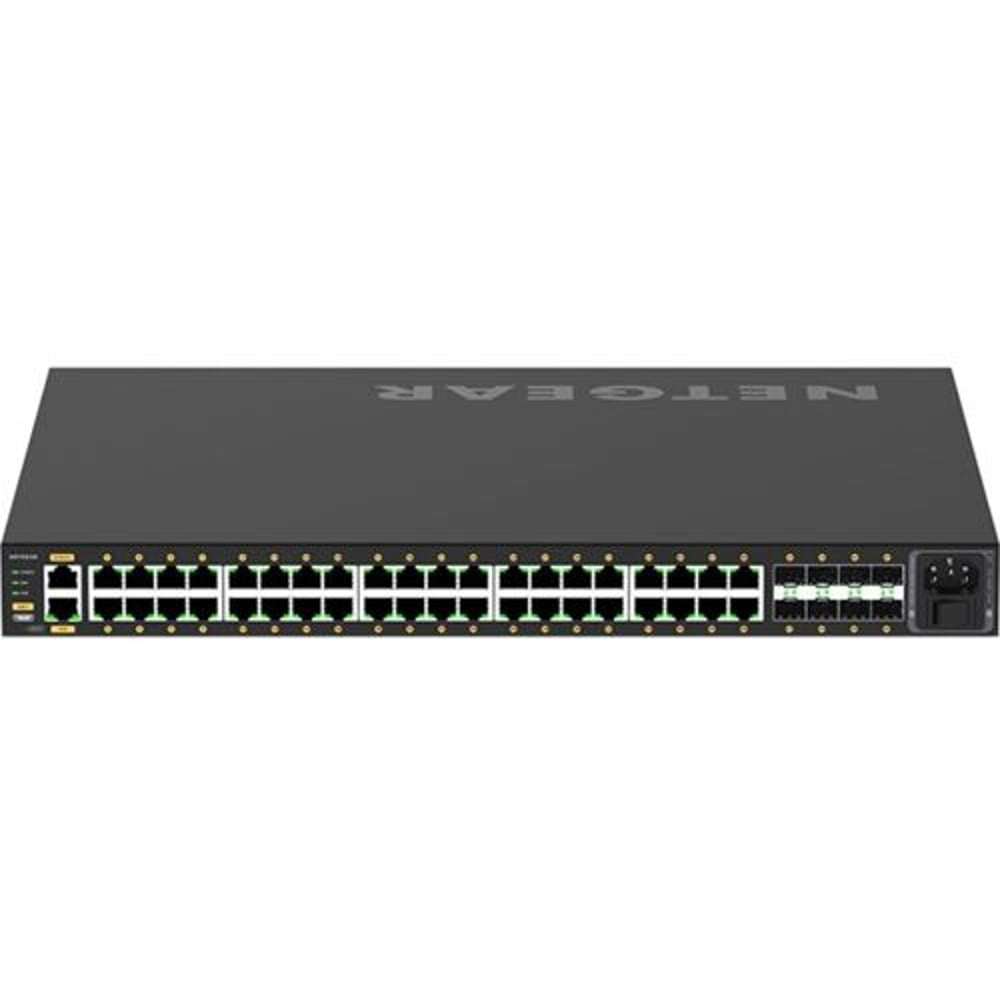

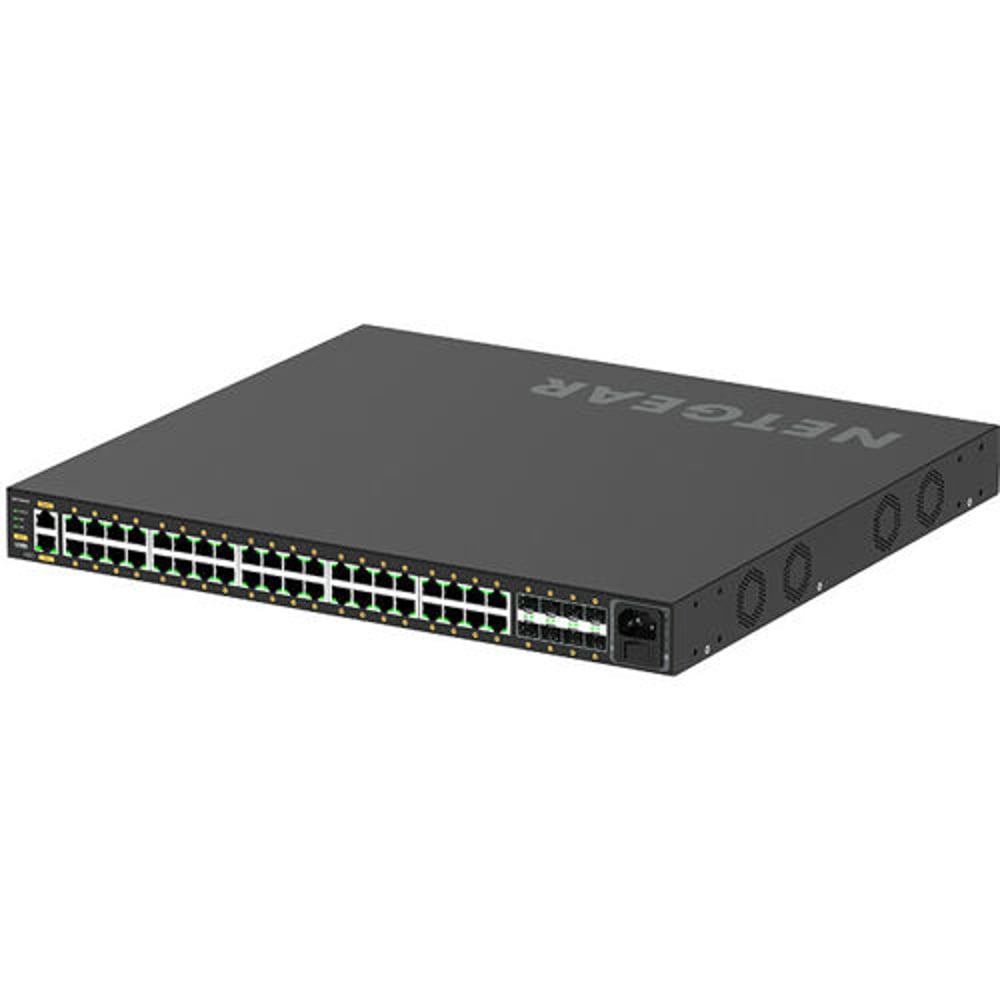

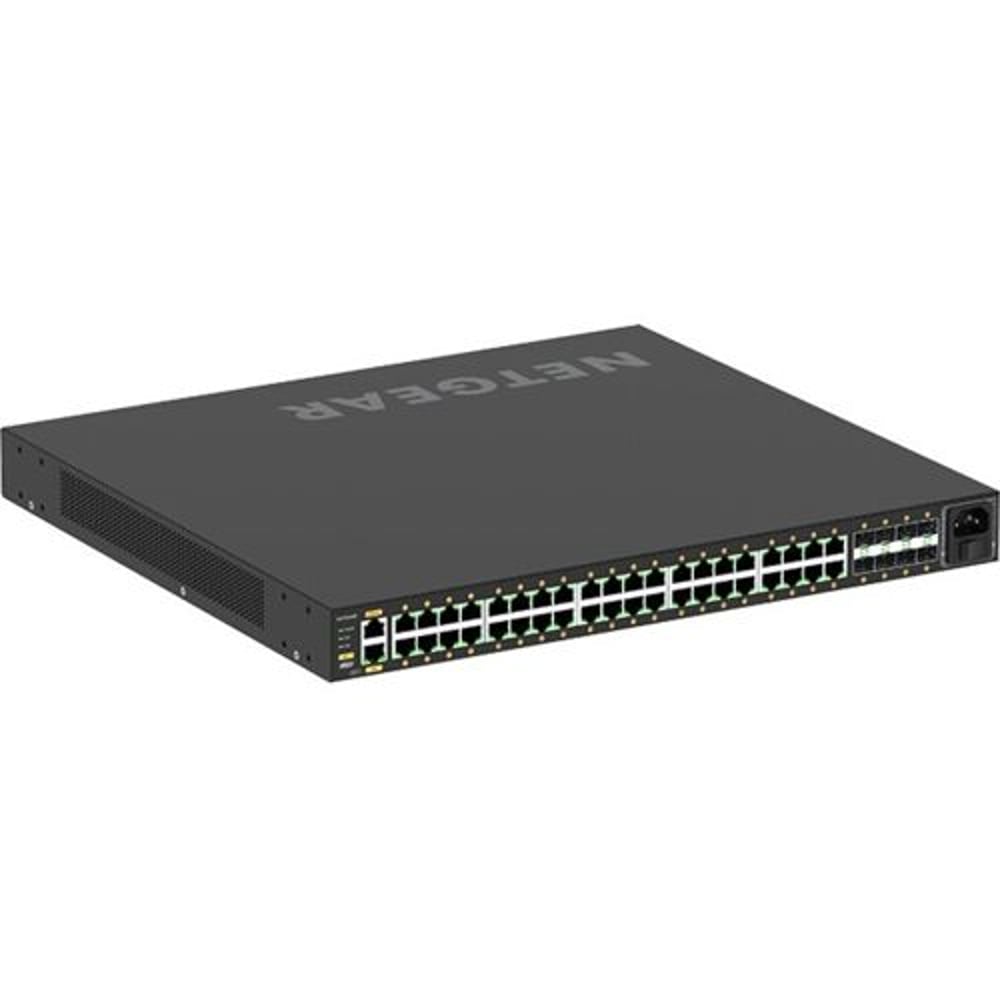

NETGEAR GSM4248PX-100NAS M4250-40G8Xf-Poe+ Mngd Switch Perp
NETGEAR GSM4248PX-100NAS M4250-40G8Xf-Poe+ Mngd Switch Perp
SoundPro Item: 116764 | Part Number: GSM4248PX-100NAS
Regular price
$3,449.99
Regular price
$4,520.67
Sale price
$3,449.99
Unit price
per
MSRP: $4,520.67
| MAP: $3,449.99
Usually ships in 5-7 business days
- Total Number of Network Ports: 40
- Uplink Port: Yes
- Modular: Yes
- Port/Expansion Slot Details: 40 x Gigabit Ethernet PoE+
- Port/Expansion Slot Details: 8 x 10 Gigabit Ethernet Expansion Slot
- Media Type Supported: Optical Fiber
- Media Type Supported: Twisted Pair
- Ethernet Technology: Gigabit Ethernet
- Ethernet Technology: 10 Gigabit Ethernet
- Network Technology: 10/100/1000Base-T
- Network Technology: 10GBase-X
- Number of Total Expansion Slots: 8
- Expansion Slot Type: SFP+
- Number of SFP+ Slots: 8
- Layer Supported: 3
- Manageable: Yes
- PoE (RJ-45) Port: Yes
- PoE Budget: 960 W
- Power Source: Power Supply
Introducing the NETGEAR AV Line of M4250 Switches, developed and engineered for audio/video professionals with dedicated service and support. M4250 has been built from the ground up for the growing AV over IP market, combining years of networking expertise in AV with M4300 and M4500 series with best practices from leading experts in the professional AV market. AV codecs generally use 1Gbps or 10Gbps per stream and the AV Line of M4250 targets the widespread 1Gbps codecs.PoE+, Ultra90 PoE++ and rear-facing ports ensure a clean integration in AV racks. M4250 switches come pre-configured for standard audio and video signals. When requirements are more specific, an AV user interface offers customization with port-based profiles. For audio Dante, Q-SYS and AES67 profiles are available, as well as an AVB profile requiring an AVB license sold separately. For video the M4250 offers profiles for NVX, AMX, Q-SYS, NDI, Dante etc. as well as audio/ video/control mixed profiles. When multiple switches are used, NETGEAR IGMP PlusTM brings automation for you to just connect them together, or with M4300 and M4500 switches.
- Dedicated AV web-based GUI interface for more specific AV installations
- Color-based AV profiles can be applied to the different ports
- Dante, Q-SYS, AES67 and AVB audio profiles
- AVB requires a license (sold separately
- NVX, SVSI, Q-SYS, NDI and Dante video profiles
- Audio / video / control mixed profiles
- Automatic switch interconnect with NETGEAR Auto-Trunk, Auto-LAG and IGMP Plus
- Common Layer 2 and Layer 3 switching engine across all M4250 models
- Built-in IT web GUI, console, telnet and SSH consistent with other NETGEAR M4300 and M4500 series
- Feature set includes static, RIP and PIM routing, DHCP Server and PTPv2
- AVB is one of the many features designed into the M4250 product line
- AVB is an industry standard for transporting content over a network
- AVB is used most often when very low latency is required such as in live performances when lip sync is critical
- All of the AV Line M4250 switches can be optionally licensed for AVB support

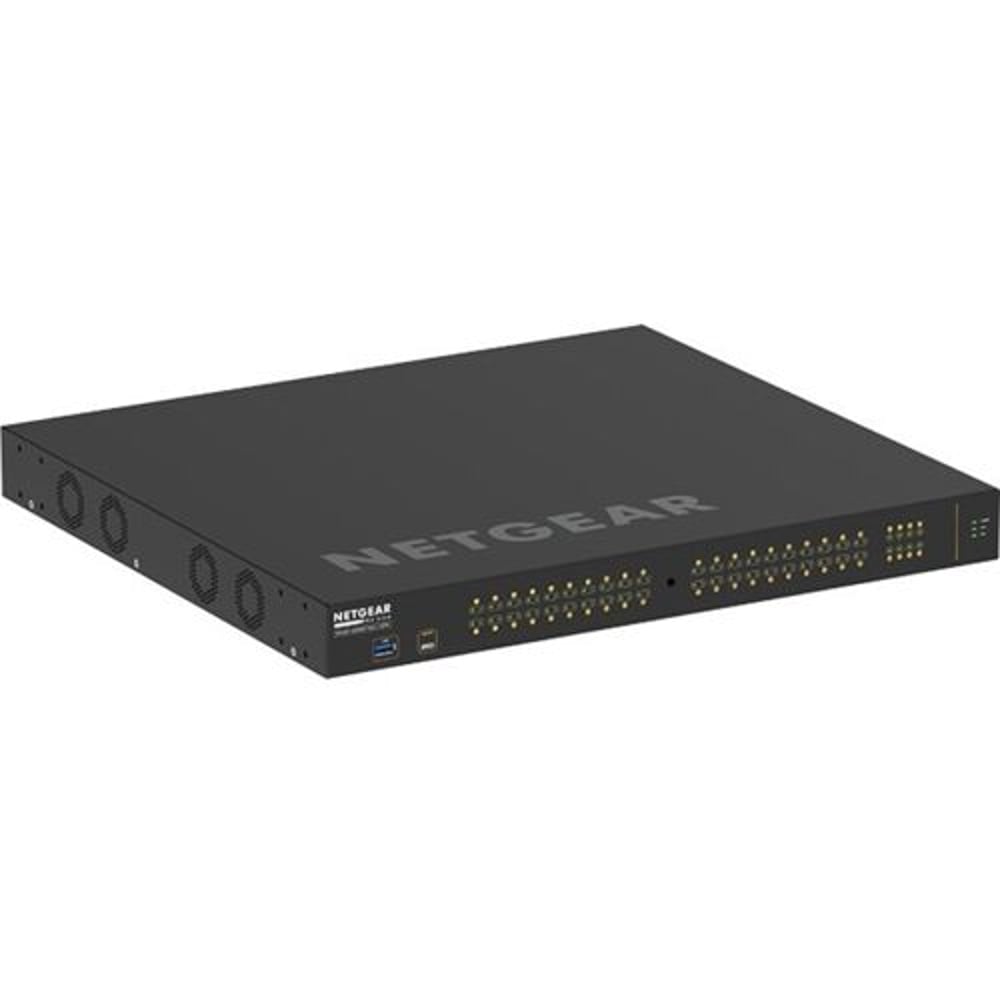

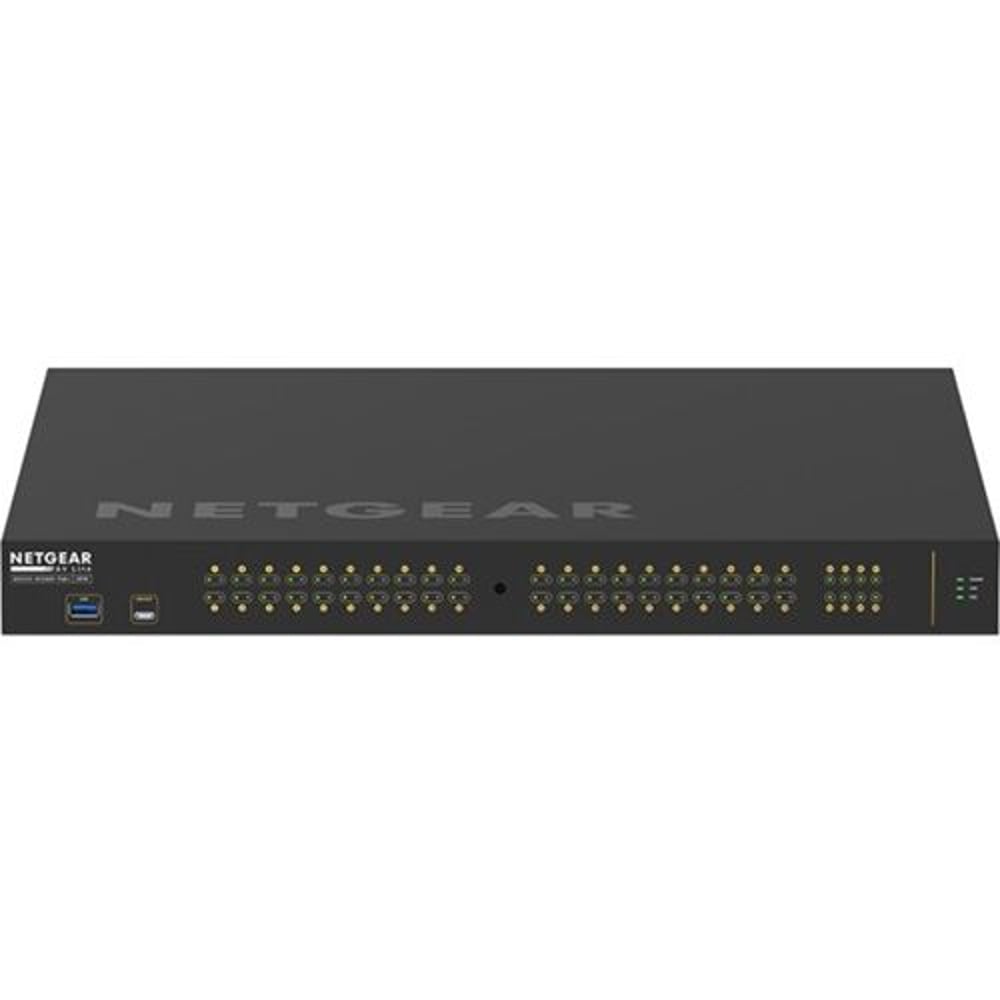

- Standard or recessed mounting with all ports in the back, or all ports in the front
- Fully featured L2/L3/L4 platform for midsize Enterprise campus networks, IoT and IPTV
- Industry standard command line interface (CLI), main NETGEAR IT web interface (GUI), SNMP, sFlow and RSPAN
- Single-pane-of-glass NMS300 management platform with centralized firmware updates and massconfiguration support
- NETGEAR M4250 series is covered under NETGEAR ProSAFE Limited Lifetime Hardware Warranty
- 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement
Specifications
'General Information
Manufacturer
Netgear, Inc
Manufacturer Part Number
GSM4248PX-100NAS
Brand Name
Netgear
Product Line
AV Line
Product Series
M4250
Product Model
M4250-40G8XF-PoE+
Product Name
M4250-40G8XF-PoE+ AV Line Managed Switch
Product Type
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports
40
Uplink Port
Yes
Modular
Yes
Port/Expansion Slot Details
40 x Gigabit Ethernet PoE+
8 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported
Optical Fiber
Twisted Pair
Ethernet Technology
Gigabit Ethernet
10 Gigabit Ethernet
Network Technology
10/100/1000Base-T
10GBase-X
I/O Expansions
Number of Total Expansion Slots
8
Expansion Slot Type
SFP+
Number of SFP+ Slots
8
Network & Communication
Layer Supported
3
Management & Protocols
Manageable
Yes
Power Description
PoE (RJ-45) Port
Yes
PoE Budget
960 W
Power Source
Power Supply
Number of Power Supplies Installed
1
Power Consumption
89.20 W
Plug/Connector Type
C14
Physical Characteristics
Compatible Rack Unit
1U
Form Factor
Rack-mountable
Table Top
Miscellaneous
Package Contents
M4250-40G8XF-PoE+ AV Line Managed Switch Power Cord(s) RJ45 Straight-through Wiring Serial Console Cable to DB9 USB Type-C to USB-A 2.0 Console Cable Rubber Caps for the SFP/SFP+ Sockets Rubber Footpads for Tabletop Installation Installation Guide 2 x Regular (Short) Brackets and Screws for Two-post Rack Mount (for Front Posts) Allowing for Mounting with Ports on the Back, or Ports On the Front of the Rack 2 x Longer Brackets for Two-post Rack Mount (for Front Posts) Recessing the Switch by 2 Inches in Order to Make Room for the Cabling
Environmentally Friendly
Yes
Environmental Certification
RoHS
WEEE
REACH
ErP
Warranty
Limited Warranty
Lifetime
