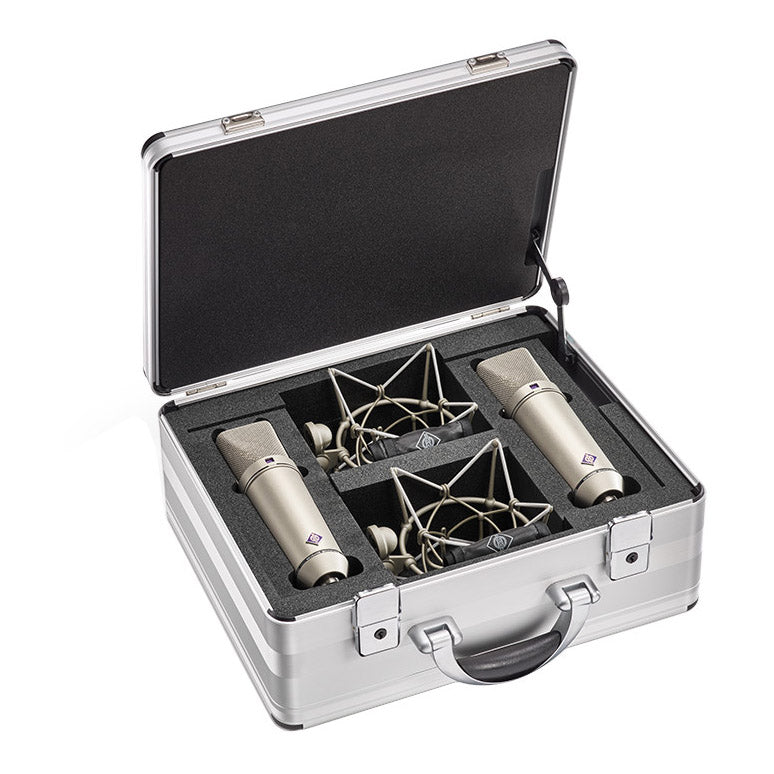

Neumann U 87 AI-STEREO Matched Set Condenser Microphone | Color: Nickel
Neumann U 87 AI-STEREO Matched Set Condenser Microphone | Color: Nickel
SoundPro Item: 19590 | Part Number: U 87 AI-STEREO
Usually ships in 5-7 business days
- Variable large diaphragm microphone
- Pressure-gradient transducer with double membrane capsule
- Omnidirectional, cardioid, and figure-8 characteristics
- Switchable low frequency roll-off
- Switchable 10 dB pre-attenuation
- Great as a main or as a support microphone
The black U 87 Ai Condenser Microphone from Neumann is a large dual-diaphragm condenser microphone. It features three directional patterns, including omnidirectional, cardioid and figure-8. These are selectable with a switch below the head grille and the window above this switch shows the symbol of the selected characteristic. A 10 dB attenuation switch is located on the rear. It enables the microphone to handle sound pressure levels up to 127 dB without distortion. The low frequency response can be reduced to compensate for proximity effect.
The U 87 Ai is used as a main microphone for orchestra recordings, as a spot microphone for single instruments, and extensively as a vocal microphone for all types of music and speech.
- Transducer TypeCondenser
- Polar Patterns (selectable)Cardioid, Figure-8, Omnidirectional
- Frequency Range20 Hz - 20 kHz
- Rated Output Impedance200 Ω
- Rated Load Impedance1 kΩ
- Sensitivity at 1kHz into 1kΩ20/28/22 mV/Pa ± 1 dB (Omni/cardioid/8)
- Equivalent Noise Level, CCIR26/23/25 dB (Omni/cardioid/8)
- Equivalent Noise Level, A-Weighted15/12/14 dB-A (Omni/cardioid/8)
- Max. SPL for THD 0.5%117 dB (cardioid)
- Max. SPL for THD 0.5% with Preattenuation127 dB
- Signal-to-Noise Ratio CCIR (re. 94 dB SPL)68/71/69 dB (Omni/cardioid/8)
- Signal-to-Noise Ratio, A-Weighted (re. 94 dB SPL)79/82/80 dB (Omni/cardioid/8)
- Max. Output Voltage-6 dBu
- Supply Voltage (P48, IEC 61938)48 V ± 4 V
- Current Consumption (P48, IEC 61938)0.8 mA
- Matching ConnectorXLR 3 F
- Weight17.64 oz
- Dimensions2.21" x 7.87"
