Neutrik NC3FXX-BAG Female 3-Pin XLR Connector
Neutrik NC3FXX-BAG Female 3-Pin XLR Connector
SoundPro Item: 115555 | Part Number: NC3FXX-BAG.POLY
In stock and ready to ship
- Unique cage design of female contact for low contact resistance and high integrity
- Female contact incorporates a solder barrier to prevent solder running into the contact mating area
- Female connector with improved solid metal latch which is larger and easier to handle
- Additional ground spring contacts for better shell ground continuity
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Colored rings and boots available for coding or identification
- Sleek and ergonomic design - valuable and handy
- Rugged zinc diecast shell, longlasting and dependable
- Internal thread on shell is well proteced against any damage
- Branded with unique hologram - guarantees genuine and authentic Neutrik product

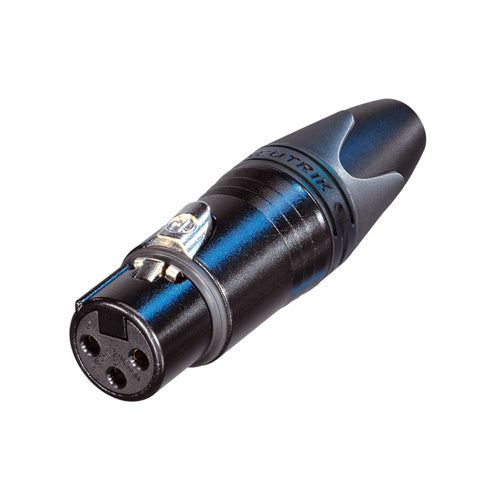

The Neutrik NC3FXX-BAG is a 3 pole female cable connector with black metal housing and silver contacts.
The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
- Electrical
- Capacitance Between Contacts: ≤ 4 pF
- Contact Resistance: ≤ 3 mΩ
- Dielectric Strength: 1,5 kVdc
- Insulation Resistance: > 10 GΩ (initial)
- Rated Current Per Contact: 16 A
- Rated Voltage: < 50 V
- Mechanical
- Cable O.D.: 3.5 - 8.0 mm
- Insertion Force: ≤ 20 N
- Withdrawal Force: ≤ 20 N
- Lifetime: > 1000 mating cycles
- Wiresize: max. 2.5 mm²
- Wiresize: max. 14 AWG
- Wiring: solder contacts
- Locking Device: latch lock
- Material
- Boot: polyurethan
- Contact Plating: 2 µm Ag
- Contacts: bronze (CuSn8)
- Insert: polyamide (PA66)
- Locking Element: zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
- Shell: zinc diecast (ZnAl4Cu1)
- Shell Plating: black chromium
- Strain Relief: polyacetal (POM)
- Environmental
- Flammability: UL 94 V-0
- Standard Compliance: IEC 61076-2-103
- Protection Class: IP 40
- Solderability: complies with IEC 68-2-20
- Temperature Range: -22°F to 176°F (-30°C to 80°C)
