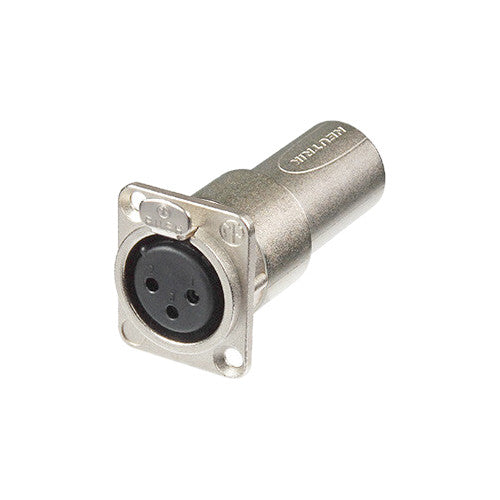

Neutrik NA3FDM Female to Male Feedthrough Adapter
Neutrik NA3FDM Female to Male Feedthrough Adapter
SoundPro Item: 55521 | Part Number: NA3FDM
Usually ships in 5-7 business days
- XLR female-male feedthrough adapter for panel mount
The NA3FDM from Neutrik is an XLR female-male feedthrough adapter for panel mount.
- Product
- Title: NA3FDM
- Connection Type: Adapter
- Electrical
- Capacitance between contacts: ≤ 4 pF
- Contact resistance: ≤ 5 mΩ
- Dielectric strength: 1,5 kVdc
- Insulation resistance: > 2 GΩ (initial)
- Rated current per contact: 16 A
- Rated voltage: < 50V
- Mechanical
- Insertion force: ≤ 20 N
- Withdrawal force: ≤ 20 N
- Lifetime: > 1000 mating cycles
- Wiresize: max. 2.5 mm²
- Wiresize: max. 14 AWG
- Wiring: Solder contacts
- Locking device: Latch lock
- Chassis shape: D
- Material
- Contact plating: 2 µm Ag over 2 µm Ni
- Insert: Polyamide (PA 6.6 30 % GR)
- Locking element: Steel Ck67
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Nickel
- Environmental
- Flammability: UL 94 HB
- Standard compliance: IEC 61076-2-103
- Protection class: IP 40
- Solderability: Complies with IEC 68-2-20
- Temperature range: -30°C to +80°C
