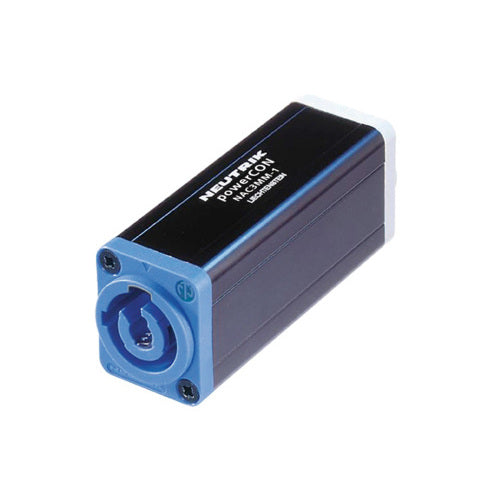

Neutrik NAC3MM-1 powerCON Cable Coupler
Neutrik NAC3MM-1 powerCON Cable Coupler
SoundPro Item: 59956 | Part Number: NAC3MM-1
In stock and ready to ship
PowerCON NAC3MPA-1 (power in) - powerCON NAC3MPB-1 (power out), coupler for linking cables. The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!
- Electrical
- Contact Resistance: ≤ 3 mΩ
- Dielectric Strength: 4 kVdc
- Insulation Resistance: > 0.1 GΩ (after damp heat test IEC 68-2-30)
- Rated Current Per Contact: 20 A rms
- Rated Voltage: 250 V ac
- Mechanical
- Lifetime: > 1000 mating cycles
- Locking Device: Quick Lock
- Material
- Contact Plating: 2 µm Ag
- Locking Element: steel Ck67
- Shell: polyamide (PA 6.6 30 % GR)
- Contacts: bronze (CuNi1Si0.2)
- Environmental
- Temperature Range: -22°F to 176°F (-30°C to 80°C)
- Flammability: UL 94 V-0
- Protection Class: IP 20 (mated)
- Safety Requirements: EN/IEC 61984
- Solderability: complies with IEC 68-2-20
