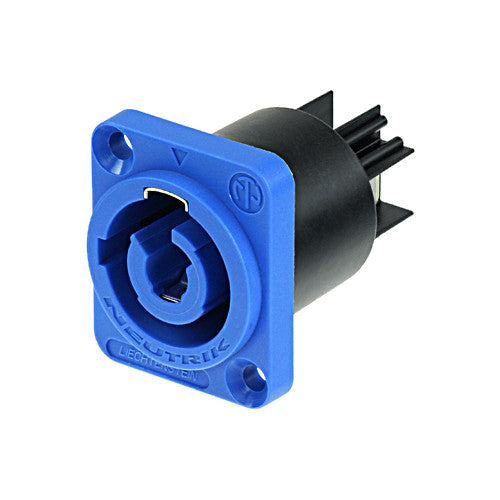

Neutrik NAC3MPA-1 Chassis Connector

Neutrik NAC3MPA-1 Chassis Connector

SoundPro Item: 46048 | Part Number: NAC3MPA-1.POLY

Log in to see pricing

Log in to see pricing

Your Price Sold out
MSRP: $5.76 | MAP: $2.97

In stock and ready to ship

  • Locking 20 A / 250 V ac appliance coupler
  • 3 contacts for line, neutral and premating safety groundPower-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
  • Fast and easy twist lock latching system
  • Extremely robust and reliable
  • Ergonomic design
  • User friendly latch design for easy handling
  • UL, cUL recognized components VDE certified
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product
Log in or register for YOUR best price

Chassis connector, power-in, 3/16'' flat tab terminals, blue.

The Neutrik NAC3MPA-1 Chassis Connector is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!

View full details

Specifications

Electrical
Contact Resistance
≤ 3 mΩ
Dielectric Strength
4 kVdc / 2.8 kVac
Insulation Resistance
> 0.1 GΩ (after damp heat test IEC 68-2-30)
Number of Electrical Contacts
2 + PE
Rating Europe
EN 61984:20 A 250 V AC
Rating USA
UL 1977:20 A 250 V AC
Construction
Contact Plating
2 µm Ag
Locking Element
Steel Ck67
Shell
Polyamide (PA 6.6 30 % GR)
Contacts
Bronze (CuNi1Si0.2)
Environmental
Flammability
UL 94 V-0
Protection Class
IP 20
Temperature Range
-30 °C to +80 °C
Identifiers
Gender
male
General
Title
NAC3MPA-1
Mechanical
Wiresize
Mechanical
Lifetime
> 1000 mating cycles
Locking Device
Quick Lock
Mounting Direction
Front mounting
Chassis Shape
D
