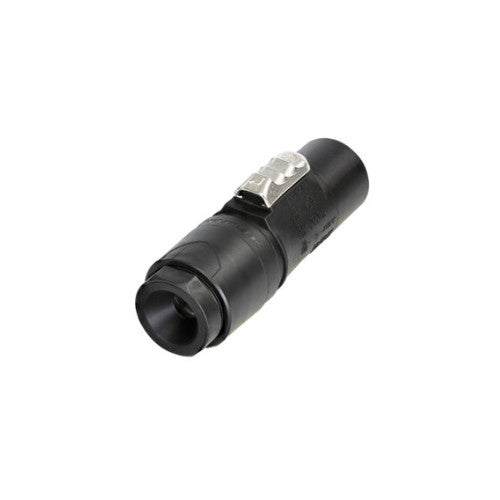

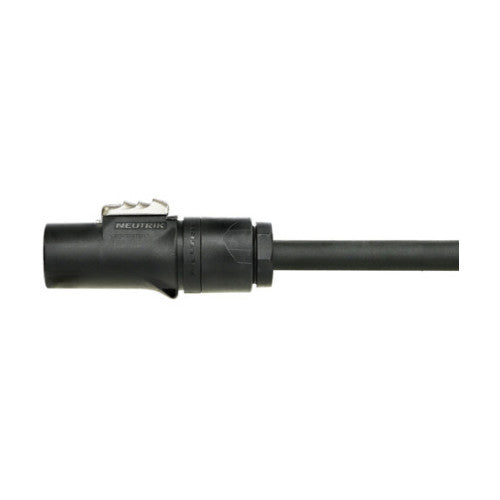

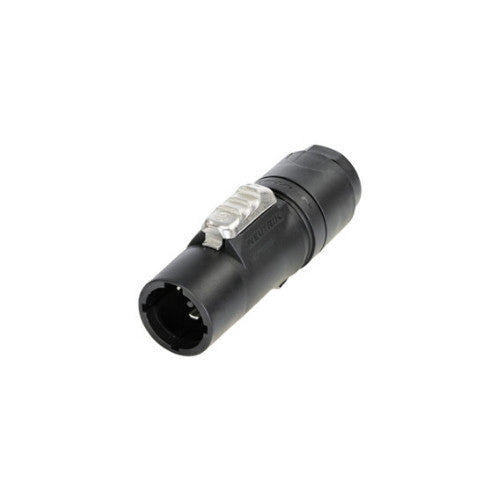

Neutrik NAC3MX-W-TOP-L powerCON TRUE1 Locking Male Connector
Neutrik NAC3MX-W-TOP-L powerCON TRUE1 Locking Male Connector
SoundPro Item: 137226 | Part Number: NAC3MX-W-TOP-L
Usually ships in 5-7 business days
- IEC EN 60320-1, UL 60320-1 and C22.2 No. 60320-1:19 certified, thus accepted as a component for cord sets acc. to IEC 60799 / UL817 and equipment acc. to IEC 62368-1
- Unique NEUTRIK locking bushing and strain relief for cable diameters 10 mm to 16 mm (0.39 – 0.63 inches)
- Heavy duty sealed power connector for harsh and demanding environment
- IP65 rating and approved for outdoor protection
- Uses high impact UV-resistant materials
- Extremely robust and reliable cable retention
- TOP True Outdoor Protection
- Lockable, single phase connector with Circuit Breaking Capability (16A resp. 20 A 250 VAC)
- Superior NEUTRIK quality standard
Locking cable connector for large power cords with outer diameters from 10–16 mm (0.39 – 0.63 inches) such as H07RN-F3G2.5 or SOOW 12/3, SOOW 14/3 and SJOOW 12/3. Certified according to EN/UL & CSA 60320-1.
Keyed for Power OUT, screw terminals, IP65, up to 16 A (USA: 20A)
The powerCON TRUE1 TOP is a lockable single-phase connector with breaking capacity (CBC) for outdoor applications.
- Product
- Title NAC3MX-W-TOP-L
- Connector series powerCON TRUE1
- Electrical
- Dieletric strength 2.8 kVac
- Insulation resistance > 0.1 GΩ
- Number of electronical contacts 2 + PE
- Rating USA
- UL 60320-1 & C22.2 No. 60320-1:19: 20 A 250 V AC
- Certified with cable types: - SOOW 12/3, SOOW 14/3, - SJOOW 12/3
- Mechanical
- Cable O.D.: 10 – 16 mm (0.39 – 0.63 inches)
- Lifetime: Typically 5’000 mating cycles
- Wire size (mm²): 2.5 mm²
- Wire size (AWG): 14 – 12 AWG
- Material
- Contact plating: 2 µm Ag
- Contacts: Bronze (CuSn0.2)
- Insert: Polyamide (PA 6.6 30 % GR)
- Locking element: ZuAl4Cu1
- Shell: Polyamide (PA 6.6 30 % GR)
- Strain relief: Polyacetal (POM)
- Environmental
- Temperature range: -30°C to +80°C
- Flammability: UL94 V-0
- Protection class: IP65
- UV resistance: F1 rated material withstands UV exposure
