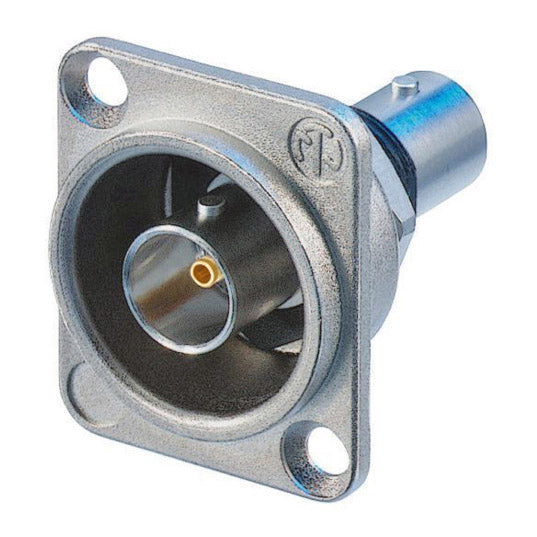

• Neutrik NBB75DFI Isolated BNC Chassis Connector
1 1

Neutrik NBB75DFI Isolated BNC Chassis Connector

Neutrik NBB75DFI Isolated BNC Chassis Connector

SoundPro Item: 59997 | Part Number: NBB75DFI

$24.54
$24.54 $24.54
Your Price Sold out
MSRP: $24.54 | MAP: $24.54

Usually ships in 5-7 business days

  • Gold plated cage type center contact
  • True 75Ω design meets HD requirements
  • Isolated panel mount (solves potential grounding problems and prevents common-mode influence with other connections conducted over the same panel ground potential)
  • Standard D-shape housing - provides flush mounting and protection from damage
  • Color coding possible
Log in or register for YOUR best price

Isolated BNC chassis connector, feedthrough in nickel D-shape housing. The Neutrik NBB75DFI Isolated BNC Chassis Connector offers a true 75Ω design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use and is in addition recessed and therefore well protected in a D-shape housing (audio industry standard).

View full details
  • Electrical
    • Signal Type: HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV
    • Contact Resistance: ≤ 3 mΩ (inner), ≤ 2 mΩ (outer)
    • Dielectric Strength: 1,5 kVdc
    • Impedance: 75Ω
    • Insulation Resistance: > 5 GΩ
    • Rated Voltage: <50 V
    • VSWR
      • ≤1.03/>37 dB up to 1 GHz
      • ≤1.05/>32 dB up to 2 GHz
      • ≤1.08/>28 dB up to 3 Ghz
  • Mechanical
    • Insertion Force: < 25 N
    • Lifetime: > 1000 mating cycles
    • Locking Device: bayonett
    • Mounting Direction: front mounting
    • Chassis Shape: D
  • Material
    • Contacts: brass (CuZn39Pb3), 0.2 µm AuCo (Center contact)
    • Insert: PTFE
    • Shell: polyacetal (POM) (Insulation Shell)
    • Shell Plating: Optalloy®
    • D-Shape Housing: zinc diecast (ZnAl4Cu1) gal Ni plating
  • Temperature Range-22°F to 176°F (-30°C to 80°C)
