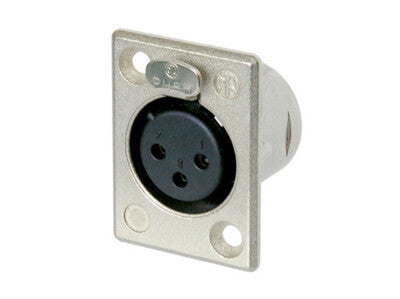

Neutrik NC3FP-1 Panel Mount Connector

Neutrik NC3FP-1 Panel Mount Connector

SoundPro Item: 60244 | Part Number: NC3FP-1

$5.65
$5.65 $5.65
Your Price Sold out
MSRP: $5.65 | MAP: $5.65

In stock and ready to ship

  • Smallest available hard wiring receptacles with large solder cups
  • Short female receptacle (Short 3-Pin Female XLR )
  • Compatible with switchcraft D*M, D*F; Cannon XLB2*31, XLB2*32
Log in or register for YOUR best price

3 pole female receptacle, solder contacts, Nickel housing, silver contacts

Smallest available traditional style metal panel mount connector with large solder cups for ease hard wiring.

View full details

Specifications

Electrical
Capacitance between contacts
≤ 4 pF
Contact resistance
≤ 5 mΩ
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 GΩ (initial)
Rated current per contact
16 A
Rated voltage
< 50 V
Capacitance between contacts
≤ 4 pF
Contact resistance
≤ 5 mΩ
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 GΩ (initial)
Rated current per contact
16 A
Rated voltage
< 50 V
Mechanical
Insertion force
≤ 20 N
Withdrawal force
≤ 20 N
Lifetime
> 1000 mating cycles
Wiresize
Wiring
Solder contacts
Locking device
Latch lock
Mounting direction
Front mounting
Chassis shape
P
Material
Contact plating
2 µm Ag over 2 µm Ni
Contacts
Bronze (CuSn6)
Insert
Polyamide (PA 6.6 30 % GR)
Locking element
Steel Ck67
Locking element plating
Nickel
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Nickel
Environmental
Flammability
UL 94 HB
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
