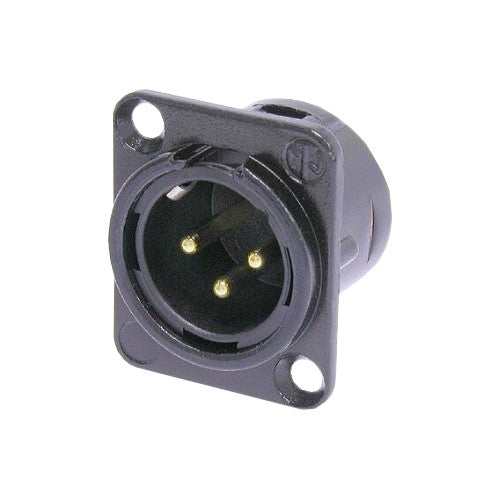

Neutrik NC3MD-L-B-1 XLR Male Cable Connector
Neutrik NC3MD-L-B-1 XLR Male Cable Connector
SoundPro Item: 60266 | Part Number: NC3MD-L-B-1
Usually ships in 5-7 business days
- Robust "D" metal shell
- Standardized D sized 24 mm panel cutout
- Solder cups on 3 - 7 pole version
3 pole male receptacle, solder cups, black metal housing, gold contacts. Universal D-size metal body XLR panel mount series. UL recognized component.
- Product
- Title: NC3MD-L-B-1
- Connection Type: XLR
- Gender: Male
- Electrical
- Capacitance between contacts: ≤ 4 pF
- Contact resistance: ≤ 5 mΩ
- Dielectric strength: 1,5 kVdc
- Insulation resistance: > 10 GΩ (initial)
- Rated current per contact: 16 A
- Rated voltage: < 50V
- Mechanical
- Insertion force: ≤ 20 N
- Withdrawal force: ≤ 20 N
- Lifetime: > 1000 mating cycles
- Wiresize
- Wiring: Solder contacts
- Locking device: Latch lock
- Mounting direction: Front mounting
- Chassis shape: D
- Material
- Contact plating: 0.2 µm Au hard alloy over 2 µm Ni
- Contacts: Brass (CuZn35Pb2)
- Insert: Polyamide (PA 6.6 30 % GR)
- Locking element: Steel Ck67
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell coating: Black KTL
- Environmental
- Approvals: UL
- Flammability: UL 94 HB
- Standard compliance: IEC 61076-2-103
- Protection class: IP 40
- Solderability: Complies with IEC 68-2-20
- Temperature range: -30°C to +80°C
