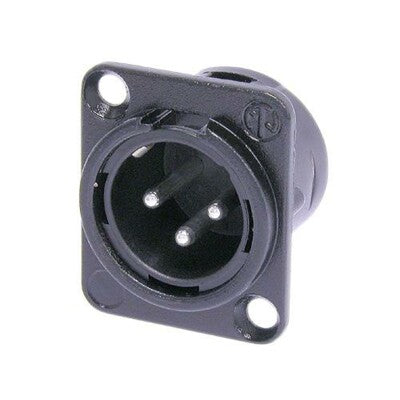

Neutrik NC3MD-L-BAG-1 3-Pin Male XLR D-Size Panel Connector

Neutrik NC3MD-L-BAG-1 3-Pin Male XLR D-Size Panel Connector

SoundPro Item: 202472 | Part Number: NC3MD-L-BAG-1

Pricing available upon request

Pricing available upon request

Your Price Sold out

In stock and ready to ship

  • Robust "D" metal shell
  • Standardized D sized 24 mm panel cutout
  • Solder cups on 3 - 7 pole version

3 pole male receptacle, solder cups, black metal housing, silver contacts. Universal D-size metal body XLR panel mount series. UL recognized component.

View full details

Specifications

GENERAL
Product Title
NC3MD-L-BAG-1
Connection Type
XLR
Gender
Male
ELECTRICAL
Capacitance Between Contacts
≤ 4 pF
Contact Resistance
≤ 5 mΩ
Dielectric Strength
1.5 kVdc
Insulation Resistance
> 10 GΩ (initial)
Rated Current per Contact
16 A
Rated Voltage
< 50 V
MECHANICAL
Insertion Force
≤ 20 N
Withdrawal Force
≤ 20 N
Lifetime
> 1000 mating cycles
Wiring
Solder contacts
Locking Device
Latch lock
Mounting Direction
Front mounting
Chassis Shape
D
MATERIAL
Contact Plating
2 µm Ag over 2 µm Ni
Contacts
Brass (CuZn35Pb2)
Insert
Polyamide (PA 6.6 30% GR)
Locking Element
Steel Ck67
Shell
Zinc diecast (ZnAl4Cu1)
Shell Coating
Black KTL
ENVIRONMENTAL
Approvals
UL
Flammability
UL 94 HB
Standard Compliance
IEC 61076-2-103
Protection Class
IP40
Solderability
Complies with IEC 68-2-20
Temperature Range
−30 °C to +80 °C
