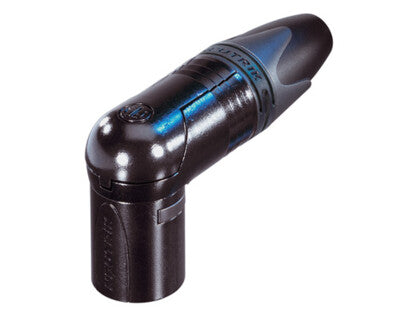

Neutrik NC3MRX-B Cable Connector, Black

Neutrik NC3MRX-B Cable Connector, Black

SoundPro Item: 139104 | Part Number: NC3MRX-B

$11.10
$12.40 $11.10
Your Price Sold out
MSRP: $12.40 | MAP: $11.10

In stock and ready to ship

  • Extra slim right-angle connector
  • 7 selectable cable outlet positions
  • Male connector with improved locking recess without "window", more stringent housing increases durability
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Coloured rings and boots available for coding or identification
  • Sleek and ergonomic design - valuable and handy
Log in or register for YOUR best price

3 pole right angle male cable connector, black metal housing, gold contacts

The RX Series is the right angle version of the XX cable connector series. The successor of the RC series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

View full details

Specifications

Electrical
Capacitance between contacts
≤ 4 pF
Contact resistance
≤ 3 mΩ
Dielectric strength
1,5 kVdc
Insulation resistance
> 2 GΩ (initial)
Rated current per contact
16 A
Rated voltage
< 50 V
Mechanical
Cable O.D.
3.5 - 8.0 mm
Insertion force
≤ 20 N
Withdrawal force
≤ 20 N
Lifetime
> 1000 mating cycles
Wiresize
max. 2.5 mm²
Wiresize
max. 14 AWG
Wiring
Solder contacts
Locking device
Latch lock
Material
Boot
Polyurethan
Contact plating
0.2 µm Au hard alloy over 2 µm Ni
Contacts
Bronze (CuSn8)
Insert
Polyamide (PA66)
Locking element
Zinc diecast (ZnAl4Cu1)
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Black chromium
Strain relief
Polyacetal (POM)
Environmental
Flammability
UL 94 V-0
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
