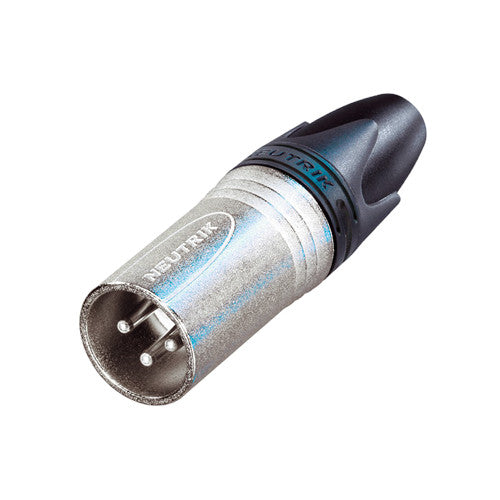

Neutrik NC3MXX Male 3-Pin XLR Connector

Neutrik NC3MXX Male 3-Pin XLR Connector

SoundPro Item: 132897 | Part Number: NC3MXX

$4.64
$4.64 $4.64
Your Price Sold out
MSRP: $4.64 | MAP: $4.64

In stock and ready to ship

  • Male connector with improved locking recess without "window", more stringent housing increases durability
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Colored rings and boots available for coding or identification
  • Sleek and ergonomic design - valuable and handy
  • Rugged zinc diecast shell, longlasting and dependable
  • Internal thread on shell is well proteced against any damage
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product
Log in or register for YOUR best price

The Neutrik NC3MXX Male 3-Pin XLR Connector is a 3 pole male cable connector with silver metal housing and silver contacts.

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

View full details
  • Title NC3MXX
  • Connection Type XLR
  • Gender Male
  • Electrical
    • Capacitance between contacts: ≤ 4 pF
    • Contact resistance: ≤ 3 mΩ
    • Dielectric strength: 1,5 kVdc
    • Insulation resistance: > 10 GΩ (initial)
    • Rated current per contact: 16 A
    • Rated voltage: < 50 V
  • Mechanical
    • Cable O.D.: 3.5 - 8.0 mm
    • Insertion force: ≤ 20 N
    • Withdrawal force: ≤ 20 N
    • Lifetime: > 1000 mating cycles
    • Wiresize: max. 2.5 mm²
    • Wiresize: max. 14 AWG
    • Wiring: Solder contacts
    • Locking device: Latch lock
  • Material
    • Boot: Polyurethan
    • Contact plating: 2 µm Ag
    • Contacts: Brass (CuZn39Pb3)
    • Insert: Polyamide (PA66)
    • Locking element: Zinc diecast (ZnAl4Cu1)
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell plating: Nickel
    • Strain relief: Polyacetal (POM)
  • Environmental
    • Flammability: UL 94 V-0
    • Standard compliance: IEC 61076-2-103
    • Protection class: IP 40
    • Solderability: Complies with IEC 68-2-20
    • Temperature range: -30 °C to +80 °C
