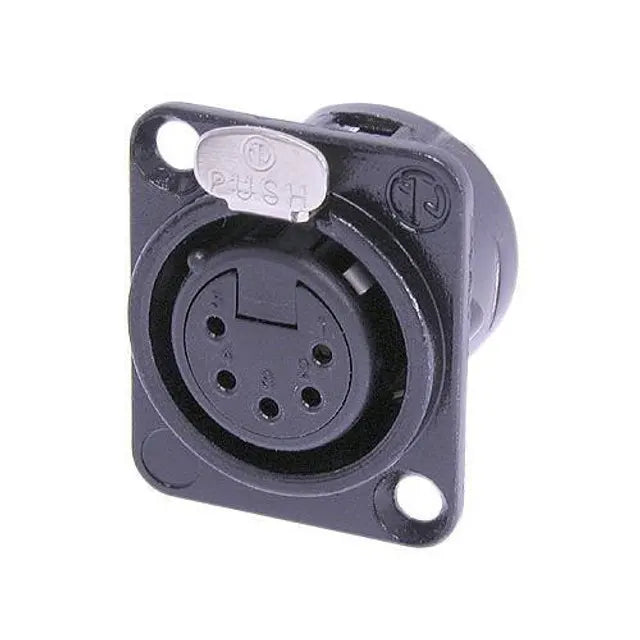

Neutrik NC5FD-L-BAG-1 5-Pin XLR Female Connector
Neutrik NC5FD-L-BAG-1 5-Pin XLR Female Connector
SoundPro Item: 60302 | Part Number: NC5FD-L-BAG-1
Usually ships in 5-7 business days
- Robust "D" metal shell
- Solder cups on 3 - 7 pole version
- Standardized D sized 24 mm panel cutout
The Neutrik NC5FD-L-BAG-1 5-Pin XLR Female Connector features a 5 pole female receptacle, solder cups, black metal housing, and silver contacts.
Universal D-size metal body XLR panel mount series. UL recognized component.
- Connection TypeXLR
- Genderfemale
- Electrical
- Capacitance Between Contacts: ≤ 7 pF
- Contact Resistance: ≤ 5 mΩ
- Dielectric Strength: 1,5 kVdc
- Insulation Resistance: > 10 GΩ (initial)
- Rated Current Per Contact: 7,5 A
- Rated Voltage: < 50V
- Mechanical
- Insertion Force: ≤ 20 N
- Withdrawal Force: ≤ 20 N
- Lifetime: > 1,000 mating cycles
- Wiresize: max. 1.0 mm² (18 AWG)
- Wiring: solder contacts
- Locking Device: latch lock
- Chassis Shape: D
- Material
- Contact Plating: 2 µm Ag over 2 µm Ni
- Contacts: Brass (CuZn39Pb3)
- Insert: polyamide (PA66)
- Locking Element: steel Ck67
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell Plating: black chromium
- Environmental
- Approvals: UL
- Flammability: UL 94 V-0
- Standard Compliance: IEC 61076-2-103
- Protection Class: IP 40
- Solderability: complies with IEC 68-2-20
- Temperature Range: -22°F to 176°F (-30°C to 80°C)
