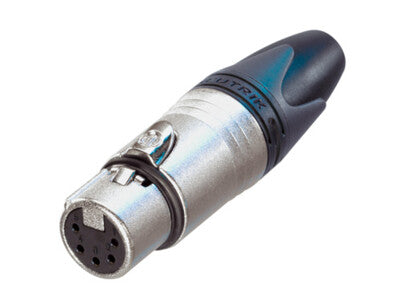

Neutrik NC5FXX-BAG Female XLR Cable Connector

Neutrik NC5FXX-BAG Female XLR Cable Connector

SoundPro Item: 60306 | Part Number: NC5FXX-BAG

$8.96
$10.00 $8.96
Your Price Sold out
MSRP: $10.00 | MAP: $8.96

In stock and ready to ship

  • Unique cage design of female contact for low contact resistance and high integrity
  • Female contact incorporates a solder barrier to prevent solder running into the contact mating area
  • Female connector with improved solid metal latch which is larger and easier to handle
  • Additional ground spring contacts for better shell ground continuity
  • Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
  • Boot with polyurethane gland gives high protection to cable bending stresses
  • Colored rings and boots available for coding or identification
  • Sleek and ergonomic design - valuable and handy
  • Rugged zinc diecast shell, longlasting and dependable
  • Internal thread on shell is well protected against any damage
Log in or register for YOUR best price

5 pole female cable connector with Nickel housing and silver contacts.

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

View full details

Specifications

Electrical
Capacitance between contacts
≤ 7 pF
Contact resistance
≤ 3 mΩ
Dielectric strength
1,5 kVdc
Insulation resistance
> 10 GΩ (initial)
Rated current per contact
7,5 A
Rated voltage
< 50 V
Mechanical
Cable O.D.
3.5 - 8.0 mm
Insertion force
≤ 20 N
Withdrawal force
≤ 20 N
Lifetime
> 1000 mating cycles
Wiresize
max. 1.0 mm²
Wiresize
max. 18 AWG
Wiring
Solder contacts
Locking device
Latch lock
Material
Boot
Polyurethan
Contact plating
2 µm Ag over 2 µm Ni
Contacts
Brass (CuZn39Pb3)
Insert
Polyamide (PA66)
Locking element
Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
Locking element plating
Nickel
Shell
Zinc diecast (ZnAl4Cu1)
Shell plating
Nickel
Strain relief
Polyacetal (POM)
Environmental
Flammability
UL 94 V-0
Standard compliance
IEC 61076-2-103
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
