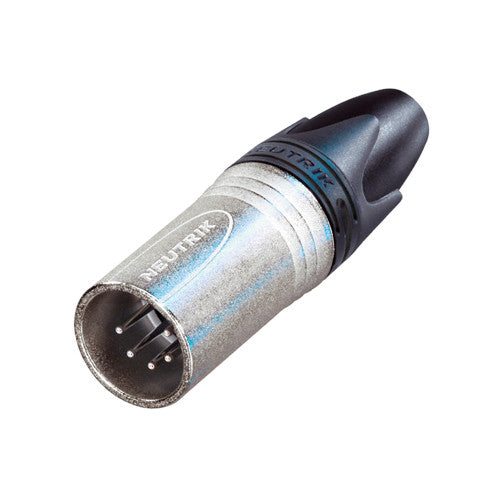

Neutrik NC5MXX 5-Pole Male Cable Connector
Neutrik NC5MXX 5-Pole Male Cable Connector
SoundPro Item: 60311 | Part Number: NC5MXX
In stock and ready to ship
- Male connector with improved locking recess without "window", more stringent housing increases durability
- Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Colored rings and boots available for coding or identification
- Sleek and ergonomic design - valuable and handy
- Rugged zinc diecast shell, longlasting and dependable
- Internal thread on shell is well protected against any damage
The NC5MXX from Neutrik is a 5 pole male cable connector with Nickel housing and silver contacts.The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
- TitleNC5MXX
- Connection TypeXLR
- Gendermale
- Electrical
- Capacitance between contacts: ≤ 7 pF
- Contact resistance: ≤ 3 mΩ
- Dielectric strength: 1,5 kVdc
- Insulation resistance: > 10 GΩ (initial)
- Rated current per contact: 7,5 A
- Rated voltage: <50V
- Mechanical
- Cable O.D.: 3.5 - 8.0 mm
- Insertion force: ≤ 20 N
- Withdrawal force: ≤ 20 N
- Lifetime: > 1000 mating cycles
- Wiresize: max. 1.0 mm²
- Wiresize: max. 18 AWG
- Wiring: Solder contacts
- Locking device: Latch lock
- Material
- Boot: Polyurethan
- Contact plating: 2 µm Ag over 2 µm Ni
- Contacts: Brass (CuZn39Pb3)
- Insert: Polyamide (PA 66)
- Locking element: Zinc diecast (ZnAl4Cu1)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Nickel
- Strain relief: Polyacetal (POM)
- Environmental
- Flammability: UL 94 V-0
- Standard compliance: IEC 61076-2-103
- Protection class: IP 40
- Solderability: Complies with IEC 68-2-20
- Temperature range: -30 °C to +80 °C
