• Neutrik NE8FDP etherCON Locking RJ45 Connector
1 1

Neutrik NE8FDP etherCON Locking RJ45 Connector

Neutrik NE8FDP etherCON Locking RJ45 Connector

SoundPro Item: 60375 | Part Number: NE8FDP

$29.82
$29.82 $29.82
Your Price Sold out
MSRP: $29.82 | MAP: $29.82

Usually ships in 5-7 business days

  • Accommodates NE8MC* or any standard RJ45 plug
  • Approved latch lock system
  • Mountable from the front or rear of the panel
  • Complies with Cat 5e according to TIA / EIA 568B and ISO / IEC 11801 standard
Log in or register for YOUR best price

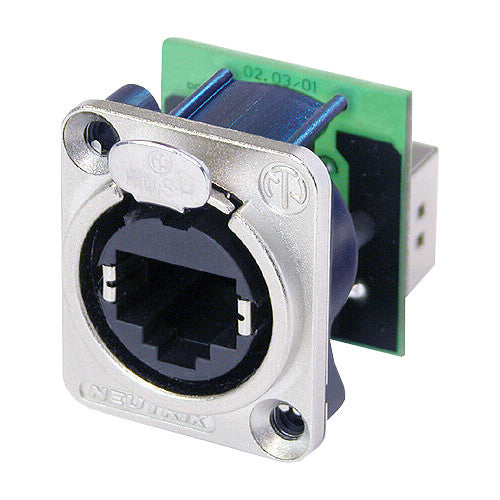

The NE8FDP from Neutrik is a RJ45 feedthrough receptacle, D-shape metal flange with the latch lock, mounting screws included.

The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry. The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market.

View full details
  • Product
    • Title: NE8FDP
    • Gender: Female
  • Electrical
    • Contact resistance: < 50 mΩ
    • Dielectric strength: 1 kVdc
    • Frequency Range: 1 - 100 MHz
    • Insulation resistance: > 0.5 GΩ
    • Rated current per contact: 1,5 A
    • Rated voltage: ≤ 57V
    • Transmission performance
      • CAT5e acc. to TIA/EIA
      • 568A/B component specifications
      • CAT5e acc. to ISO/IEC
      • 11801 component specifications
    • Power over Ethernet: PoE type 4 class 8 (100W) acc. IEEE 802.3bt
  • Mechanical
    • Insertion force: ≤ 20 N
    • Withdrawal force: ≤ 20 N
    • Lifetime: > 1000 mating cycles
    • Panel thickness: max. 4 mm 0.16'
    • Wiresize:
    • Wiring: Feedthrough
    • Locking device: Latch lock
    • Chassis shape: D
  • Material
    • Contact plating: 0.2 µm Au over Ni plating
    • Contacts: Bronze (CuSn8)
    • Insert: PBTP 15 % GR
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell plating: Nickel
  • Environmental
    • Flammability: UL 94 V-0
    • Temperature range: -30°C to +80°C
    • Standard compliance
      • ISO/IEC 11801-1 Ed. 1.0 (2017-11)
      • IEC 60603-7-3 Ed.2.0 (2010-04)
      • IEC 60512-99-002 Ed.2.0 (2022-01)
      • IEC 60512-9-3 (2011-06)
