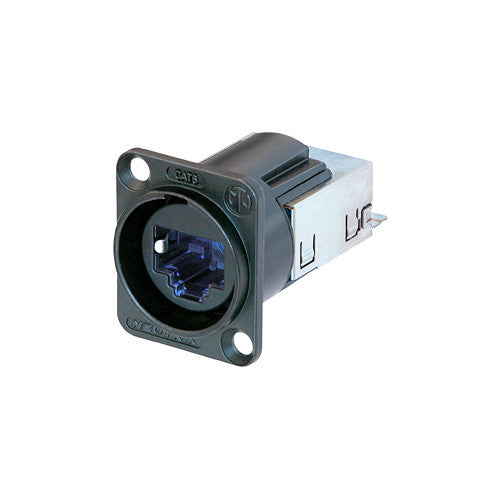

Neutrik NE8FDY-C6-B EtherCON CAT6 Connector

Neutrik NE8FDY-C6-B EtherCON CAT6 Connector

SoundPro Item: 37092 | Part Number: NE8FDY-C6-B

$56.66
$56.66 $56.66
Your Price Sold out
MSRP: $56.66 | MAP: $56.66

Usually ships in 5-7 business days

  • CAT6 compliant - data rate up to 10 GBit/s
  • CAT6 performance - fast data transmission and high bandwidth applications
  • CAT6 specifications according TIA / EIA 568B, ISO / IEC 11801, EN 50173
  • IP65 - Dust and waterproof in mated condition
  • Shielded system - high noise immunity and EMI protection
  • Push Pull mating - secure and proven locking system
  • Ground lead jumper on panel connector with selectable grounding option
  • Gas-tight IDC termination without tool
Log in or register for YOUR best price

The etherCON CAT6 D-shape panel connectors with black metal housing and secure latching system offer a tool-free and gas-tight IDC termination, which makes cable assembly easy and fast.

Attention! Intermates ONLY with NE8MC6-MO, NKE6S-* and generic RJ45 connectors. Not compatible with the etherCON cable connector carriers NE8MC* and the CAT6A cable connectors NE8MX6*.

View full details
  • Product
    • Title: NE8FDY-C6-B
    • Gender: female
  • Electrical
    • Contact resistance < 10 mΩ
    • Dielectric strength: 1 kVdc
    • Frequencyrange: 1 - 250 MHz
    • Insulation resistance: > 0.5 GΩ
    • Rated current per contact: 1,5 A
    • Rated voltage: < 50 V
    • Transmission performance: CAT 6
    • Standard compliance: TIA/EIA 586B, IEC11801
  • Mechanical
    • Insertion force: ≤ 40 N
    • Withdrawal force: ≤ 20 N
    • Lifetime: > 1000 mating cycles
    • Panel thickness: max. 3 mm , 0.12''
    • Wiresize (solid): 0.205 - 0.324 mm² (AWG 24 – AWG 22)
    • Wiresize (stranded): 0.141 – 0.355 mm² (AWG 26/7 – AWG 22/7)
    • Locking device; Push-Pull
    • Chassis shape: D
  • Material
    • Contact plating: 0.7 µm Au over 1.2 µm Ni plating
    • Contacts: Bronze (CuSn8)
    • Insert: Polycarbonate
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell plating: Black chromium
    • Strain relief: Stainless steel
  • Environmental
    • Flammability : UL 94 HB
    • Protection class: IP 65
    • Temperature range: -10 °C to +60 °C
