Neutrik NE8MC6-MO etherCON CAT6 Cable Connector

Neutrik NE8MC6-MO etherCON CAT6 Cable Connector

SoundPro Item: 37093 | Part Number: NE8MC6-MO

$23.82
$23.82 $23.82
Your Price Sold out
MSRP: $23.82 | MAP: $23.82

Usually ships in 5-7 business days

  • Complies with CAT6 specifications according to TIA / EIA 568B, ISO / IEC 11801, EN 50173CAT6 compliant - data rate up to 10 GBit/s
  • IP65 - Dust and waterproof in mated condition
  • Shielded system - high noise immunity and EMI protection
  • Push Pull mating - secure and proven locking system
  • Unique Neutrik chuck-type strain relief
  • Color coding with accessory BXX-* - to guarantee IP65 protection, boot has to be mounted with metal ring of NE8MC6-MO
Log in or register for YOUR best price

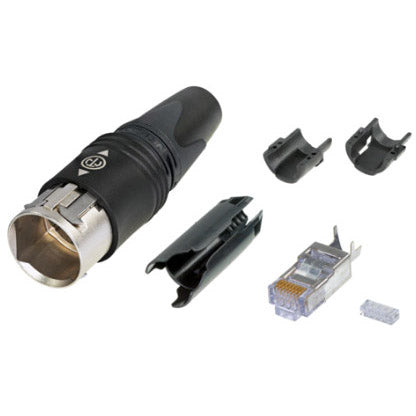

The set NE8MC6-MO includes a cable plug carrier offering a robust metal shell with Push-Pull locking system, proven Neutrik chuck-type strain relief and a CAT6 RJ45 plug. The set can accommodate STP und UTP cables with O.D. of 5.5 to 6.5mm and gauge of AWG 22 to 28 solid or stranded wire. This self-termination version is water-protected according to IP65.

Attention! Intermates ONLY with NE8FDY-C6* Cat 6 receptacles. Not compatible with CAT5 and CAT6A chassis connectors.

View full details
  • Product
    • Title: NE8MC6-MO
    • Connection Type: etherCON
    • Gender: Male
  • Mechanical
    • Cable O.D.: 5.5 - 6.5 mm
    • Insertion force: ≤ 40 N
    • Withdrawal force: ≤ 20 N
    • Lifetime: > 1000 mating cycles
    • Wiresize:
    • Wiresize: 28 - 22 AWG
    • Locking device: Push-Pull
  • Material
    • Boot: Polyurethan
    • Bushing: Polyamide (PA 6 15 % GR)
    • Contact plating: 0.7 µm Au over 1.2 µm Ni plating
    • Contacts: Bronze (CuSn8)
    • Insert: Polyamdie (PA 6.6 30 % GR)
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell plating: Nickel
    • Strain relief: Polyacetal (POM)
    • CAT6 Plug: Molex Part Nr. 44915-0021
  • Environmental
    • Flammability: UL 94 HB
    • Standard compliance: CAT6, Class E acc. TIA/EIA 586B, IEC11801, EN 50173
    • Protection class: IP 65
    • Temperature range: -10°C bis +60°C
