Neutrik NJ3FP6C 1/4-Inch TRS Locking Connector
Neutrik NJ3FP6C 1/4-Inch TRS Locking Connector
SoundPro Item: 60599 | Part Number: NJ3FP6CP
Usually ships in 5-7 business days
- Securely locking chassis jack
- Mates with all mono and stereo plugs specified acc. EIA RS-453 (A-gauge)
- Selectable grounding options: standard isolated, to get a sleeve/panel connection red isolator on lateral screw must be removed
- Dimensionally compatible with D Series (31 x 26 mm)
- Solder terminals

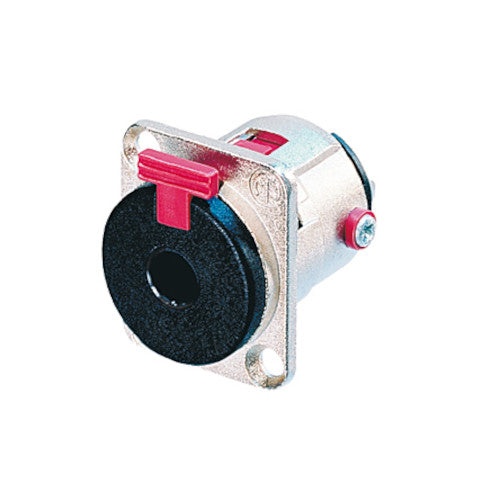

The Neutrik NJ3FP6C is a 1/4-Inch TRS locking phone jack, D-size shell, nickel metal housing and silver contacts. The 3 pole phone jack panel mount version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab. Standard D size front panel appearance. Selectable grounding options.
- Electrical
- Contact Resistance: < 6 mΩ (initial)
- Dielectric Strength: 1 kVdc
- Insulation Resistance: ≥ 1 GΩ @ 500 V dc
- Rated Current Per Contact: 10 A
- Mechanical
- Insertion Force: < 30 N
- Withdrawal Force: < 20 N
- Lifetime: > 1000 mating cycles
- Locking Force: > 80 N
- Wiresize: 1 mm²
- Wiresize: 18 AWG
- Wiring: solder contacts
- Locking Device: latch lock
- Mounting Direction: front mounting
- Chassis Shape: D
- Material
- Contact Plating: 2 µm Ag
- Contacts: copper alloy (CuSn6) (Ground)
- Insert: polyamide (PA 6.6 30 % GR) UL94 V-0
- Shell: zinc diecast (ZnAl4Cu1)
- Shell Plating: nickel
- Strain Relief: polyacetal (POM)
- Environmental
- Standard Compliance: EIA RS 453, IEC 60603-11
- Solderability: complies with IEC 60068-2-20
- Temperature Range: -13°F to 158°F (-25°C to 70°C)
