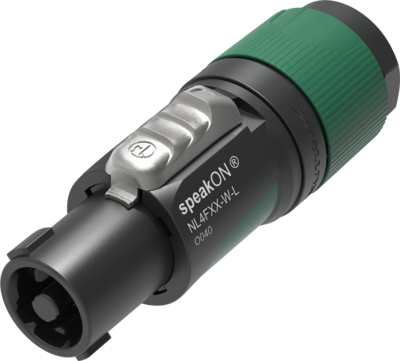

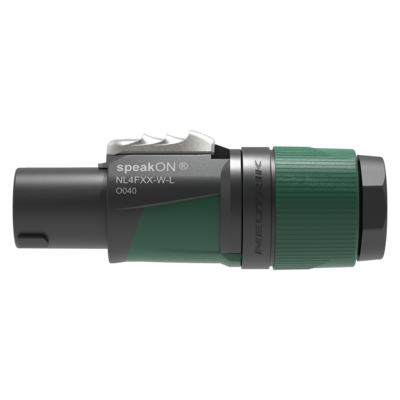

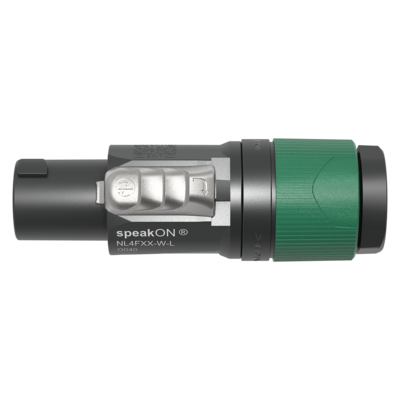

Neutrik NL4FXX-W-L SpeakOn Cable Connector

Neutrik NL4FXX-W-L SpeakOn Cable Connector

SoundPro Item: 147090 | Part Number: NL4FXX-W-L

$5.88
$6.57 $5.88
Your Price Sold out
MSRP: $6.57 | MAP: $5.88

Usually ships in 5-7 business days

  • Up to 37 A rms current rating
  • Unique Neutrik locking bushing and strain relief for cable diameters 10 mm to 16 mm
  • IEC 61984, UL 1977 and CSA C22.2 No.182.3 certified
  • Superior NEUTRIK quality standard, extremely robust and reliable
  • Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
  • Easy and reliable twist lock system
  • Ergonomic design with slip-proof two-component molded housing
  • Improved kink protection by two-component bushing
Log in or register for YOUR best price

4 pole speakON cable connector, screw terminal assembly, chuck type strain relief for cable diameters 10 to 16 mm

speakON connectors are the industry-standard for loudspeaker connections. This product series offers extremely reliable and robust cable connectors with a proven twist lock system. speakON cable connectors feature solid contacts with screw-type terminals including a stranded wire protection.

View full details

Specifications

Electrical
Contact resistance
≤ 2 mΩ
Dielectric strength
2.8 kVac
Insulation resistance
> 10 GΩ (initially)
Number of electrical contacts
4
Rating Europe
IEC 61984: 37 A 250 V AC
Rating USA
UL1977: 35 A 250 V AC
Rating Canada
CSA C22.2 No.182.3: 24 A 250 V AC
Attention
This product is strictly not intended for use as an AC or DC power supply connector!
CAUTION: NOT FOR INTERRUPTING CURRENT
Mechanical
Cable O.D.
10 - 16 mm
Lifetime
typically 5’000 mating cycles
Wiresize (mm²)
1.5 – 4 mm²
Wiresize (AWG)
17 – 11 AWG
Locking device
Twist lock
Termination
screw type terminals
Material
Contact plating
Ag
Contacts
Copper Alloy
Insert
Polyamide (PA6.6)
Locking element
Zinc diecast
Shell
Polyamide (PA6) / TPE
Strain relief
Polyketone
Bushing
Polypropylene / TPE
Environmental
Temperature range
-33 °C to +80 °C
Protection class
IP20
Flammability acc. to UL94
V-0
