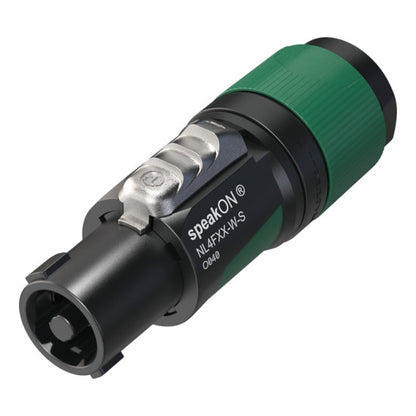

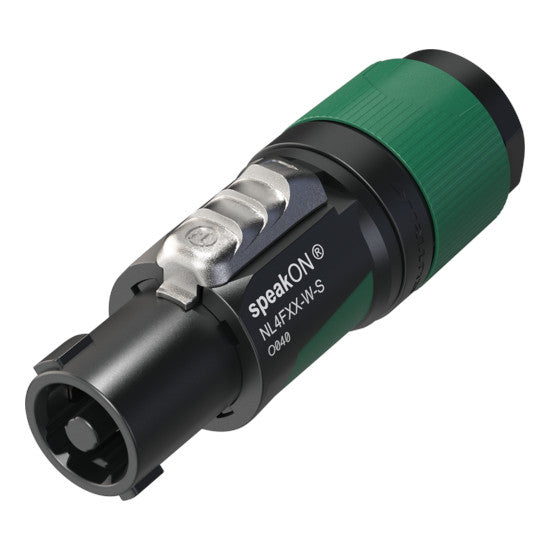

• Neutrik NL4FXX-W-S 4-Pole speakON Cable Connector

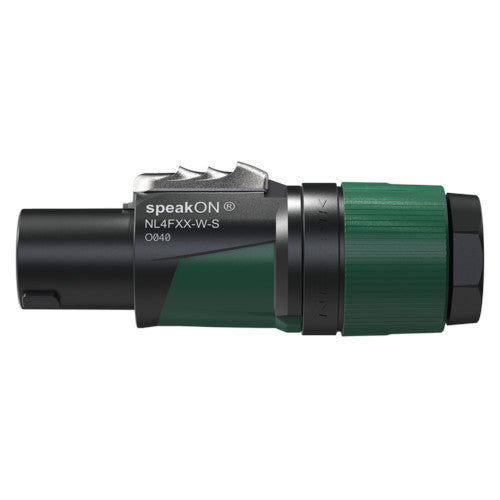

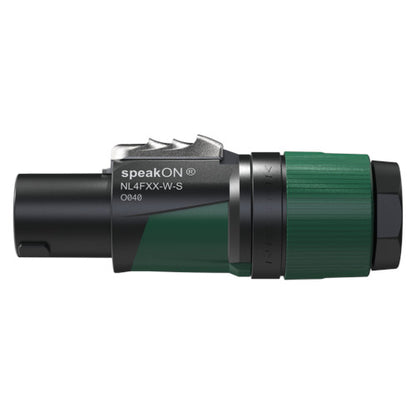

  • Neutrik NL4FXX-W-S 4-Pole speakON Cable Connector side

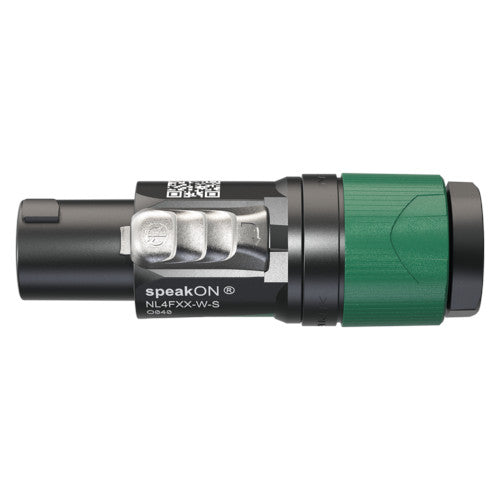

  • Neutrik NL4FXX-W-S 4-Pole speakON Cable Connector top
1 3

Neutrik NL4FXX-W-S 4-Pole speakON Cable Connector

Neutrik NL4FXX-W-S 4-Pole speakON Cable Connector

SoundPro Item: 142105 | Part Number: NL4FXX-W-S

$10.45
$10.45 $10.45
Your Price Sold out
MSRP: $10.45 | MAP: $10.45

In stock and ready to ship

  • Up to 37 A rms current rating
  • Unique Neutrik locking bushing and strain relief for cable diameters 6 mm to 12 mm
  • IEC 61984 certified, thus accepted as a component of equipment acc. to IEC 62368-1
  • Superior NEUTRIK quality standard, extremely robust and reliable
  • Easy to assemble because the strain relief locks with the insert mechanically and aligns with the housing
  • Easy and reliable twist lock system
  • Ergonomic design with slip-proof two-component molded housing
  • Improved kink protection by two-component bushing
Log in or register for YOUR best price

The Neutrik NL4FXX-W-S 4-Pole speakON Cable Connector features a screw terminal assembly and chuck type strain relief for cable diameters 6 to 12 mm.

speakON connectors are the industry-standard for loudspeaker connections. This product series offers extremely reliable and robust cable connectors with a proven twist lock system. speakON cable connectors feature solid contacts with screw-type terminals including a stranded wire protection

View full details
  • Product
    • Title: NL4FXX-W-S
    • Connector series: speakON 4 pole
  • Electrical
    • Contact resistance: ≤ 2 mΩ
    • Dielectric strength: 2.8 kVac
    • Insulation resistance: > 10 GΩ (initially)
    • Number of electrical contacts: 4
    • Rating Europe: IEC 61984: 37 A 250 V AC
    • Rating USA: UL1977: 35 A 250 V AC
    • Rating Canada: CSA C22.2 No.182.3: 24 A 250 V AC
    • ATTENTION: This product is strictly not intended for use as an AC mains or power supply connector!
    • CAUTION: NOT FOR INTERRUPTING CURRENT
  • Mechanical
    • Cable O.D.: 6 – 12 mm
    • Lifetime: typically 5’000 mating cycles
    • Wiresize (mm²): 1.5 – 4 mm²
    • Wiresize (AWG): 17 – 11 AWG
    • Locking device: Twist lock
    • Termination: Screw type terminals
  • Material
    • Contact plating: Ag
    • Contacts: Copper Alloy
    • Insert: Polyamide (PA6.6)
    • Locking element: Zinc diecast
    • Shell: Polyamide (PA6) / TPE
    • Strain relief: Polyketone
    • Bushing: Polypropylene / TPE
  • Environmental
    • Temperature range: -33 °C to +80 °C
    • Protection class: IP20
    • Flammability: acc. to UL94 V-0
