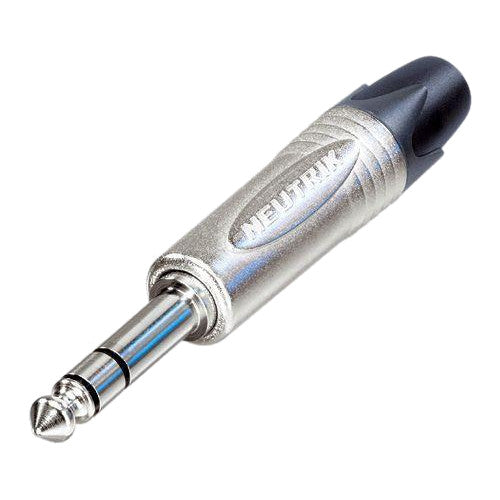

Neutrik NP3X 1/4-Inch Phone Plug
Neutrik NP3X 1/4-Inch Phone Plug
SoundPro Item: 138890 | Part Number: NP3X.POLY
In stock and ready to ship
- Extra slim 1/4" plug for highest packing density
- Robust diecast shell in stylish design
- Proven chuck type strain relief for reliable cable retention
- Sleek design for best handling convenience
- Precision machined one-piece contacts - avoid hook up of tip contact
3 pole 1/4" professional phone plug, nickel contacts, nickel shell.
The Neutrik NP3X 1/4-Inch Phone Plug improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88 mm jack pitch).
The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip.
The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.
- Title NP3X
- Connection Type Plug
- Gender Male
- Electrical
- Contact resistance: depends on mating connector mΩ
- Dielectric strength: 1 kVdc
- Insulation resistance: > 2 GΩ (initial)
- Rated current per contact: depends on mating connector A
- Rated voltage: < 50 V
- Mechanical
- Cable O.D.: 4 - 7 mm
- Lifetime: > 1000 mating cycles
- Wiresize: 1 mm²
- Wiresize: 18 AWG
- Wiring: Solder contacts
- Material
- Bushing: Polyacetal (POM) + PU
- Contact plating: 2 µm Ni (Su)
- Contacts: Brass (CuZn39Pb3)
- Insert: Polyamide (PA 6.6 30 % GR)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Nickel
- Strain relief: Polyacetal (POM)
- Environmental
- Standard compliance: IEC 60603-11 / EIA RS-453
- Solderability: Complies with IEC 68-2-20
- Temperature range: -20 °C to +65 °C
