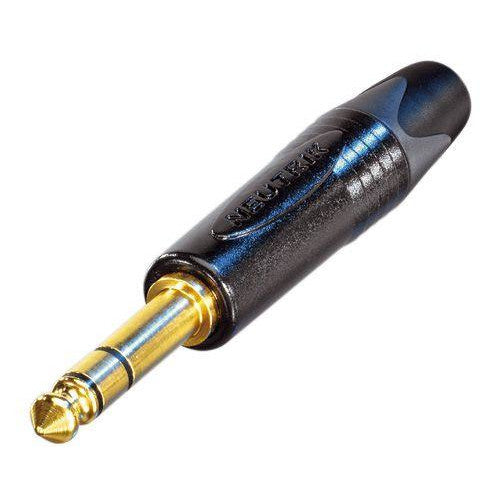

Neutrik NP3X-B 1/4-Inch Phone Plug
Neutrik NP3X-B 1/4-Inch Phone Plug
SoundPro Item: 61064 | Part Number: NP3X-B
Usually ships in 5-7 business days
- Extra slim 1/4" plug for highest packing density
- Robust diecast shell in stylish design
- Proven chuck type strain relief for reliable cable retention
- Sleek design for best handling convenience
- Precision machined one-piece contacts - avoid hook up of tip contact
3 pole 1/4" professional phone plug, black shell. The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88 mm jack pitch).
The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip.
The Neutrik NP3X-B 1/4-Inch Phone Plug serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.
- Electrical
- Contact Resistance: depends on mating connector mΩ
- Dielectric Strength: 1 kVdc
- Insulation Resistance: > 2 GΩ (initial)
- Rated Current Per Contact: depends on mating connector A
- Rated Voltage: < 50 V
- Mechanical
- Cable O.D.: 4-7mm
- Lifetime: > 1000 mating cycles
- Wiresize: 1 mm²
- Wiresize: 18 AWG
- Wiring: solder contacts
- Material
- Bushing: polyacetal (POM) + PU
- Contact Plating: 0.2 µm Au
- Contacts: brass (CuZn39Pb3)
- Insert: polyamide (PA 6.6 30 % GR)
- Shell: zinc diecast (ZnAl4Cu1)
- Shell Plating: black chromium
- Strain Relief: polyacetal (POM)
- Environmental
- Standard Compliance: IEC 60603-11 / EIA RS-453
- Solderability: complies with IEC 68-2-20
- Temperature Range: -4°F to 149°F (-20°C to 65°C)
