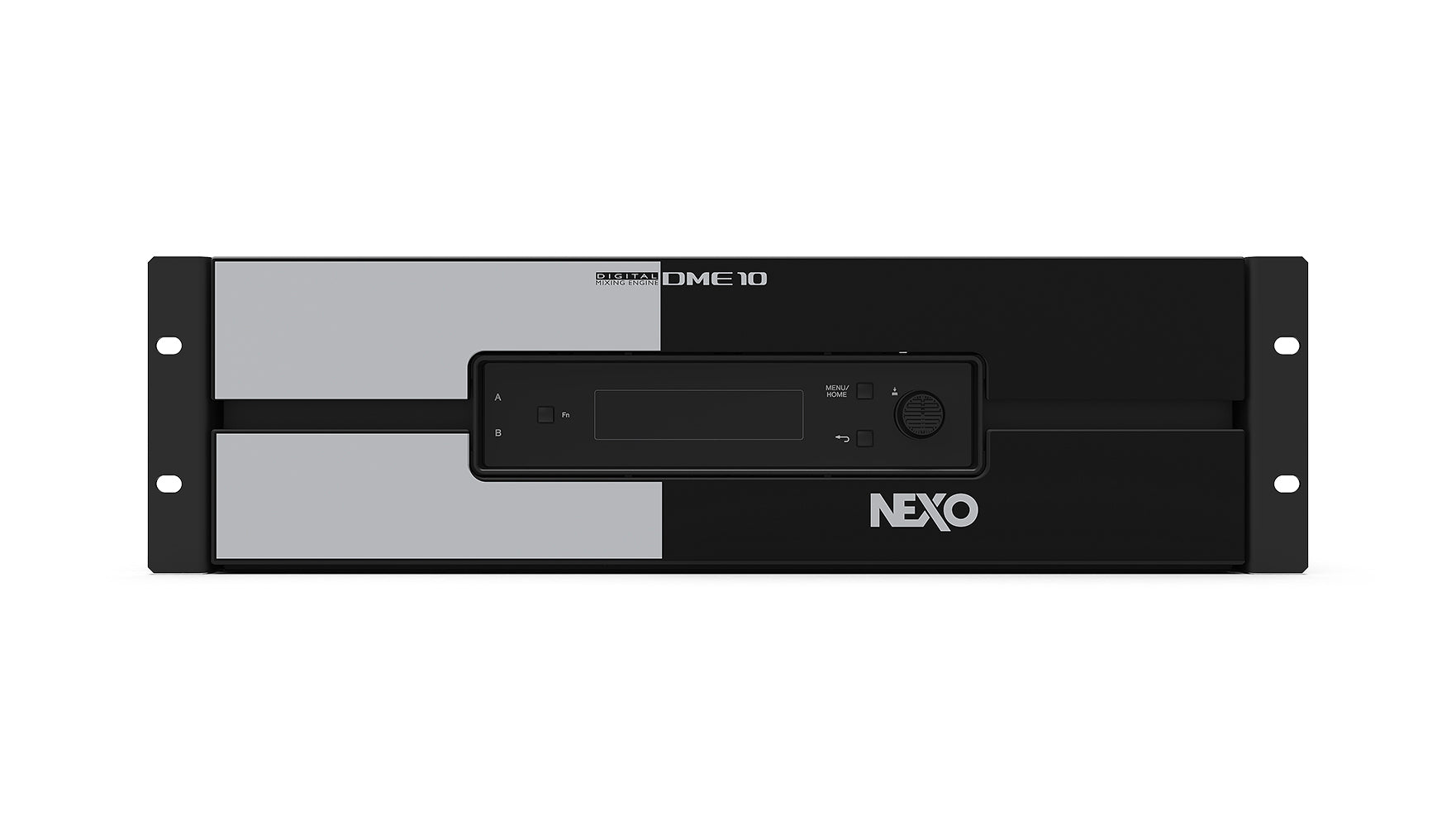

Nexo DME10 Audio Processor

Nexo DME10 Audio Processor

SoundPro Item: 151333 | Part Number: DME10

$33,500.00
$33,500.00 $33,500.00
Your Price Sold out
MSRP: $33,500.00 | MAP: $33,500.00

Usually ships in 5-7 business days

  • Up to 128 object inputs / 64 speaker outputs AFC Image object-based mixing
  • 256x256 Matrix Mixer at 96kHz as standard
  • Dual Redundant power supplies for mission critical applications
  • Easy system design, setup, and operation via ProVisionaire Design software
  • Built-in processing solutions include - Dugan Automixer, Acoustic Echo Canceller, Delay Matrix, and FIR speaker processing
Log in or register for YOUR best price

Built on the tried and tested Yamaha DME platform, the NEXO DME10 goes a step further than any other immersive processor by unlocking its raw processing power to users and allowing near limitless customization. A 256 x 256 channel open architecture processor , DME10 ships with 32 object inputs / 16 speaker outputs included as standard, expandable in blocks of 32 x 16, 64 x 32 and 128 x 64 via a flexible licensing structure. Need the full channel count for a show today but two completely independent 64 channel immersive processors tomorrow? You can do that .With superior musical expression and sound field design, DME10 features 96kHz processing and is equipped with a wide range of DSP components that can be freely selected, connected, and configured, allowing for flexible system construction. And such is the processing power of the DME10, separate speaker system and immersive processors are no longer required. It's all inside DME10.Need more than the 8 channels of parametric EQ per channel or some more dynamics at a specific point in the signal chain of your immersive design? No problem. Running 128 x 64 immersive processing only uses around 50% of the DME10's processing resource.

View full details

Specifications

Internal processing
44.1/48/88.2/96 kHz
Latency
2.7 msec (at Rio-D2 Analog In/Out with Dante latency at 0.25msec, Dante through out on DME10)
Memory
Parameter sets: 1000, Snapshots:10000
Cooling
Constant-speed fan x1
NC value
NC20 (1m from front panel)
Air flow
Front to Rear
Dante Interface channel count
256 input, 256 output, redundant
Dante Interface sampling frequency
44.1/48/88.2/96 kHz
Dante Interface bit depth
24/32 Bit
USB audio channel count
8 input, 8 output with SRC
USB audio sampling frequency
44.1/48/88.2/96 kHz
Connectors / Dante
etherCON x2 (PRIMARY / SECONDARY) 1000Base-T
Connectors / DCP
RJ45 x 1
Connectors / USB TO HOST
USB 2.0 Type-C connector for USB audio
Connectors / USB TO DEVICE
USB 2.0 Standard-A Connector for Save/Load
Connectors / Network
RJ45 x 1, 100Base-TX
Connectors / GPIO
Euroblock 16 terminals (mini) x2 (GPI x16, GPO x8, +5V power supply x4)
Connectors / MIDI
DIN 5 pin x2 (IN, OUT)
Connectors / AC IN
AC inlet (IEC, V-Lock) x 2
Memory device specifications / Compatible formats
File format: FAT32, FAT16, FAT12
Memory device specifications / Supported capacity
Maximum media capacity: SDHC: 32 GB, SD: 2 GB
Memory device specifications / Maximum file size
FAT12: 32MB, FAT16: 2GB, FAT32:4GB
User Interface / Front panel
Rotary encoder and buttons for GUI control, Operation lock feature (Full lock or Lock except volume and mute)
User Interface / Display
224 x 48 pixels, mono color with brightness adjustment
Power requirements
100V-240V 50Hz/60Hz
Power consumption
100W
Heat dissipation
86.3kcal/h
Operating temperature
0°C to +40°C
Storage temperature
-20°C to +60°C
Dimensions (W x H x D)
480 x 132 x 363 mm (3U) (18.90 x 5.20 x 14.29 inch)
Weight
9.5 kg (20.94 lbs)
Packaged weight
13 kg (28.66 lbs)
Finish
Front panel: Aluminum (Silver and black) Munsell approximate value N9 (Silver), N2.5 (Black) Handle: Metal (black paint)
RAL approximate value
RAL 860-1 (Silver) + RAL790-4 (Black)
Battery
CR2450
Included accessories
Setup Guide, Two Euroblock plugs (16-pin, 3.50 mm pitch), Two power cords, One cable hook
Options
DCP1V4S-US/EU, DCP4S-US/EU, DCP4V4S-US/EU, DCH8
Expansion license
NX-AFC-I
